Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 2 illustrations

Illustrations

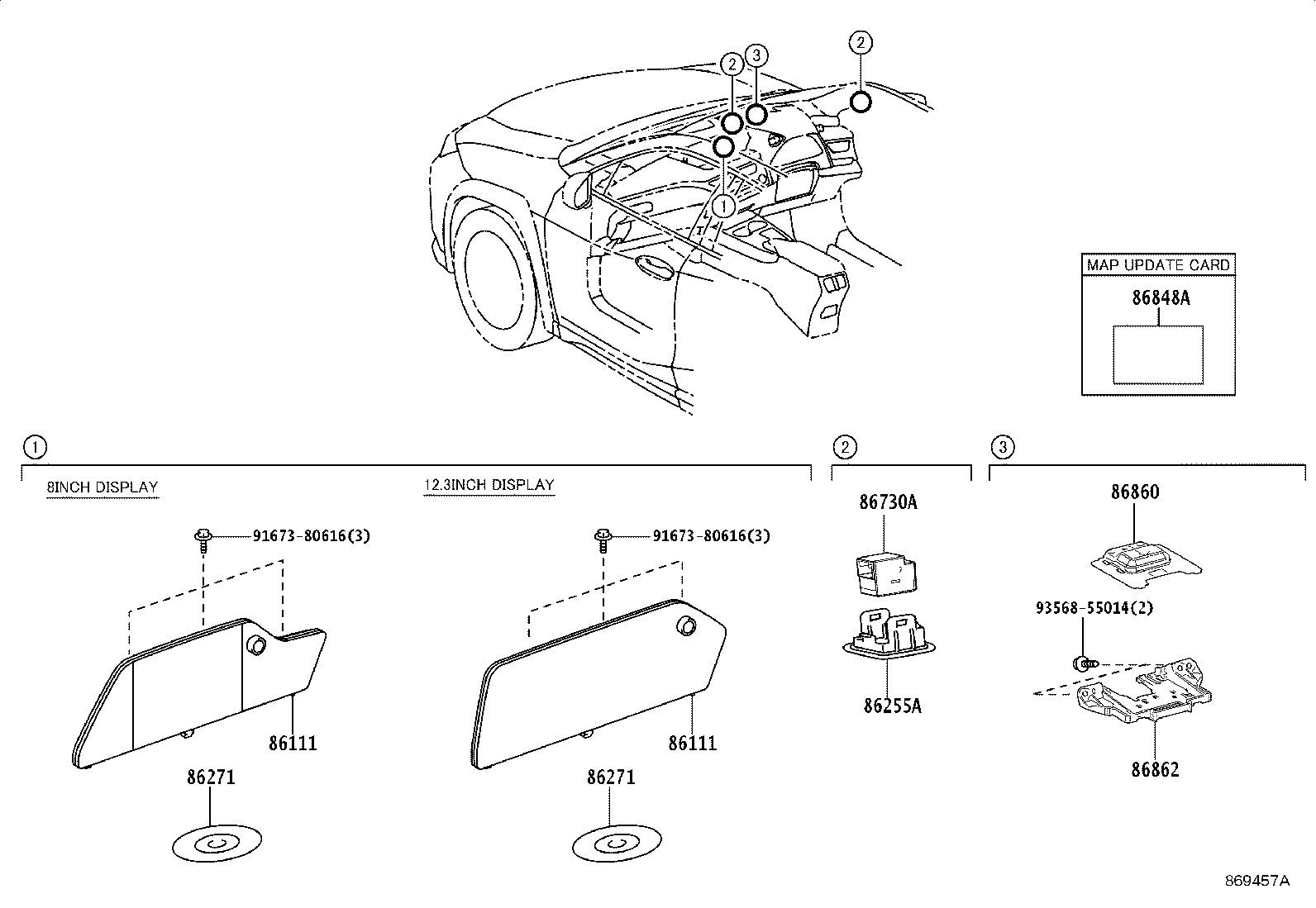

Figure 869456A 869456A 2022-07 → — Figure 869457A 869457A 2022-07 → —

Part groups

PNCDescription
86111 Multi-display
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
