Factory parts data · Europe

Toyota Lexus UX300E

2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

9 part groups · 2 illustrations

Illustrations

Figure 091010A

091010A 2020-04 → —

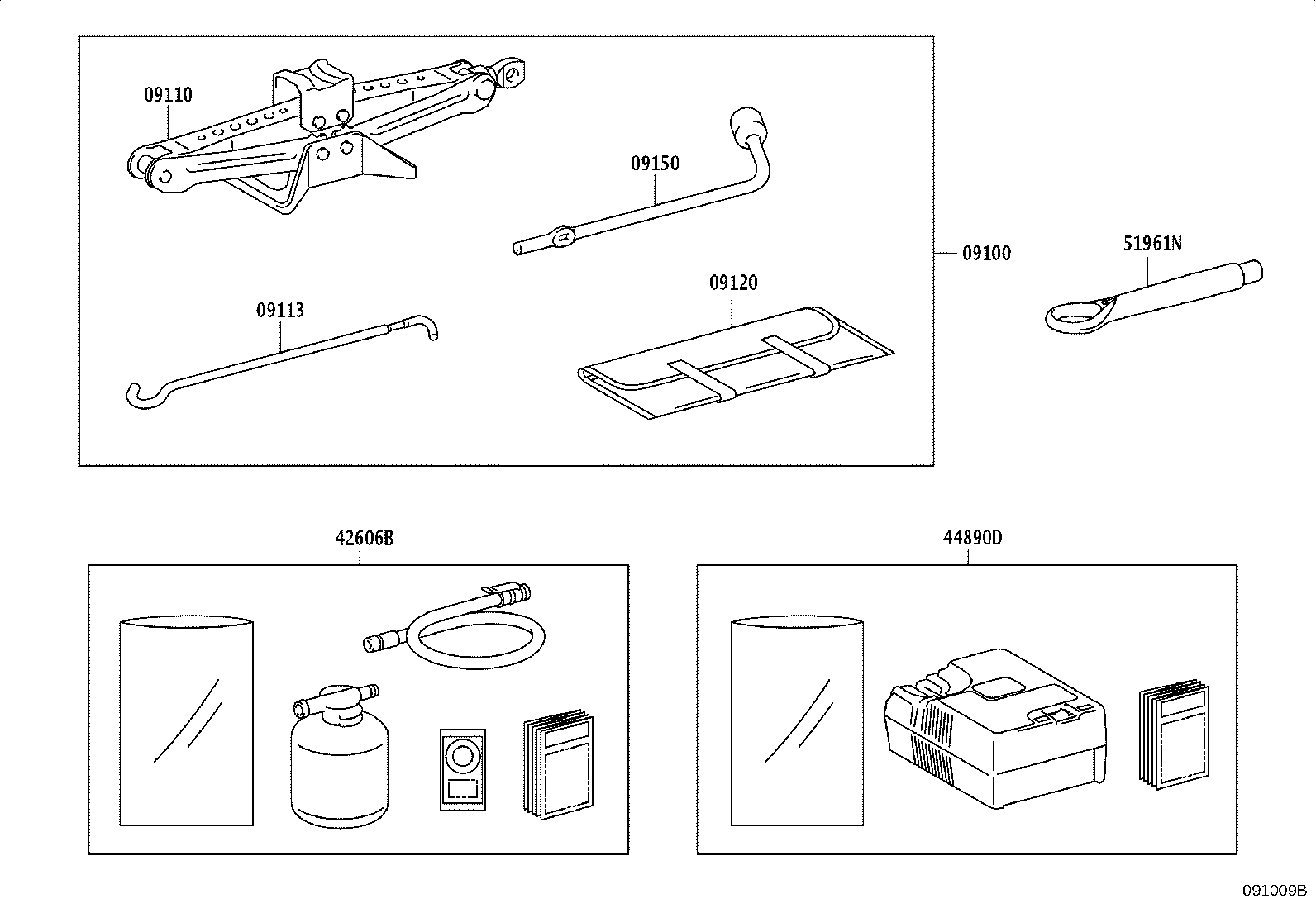

Figure 091009B

091009B 2020-08 → —

Part groups

PNC	Description
09100	Tool Set, Standard
09110	Jack Assy
09113	Handle, Jack
09120	Bag, Tool
09150	Wrench, Hub Nut Box
42606B	Repair Kit, Tubeless Tire
44890D	Compressor Assy, Air
51961N	Hook, Transport
81604	Reflector Set, Triangle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
