Brake Master Cylinder

9 part groups · 2 illustrations

Illustrations

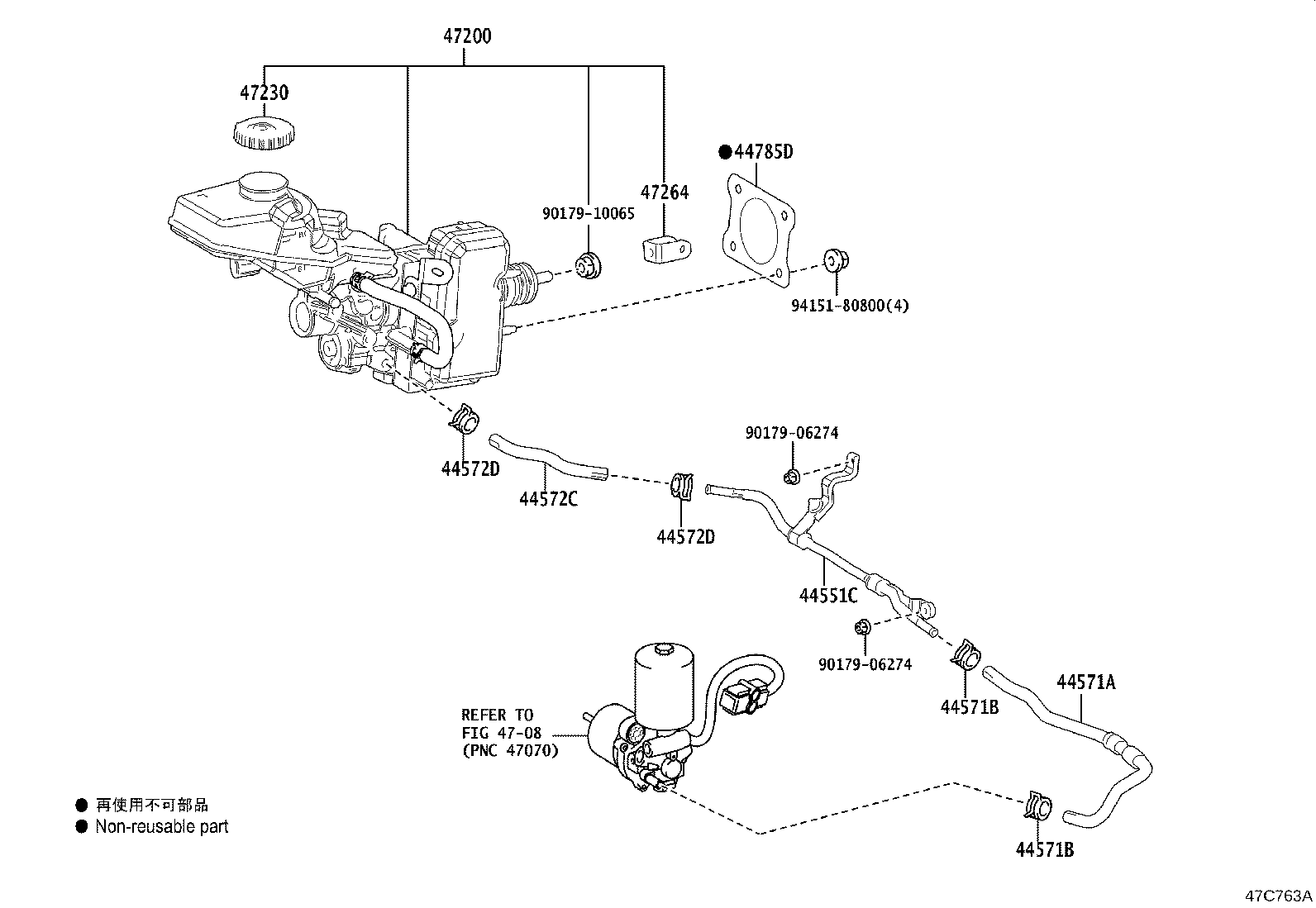

Figure 47C311B 47C311B 2020-04 → — Figure 47C763A 47C763A 2020-11 → —

Part groups

PNCDescription
44551C Tube, Brake Actuator, NO.1
44571A Hose, Brake Actuator, NO.1
44571B Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
44572C Hose, Brake Actuator, NO.2
44572D Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
44785D Gasket, Brake Master Cylinder
47200 Cylinder Assy, Brake Master
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47264 Clevis, Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
