Toyota Lexus UX300E
2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe
Supported model
Data version 2023-11

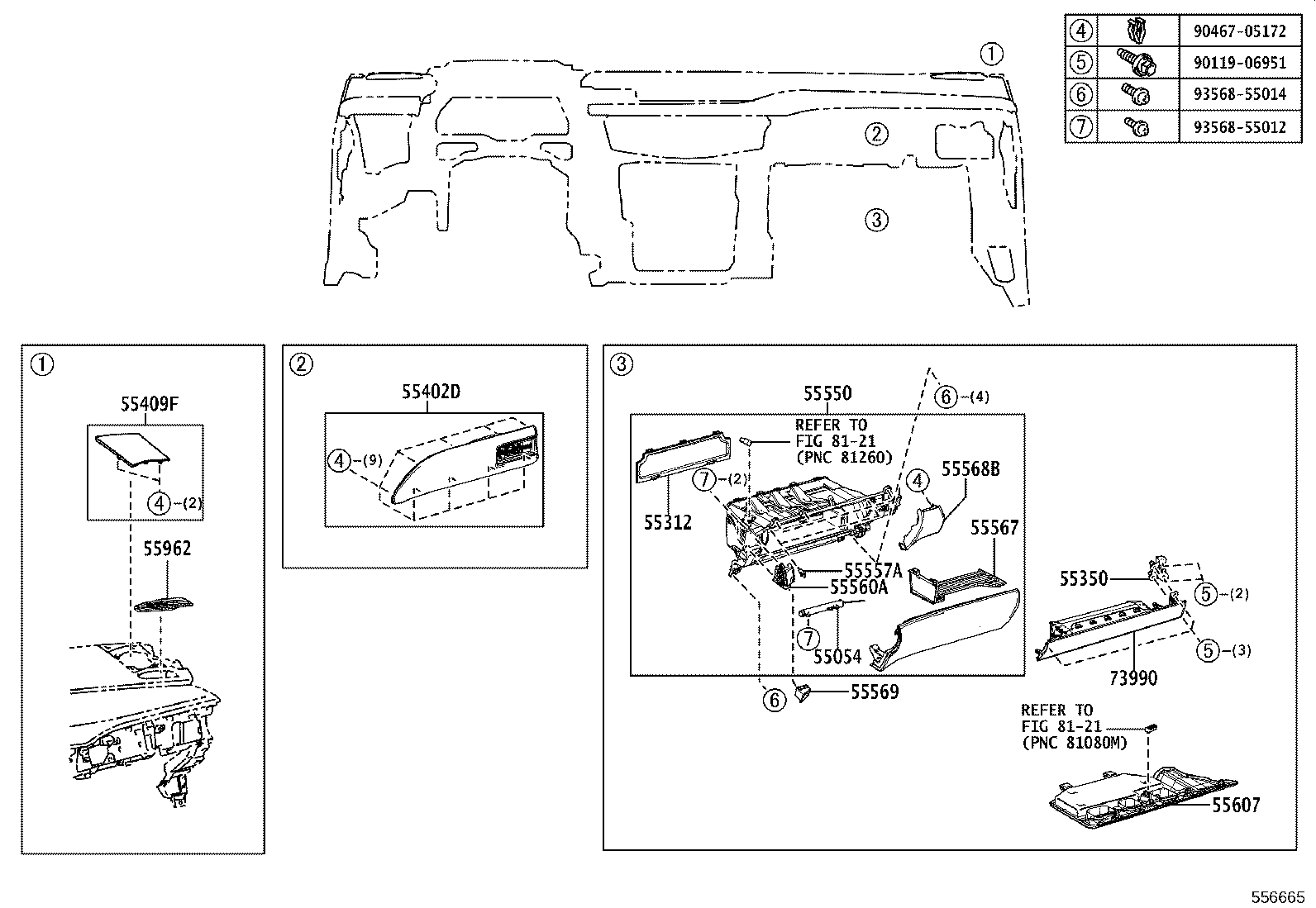

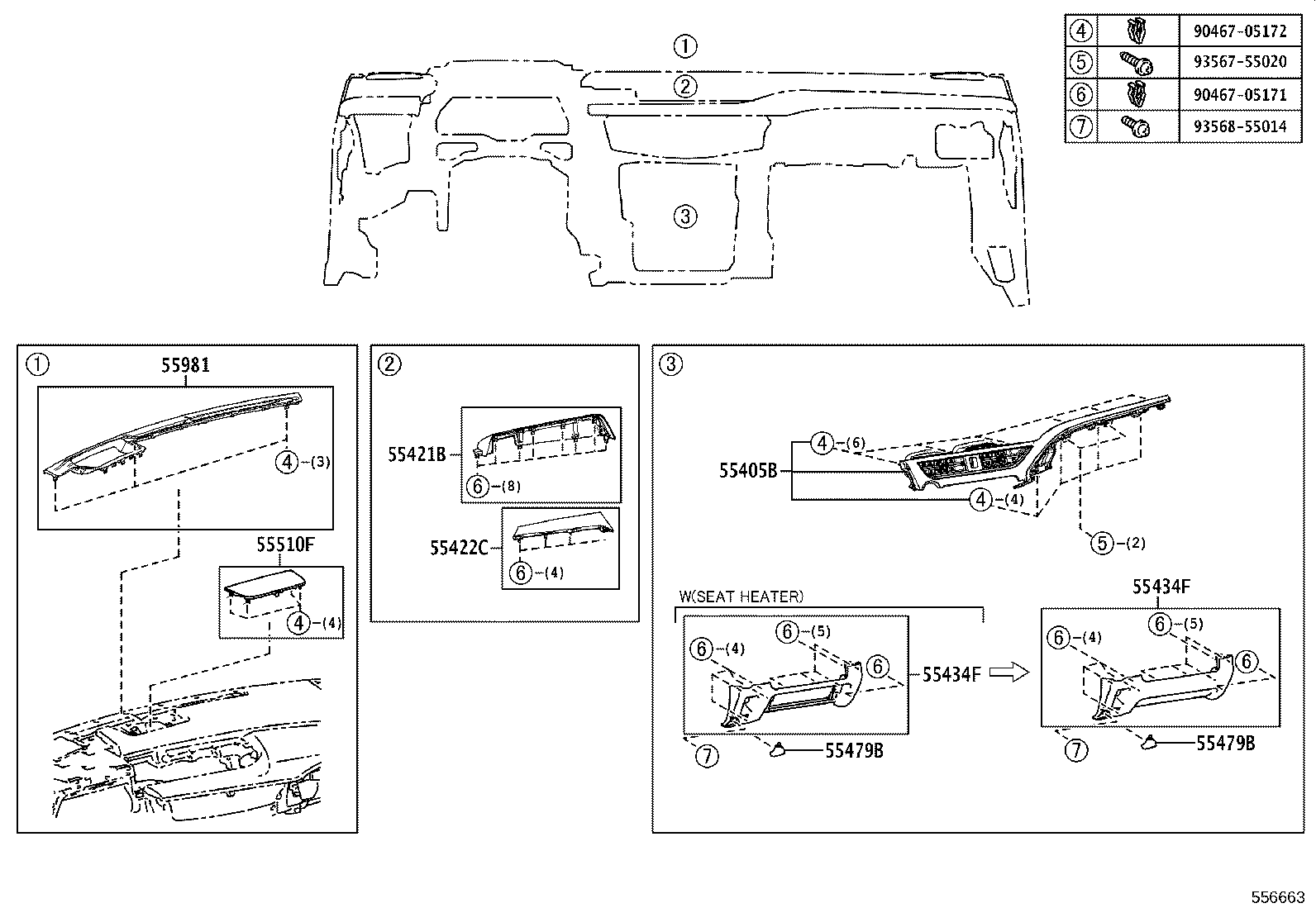

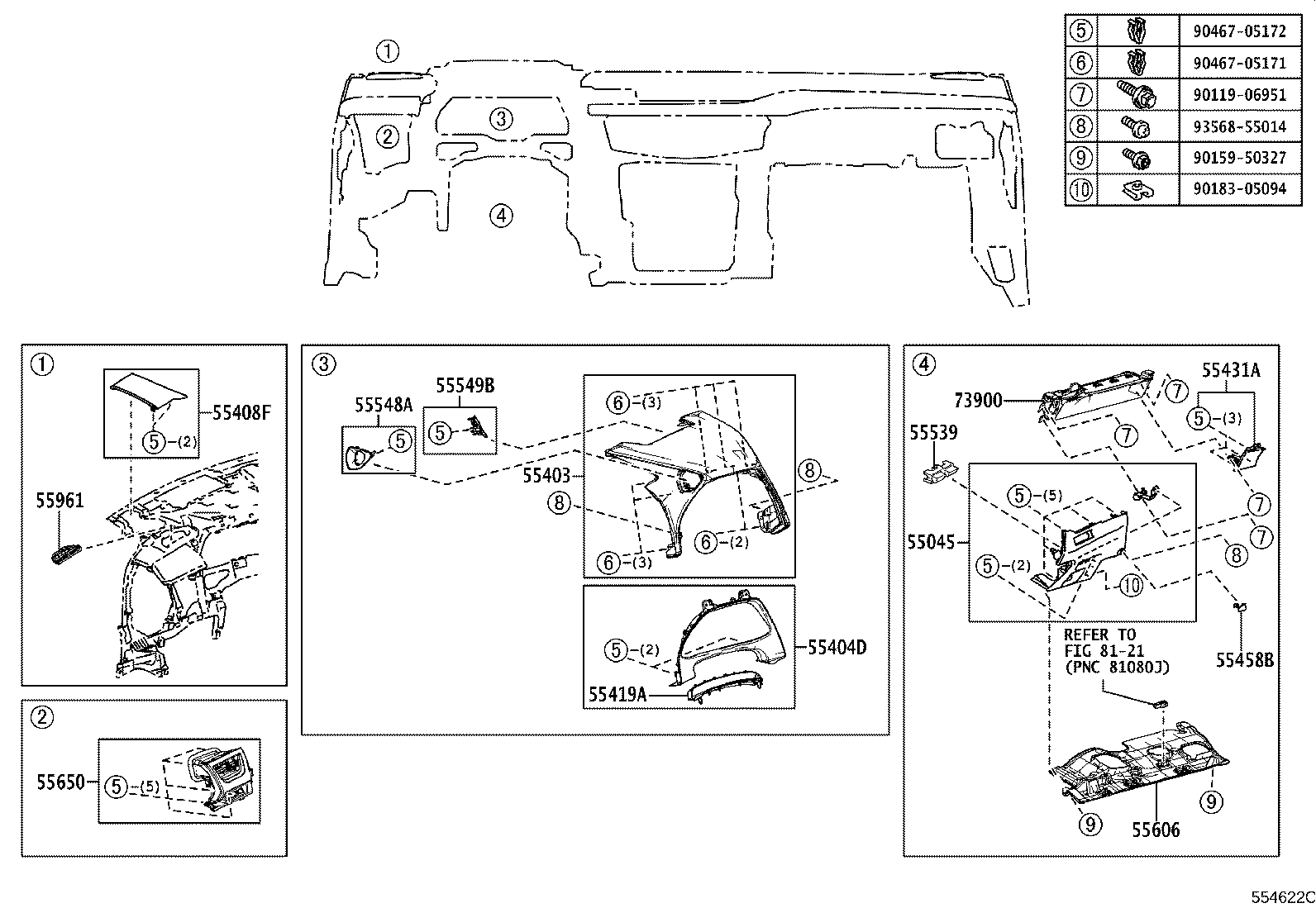

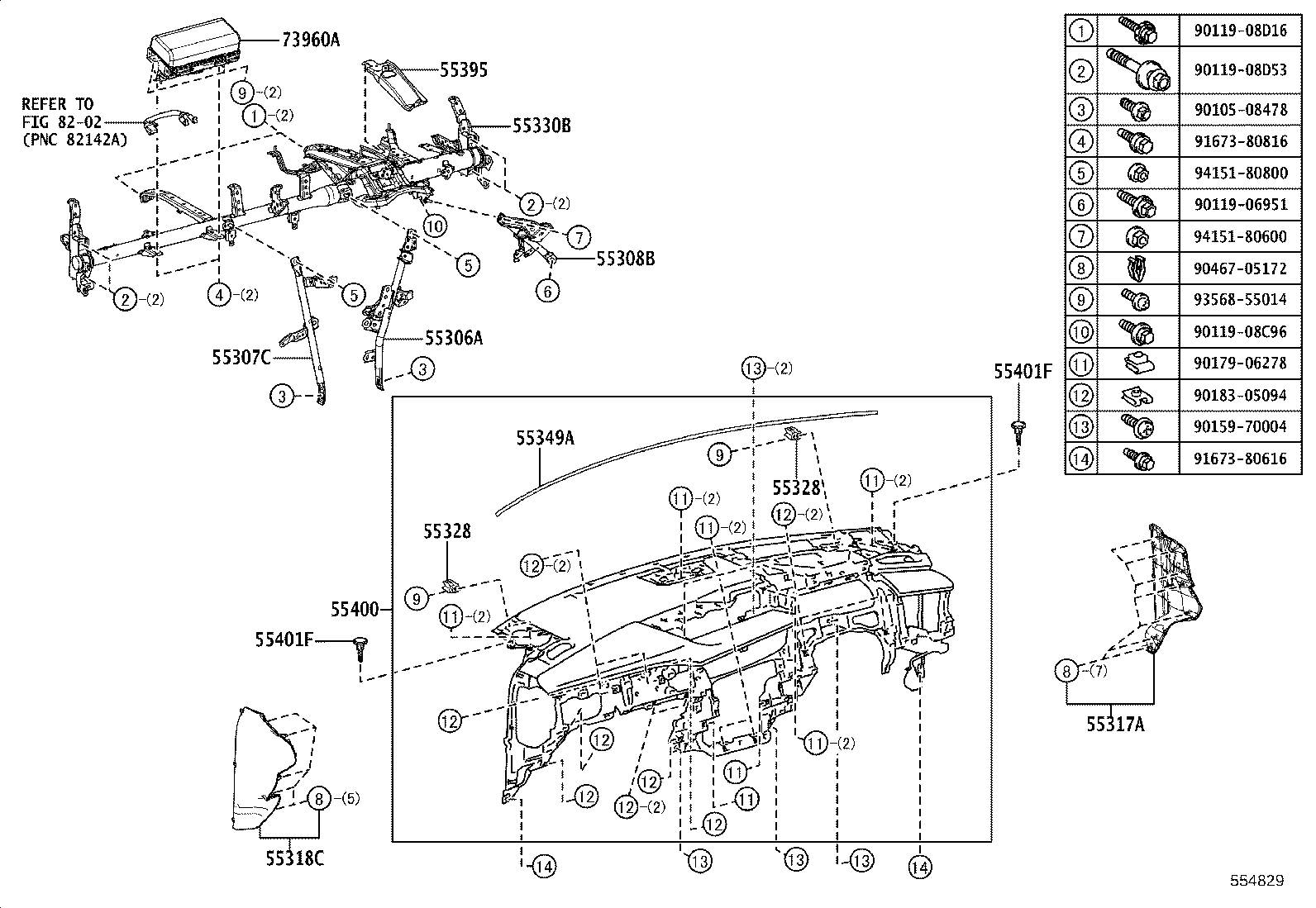

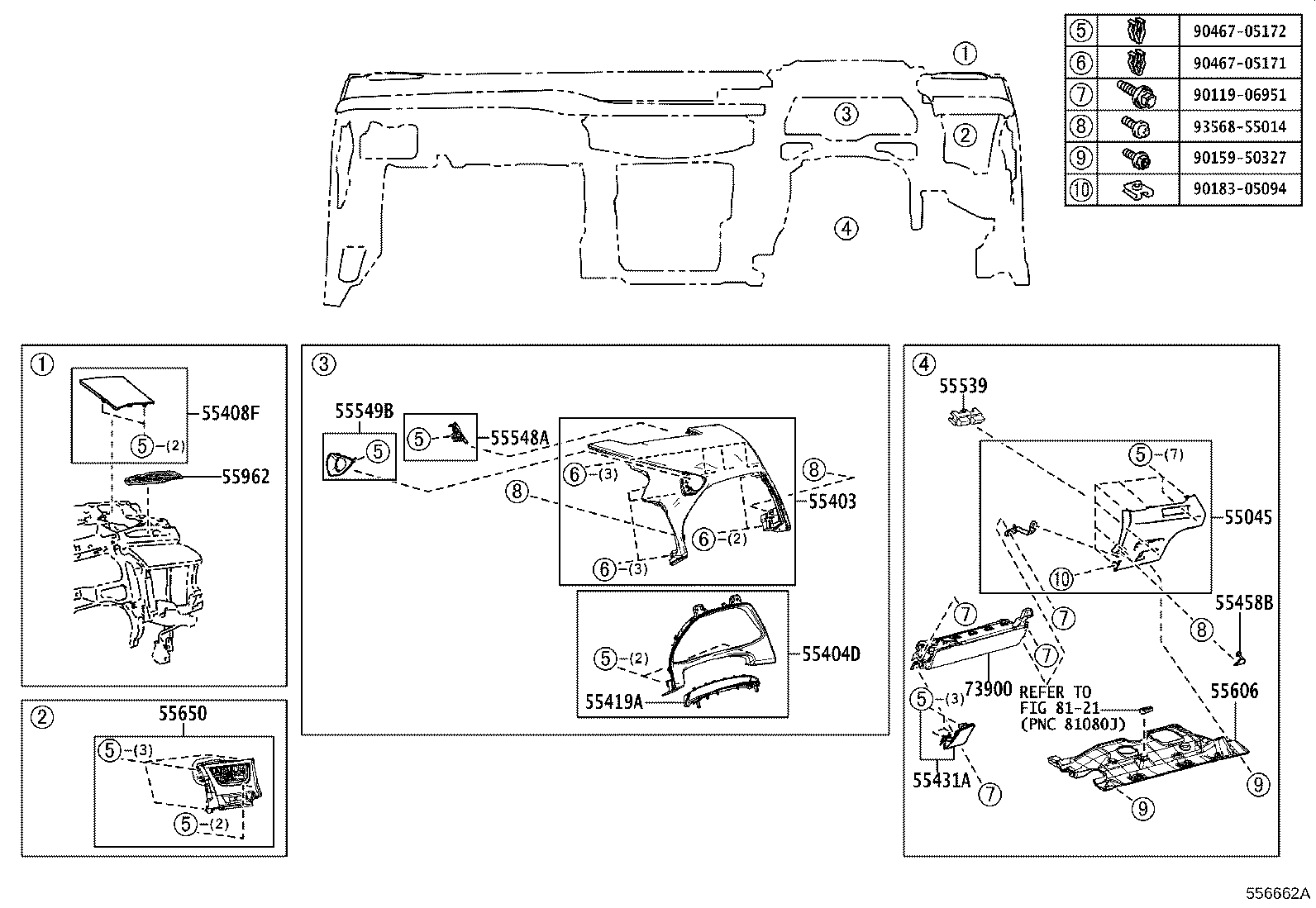

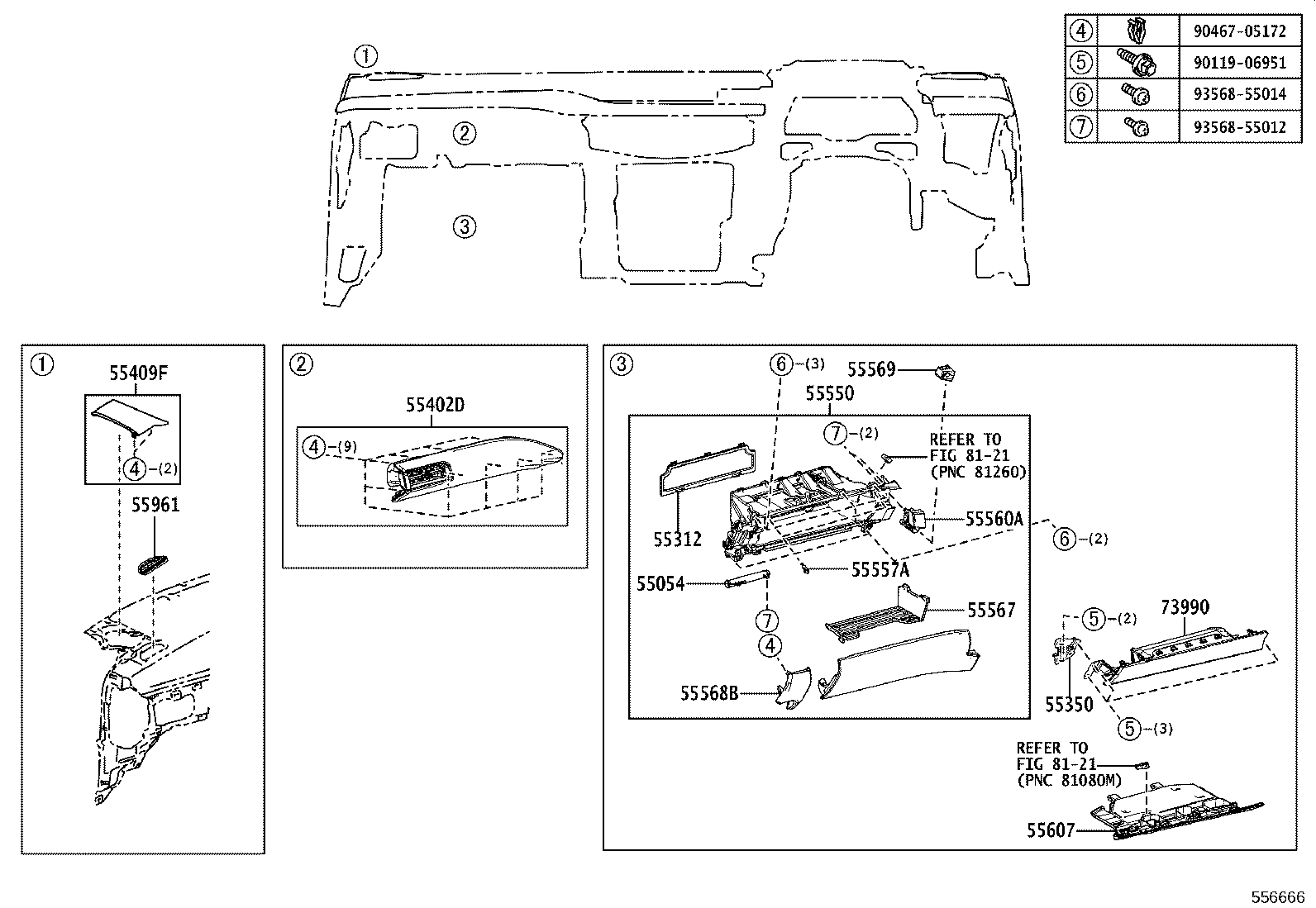

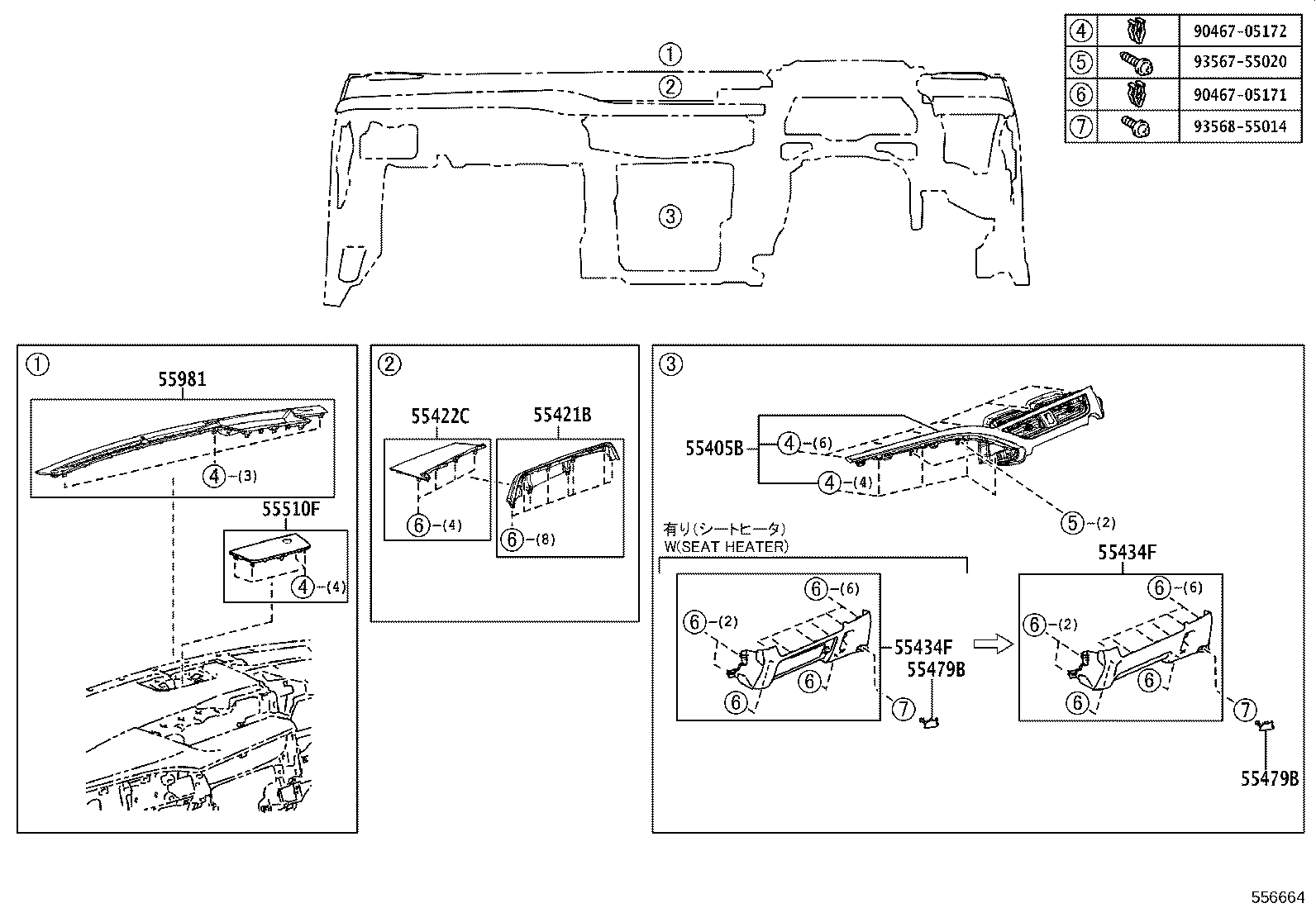

Instrument Panel & Glove Compartment
47 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312 | Panel, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55350 | Brace Assy, Instrument Panel |
| 55395 | Bracket, Instrument Panel TO Pedal |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403 | Hood Sub-assy, Meter |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55431A | Panel, Instrument Panel Finish |
| 55434F | Panel, Instrument Panel Finish, Lower Center |
| 55458B | Cover, Instrument, Lwr |
| 55479B | Cover, Instrument, Lower Center |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55567 | Retainer, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
