Toyota Lexus UX300E
2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe
Supported model
Data version 2023-11

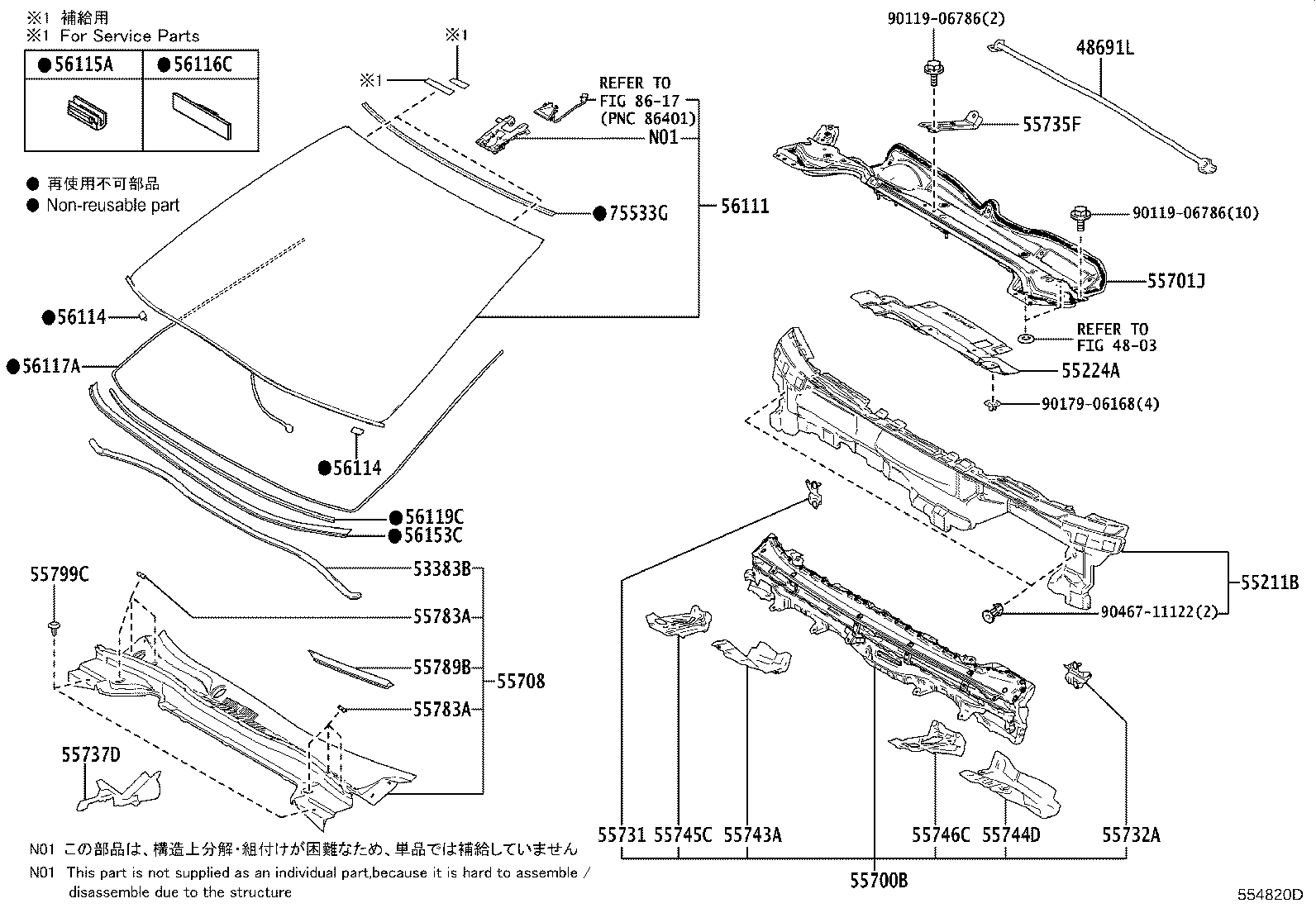

Cowl Panel & Windshield Glass
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48691L | Damper OR Rod, Front Performance |
| 53383B | Seal, Hood TO Cowl Top |
| 55211B | Silencer, Front Panel |
| 55224A | Insulator, Dash Panel, Outer NO.2 |
| 55700B | Cowl Assy |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55731 | Bracket, Cowl Body Mounting, Upper RH |
| 55732A | Bracket, Cowl Body Mounting, Upper LH |
| 55735F | Reinforcement, Cowl Body Mounting |
| 55736E | Plate, Water Guide, RH |
| 55737D | Plate, Water Guide, LH |
| 55743A | Extension, Cowl TO Cowl Side, RH |
| 55744D | Extension, Cowl TO Cowl Side, LH |
| 55745C | Reinforcement, Cowl Top, Inner RH |
| 55746C | Reinforcement, Cowl Top, Inner LH |
| 55783A | Pad, Cowl Top Silencer |
| 55789B | Protector, Cowl Top Venttinator Louver, NO.2 |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56114 | Retainer, Windshield Glass |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56119C | Seal, Windshield Glass |
| 56153C | Moulding, Front Window, Inner Center |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
