Toyota Lexus UX300E

2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 2 illustrations

Illustrations

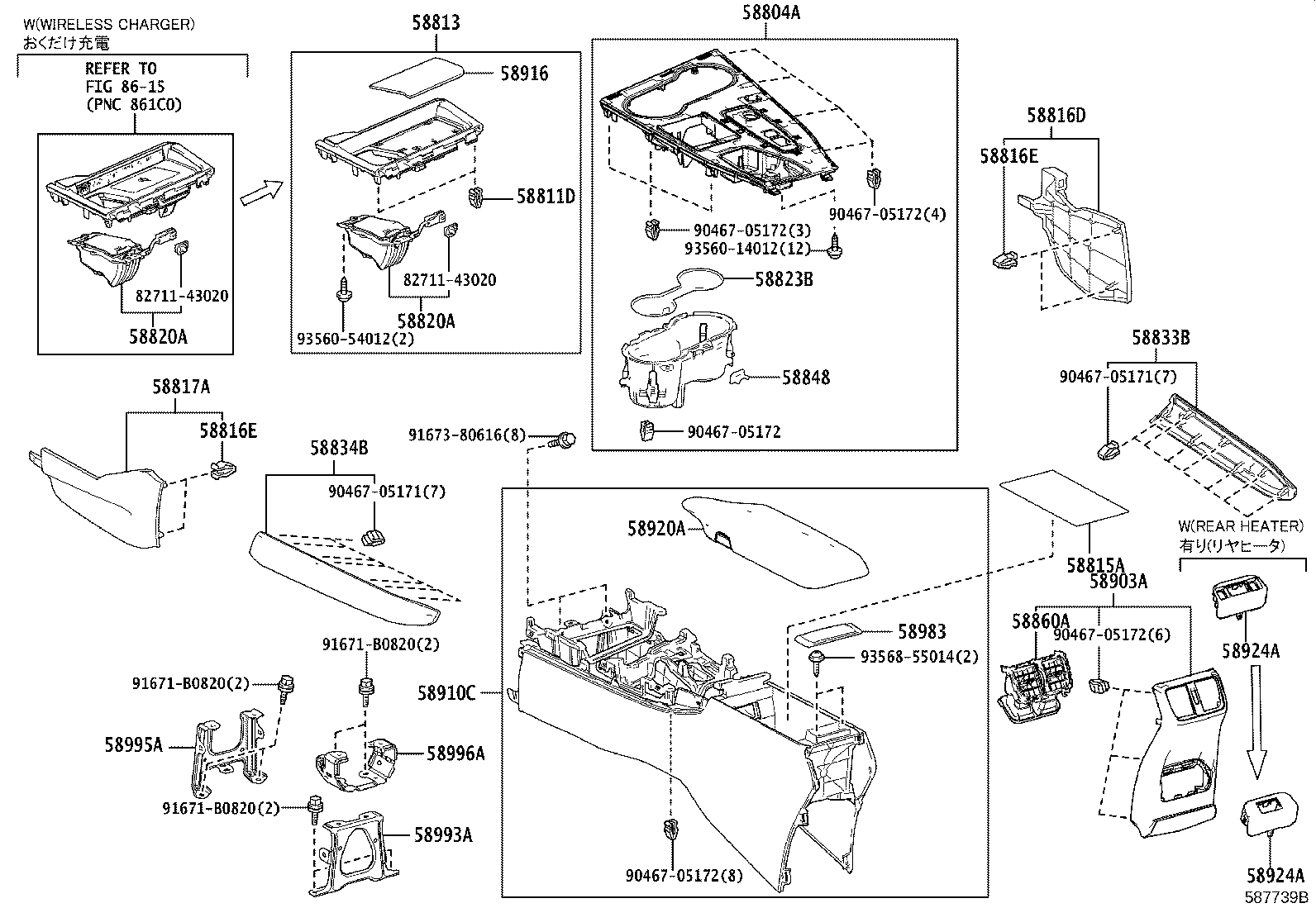

Figure 587493A 587493A 2020-04 → — Figure 587739B 587739B 2020-11 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58811D Clip(FOR CONSOLE BOX)
58813 Box, Console, Upper
58815A Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58816E Clip, Console Box Insert, Front
58817A Insert, Console Box, Front NO.2
58820A Box Assy, Console Compartment
58823B Box, Console Compartment
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58848 Cover, Shift Lever Hole
58860A Register Assy, Console Box
58903A Panel Sub-assy, Console Rear End
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58920A Armrest Assy, Rear Console
58924A Panel, Console Rear End, NO.2
58983 Retainer, Upper Console
58993A Bracket, Console Box Mounting, Lower
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
