Toyota Lexus UX300E
2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe
Supported model
Data version 2023-11

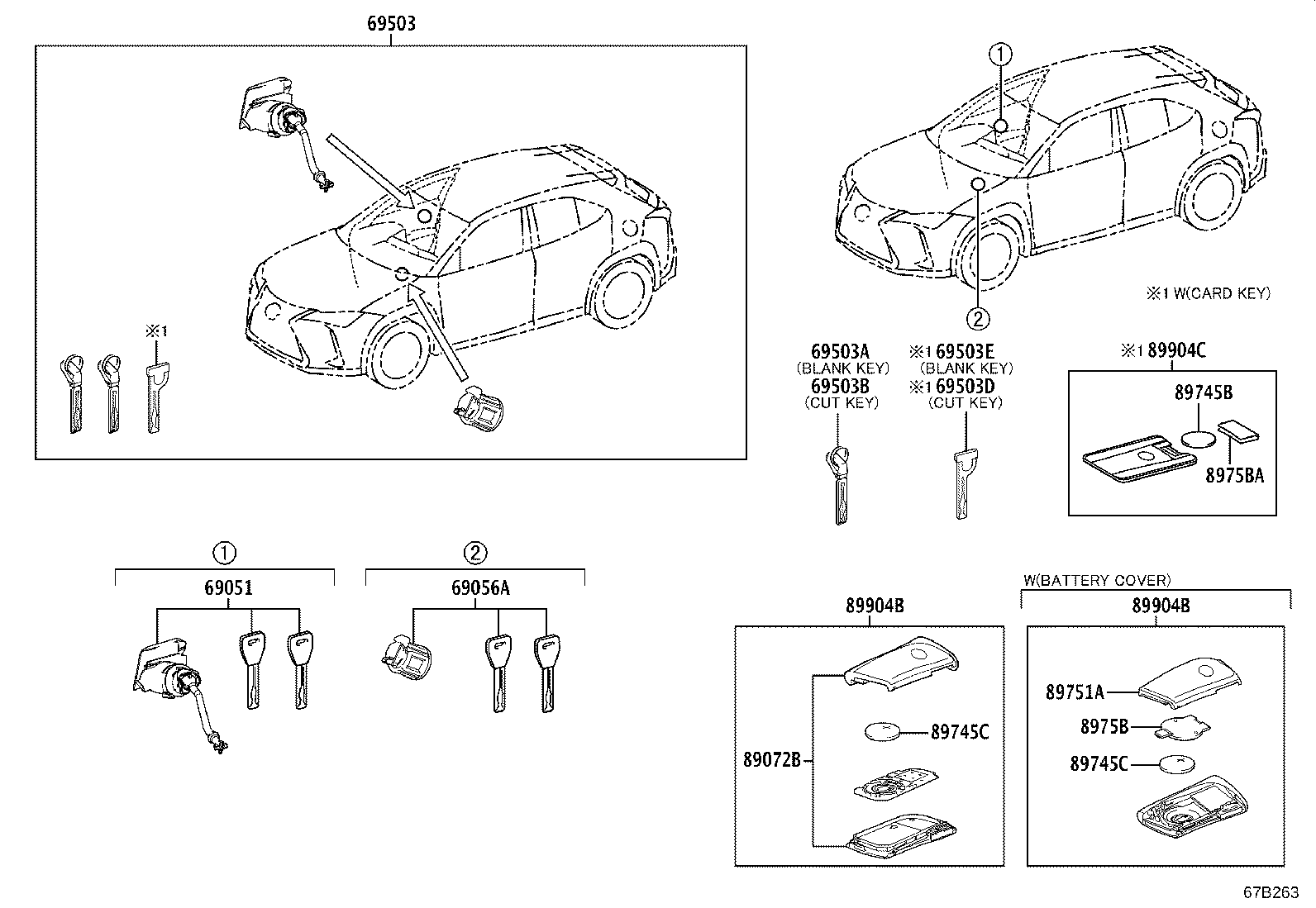

Lock Cylinder Set
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 69503D | Key, Cut(CARD KEY) |
| 69503E | Key, Blank(CARD KEY) |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89745B | Battery, Transmitter(CARD KEY) |
| 89745C | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 8975B | Cover, Transmitter Battery Housing |
| 8975BA | Cover, Transmitter Battery Housing(CARD KEY) |
| 89904B | Transmitter Sub-assy, Electrical Key |
| 89904C | Transmitter Sub-assy, Electrical Key(CARD KEY) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
