Toyota Lexus UX300E

2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

75 part groups · 16 illustrations

Illustrations

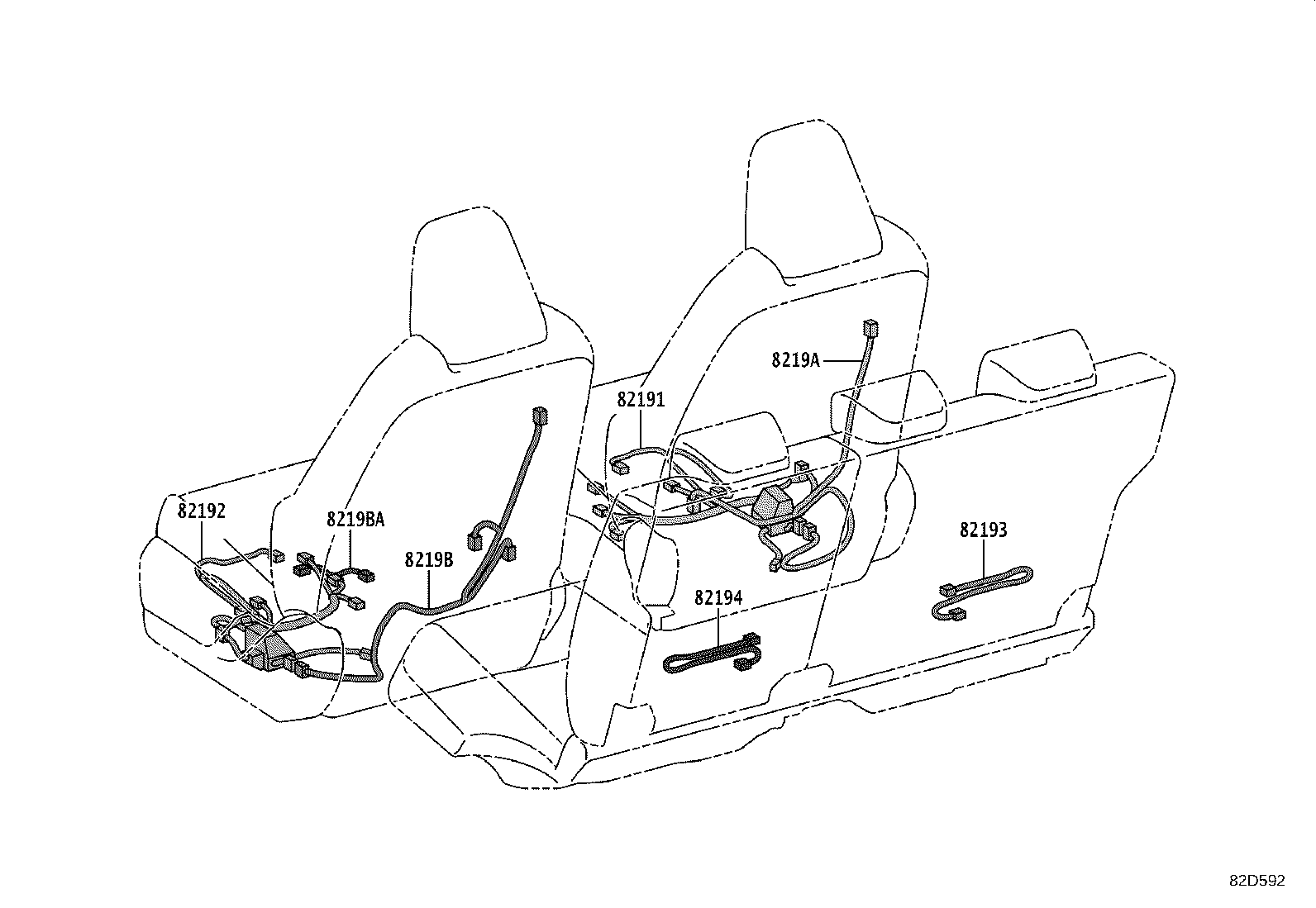

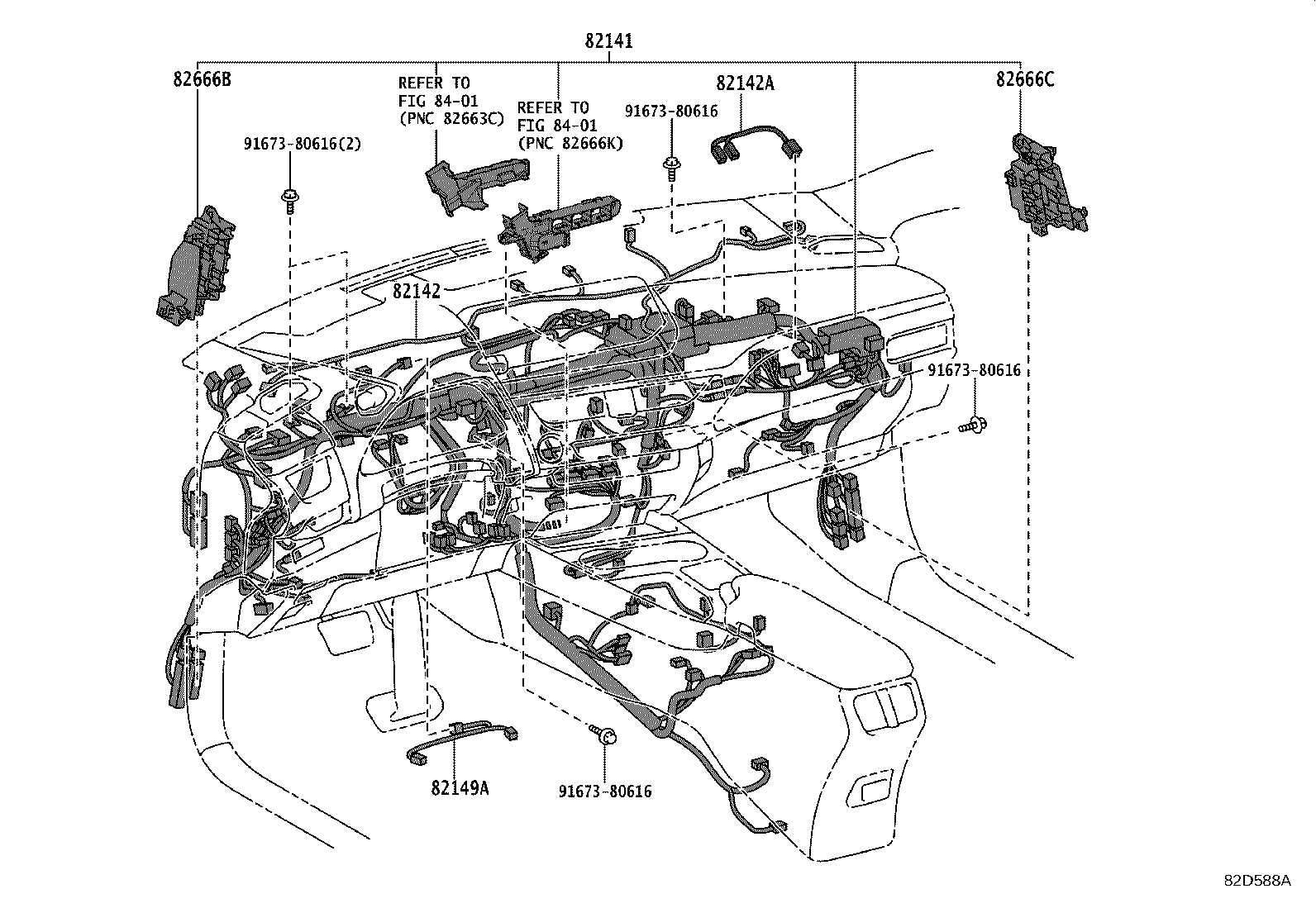

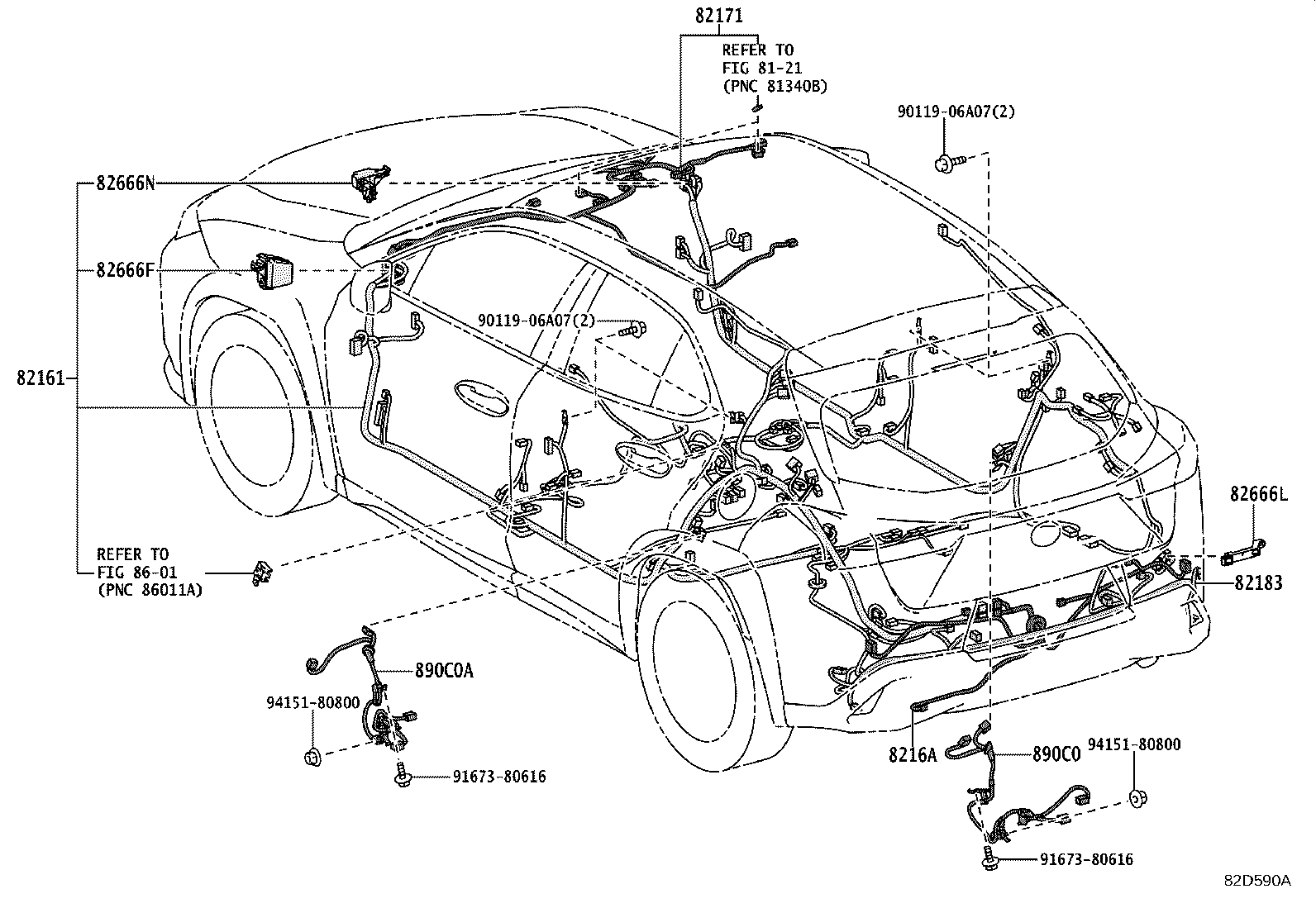

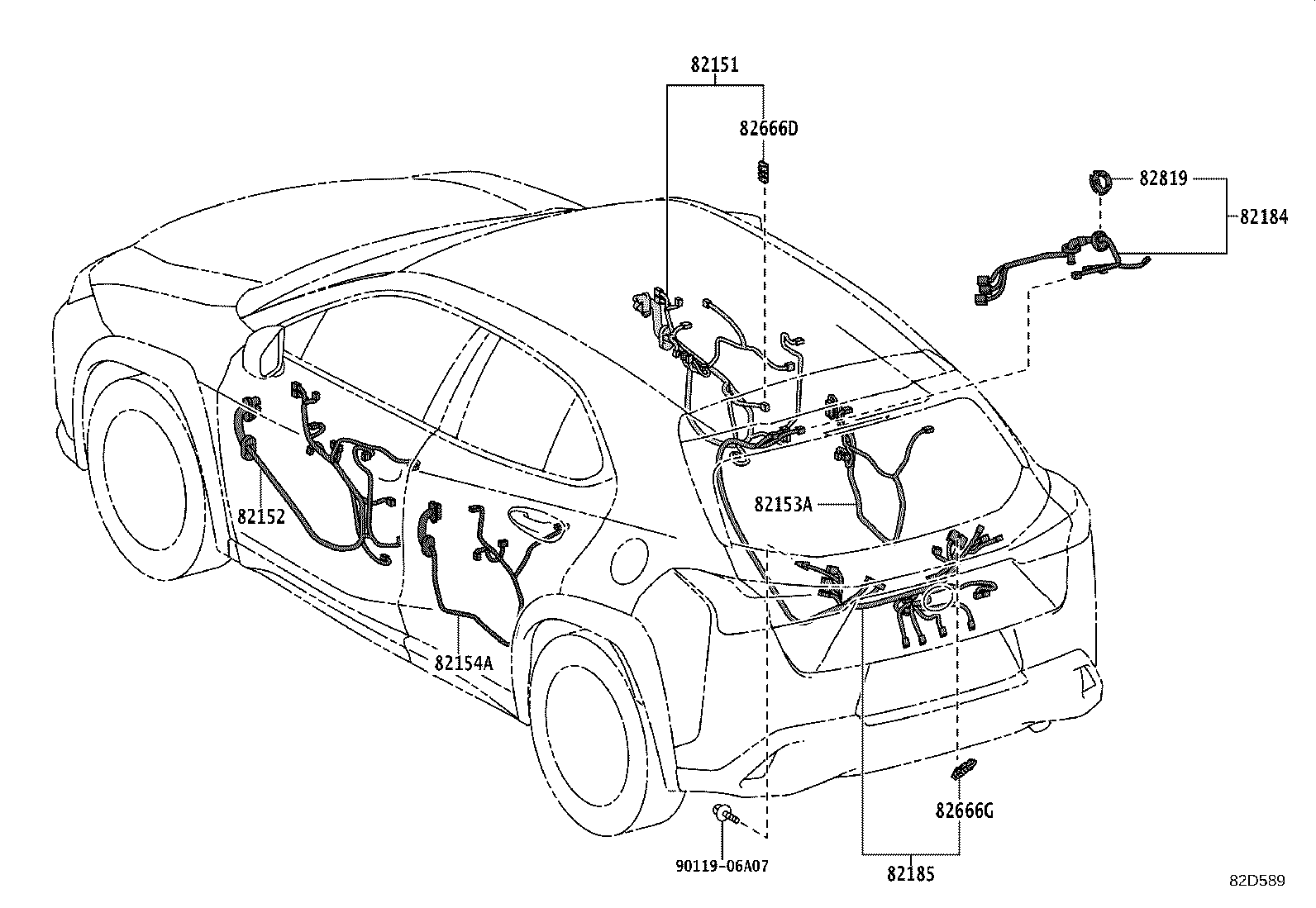

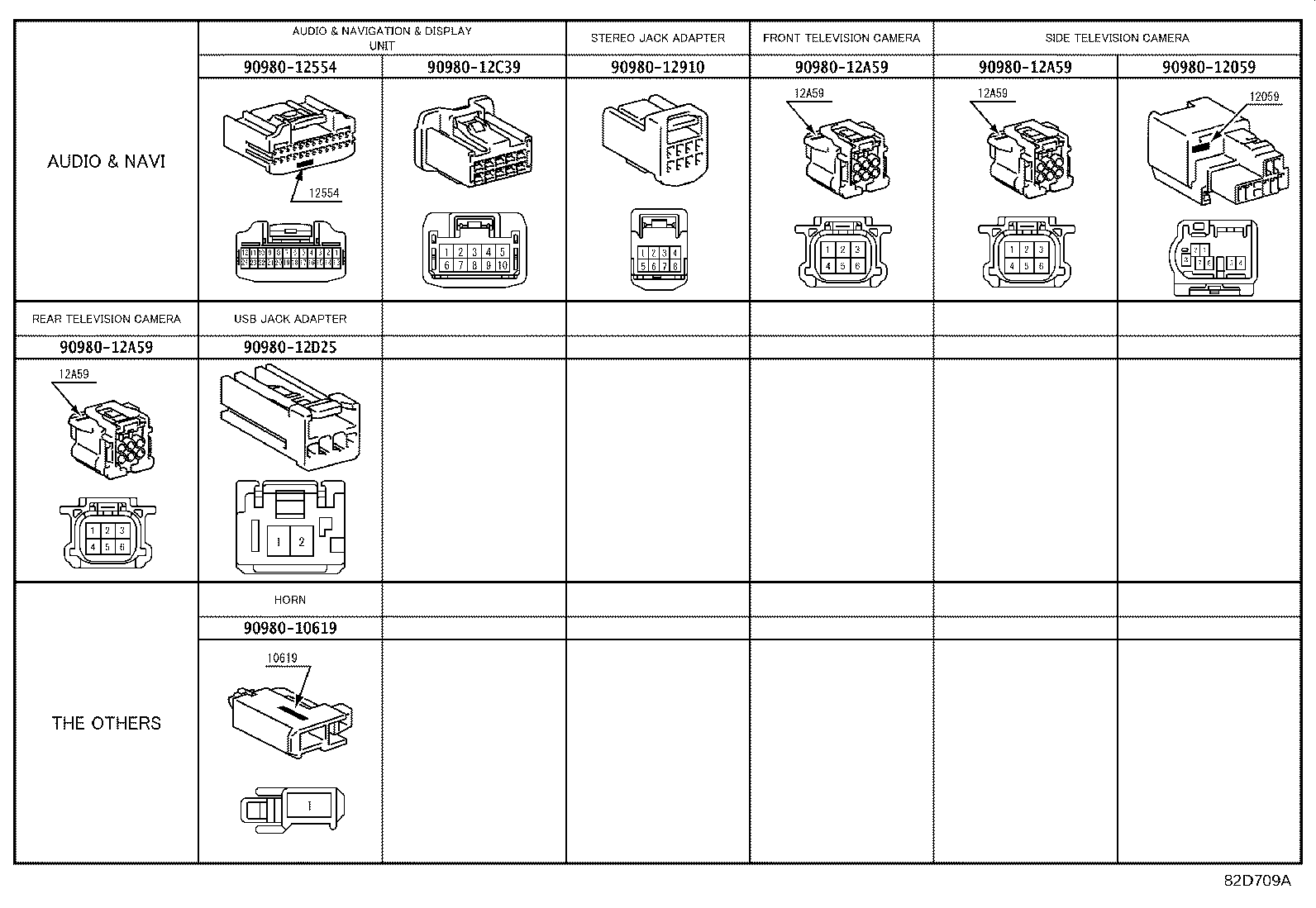

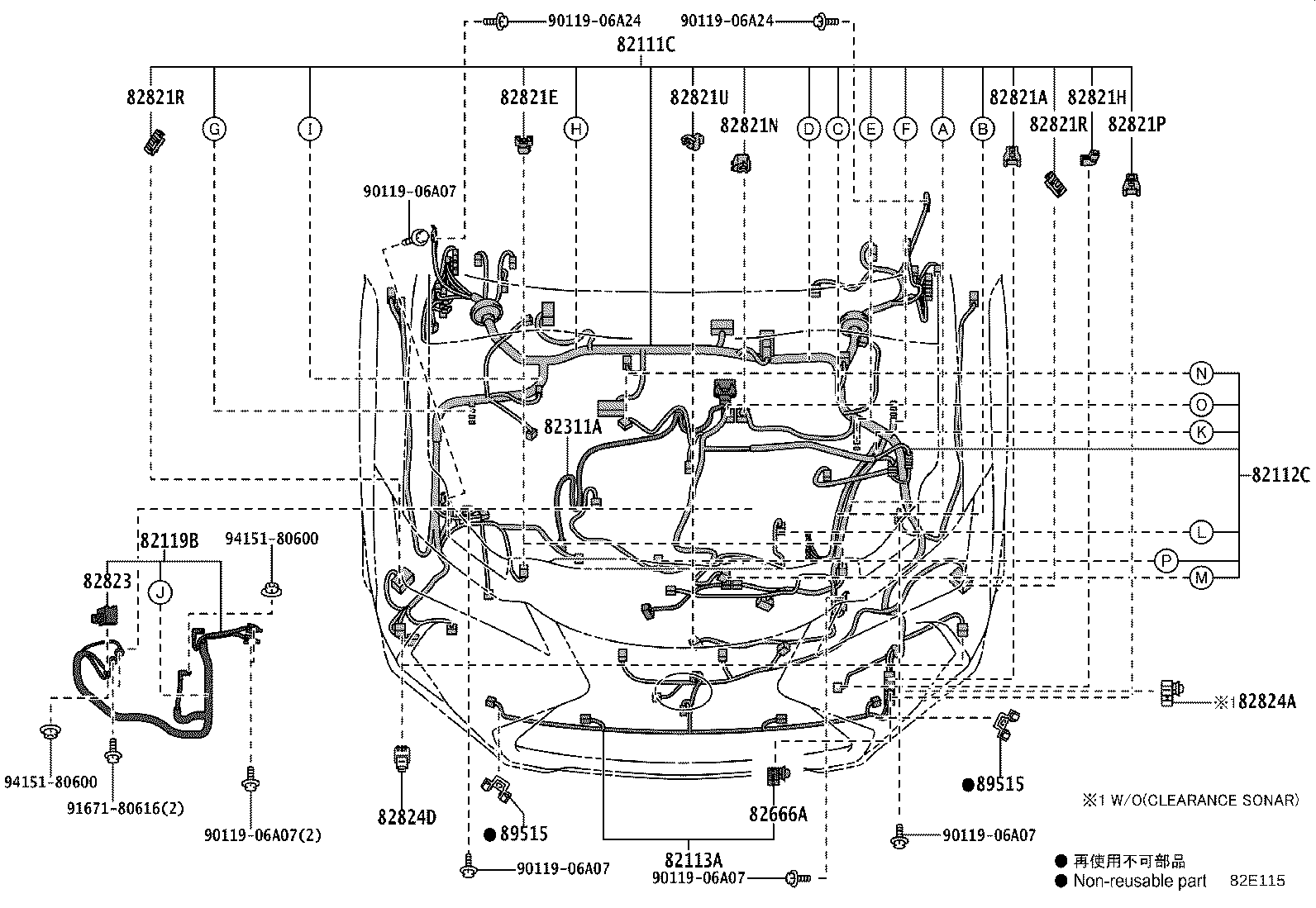

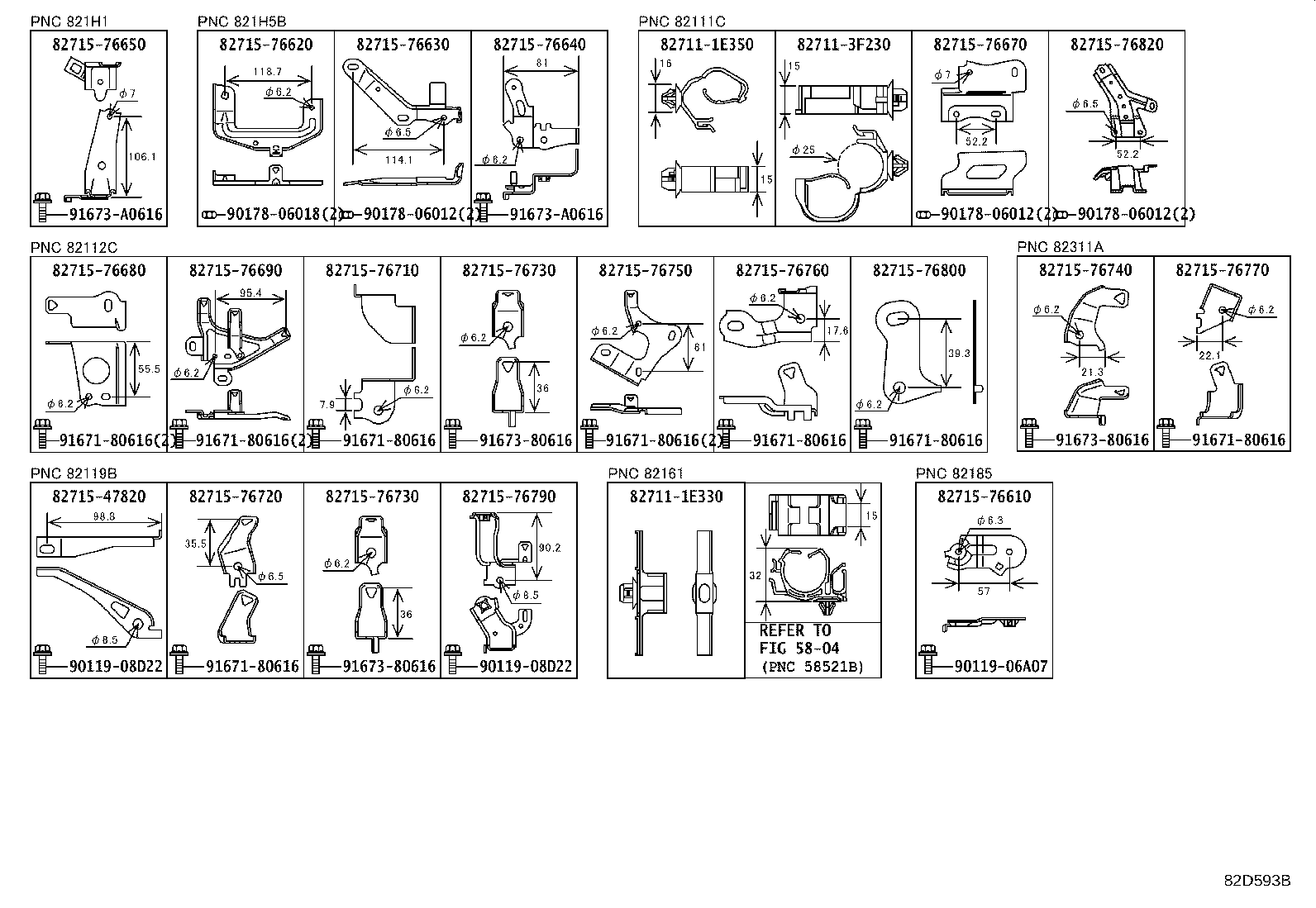

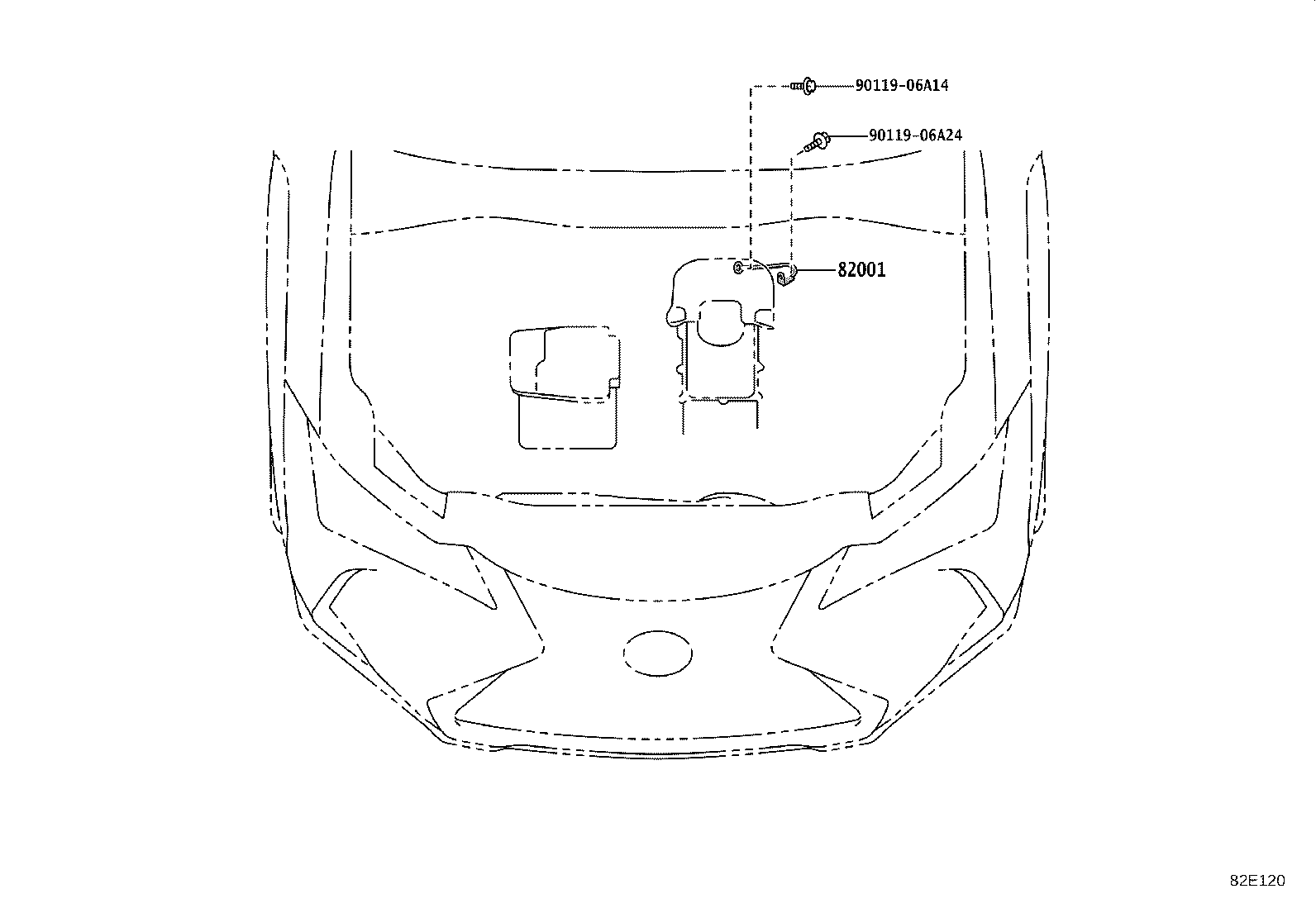

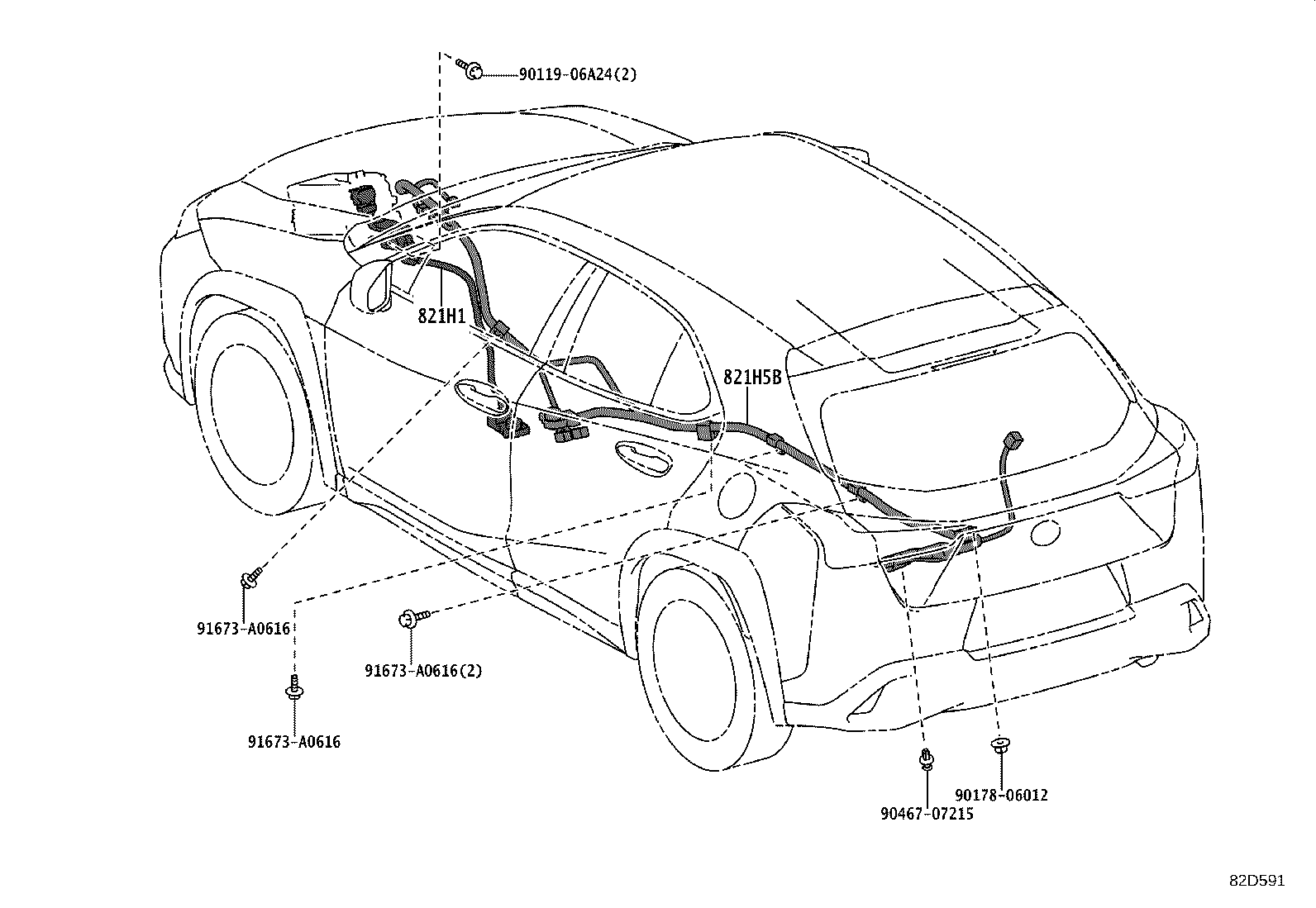

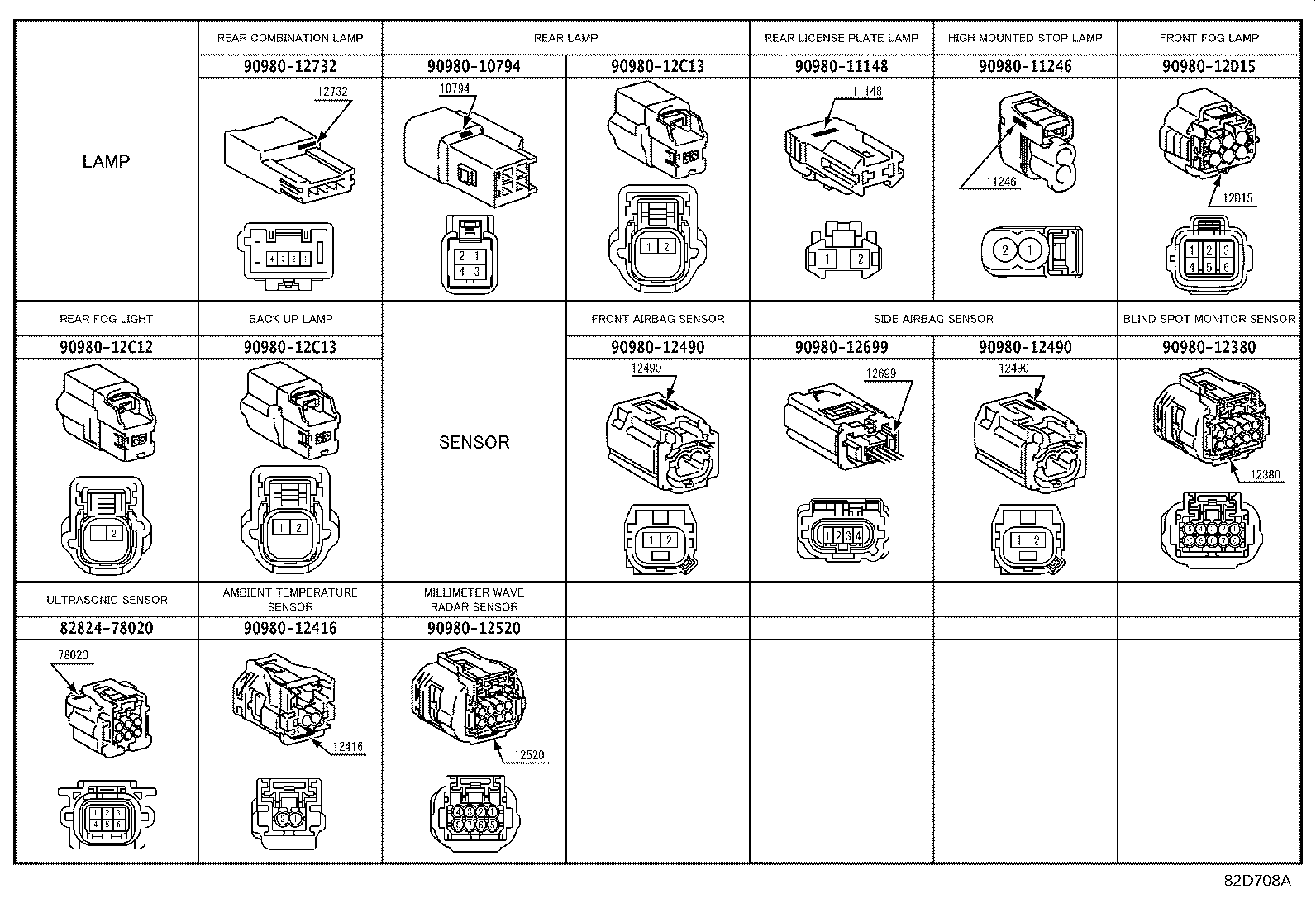

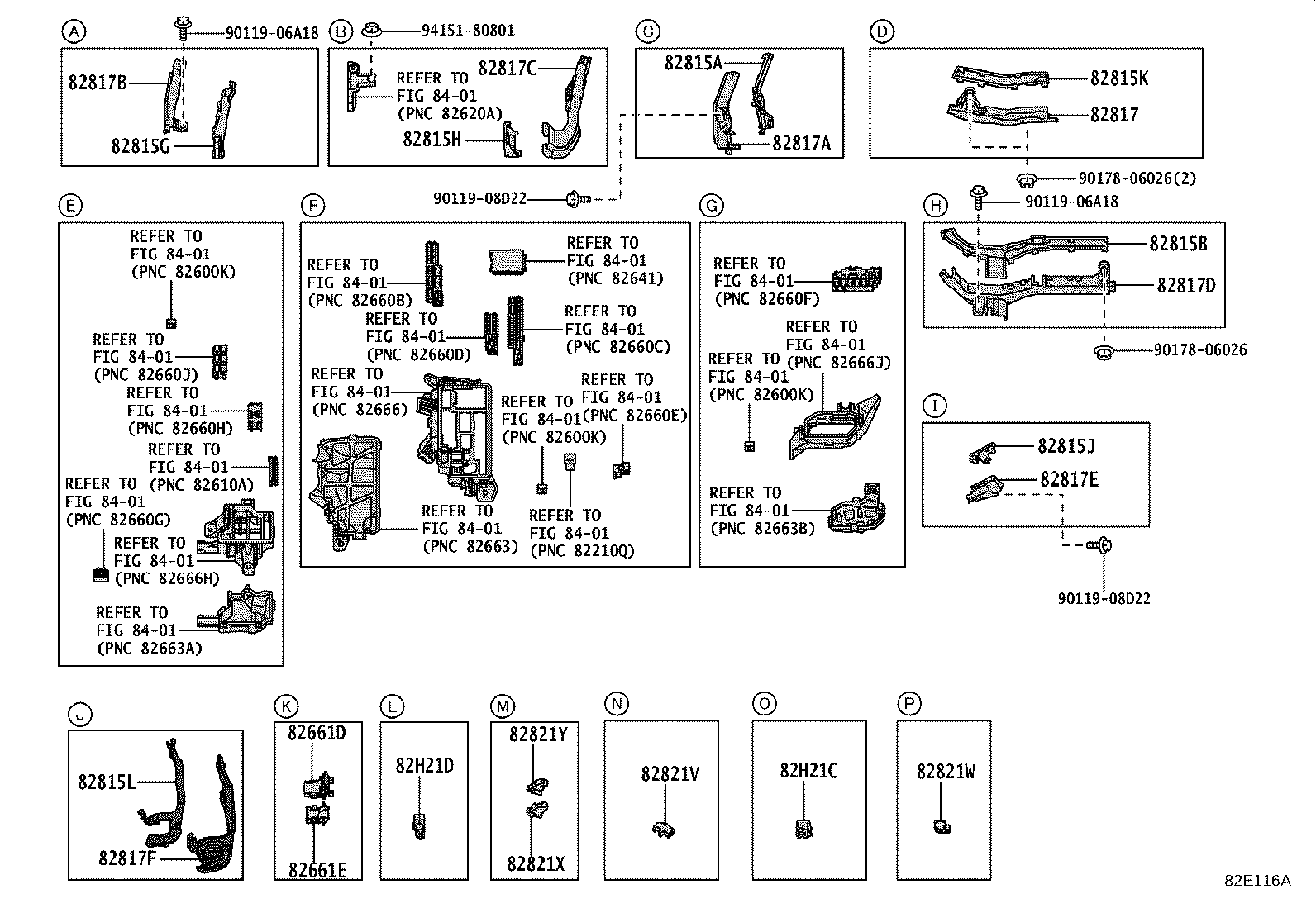

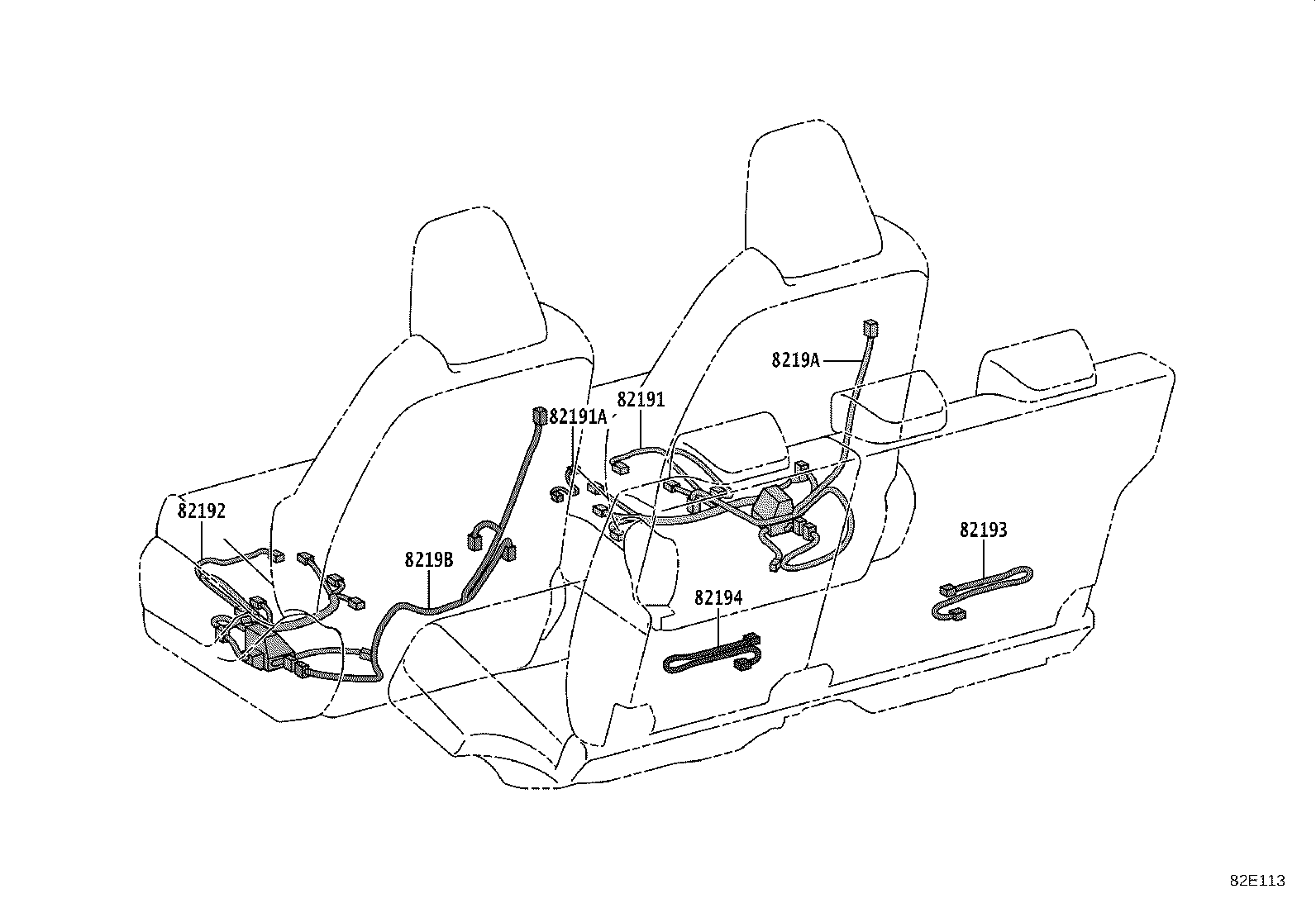

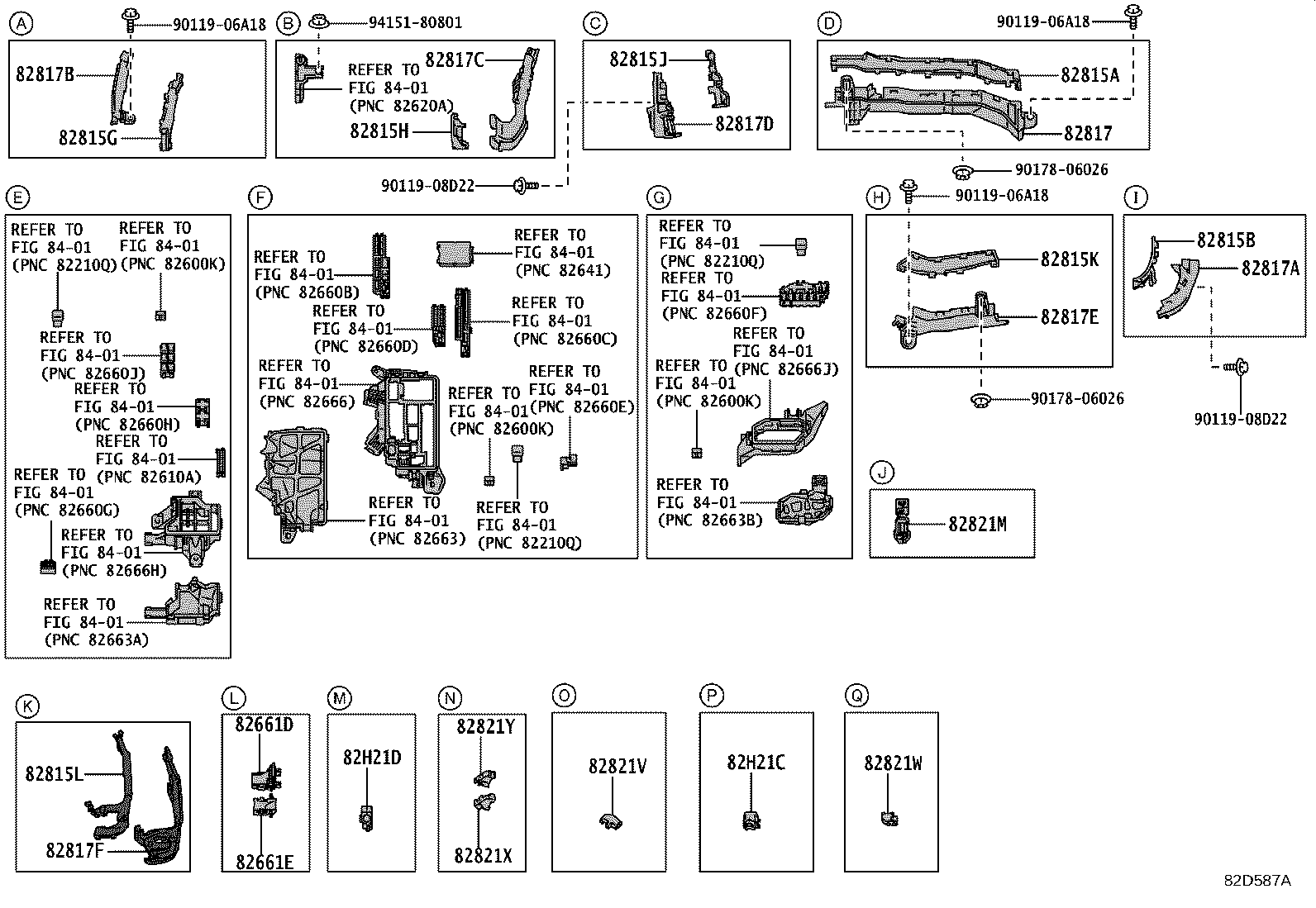

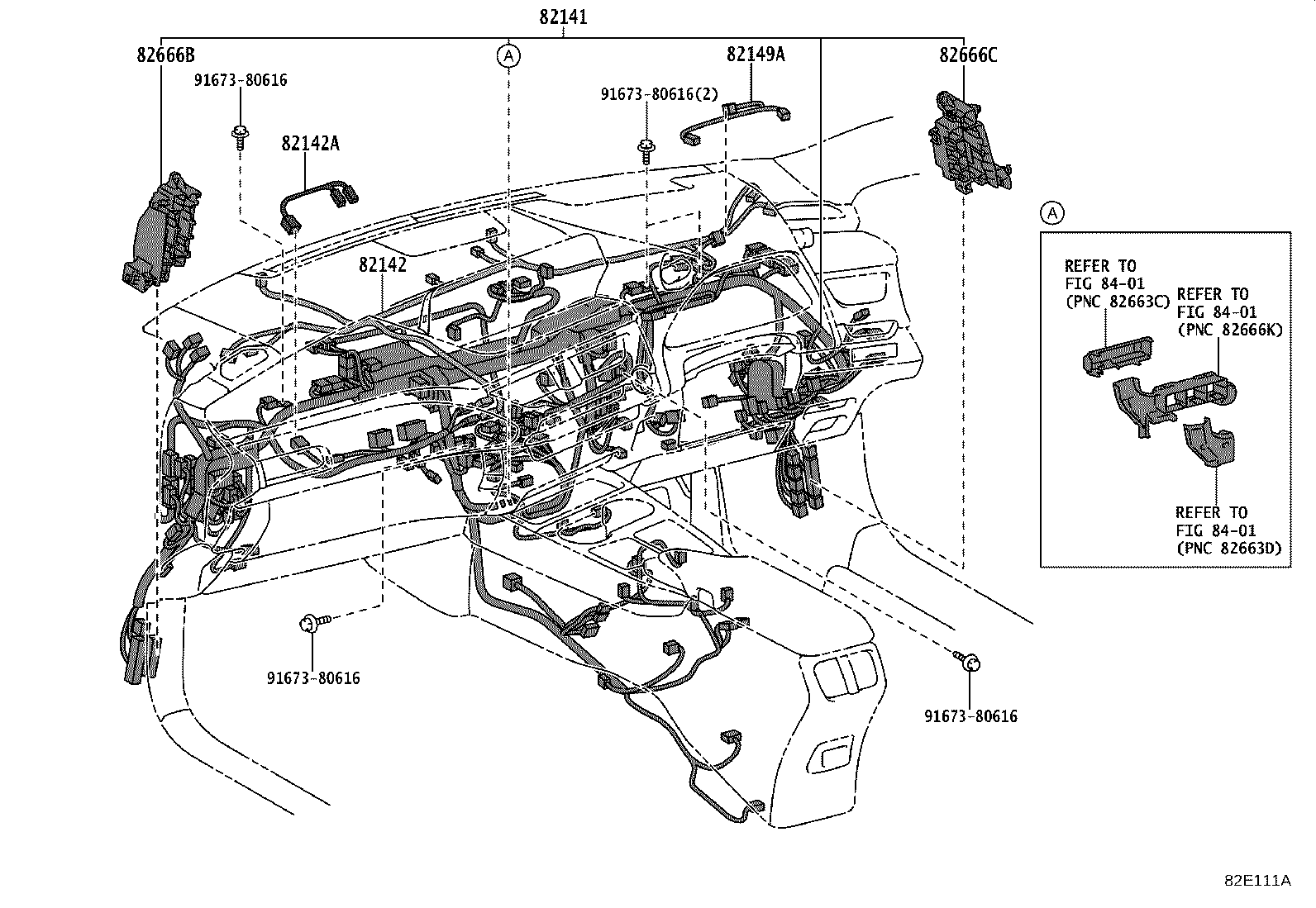

Figure 82D586A 82D586A 2020-04 → — Figure 82D587A 82D587A 2020-04 → — Figure 82E115 82E115 2020-11 → — Figure 82E116A 82E116A 2020-11 → — Figure 82D588A 82D588A 2020-04 → — Figure 82E111A 82E111A 2020-11 → — Figure 82D589 82D589 2020-04 → — Figure 82D590A 82D590A 2020-04 → — Figure 82D591 82D591 2020-04 → — Figure 82E114 82E114 2020-11 → — Figure 82D592 82D592 2020-04 → — Figure 82E113 82E113 2020-11 → — Figure 82D593B 82D593B 2020-04 → — Figure 82E120 82E120 2020-11 → — Figure 82D708A 82D708A 2020-04 → — Figure 82D709A 82D709A 2020-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111C Wire, Front Compartment, Main
82112C Wire, Fromt Compartment, NO.2
82113A Wire, Front Compartment, NO.3
82119B Wire, Front Compartment, NO.5
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
8219BA Wire, Front Seat, LH NO.3
821H1 Wire, Floor Under
821H5B Wire, EV Battery Charger
82311A Wire, Air Conditioner
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82819 Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82H21C Cover, Connector
82H21D Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89515 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
