Toyota Lexus UX300E

2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 2 illustrations

Illustrations

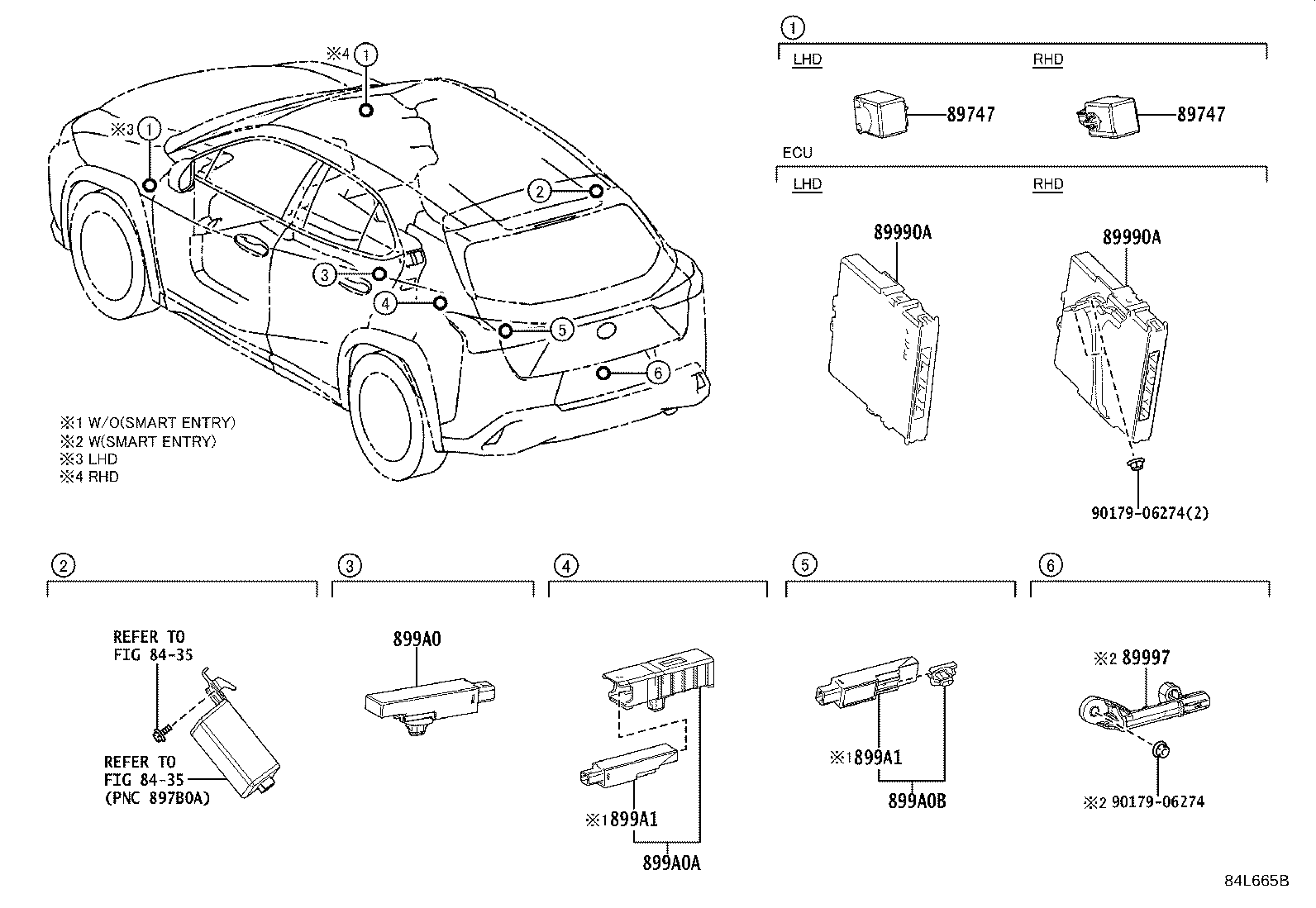

Figure 84L685B 84L685B 2020-04 → — Figure 84L665B 84L665B 2020-08 → —

Part groups

PNCDescription
65358 Tape, Floor Board Cover
89740 Computer Assy, Door Control W/Receiver
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
899A1 Antenna, Indoor Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
