Toyota Lexus UX300E
2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe
Supported model
Data version 2023-11

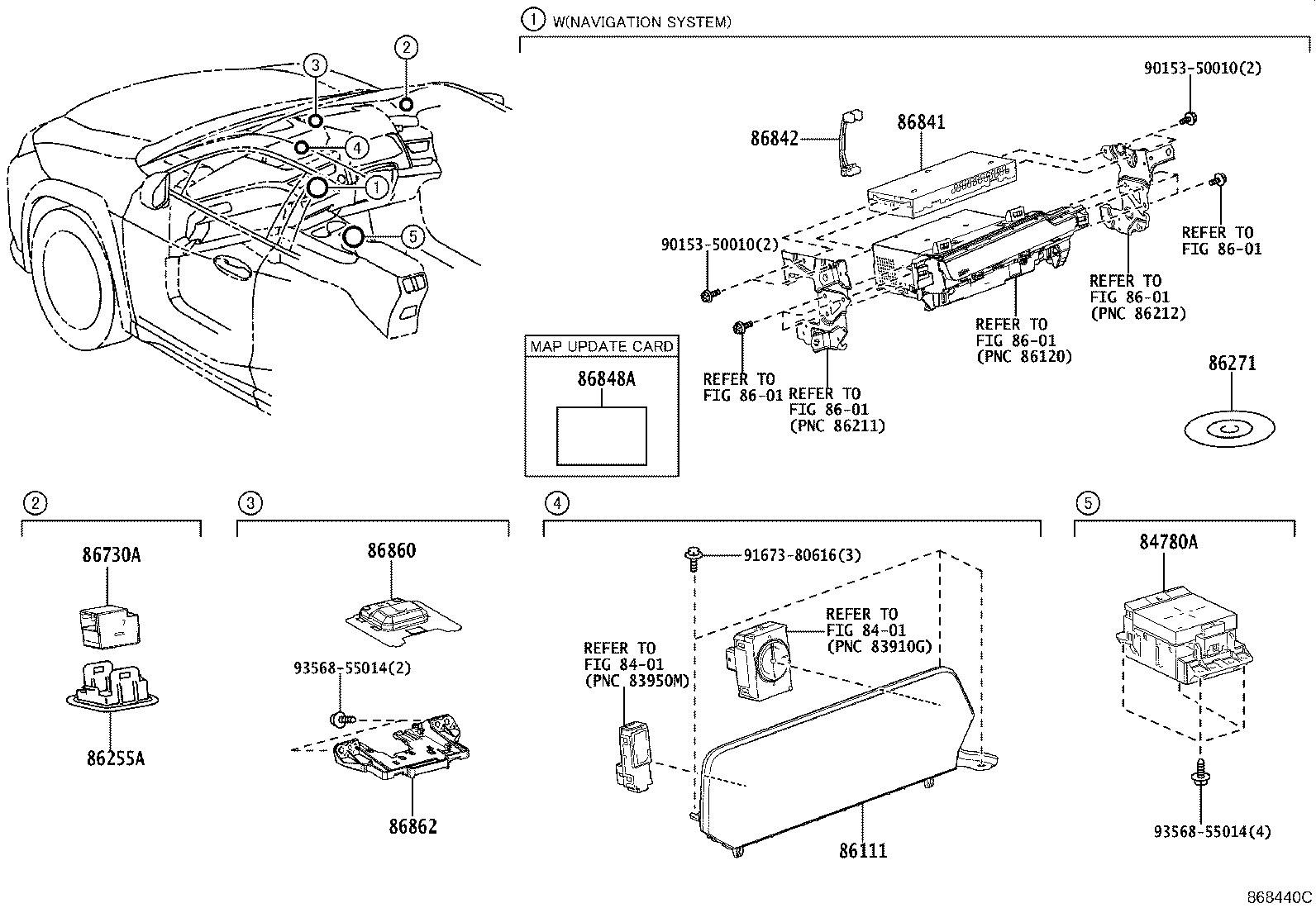

Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84780A | Controller Assy, Remote Operation |
| 86111 | Multi-display |
| 86255A | Case, Microphone, NO.1 |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
