Toyota Lexus UX300E

2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 2 illustrations

Illustrations

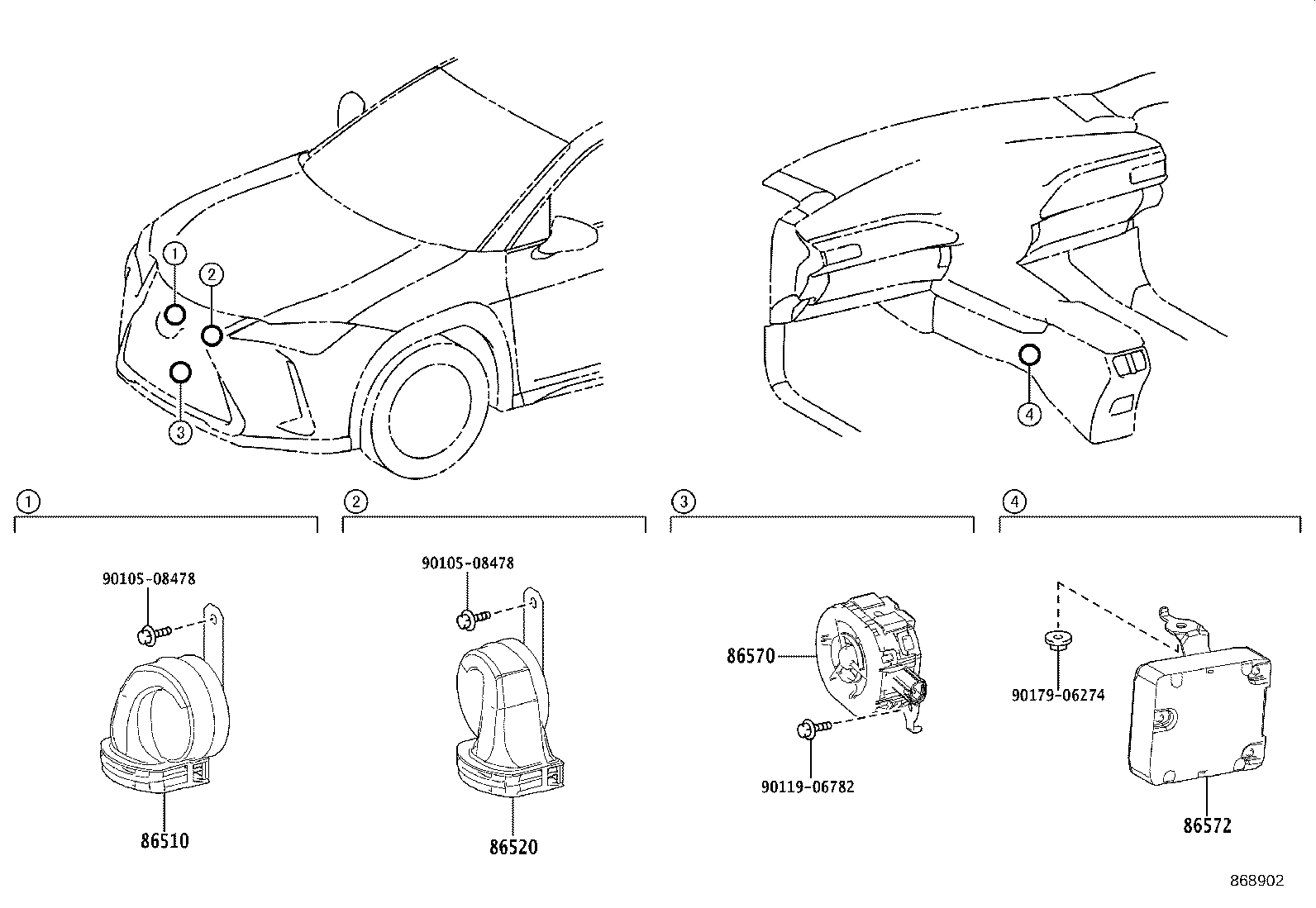

Figure 868108C 868108C 2020-04 → 2021-08 Figure 868902 868902 2021-08 → —

Part groups

PNCDescription
86510 Horn Assy, High Pitched
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
