Toyota Lexus UX300E
2020-04 → 2022-11 · chassis KMA10 · catalogue 538210 · Europe
Supported model
Data version 2023-11
Telephone & Mayday
9 part groups · 3 illustrations
Part groups

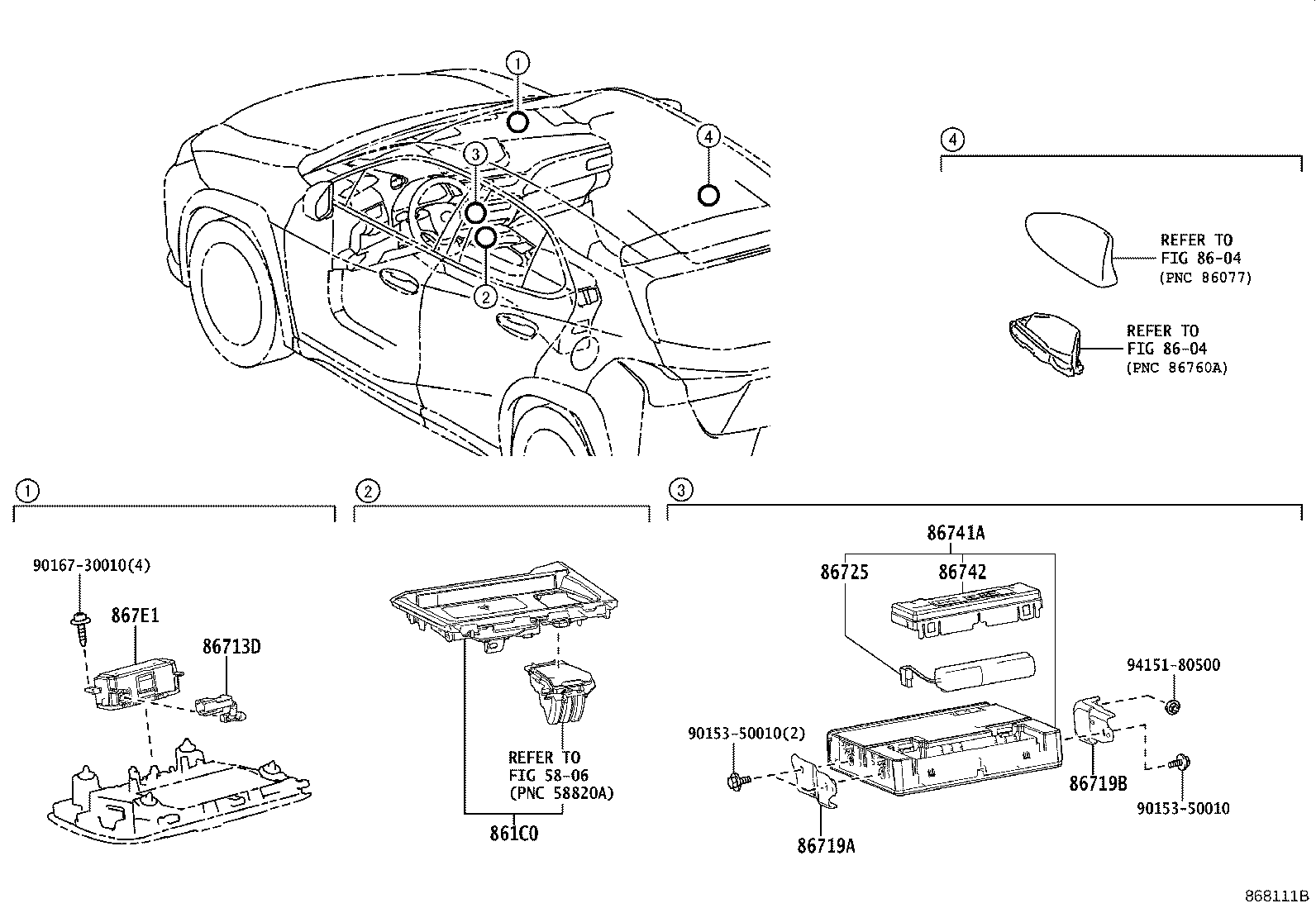

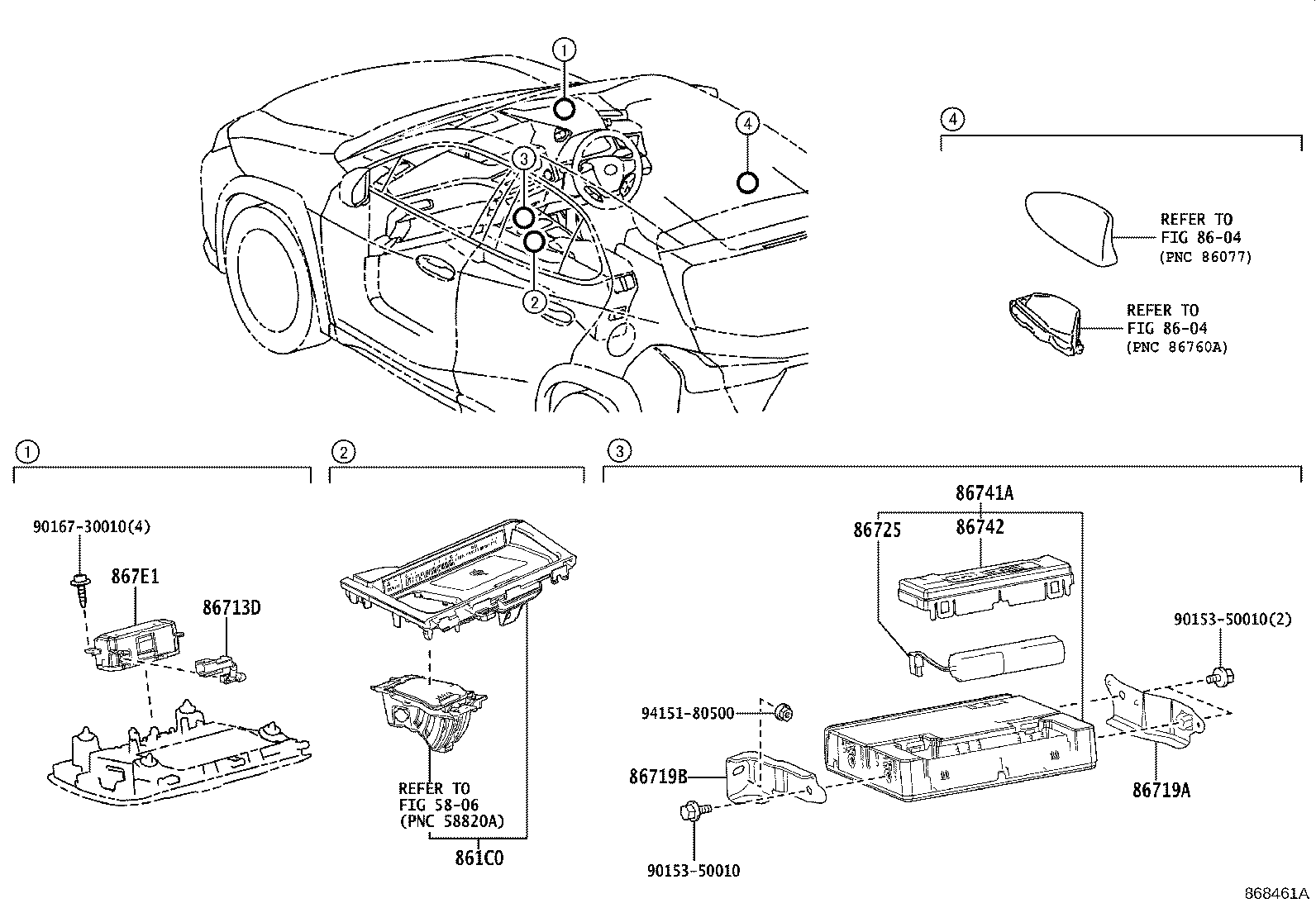

| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86713 | Wire, Telephone Computer |
| 86713D | Wire, Mayday |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 867E1 | Box, Communication Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
