Heating & Air Conditioning - Control & Air Duct

20 part groups · 6 illustrations

Illustrations

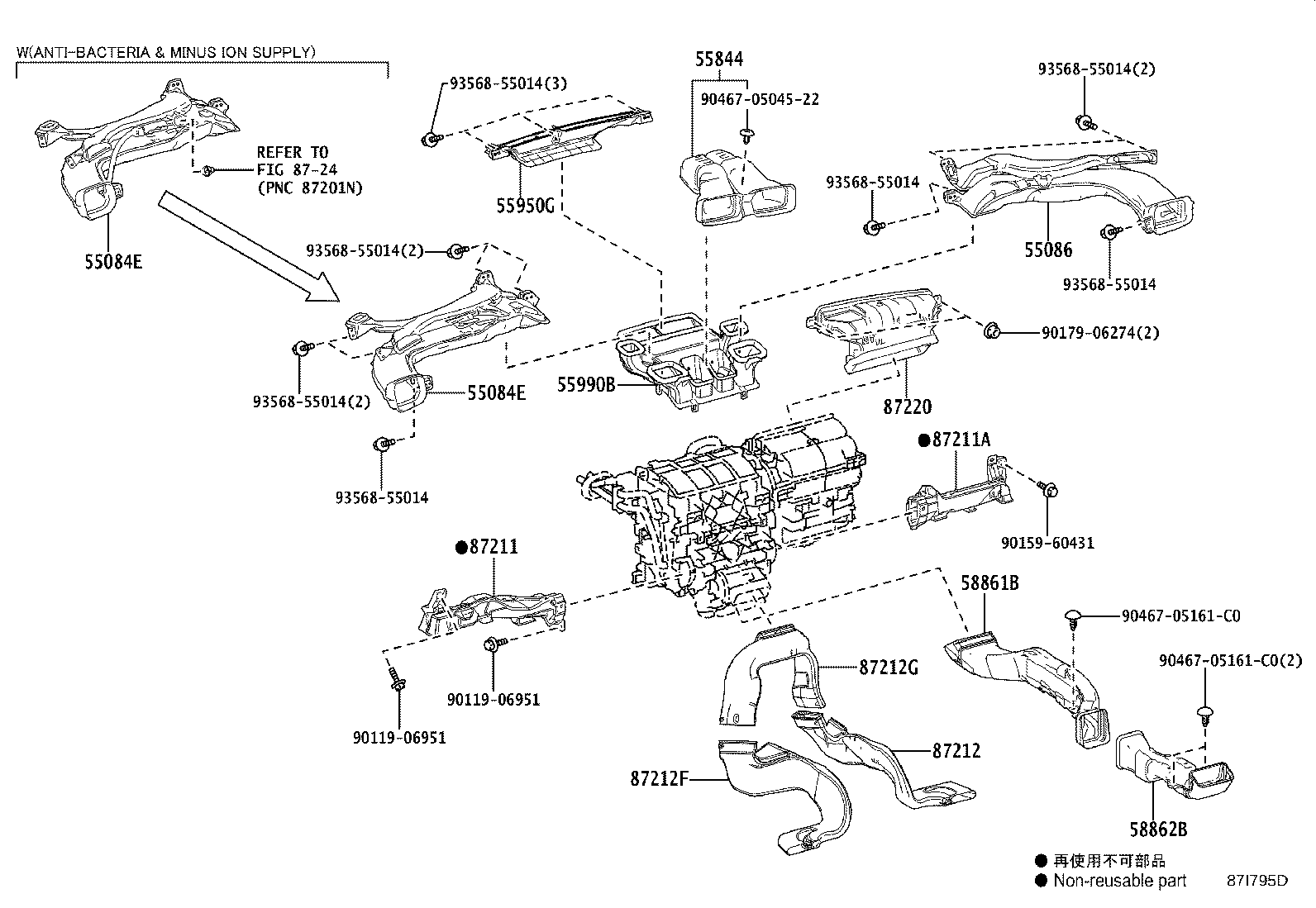

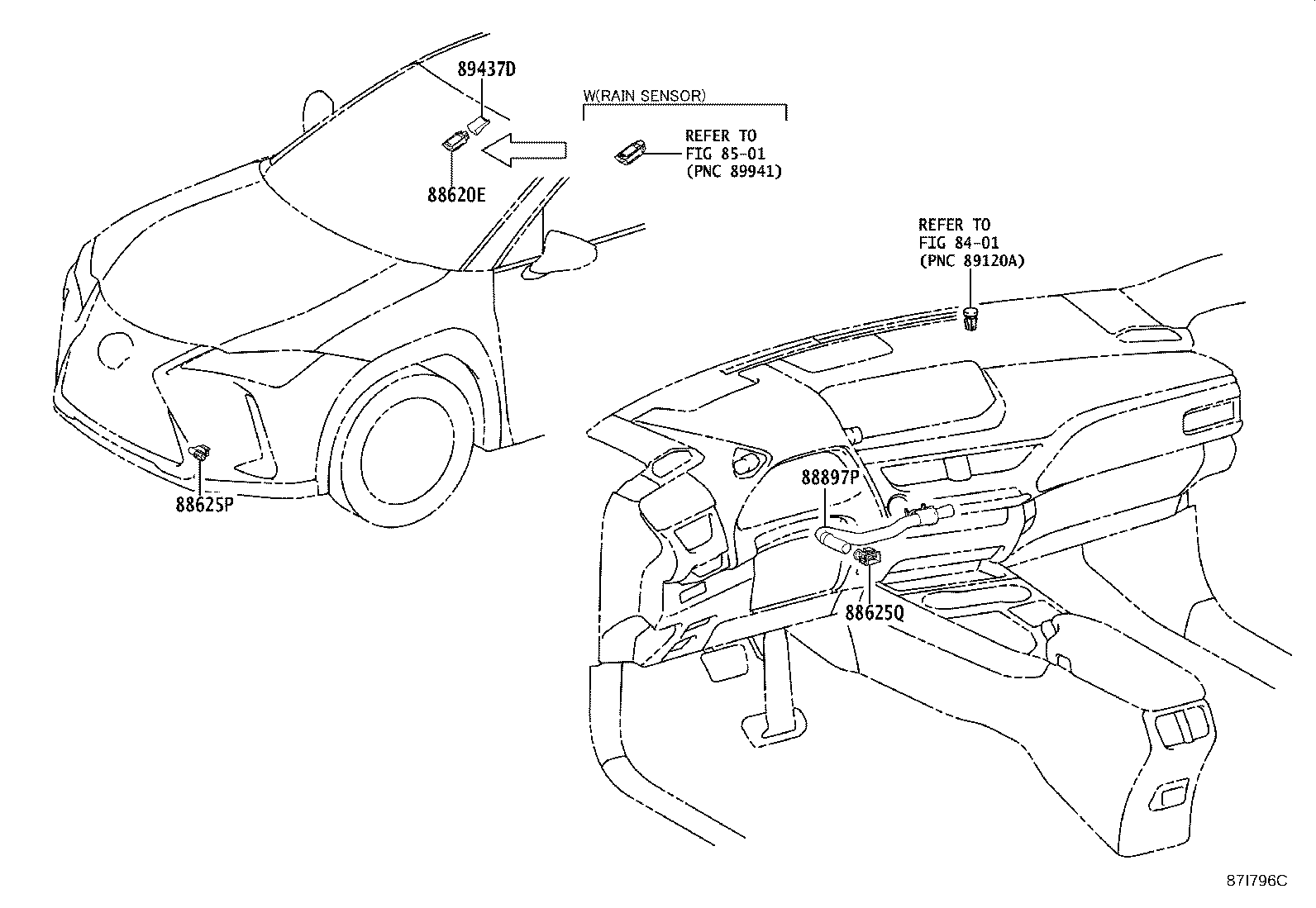

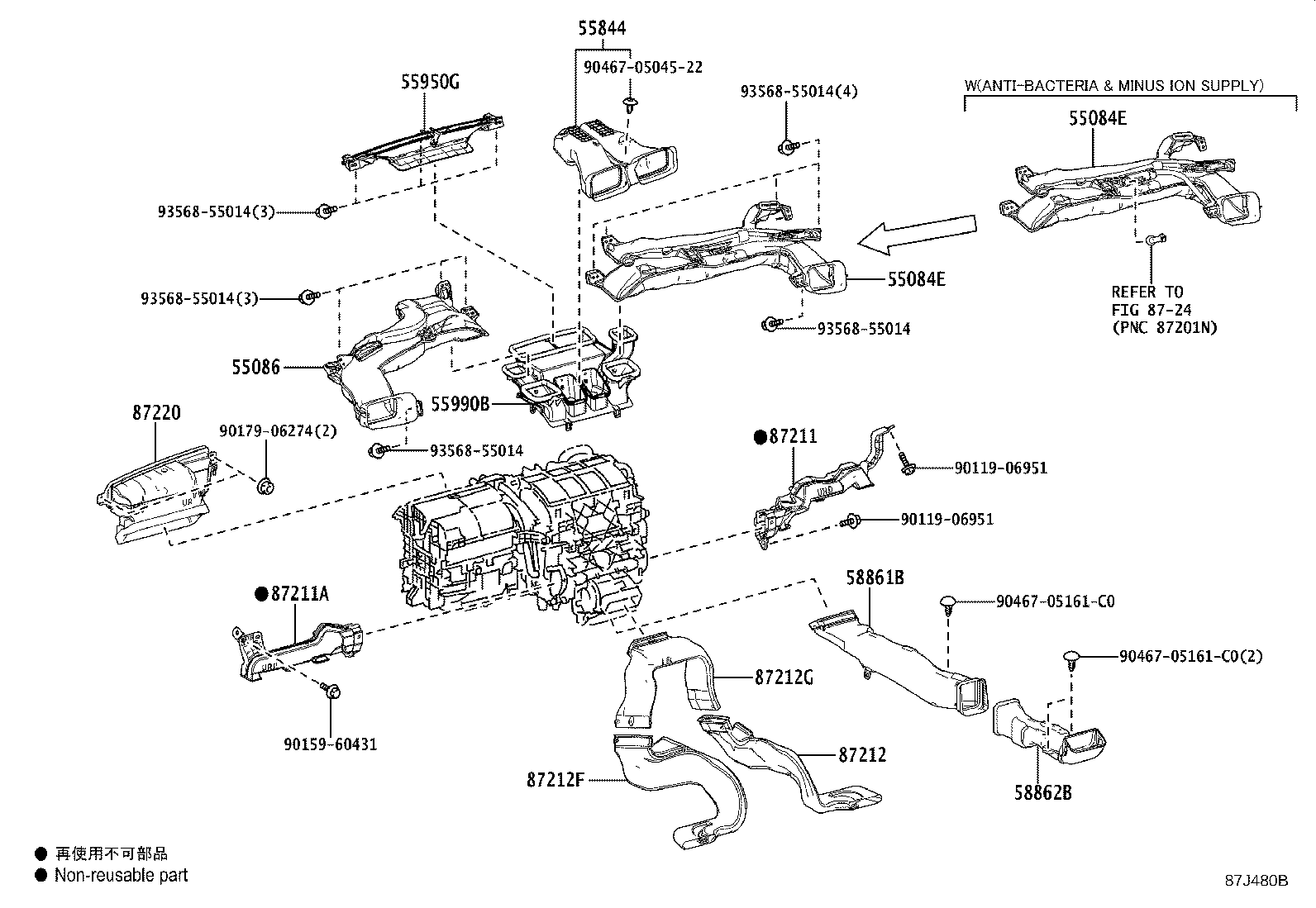

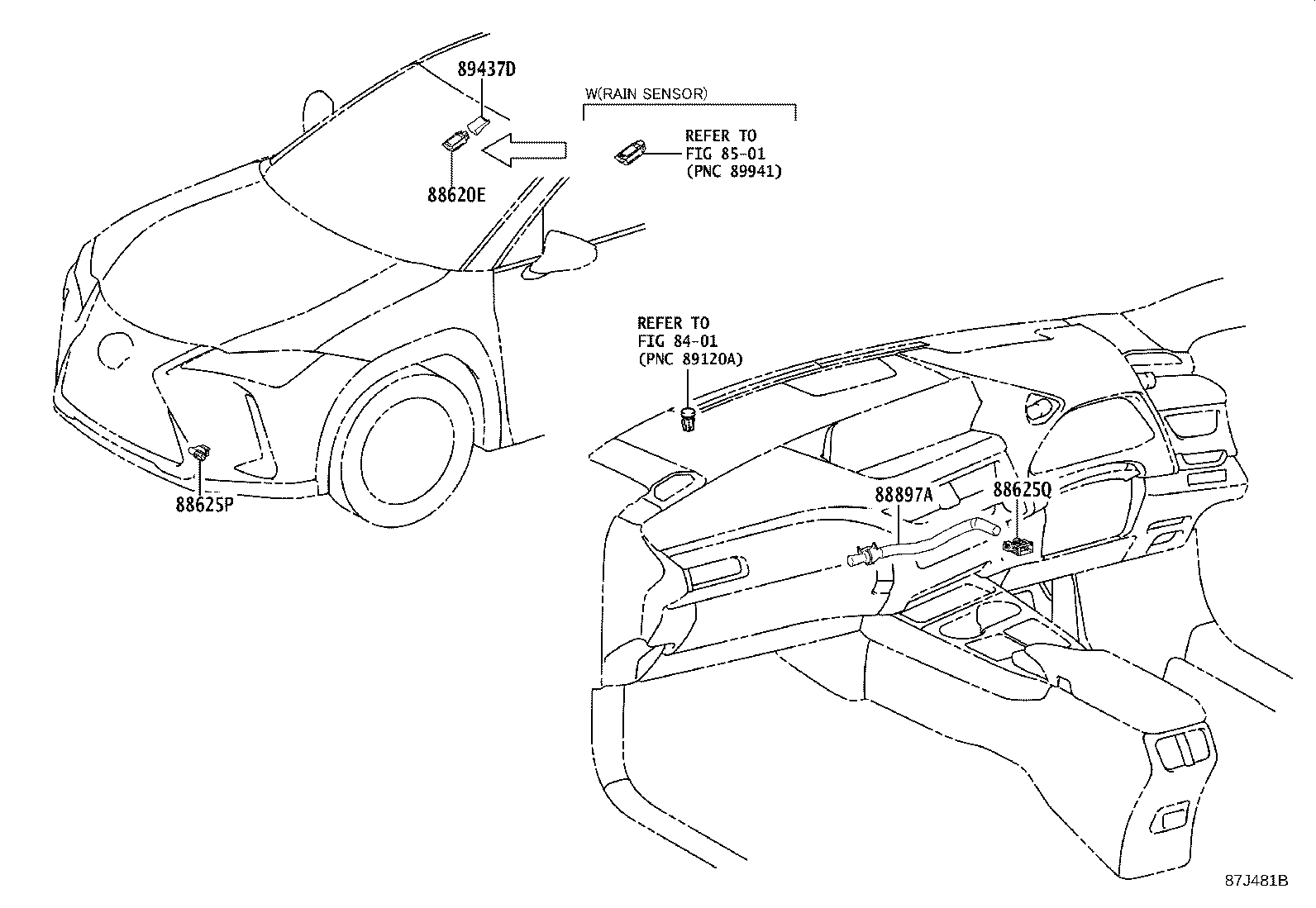

Figure 87I794A 87I794A 2020-04 → — Figure 87J476A 87J476A 2020-11 → — Figure 87I795D 87I795D 2020-04 → — Figure 87J480B 87J480B 2020-11 → — Figure 87I796C 87I796C 2020-04 → — Figure 87J481B 87J481B 2020-11 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87220 Duct Assy, Air
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897A Pipe, Aspirator
88897P Aspirator
89437D Cover, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
