Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03

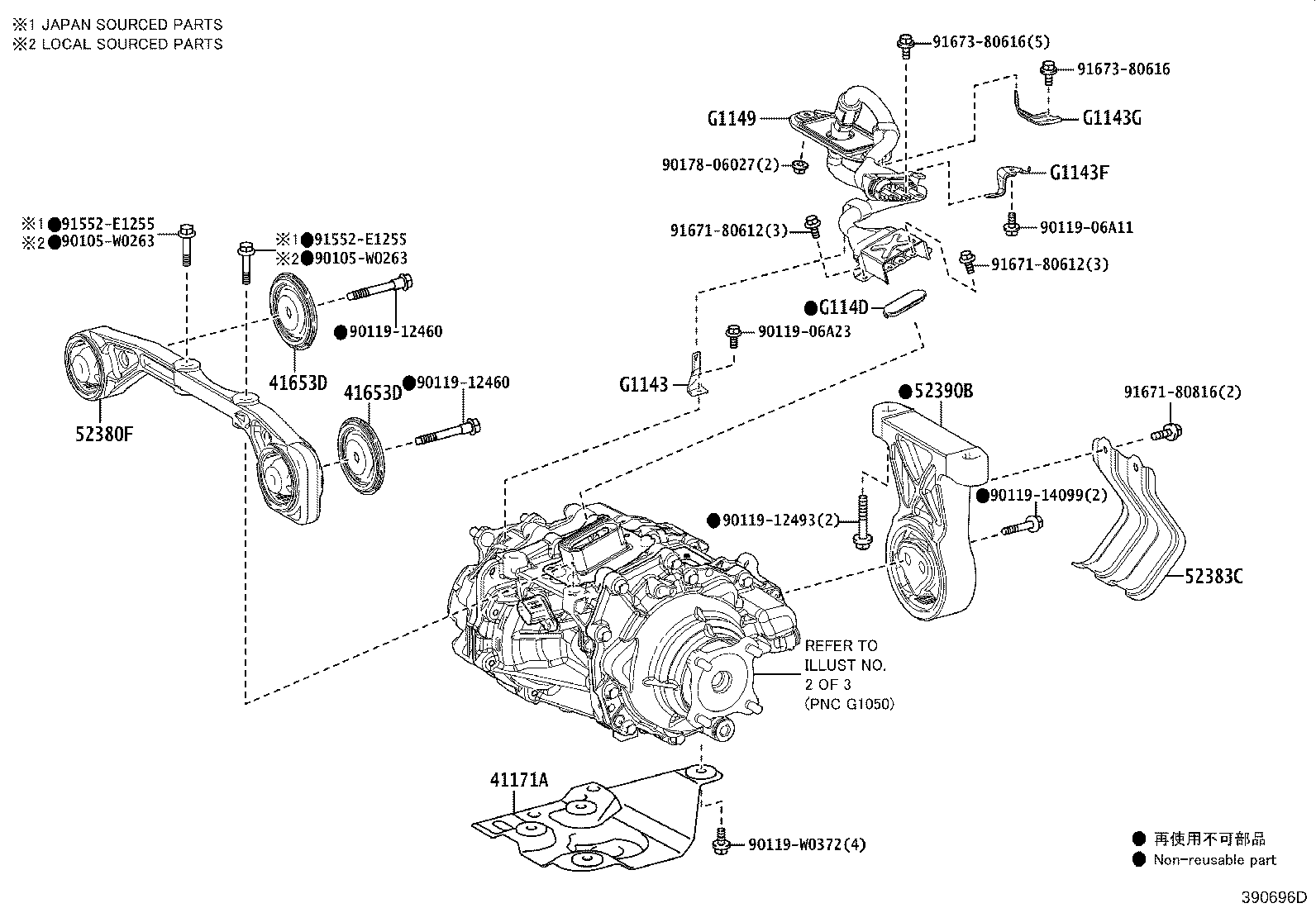

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41171A — Protector, Differential | ||||
| 41170-52010 |
Protector, Differential
2021-07 → —
|
MXPJ15 RHD N | — | |
| 41170-52010 |
Protector, Differential
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 41170-52010 |
Protector, Differential
2024-04 → —
|
MXPJ16 | — | |
| 41170-52010 |
Protector, Differential
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 41653D — Stopper, Differential Mount,Upper | ||||
| 41653-K0010 |
Stopper, Differential Mount,Upper
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 41653-K0010 |
Stopper, Differential Mount,Upper
2021-07 → —
|
MXPJ15 RHD N | — | |
| 41653-K0010 |
Stopper, Differential Mount,Upper
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 41653-K0010 |
Stopper, Differential Mount,Upper
2024-04 → —
|
MXPJ16 | — | |
| 52380F — Support Assy, Differential, Front | ||||
| 52380-K0040 |
Support Assy, Differential, Front
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52380-K0040 |
Support Assy, Differential, Front
2021-07 → —
|
MXPJ15 RHD N | — | |
| 52380-K0040 |
Support Assy, Differential, Front
2024-04 → —
|
MXPJ16 | — | |
| 52380-K0040 |
Support Assy, Differential, Front
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52383C — Protector, Differential Support | ||||
| 52383-K0010 |
Protector, Differential Support
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52383-K0010 |
Protector, Differential Support
2021-07 → —
|
MXPJ15 RHD N | — | |
| 52383-K0010 |
Protector, Differential Support
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52383-K0010 |
Protector, Differential Support
2024-04 → —
|
MXPJ16 | — | |
| 52390B — Support Assy, Differential, Rear | ||||
| 52390-K0020 |
Support Assy, Differential, Rear
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52390-K0020 |
Support Assy, Differential, Rear
2021-07 → —
|
MXPJ15 RHD N | — | |
| 52390-K0020 |
Support Assy, Differential, Rear
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| 52390-K0020 |
Support Assy, Differential, Rear
2024-04 → —
|
MXPJ16 | — | |
| G1143 — Bracket, Motor Cable | ||||
| G1143-K0010 |
Bracket, Motor Cable
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0010 |
Bracket, Motor Cable
2021-07 → —
|
MXPJ15 RHD N | — | |
| G1143-K0010 |
Bracket, Motor Cable
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0010 |
Bracket, Motor Cable
2024-04 → —
|
MXPJ16 | — | |
| G1143F — Bracket, Motor Cable, NO.2 | ||||
| G1143-K0020 |
Bracket, Motor Cable, NO.2
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0020 |
Bracket, Motor Cable, NO.2
2021-07 → —
|
MXPJ15 RHD N | — | |
| G1143-K0020 |
Bracket, Motor Cable, NO.2
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0020 |
Bracket, Motor Cable, NO.2
2024-04 → —
|
MXPJ16 | — | |
| G1143G — Bracket, Motor Cable, NO.3 | ||||
| G1143-K0030 |
Bracket, Motor Cable, NO.3
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0030 |
Bracket, Motor Cable, NO.3
2021-07 → —
|
MXPJ15 RHD N | — | |
| G1143-K0030 |
Bracket, Motor Cable, NO.3
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1143-K0030 |
Bracket, Motor Cable, NO.3
2024-04 → —
|
MXPJ16 | — | |
| G1149 — Cable(FOR REAR TRACTION MOTOR) | ||||
| G1149-K0010 |
Cable(FOR REAR TRACTION MOTOR)
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1149-K0010 |
Cable(FOR REAR TRACTION MOTOR)
2021-07 → —
|
MXPJ15 RHD N | — | |
| G1149-K0010 |
Cable(FOR REAR TRACTION MOTOR)
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G1149-K0010 |
Cable(FOR REAR TRACTION MOTOR)
2024-04 → —
|
MXPJ16 | — | |
| G114D — Cap, Motor Cable Terminal | ||||
| G114D-47021 |
Cap, Motor Cable Terminal
2021-07 → 2024-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G114D-47021 |
Cap, Motor Cable Terminal
2021-07 → —
|
MXPJ15 RHD N | — | |
| G114D-47021 |
Cap, Motor Cable Terminal
2024-04 → 2025-04
ended
|
MXPJ15 G;MXPJ15 LHD N | — | |
| G114D-47021 |
Cap, Motor Cable Terminal
2024-04 → —
|
MXPJ16 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
