Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

11 part groups · 2 illustrations

Illustrations

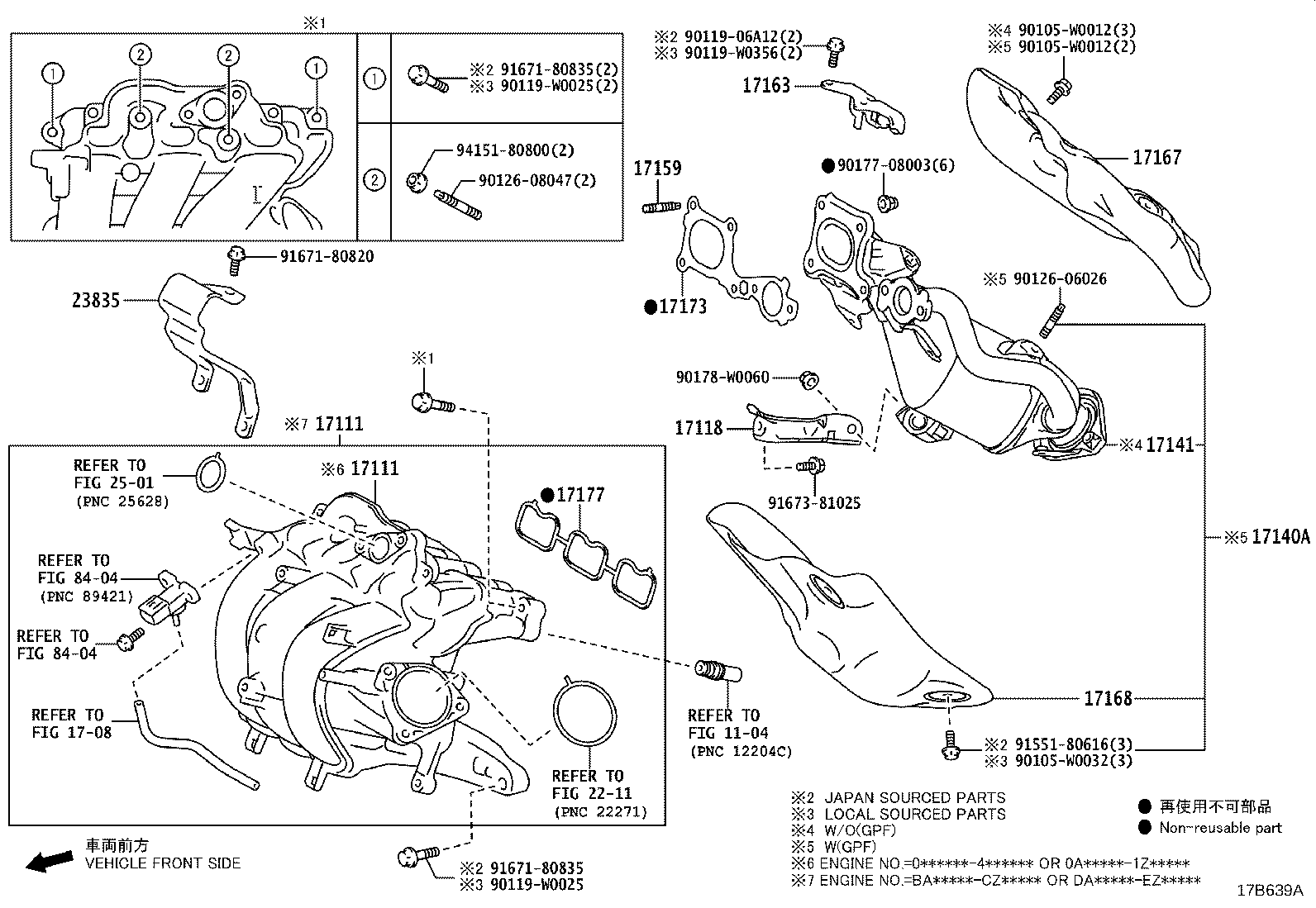

Figure 17B638A 17B638A 2021-07 → — Figure 17B639A 17B639A 2021-07 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17140A Manifold Assy, Exhaust
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
23835 Guard, Fuel Delivery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
