Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 4 illustrations

Illustrations

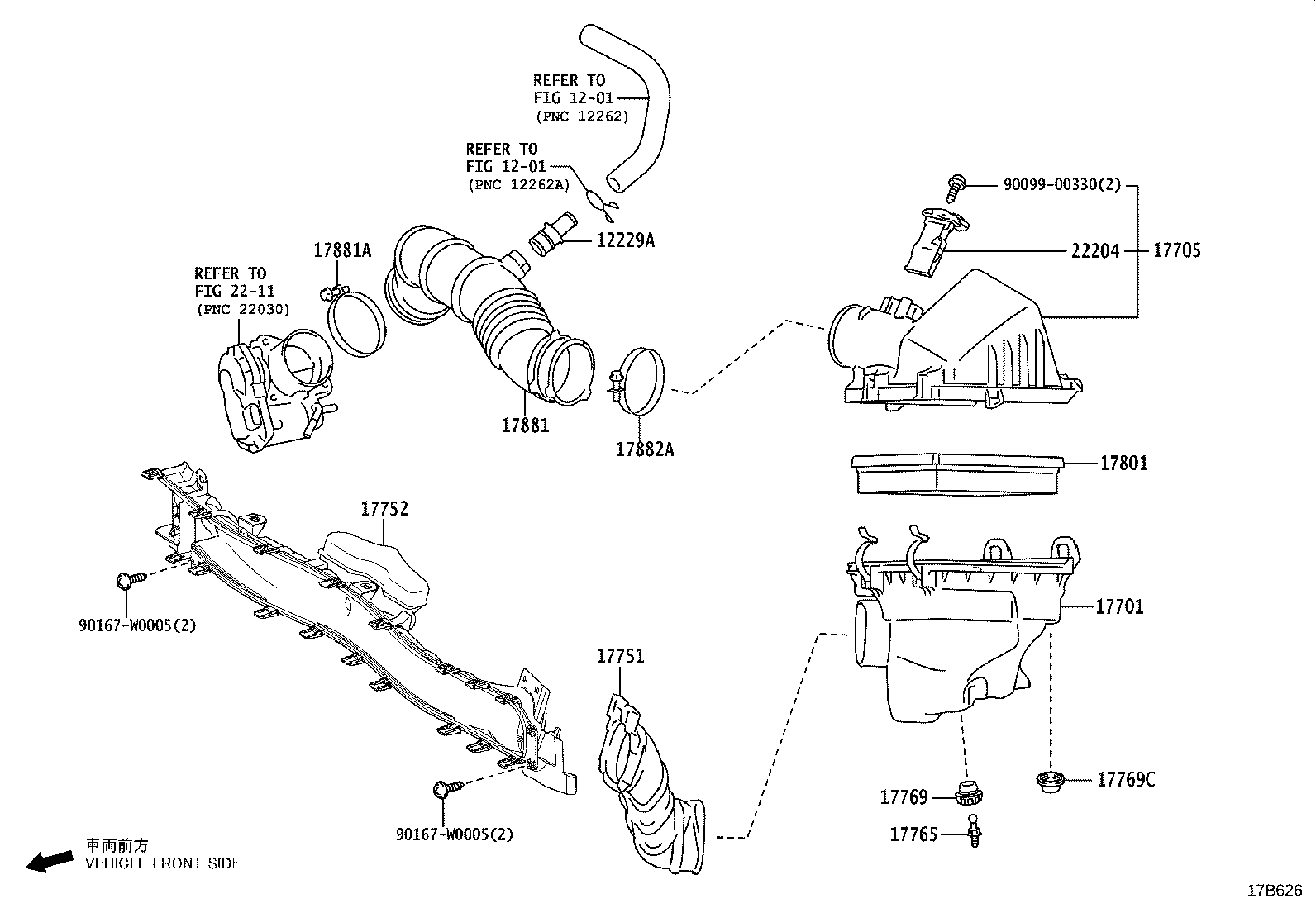

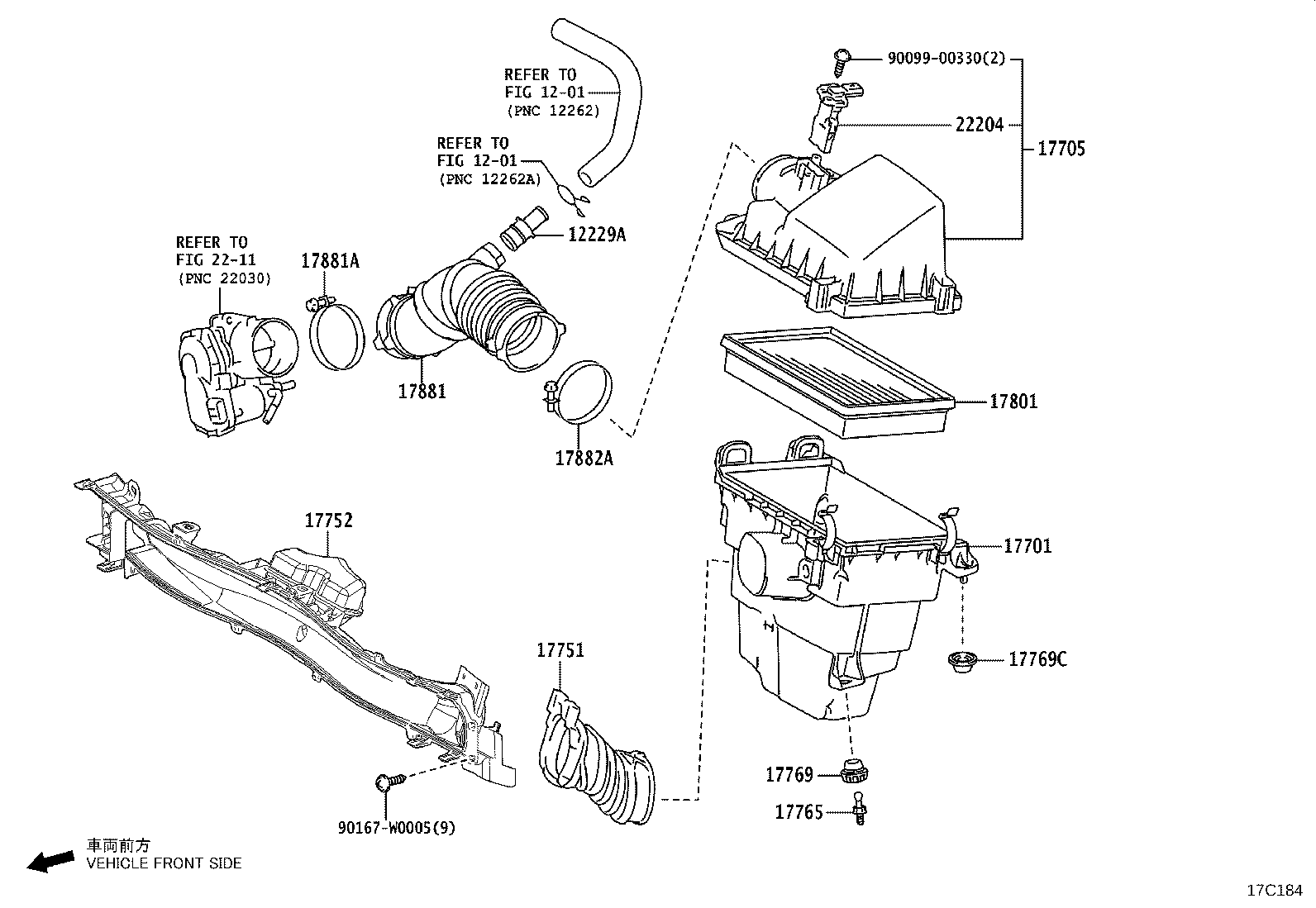

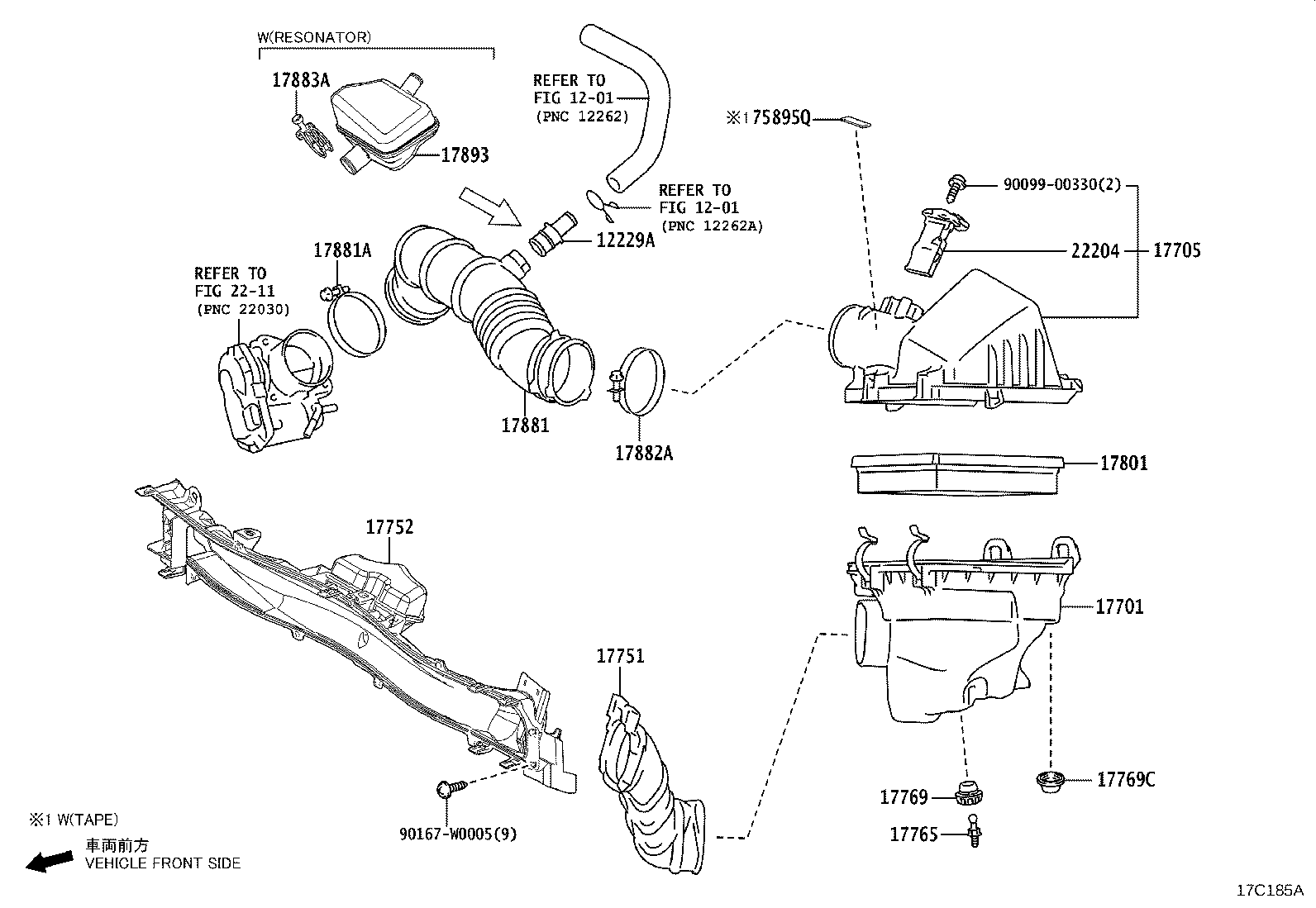

Figure 17B625 17B625 2021-07 → 2022-02 Figure 17C184 17C184 2022-02 → — Figure 17B626 17B626 2021-07 → 2022-02 Figure 17C185A 17C185A 2022-02 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17765 Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
