Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

11 part groups · 5 illustrations

Illustrations

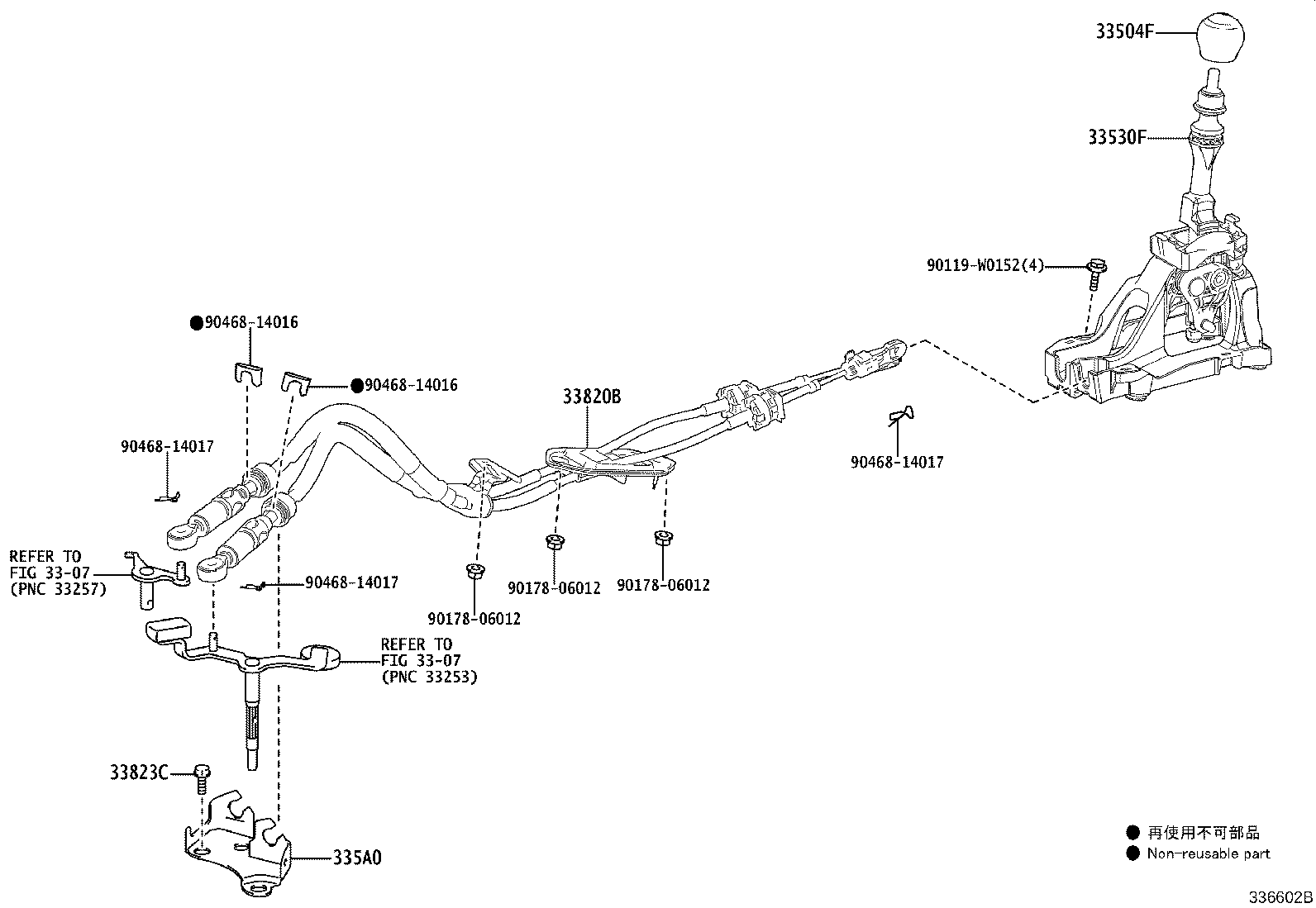

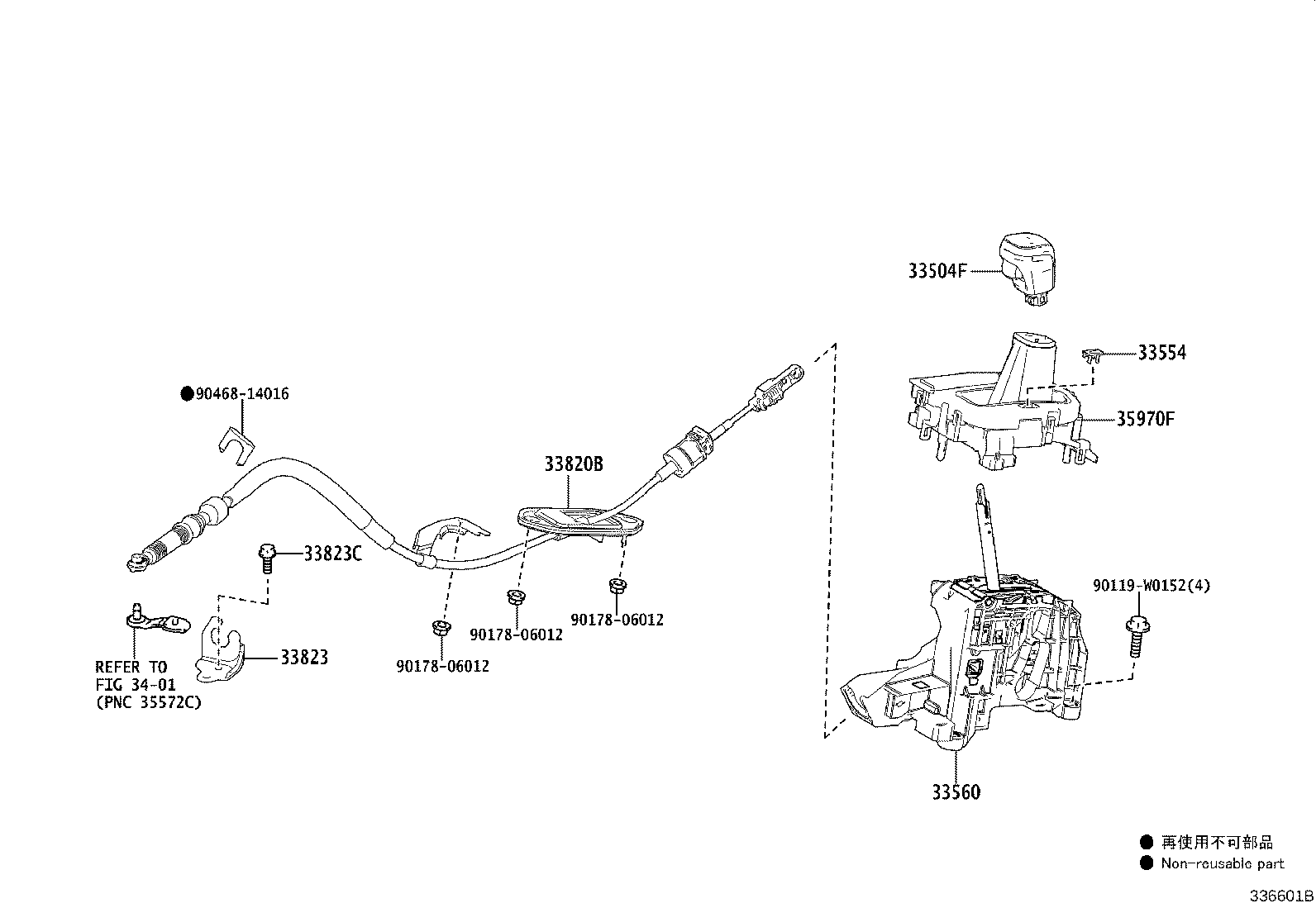

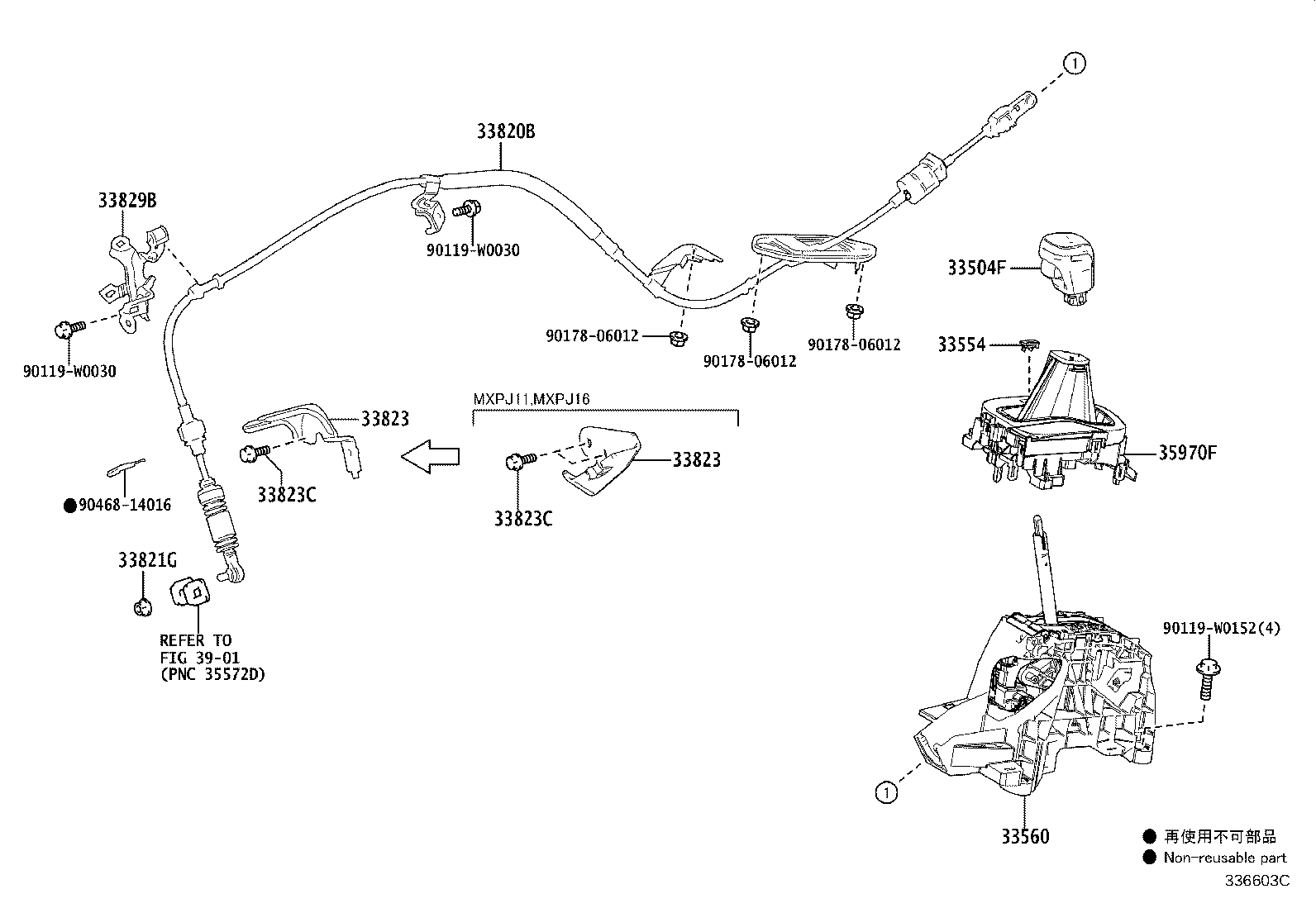

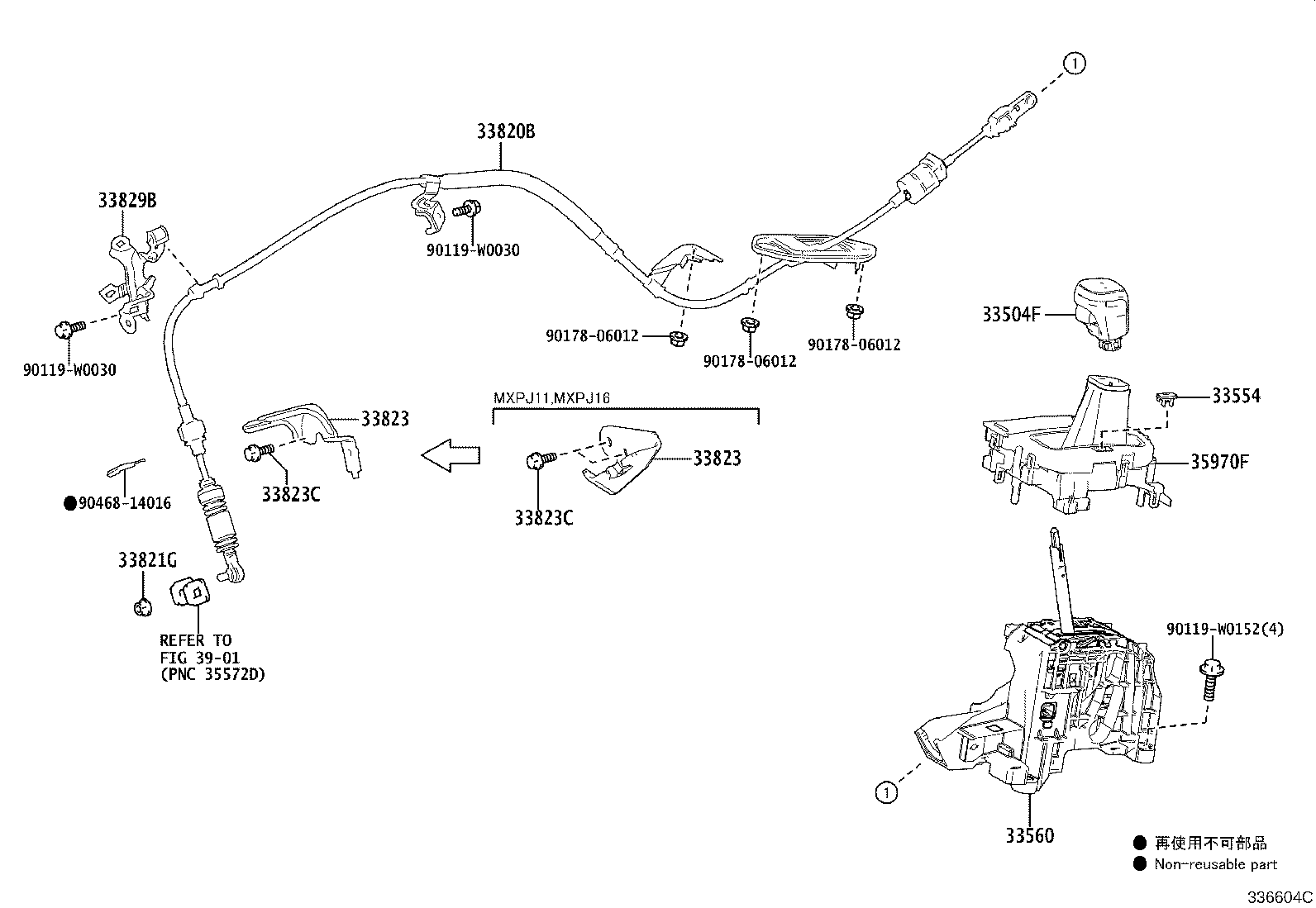

Figure 336600B 336600B 2021-07 → — Figure 336601B 336601B 2021-07 → — Figure 336602B 336602B 2021-07 → — Figure 336603C 336603C 2021-07 → — Figure 336604C 336604C 2021-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33554 Cap, Shift Lever
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829B Clamp, Transmission Control Cable
35970F Housing Assy, Position Indicator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
