Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03

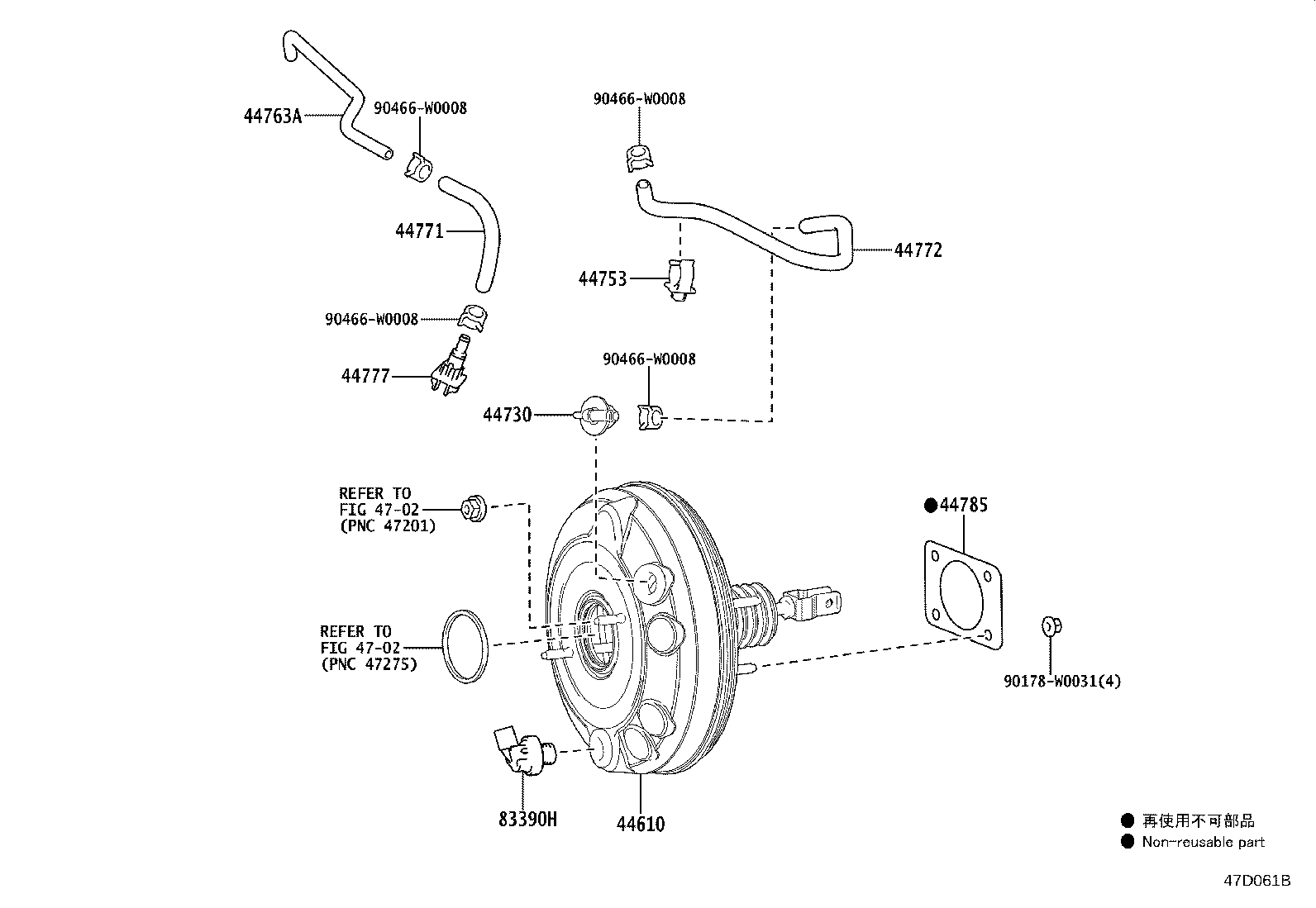

Brake Booster & Vacuum Tube
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44753 | Clamp, Vacuum Reservoir, NO.2 |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44773F | Hose, Union TO Check Valve |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44785 | Gasket, Brake Booster |
| 83390H | Switch Assy, Vacuum Warning |
| 89420H | Sensor Assy, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
