Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 3 illustrations

Illustrations

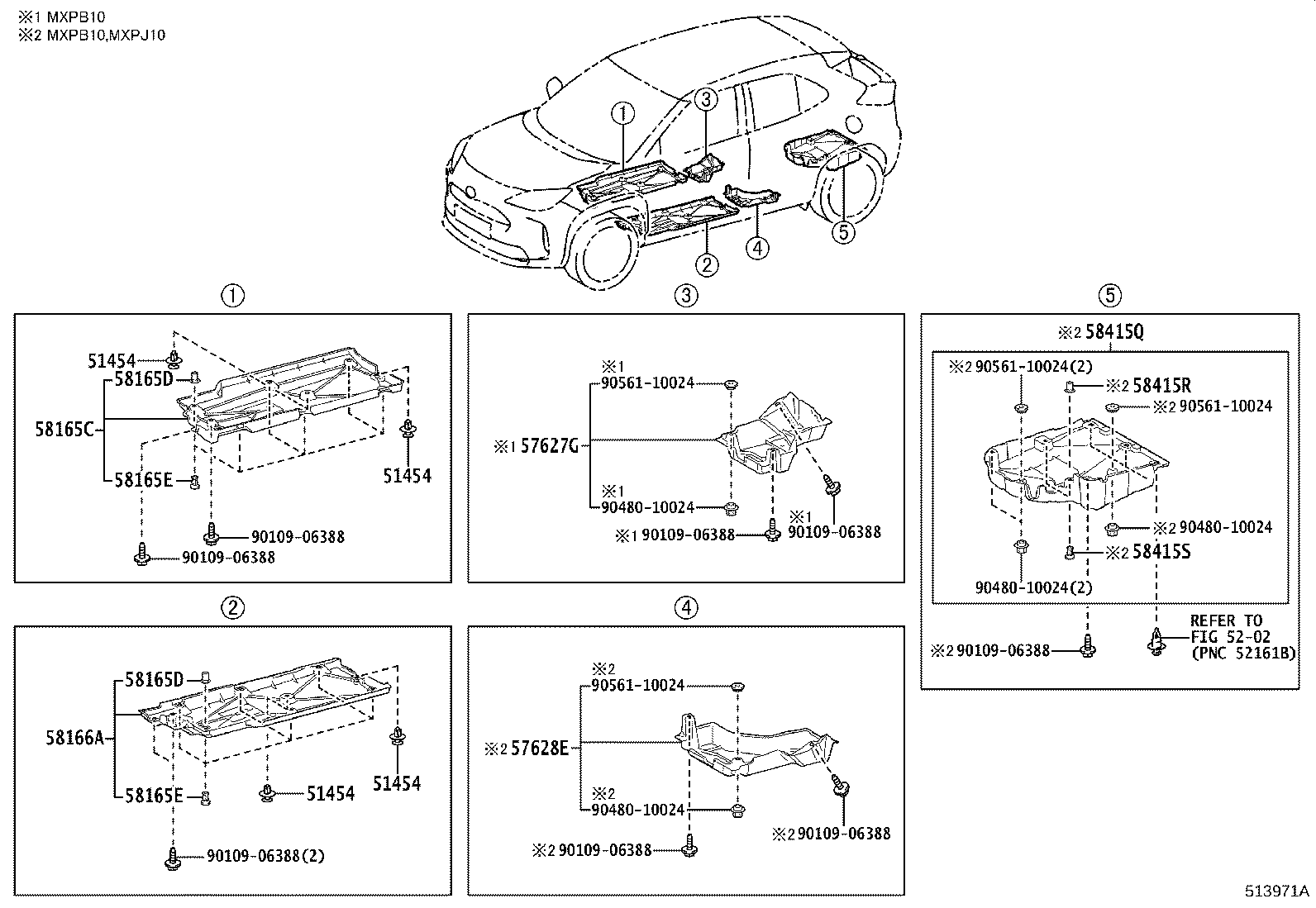

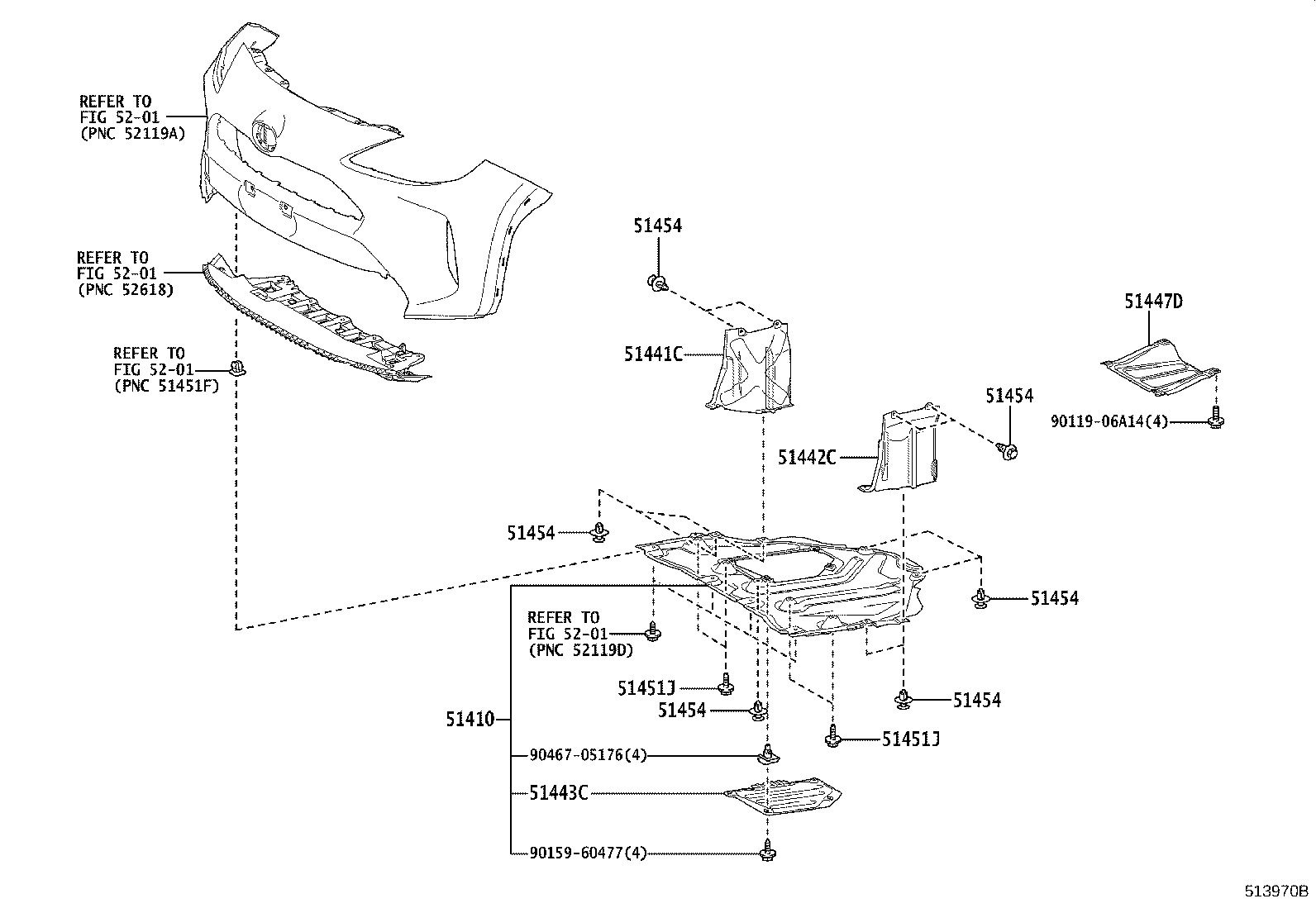

Figure 513969 513969 2021-07 → — Figure 513970B 513970B 2021-07 → — Figure 513971A 513971A 2021-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51410 Cover Assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443C Cover, Engine Under, Rear RH
51447D Cover, Engine Under, NO.4 Center
51451J Bolt, NO.1
51454 Clip
57627G Cover, Rear Floor Side Member, RH
57628E Cover, Rear Floor Side Member, LH
58165C Cover, Front Floor, RH
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58166A Cover, Front Floor, LH
58415Q Board, Rear Floor, NO.1
58415R Clip, Rear Floor Board, NO.1
58415S Clip, Rear Floor Board, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
