Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

18 part groups · 4 illustrations

Illustrations

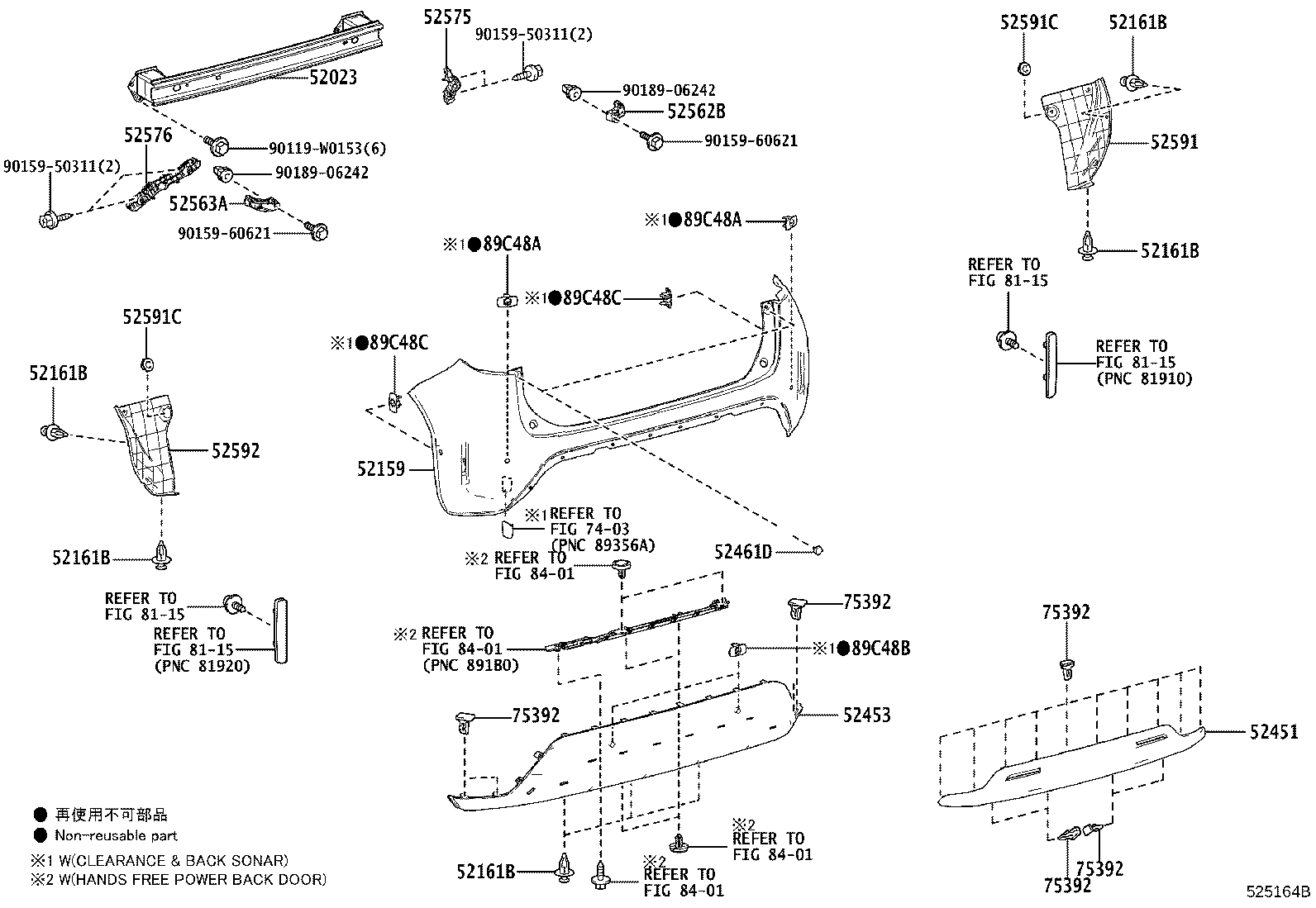

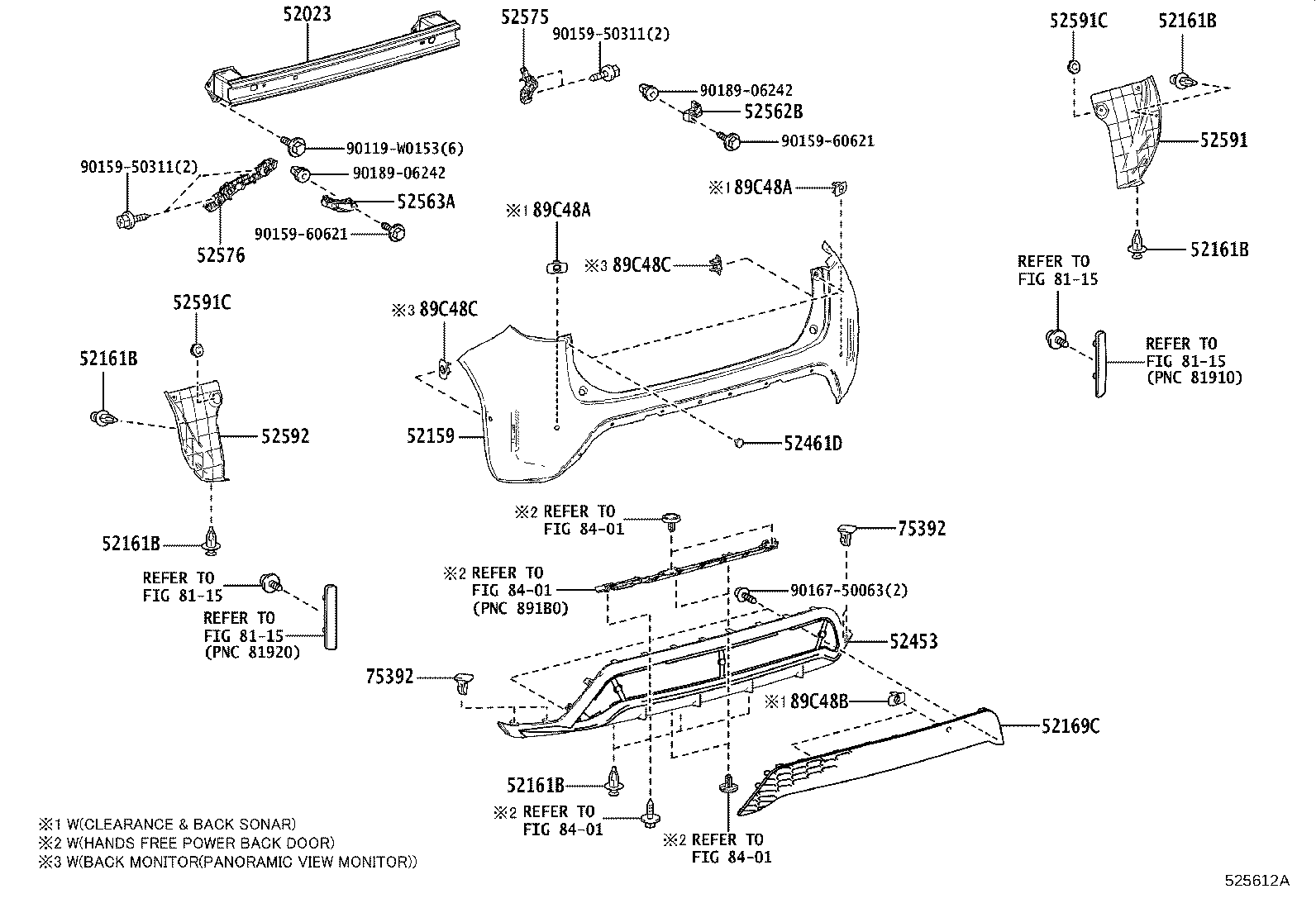

Figure 525163B 525163B 2021-07 → — Figure 525164B 525164B 2021-07 → — Figure 525164B 525164B 2024-04 → — Figure 525612A 525612A 2022-10 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52451 Guard, Rear Bumper
52453 Guard, Rear Bumper, Center
52461D Cushion, Rear Bumper
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52591C Clip, Rear Bumper Side Seal
52592 Seal, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
89C48C Retainer, Ultrasonic Sensor, Rear Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
