Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03

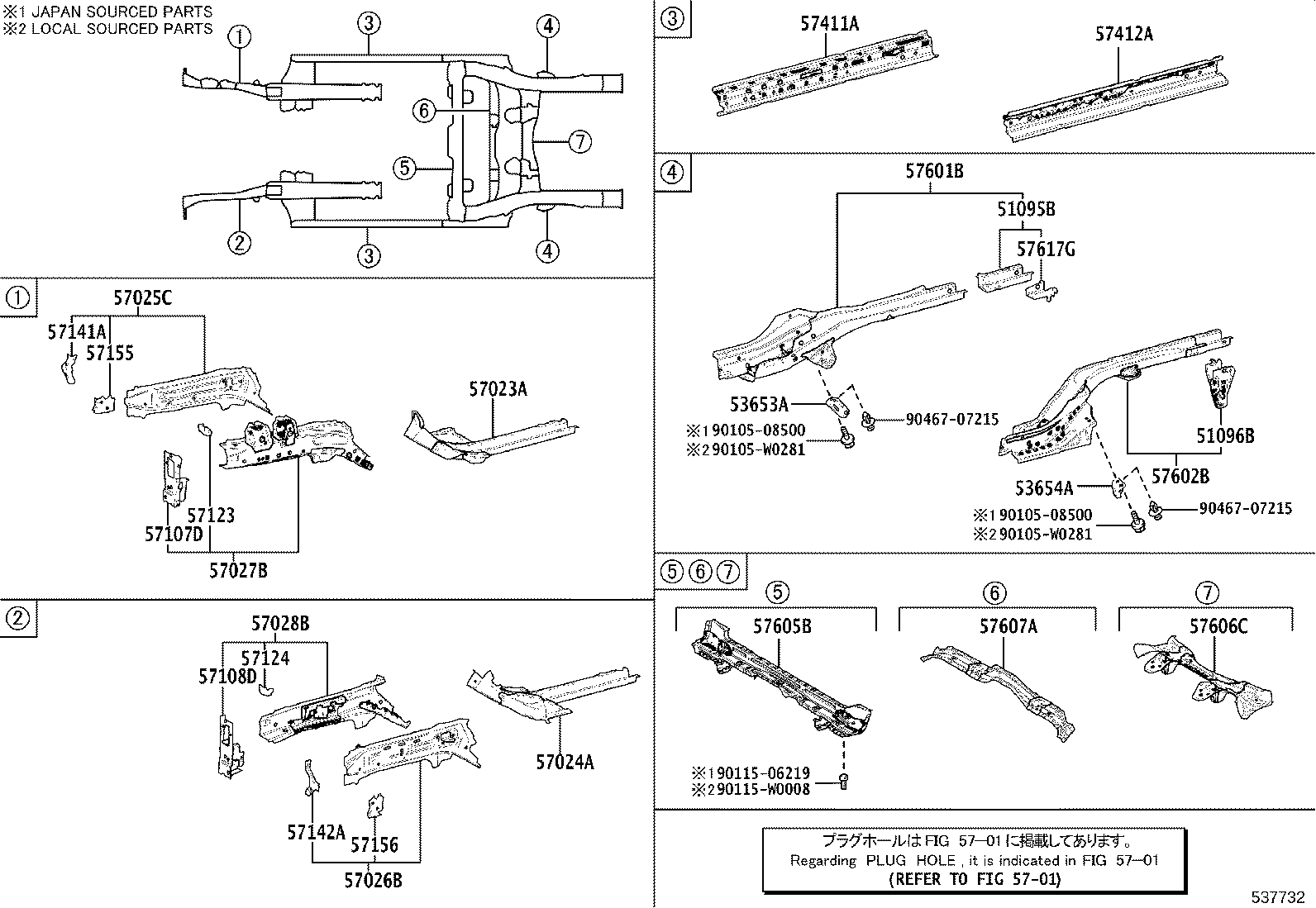

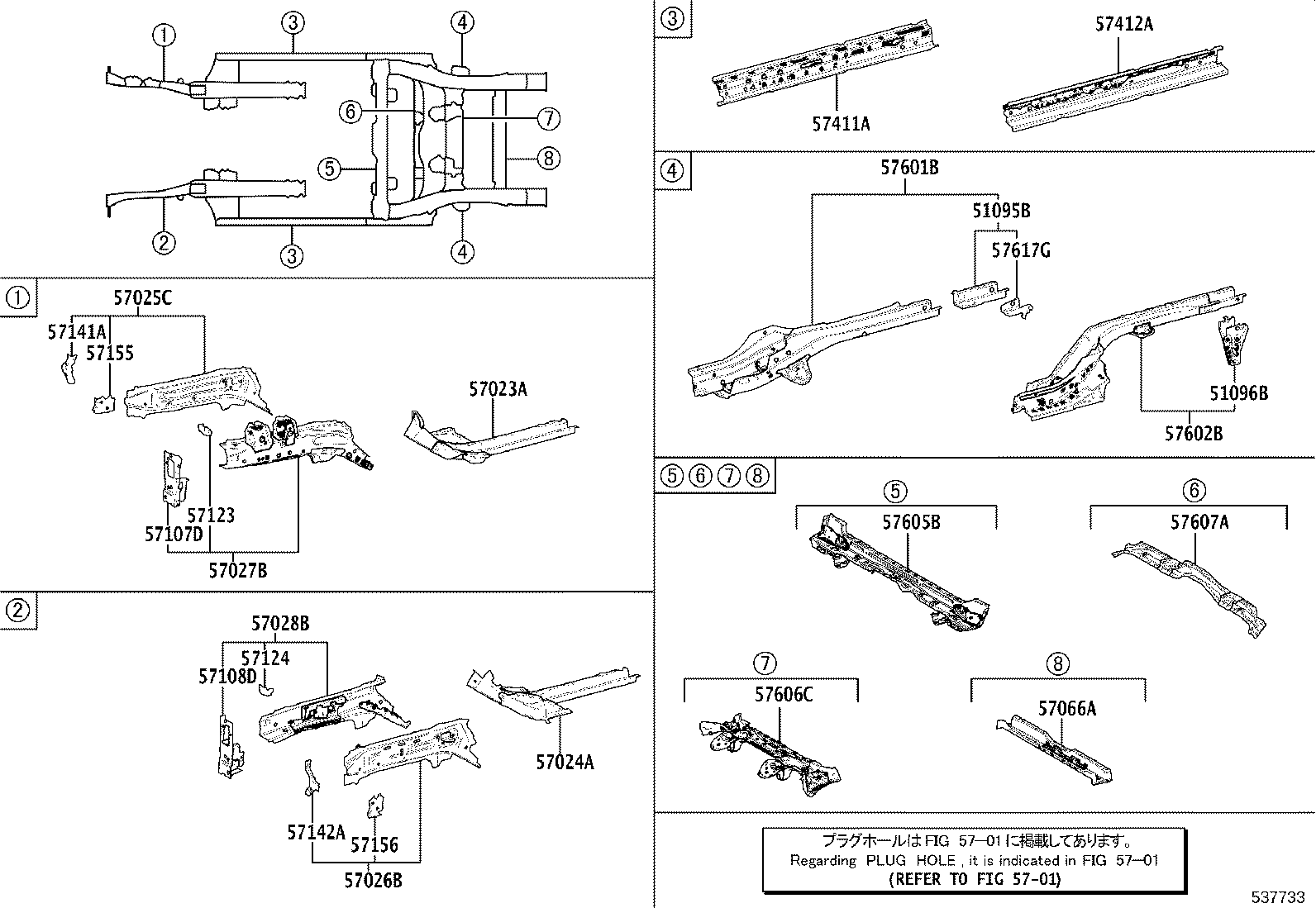

Floor Side Member
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51095B | Hook Sub-assy, Transport, Rear RH |
| 51096B | Hook Sub-assy, Transport, Rear LH |
| 53653A | Brace, Rear Suspension, Lower RH |
| 53654A | Brace, Rear Suspension, Lower LH |
| 57023A | Member Sub-assy, Rear Side, RH |
| 57024A | Member Sub-assy, Rear Side, LH |
| 57025C | Member Sub-assy, Front Side, Outer RH |
| 57026B | Member Sub-assy, Front Side, Outer LH |
| 57027B | Member Sub-assy, Front Side, Inner RH |
| 57028B | Member Sub-assy, Front Side, Inner LH |
| 57066A | Member Sub-assy, Rear Floor Cross, NO.6 |
| 57107D | Reinforce Sub-assy, Front Bumper Mounting, RH |
| 57108D | Reinforce Sub-assy, Front Bumper Mounting, LH |
| 57123 | Support, Front Side Member, RH |
| 57124 | Support, Front Side Member, LH |
| 57141A | Support, Front Bumper Arm, RH |
| 57142A | Support, Front Bumper Arm, LH |
| 57155 | Reinforcement, Front Side Member, NO.3, RH |
| 57156 | Reinforcement, Front Side Member, NO.3, LH |
| 57411A | Member, Floor Side, Inner RH |
| 57412A | Member, Floor Side, Inner LH |
| 57601B | Member Sub-assy, Rear Floor Side, Front RH |
| 57602B | Member Sub-assy, Rear Floor Side, Front LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57617G | Retainer, Rear Bumper Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
