Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03
Instrument Panel & Glove Compartment

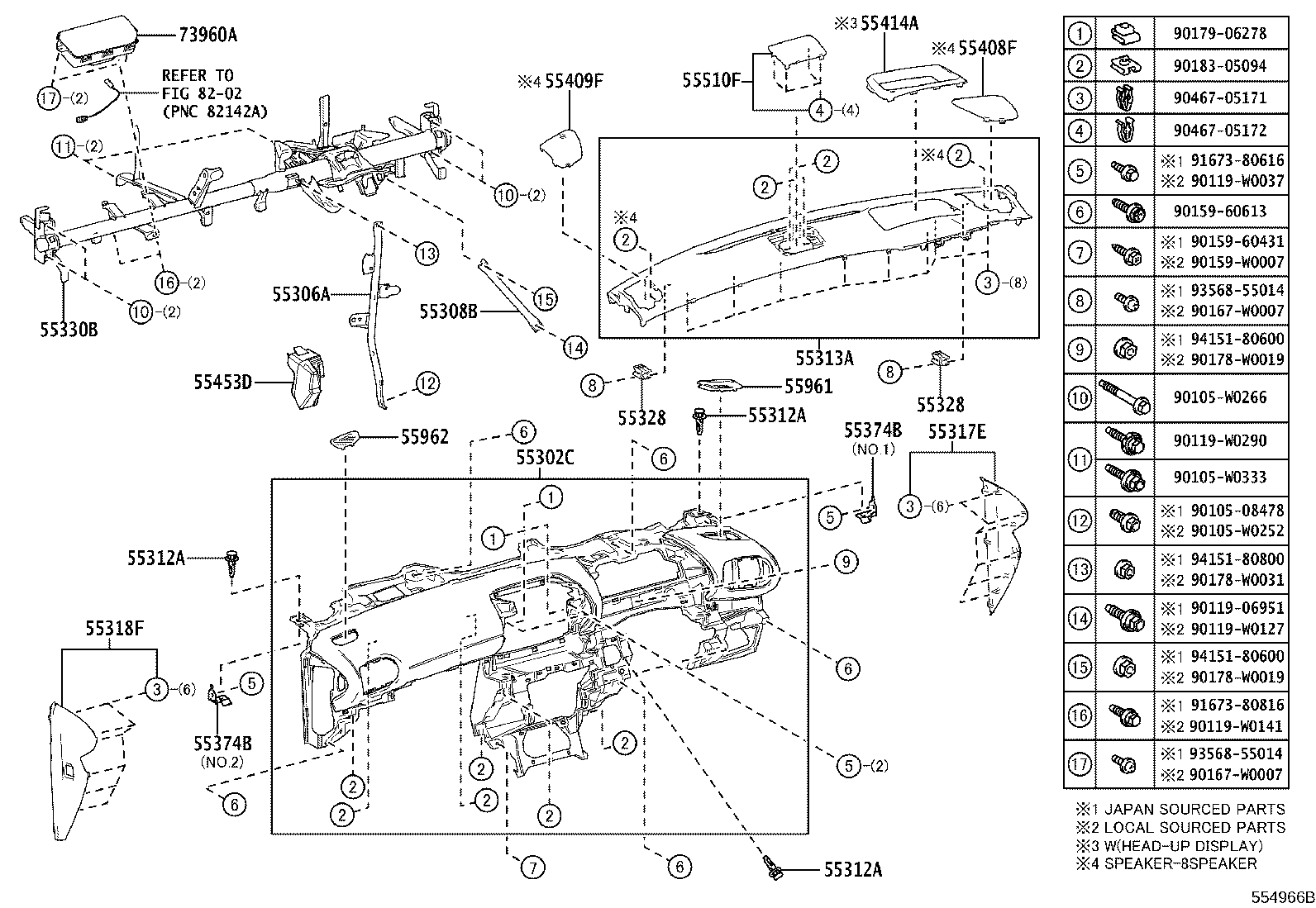

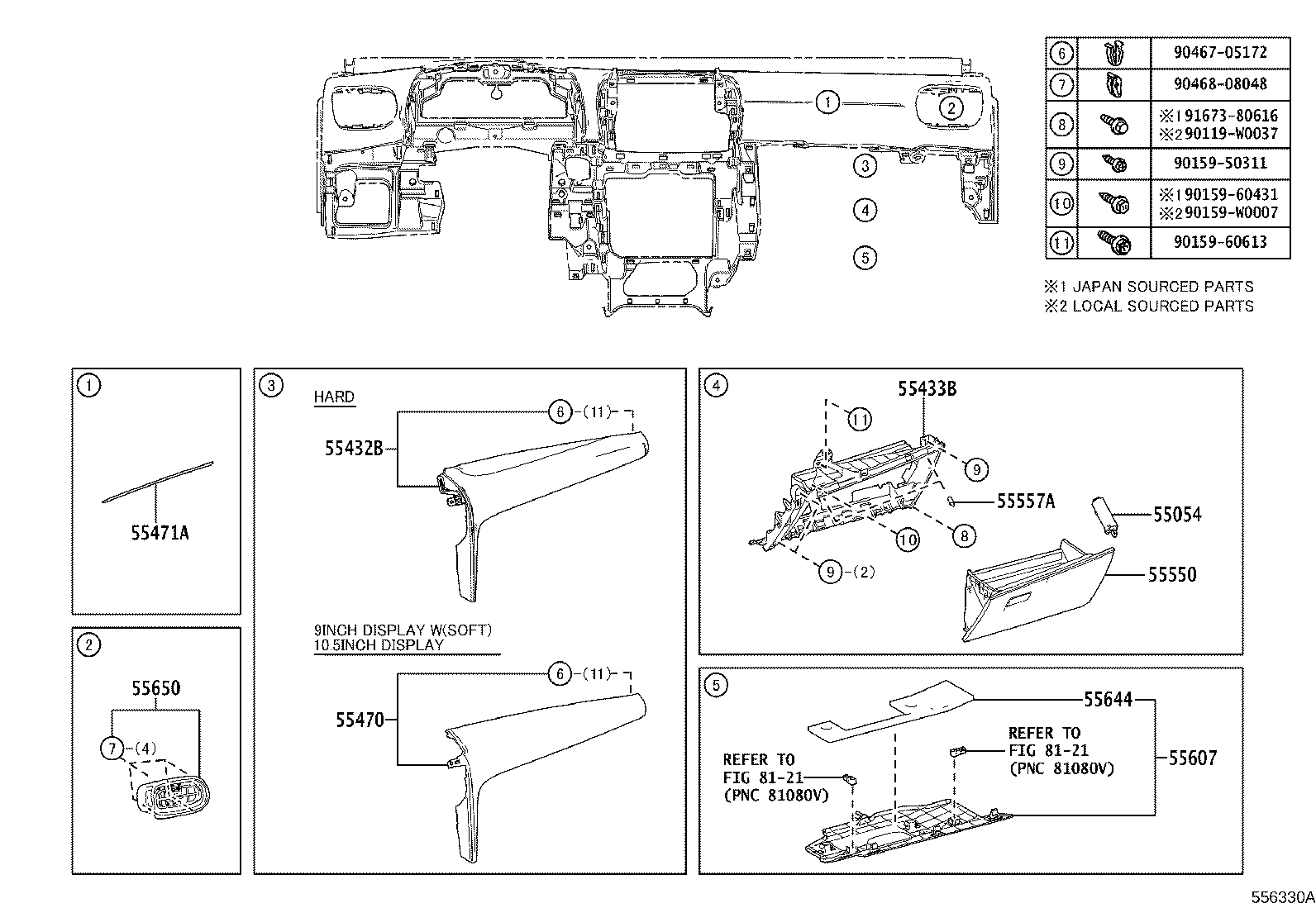

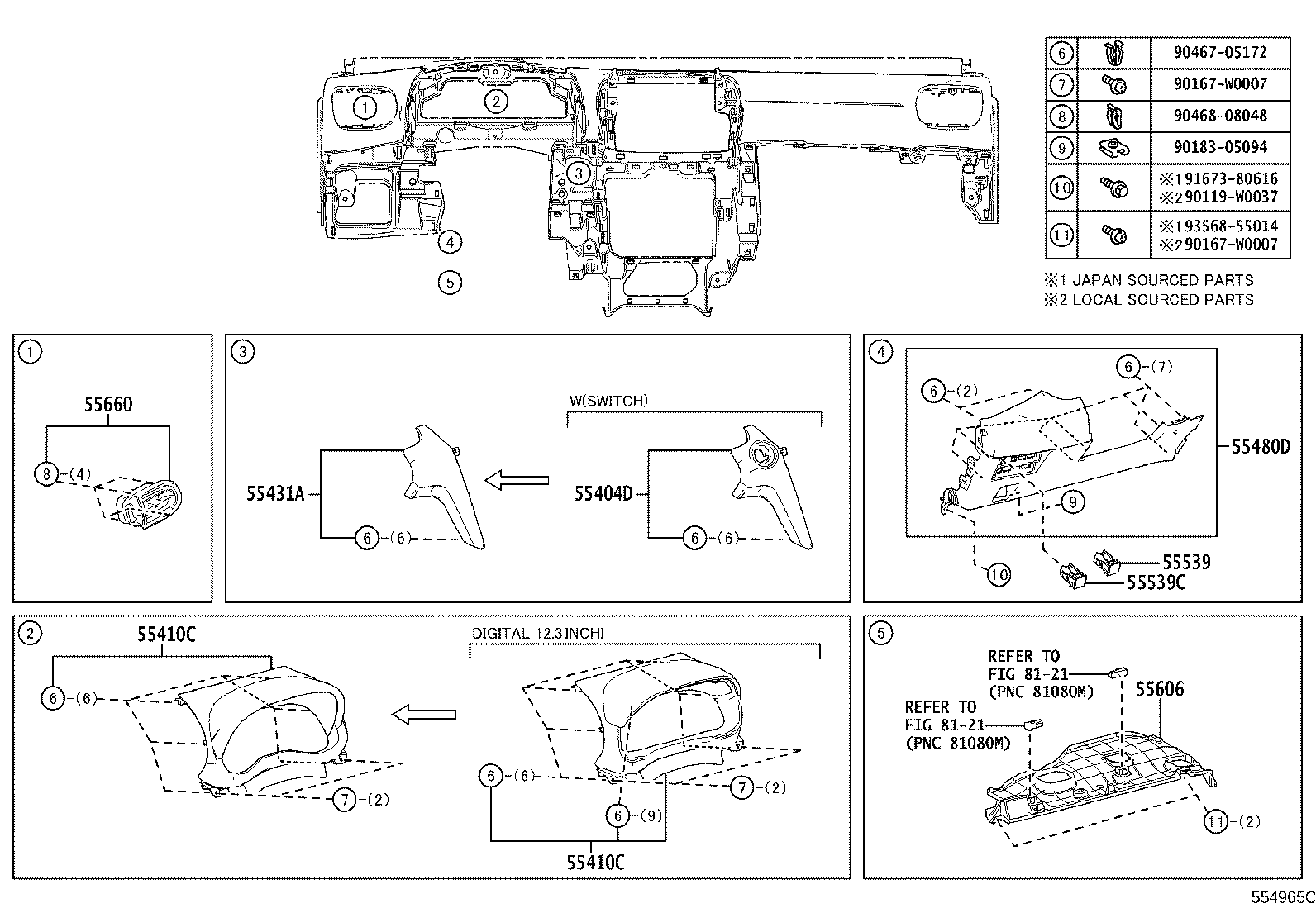

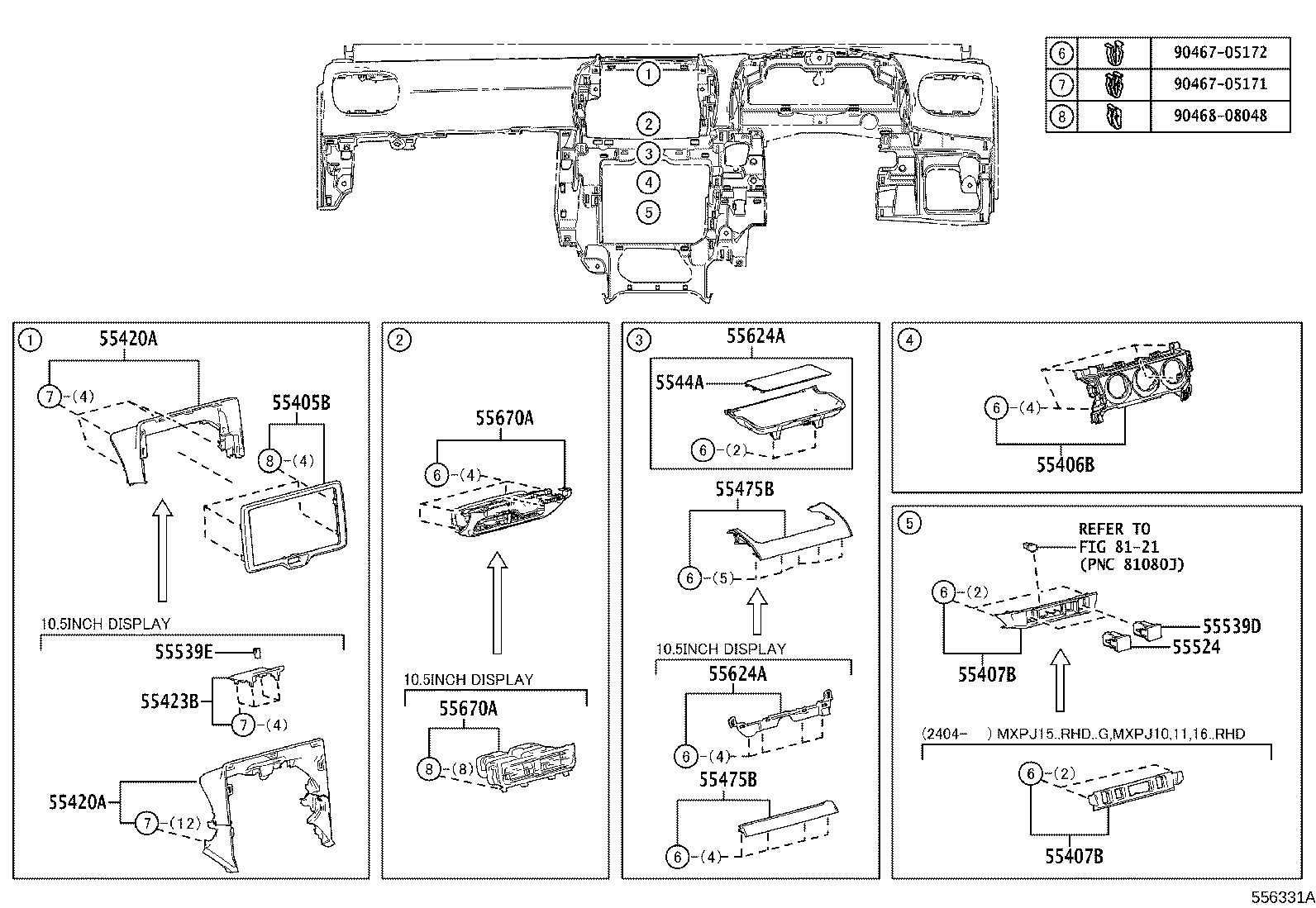

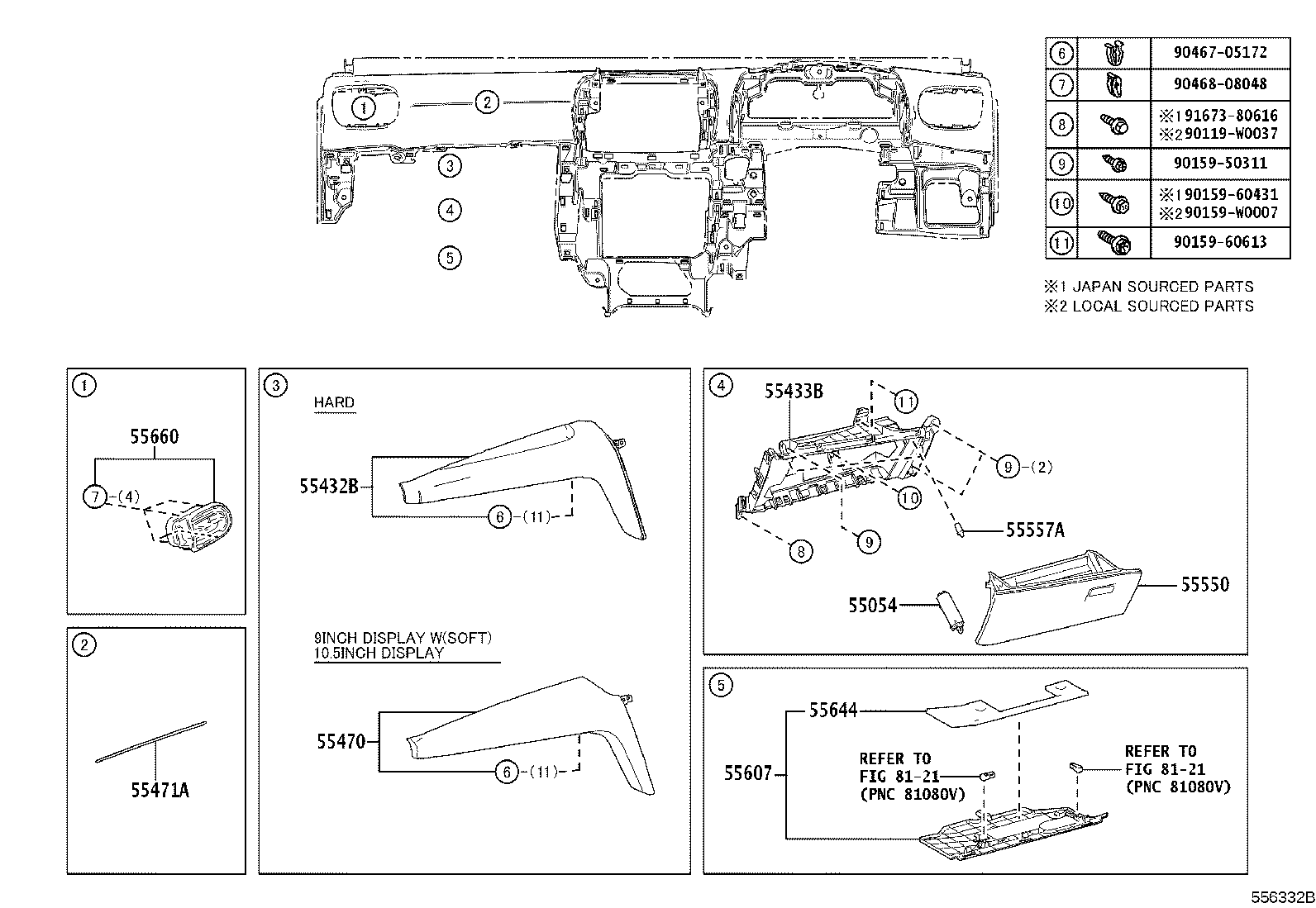

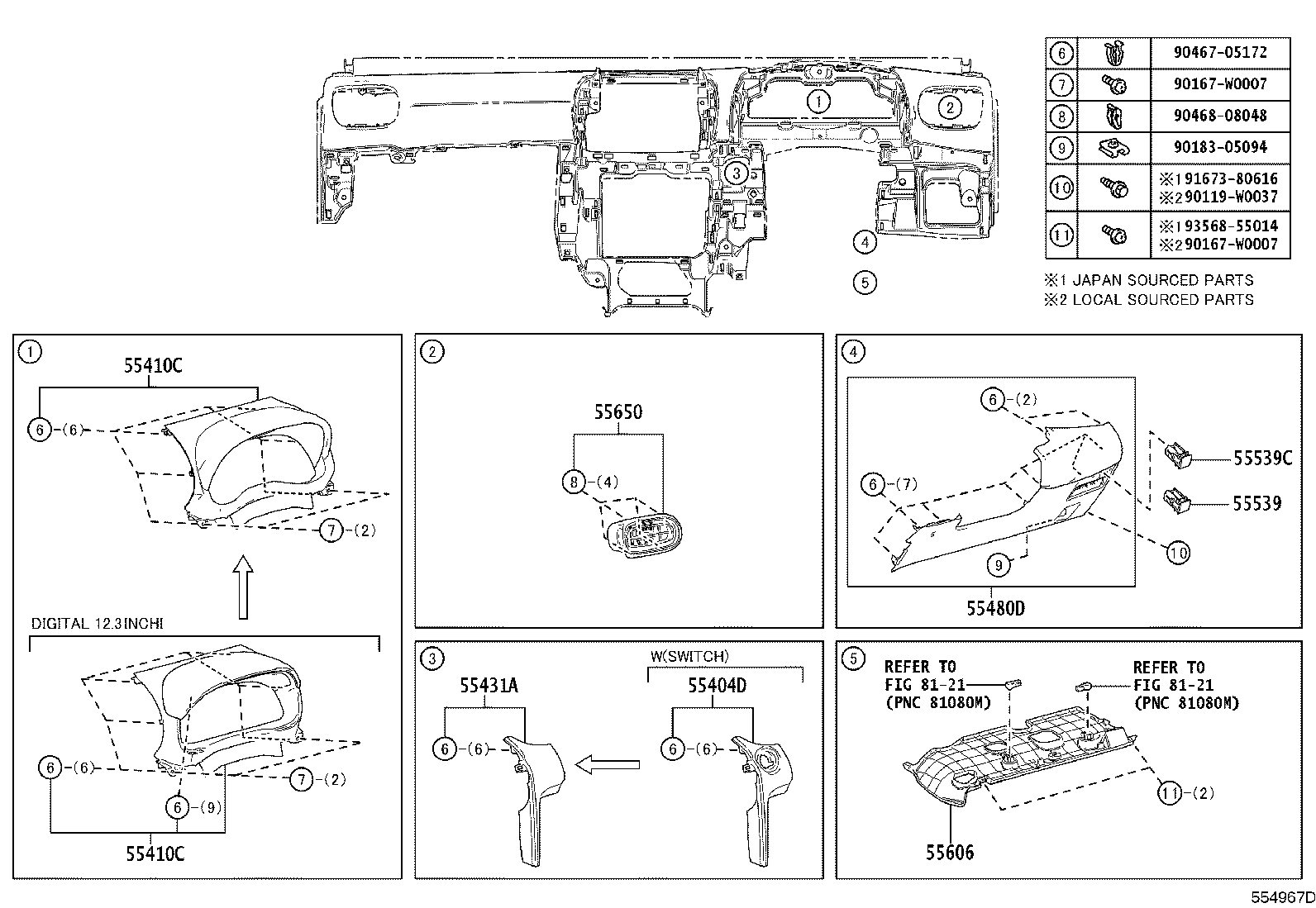

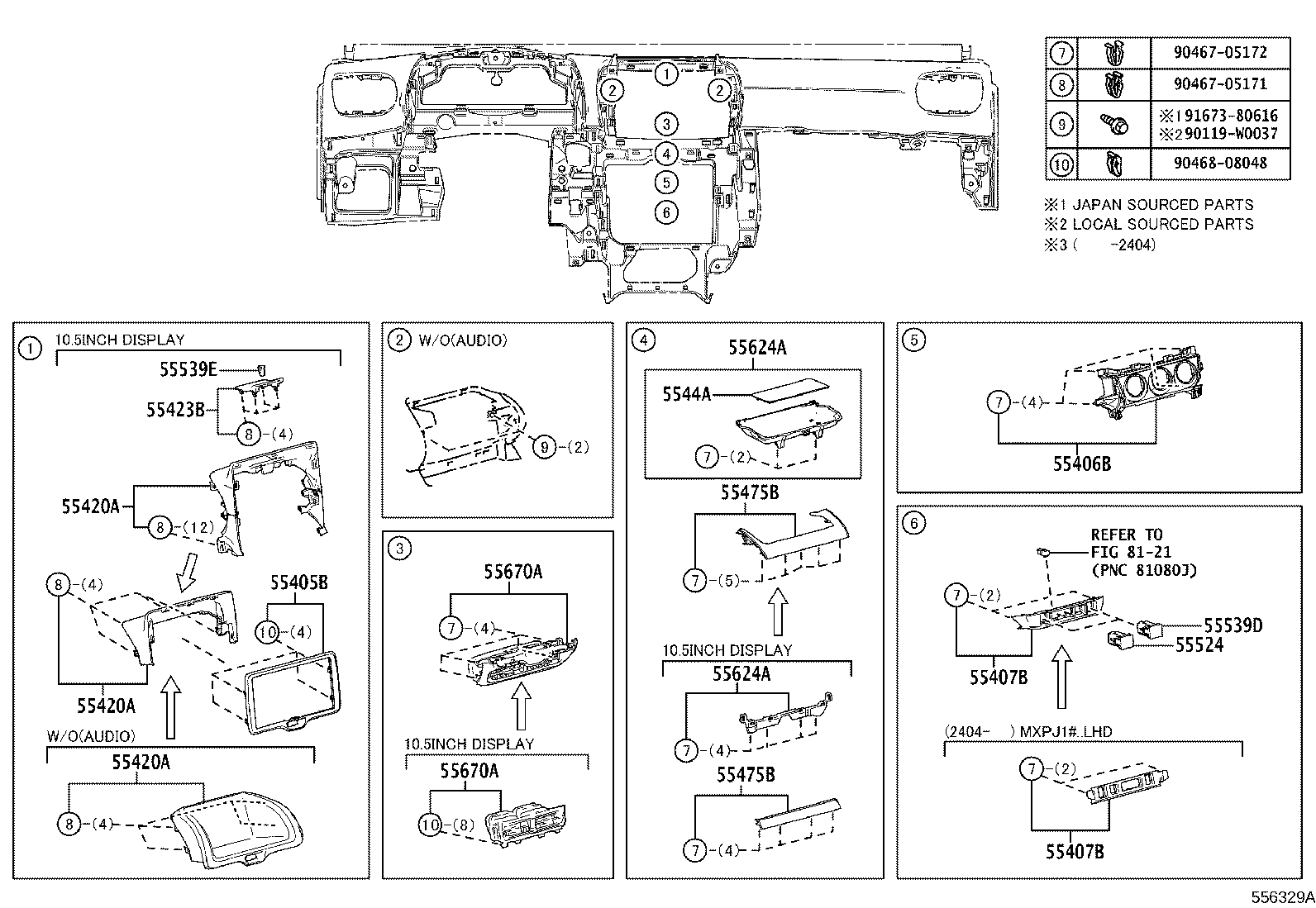

48 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302C | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308B | Brace Sub-assy, Instrument Panel TO Cowl, NO.3 |
| 55312A | Clip, Instrument Panel |
| 55313A | Panel, Instrument Main |
| 55317E | Panel, Instrument Side, NO.1 |
| 55318F | Panel, Instrument Side, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55374B | Bracket, Instrument Panel |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55407B | Base Sub-assy, Switch Hole |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55423B | Cover, Instrument Cluster Finish Panel |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 5544A | Mat, Insutrument Panel Tray |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55470 | Garnish Assy, Instrument Cluster Finish Panel |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55624A | Tray, Instrument Panel, Center |
| 55644 | Pad, Instrument Panel Under Silencer, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
