Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03

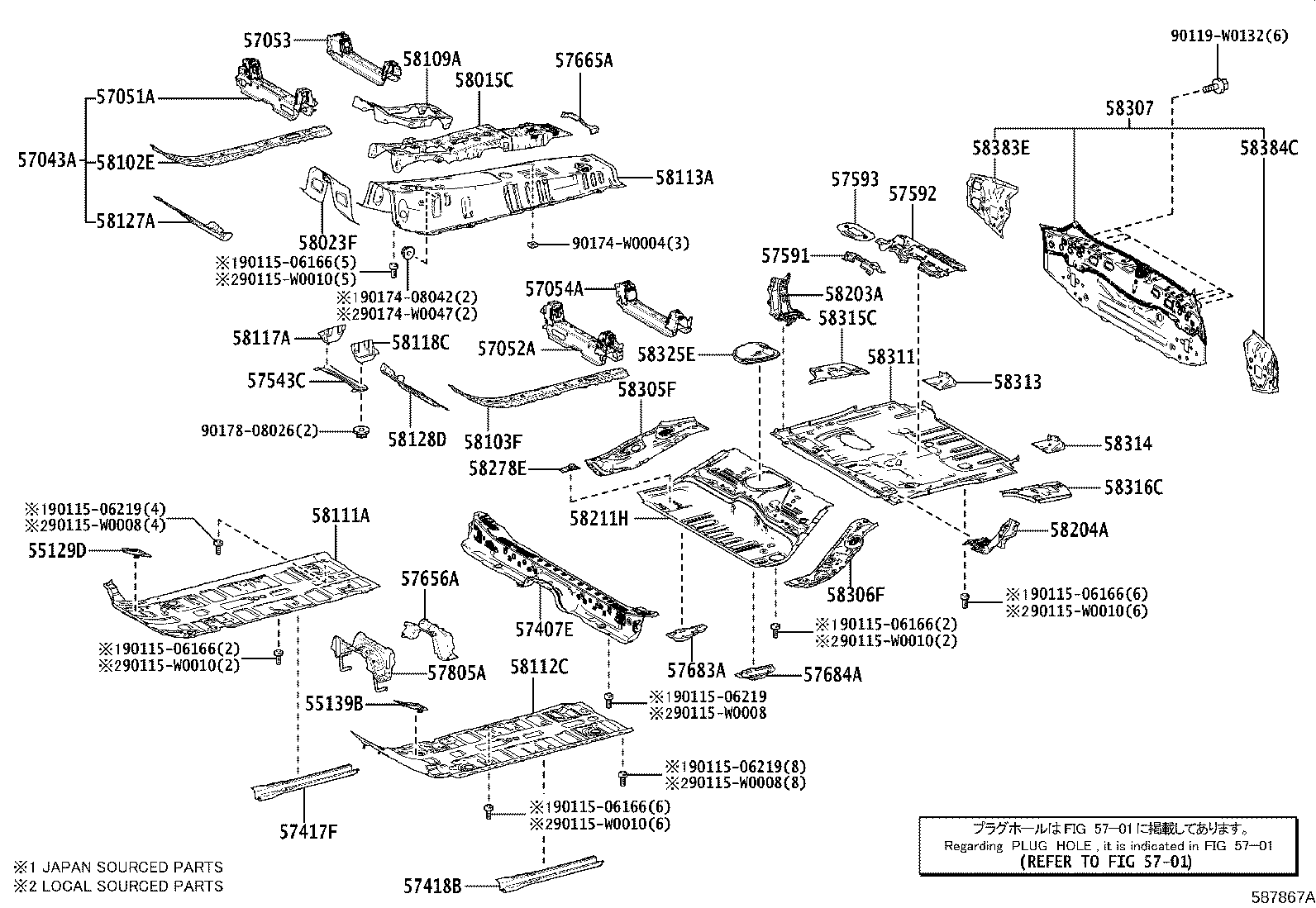

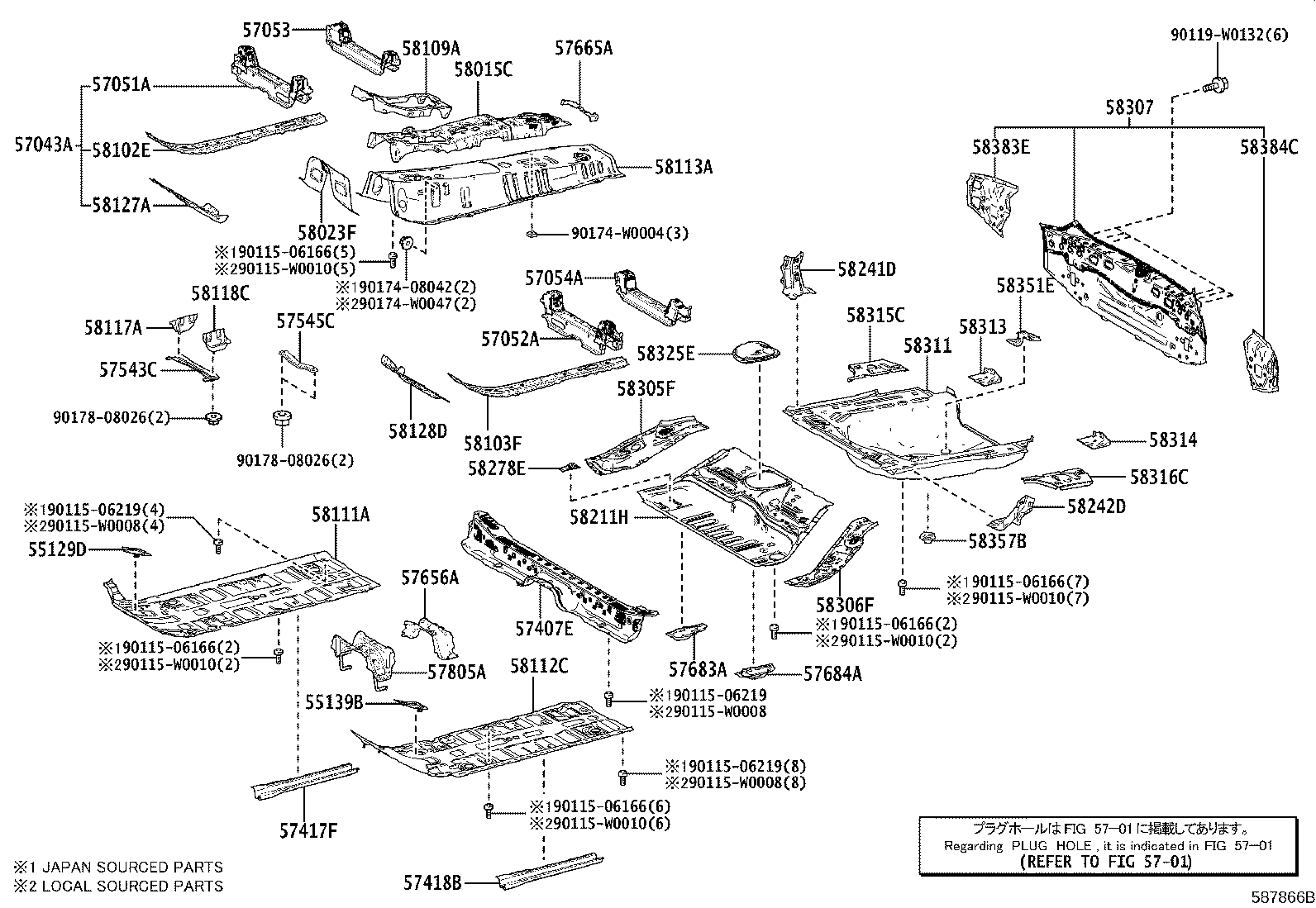

Floor Pan & Lower Back Panel
51 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57417F | Reinforcement, Front Floor Under, RH |
| 57418B | Reinforcement, Front Floor Under, LH |
| 57543C | Brace, Center Floor, NO.1 |
| 57545C | Brace, Center Floor, NO.2 |
| 57591 | Bracket, Voltage Converter Mount, Lower Front |
| 57592 | Bracket, Voltage Converter Mount, Lower Rear |
| 57593 | Bracket, Voltage Converter Mount, Upper Front |
| 57656A | Bracket, Exhaust Pipe Mounting, NO.1 |
| 57665A | Reinforcement, Rear Floor Crossmember, NO.2 |
| 57683A | Bracket, Fuel Tank Mounting, NO.1 |
| 57684A | Bracket, Fuel Tank Mounting, NO.2 |
| 57805A | Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1 |
| 58015C | Panel Sub-assy, Front Floor Housing |
| 58023F | Bracket Sub-assy, Flexible Hose |
| 58102E | Reinforcement Sub-assy, Front Floor, RH |
| 58103F | Reinforcement Sub-assy, Front Floor, LH |
| 58109A | Retainer Sub-assy, Parking Brake |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58127A | Reinforce, Front Cross TO Front Panel Member, RH |
| 58128D | Reinforce, Front Cross TO Front Panel Member, LH |
| 58203A | Reinforcement Sub-assy, Center Floor Panel, RH |
| 58204A | Reinforcement Sub-assy, Center Floor Panel, LH |
| 58211H | Pan, Center Floor |
| 58241D | Gusset, Wheelhouse Inner, Front RH |
| 58242D | Gusset, Wheelhouse Inner, Front LH |
| 58278E | Reinforcement, Side Floor, NO.2 |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58315C | Extension, Rear Floor Side Panel, RH |
| 58316C | Extension, Rear Floor Side Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58351E | Bracket, Spare Wheel Clamp |
| 58357B | Bracket, Actuator Cover, NO.3 RH |
| 58383E | Reinforcement, Body Lower Back, NO.2 RH |
| 58384C | Reinforcement, Body Lower Back, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
