Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03
Console Box & Bracket
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58818A | Cover, Console Box, FR |
| 58822A | Panel, Console, Upper Rear |
| 58857A | Bracket, Console Support, Upper NO.1 |
| 58903A | Panel Sub-assy, Console Rear End |

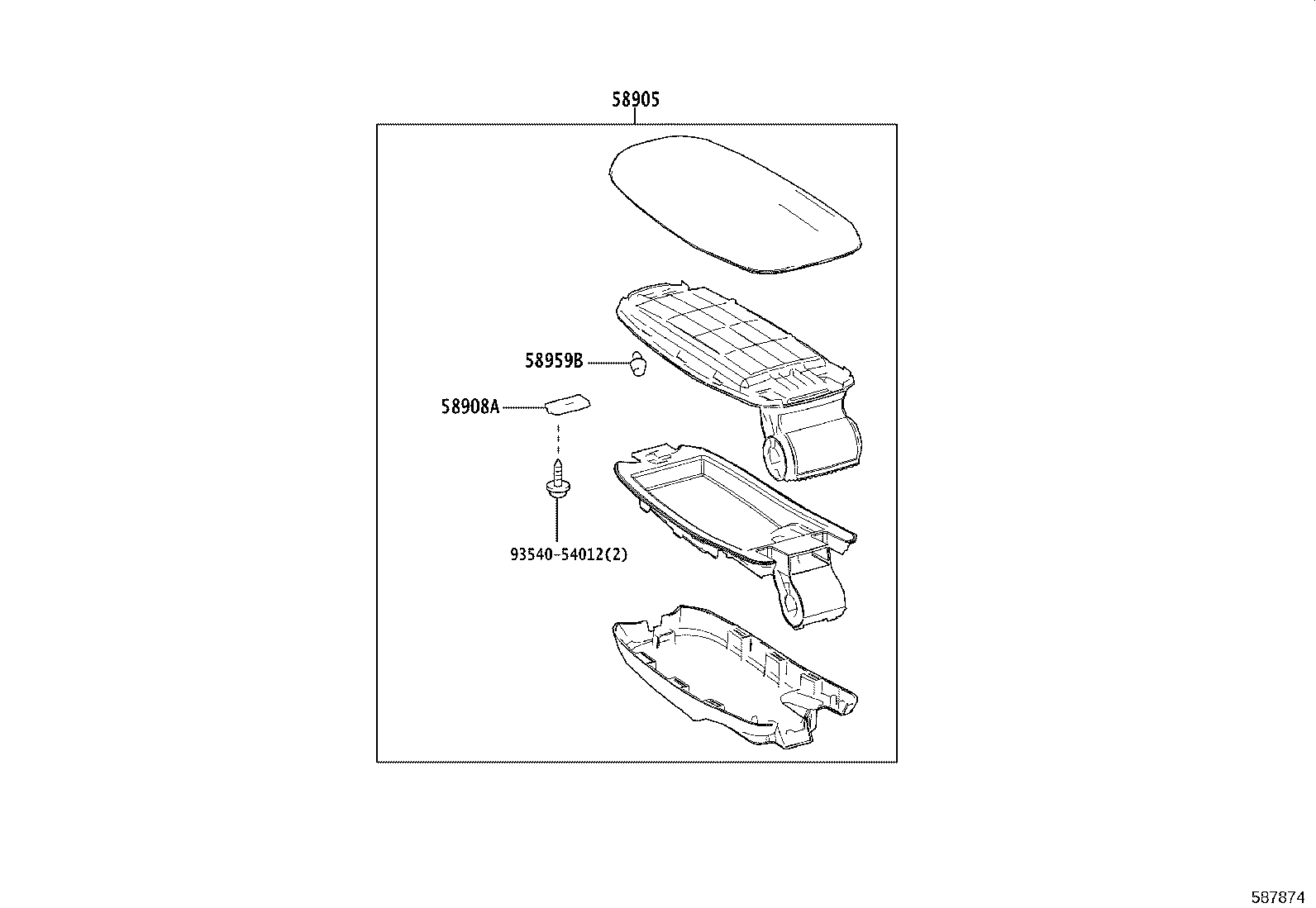

| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58911A | Panel, Box Side, NO.1 |
| 58912C | Panel, Box Side, NO.2 |
| 58959B | Cushion, Console Compartment Door |
| 58961A | Hinge, Console Compartment Door Male |
| 58963 | Shaft, Console Compartment Door Hinge |
| 58968C | Shim, Console Compartment Door Stopper |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
