Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

20 part groups · 3 illustrations

Illustrations

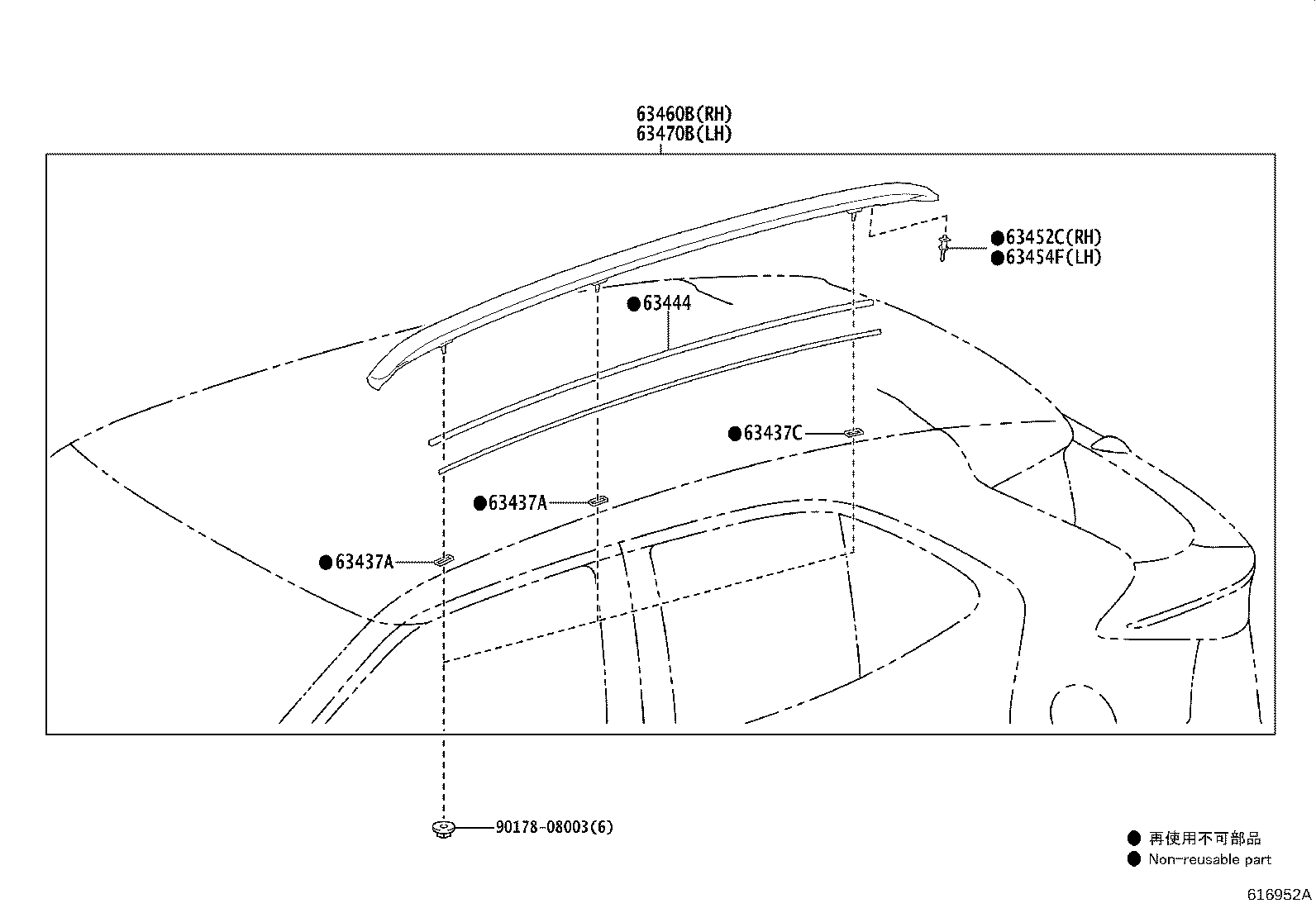

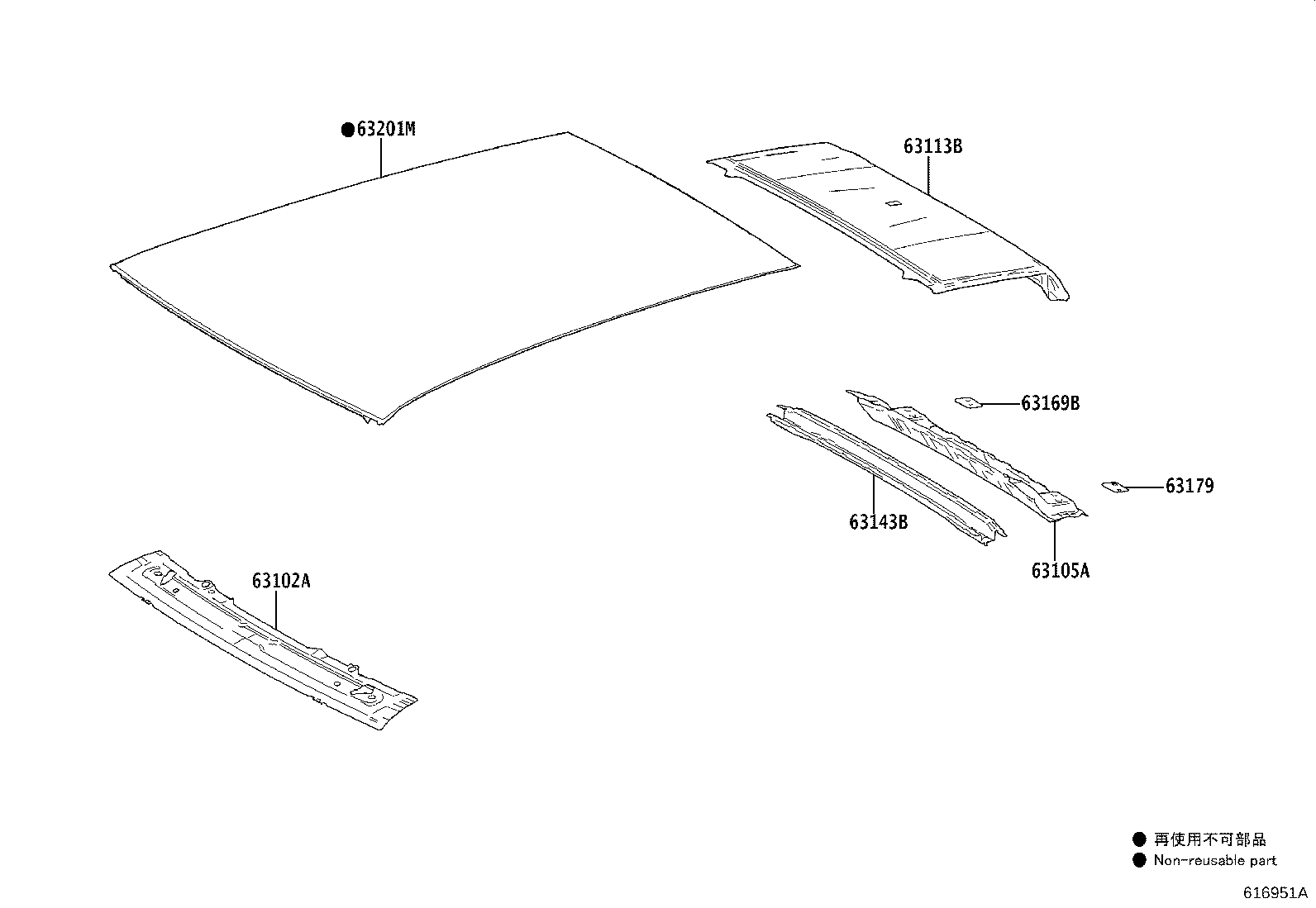

Figure 616950 616950 2021-07 → — Figure 616951A 616951A 2021-07 → — Figure 616952A 616952A 2021-07 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63113B Panel, Roof, Rear
63123C Reinforcement, Roof Panel
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63169B Plate, Roof Panel Reinforcement, RH
63179 Plate, Roof Panel Reinforcement, LH
63201M Glass Sub-assy, Roof Window, NO.1
63437A Seal, Roof Carrier, NO.2
63437C Seal, Roof Carrier
63444 Protector, Roof Carrier, NO.1
63452C Retainer, Roof Rack, Rear RH
63454F Retainer, Roof Rack, Rear LH
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
