Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

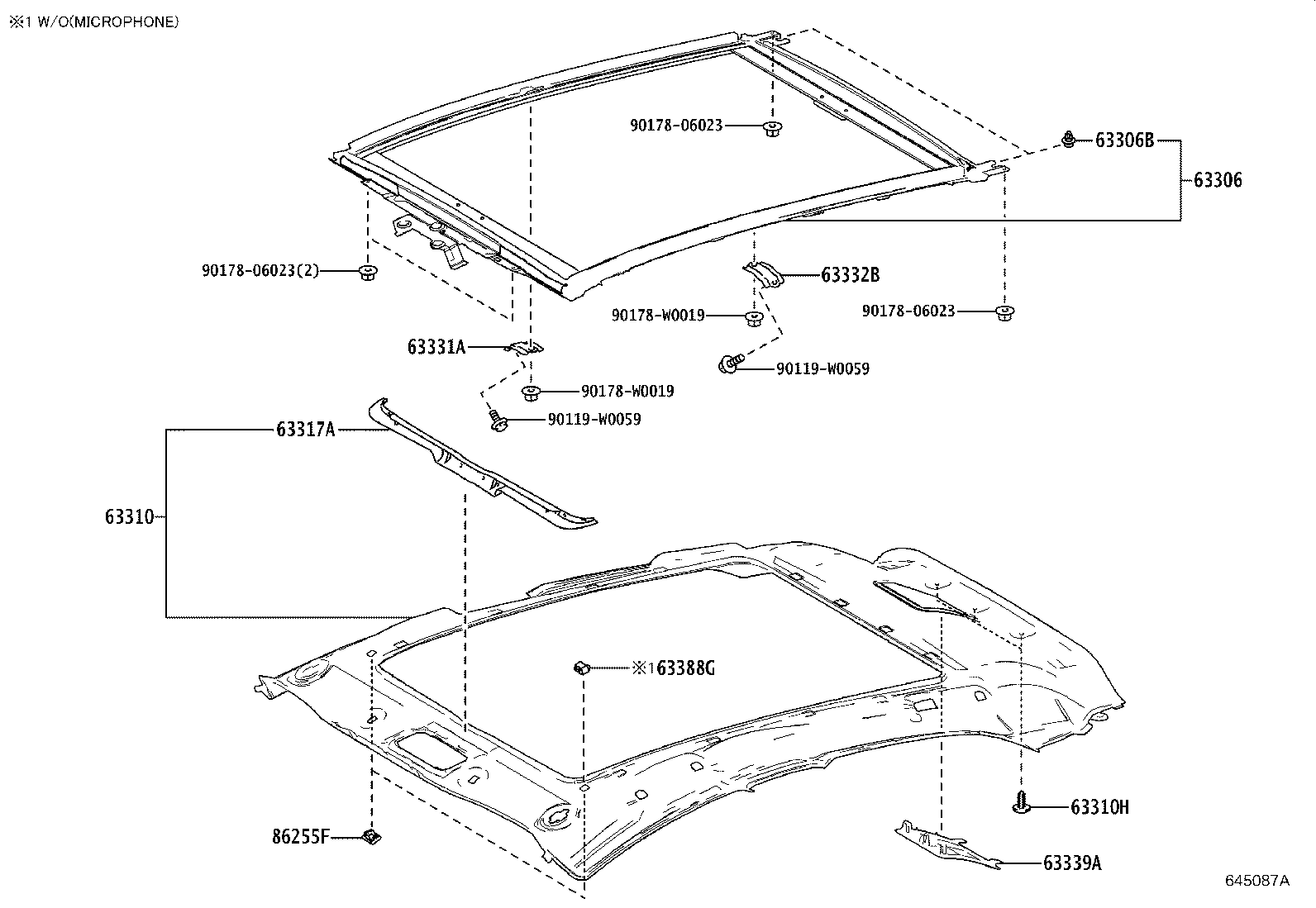

Figure 645086A 645086A 2021-07 → — Figure 645087A 645087A 2021-07 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63306B Clip(FOR SUNSHADE TRIM)
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63317A Retainer, Roof Headlining
63331A Bracket, Sunshade Trim Lock, NO.1
63332B Bracket, Sunshade Trim Lock, NO.2
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63345 Pad, Roof Silencer, NO.5
63388G Cover, Roof Headlining Holder, NO.2
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
