Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 2 illustrations

Illustrations

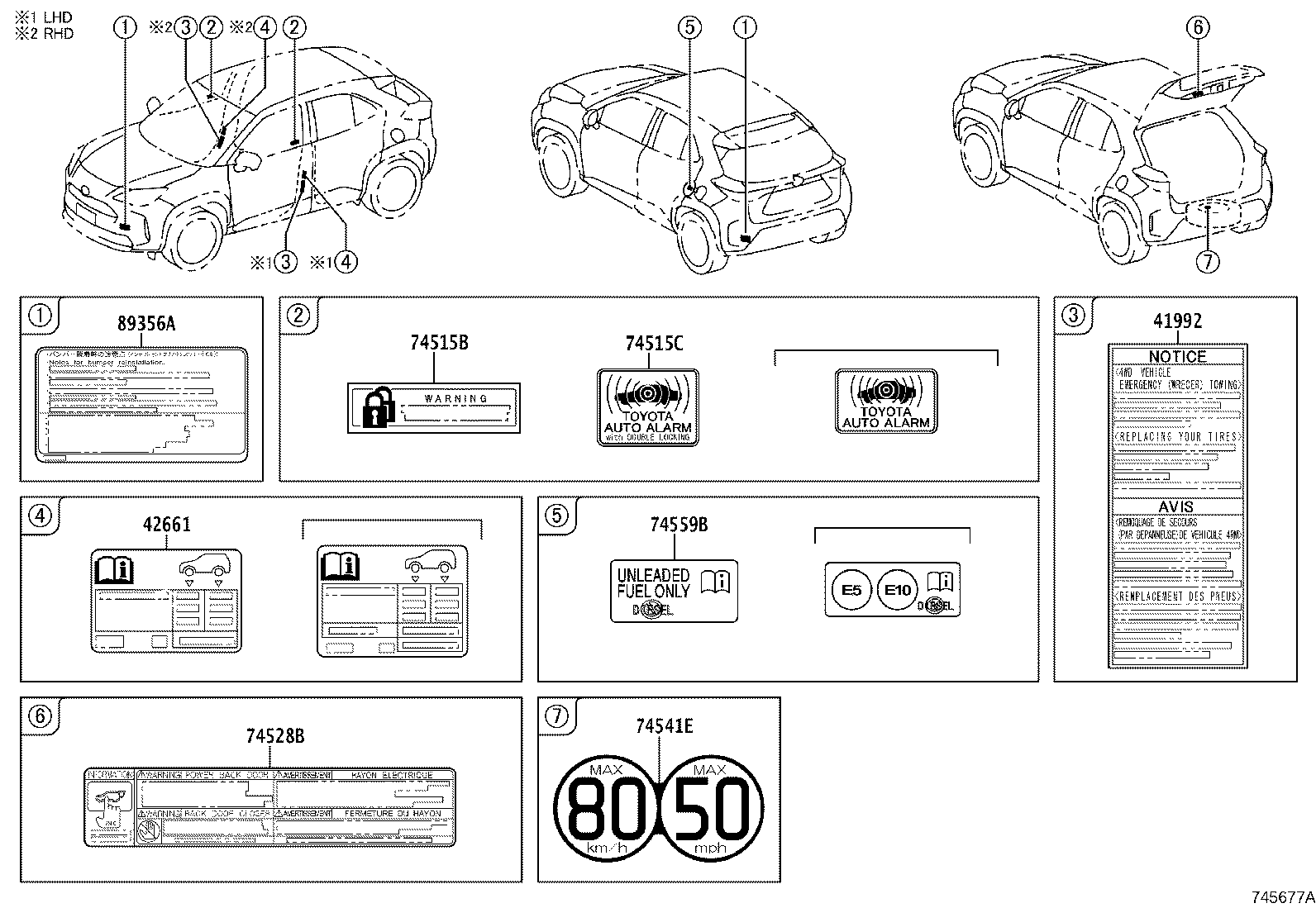

Figure 745676E 745676E 2021-07 → — Figure 745677A 745677A 2021-07 → —

Part groups

PNCDescription
11293D Label, Engine Caution
16793E Label, Cooling Fan Caution
288A2 Label, Battery Location
41992 Label, Differential Notice
42661 Label, Tire Pressure Information
47288 Label, Brake Fluid Notice
74515B Plate, Theft Warning
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
82685D Plate, Caution
88723E Label, Cooler Service Caution
88733A Label, Cooler Service Information
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
