Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03

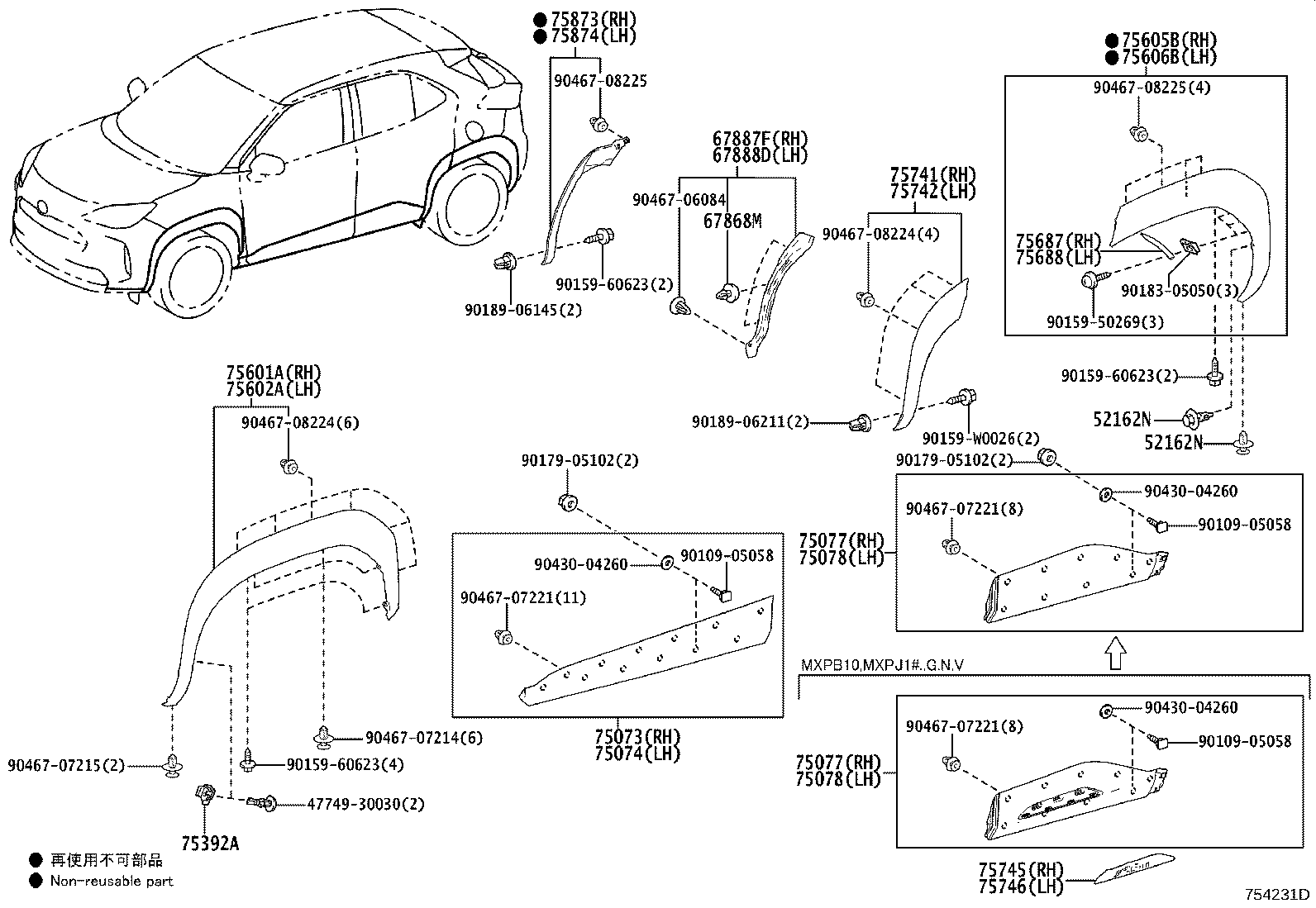

Side Moulding

35 part groups · 3 illustrations

PNC	Description
52162N	Piece, Rear Bumper
60117	Cover Sub-assy, Front Pillar, Upr RH
60118	Cover Sub-assy, Front Pillar, Upr LH
61991B	Protector, Front Pillar Cover, RH
61992	Protector, Front Pillar Cover, LH
67495C	Cover, Front Door Front Lower Frame, Upper RH
67496C	Cover, Front Door Front Lower Frame, Upper LH
67868M	Clip, Door Weatherstrip
67887F	Weatherstrip, Rear Door, NO.2 RH
67888D	Weatherstrip, Rear Door, NO.2 LH
75073	Moulding Sub-assy, Front Door, Outside Lower RH
75074	Moulding Sub-assy, Front Door, Outside Lower LH
75077	Moulding Sub-assy, Rear Door Outside Lower RH
75078	Moulding Sub-assy, Rear Door Outside Lower LH
75392A	Retainer, Outside Moulding, NO.1
75551E	Moulding, Roof Drip Side Finish, RH
75552E	Moulding, Roof Drip Side Finish, LH
75553A	Moulding, Roof Drip Side Finish, Rear RH
75554A	Moulding, Roof Drip Side Finish, Rear LH
75561A	Clip, Roof Drip Side Finish Moulding
75601A	Moulding Sub-assy, Front Fender, RH
75602A	Moulding Sub-assy, Front Fender, LH
75605B	Moulding Sub-assy, Quarter Outside, RH
75606B	Moulding Sub-assy, Quarter Outside, LH
75687	Protector, Quarter Moulding, Lower Rear RH
75688	Protector, Quarter Moulding, Lower Rear LH
75741	Moulding, Rear Door, Outside RH
75742	Moulding, Rear Door, Outside LH
75745	Moulding, Rear Door Outside, Lower RH
75746	Moulding, Rear Door Outside, Lower LH

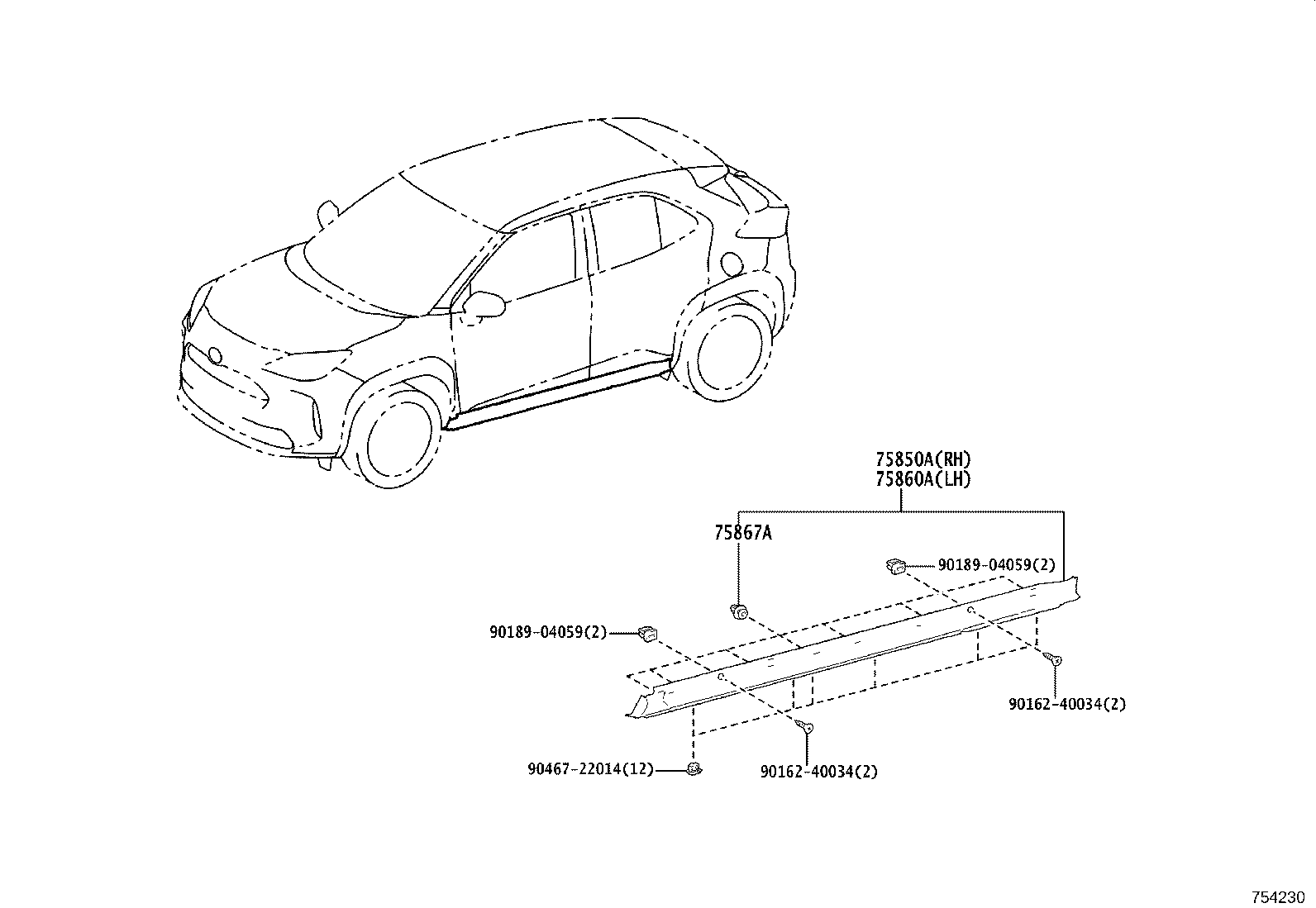

75850A	Moulding Assy, Body Rocker Panel, RH
75860A	Moulding Assy, Body Rocker Panel, LH
75867A	Clip, Rocker Panel Moulding
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
