Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

1 part groups · 2 illustrations

Illustrations

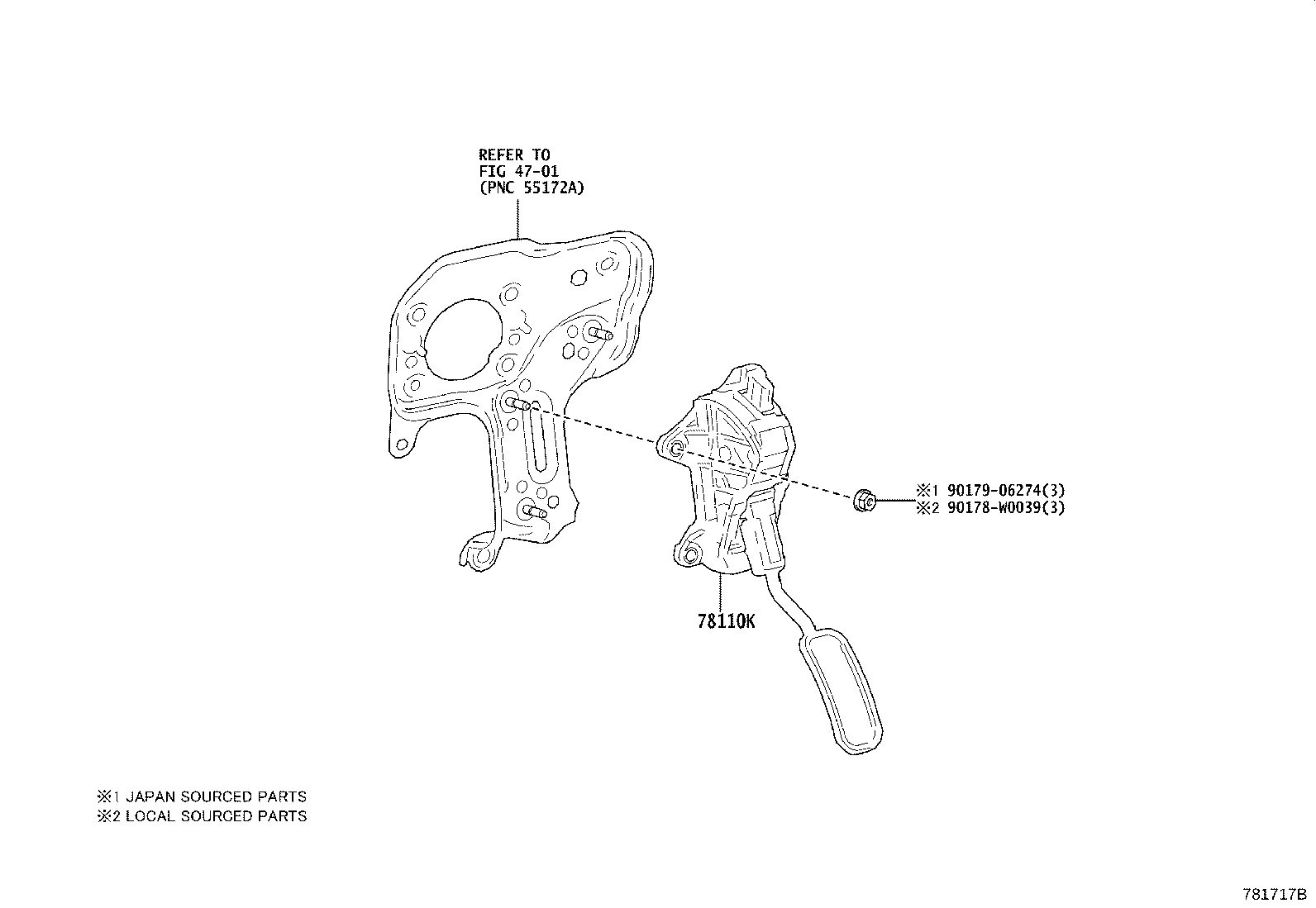

Figure 781716C 781716C 2021-07 → — Figure 781717B 781717B 2021-07 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
