Toyota Yaris Cross/Hybrid
2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe
Supported model
Data version 2024-03

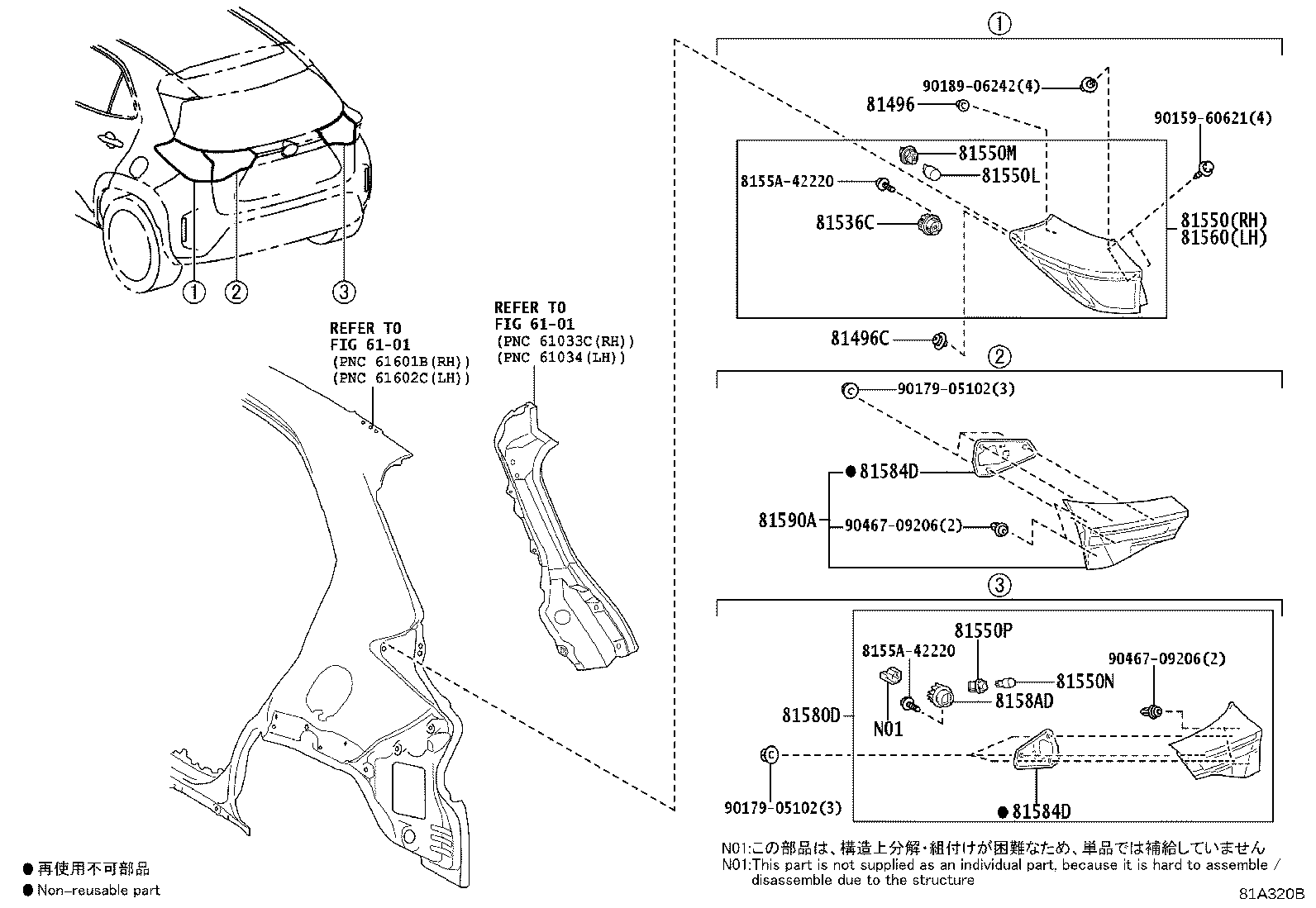

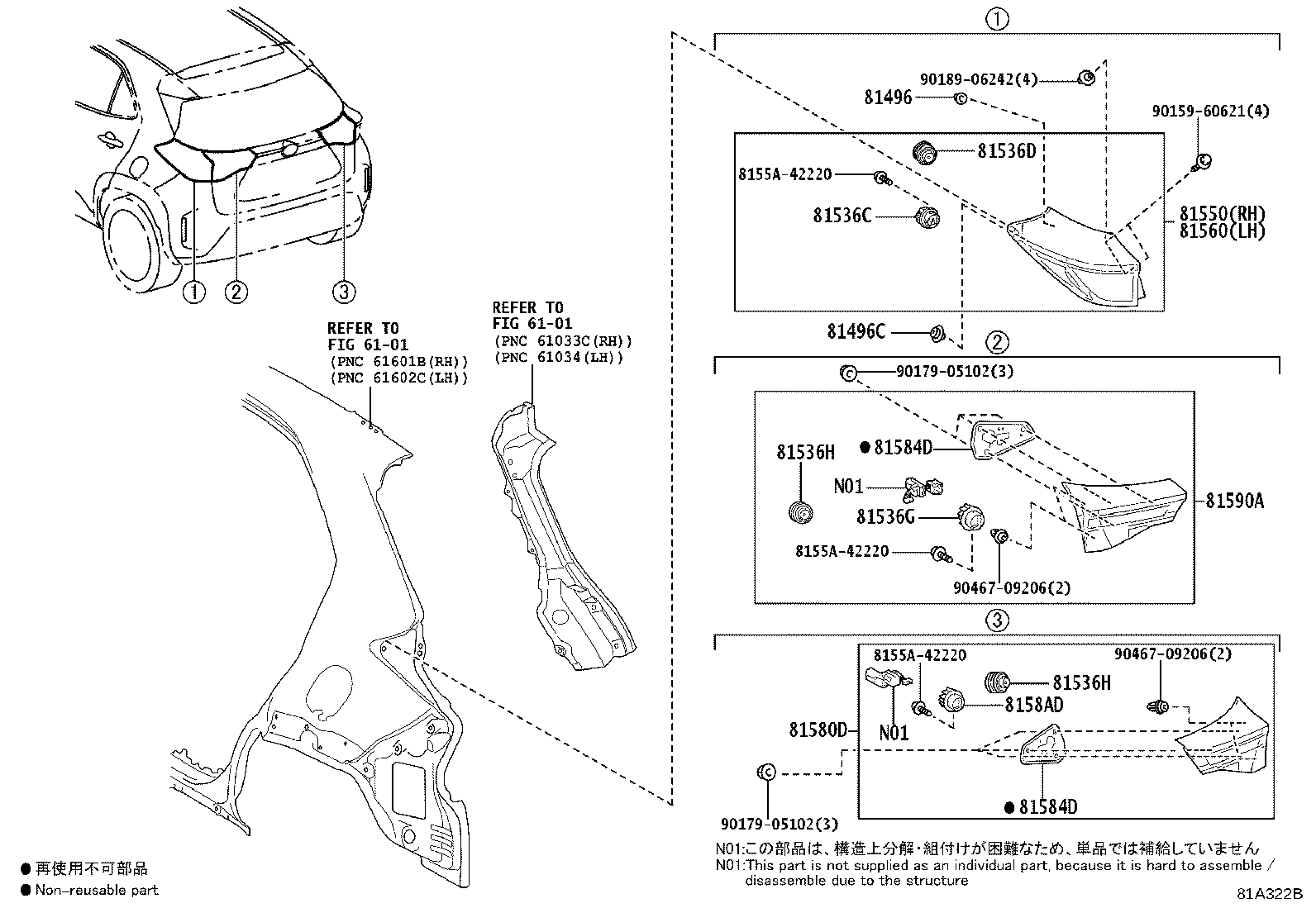

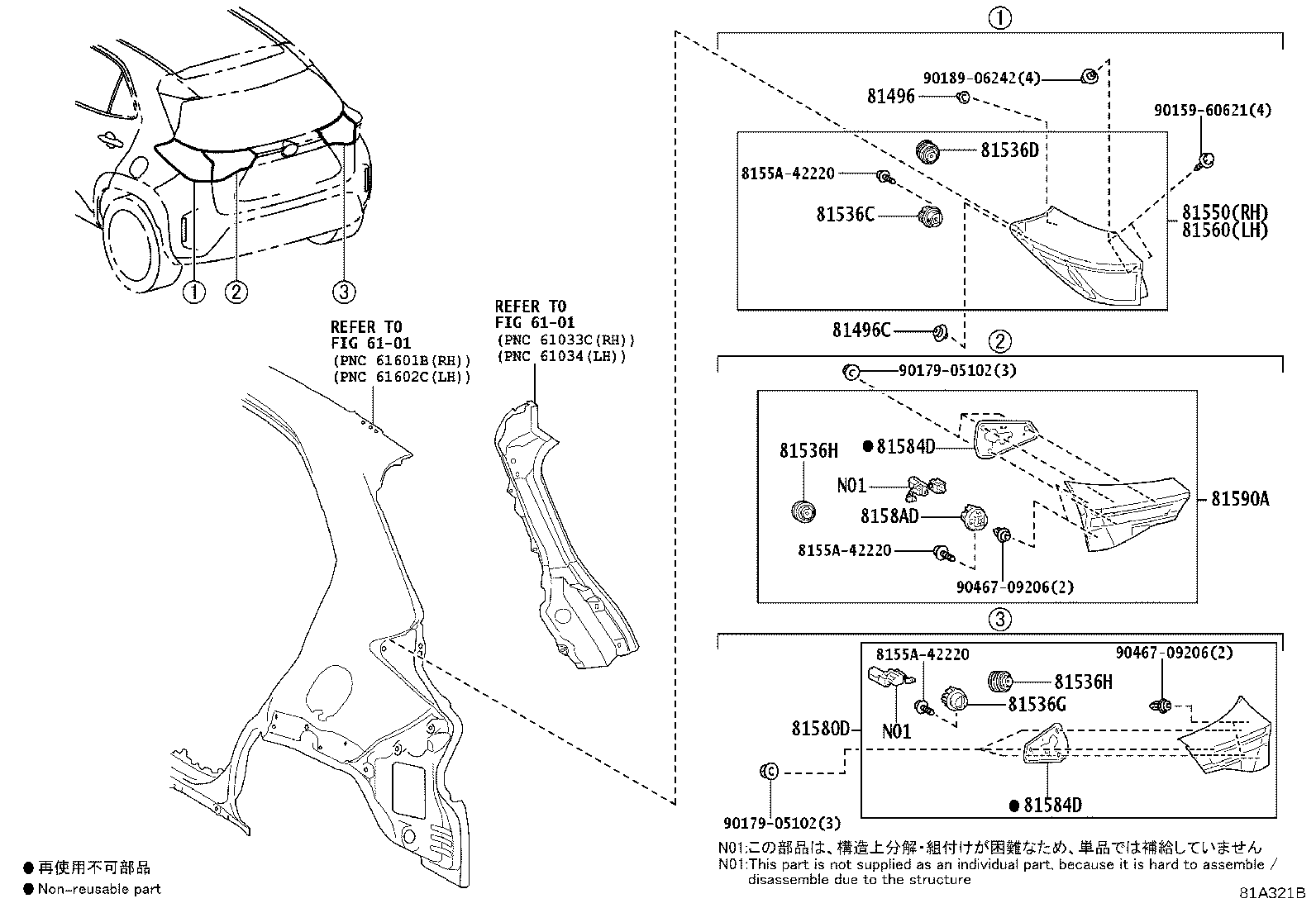

Rear Combination Lamp
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81536C | Led, Tail & Stop Lamp |
| 81536D | Led, Taillamp |
| 81536G | Led, Back-up Lamp |
| 81536H | Led, Taillamp, NO.2 |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81584D | Gasket, Rear Lamp |
| 8158AD | Led, Rear Fog Lamp |
| 81590A | Lamp Assy, Rear, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
