Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

11 part groups · 2 illustrations

Illustrations

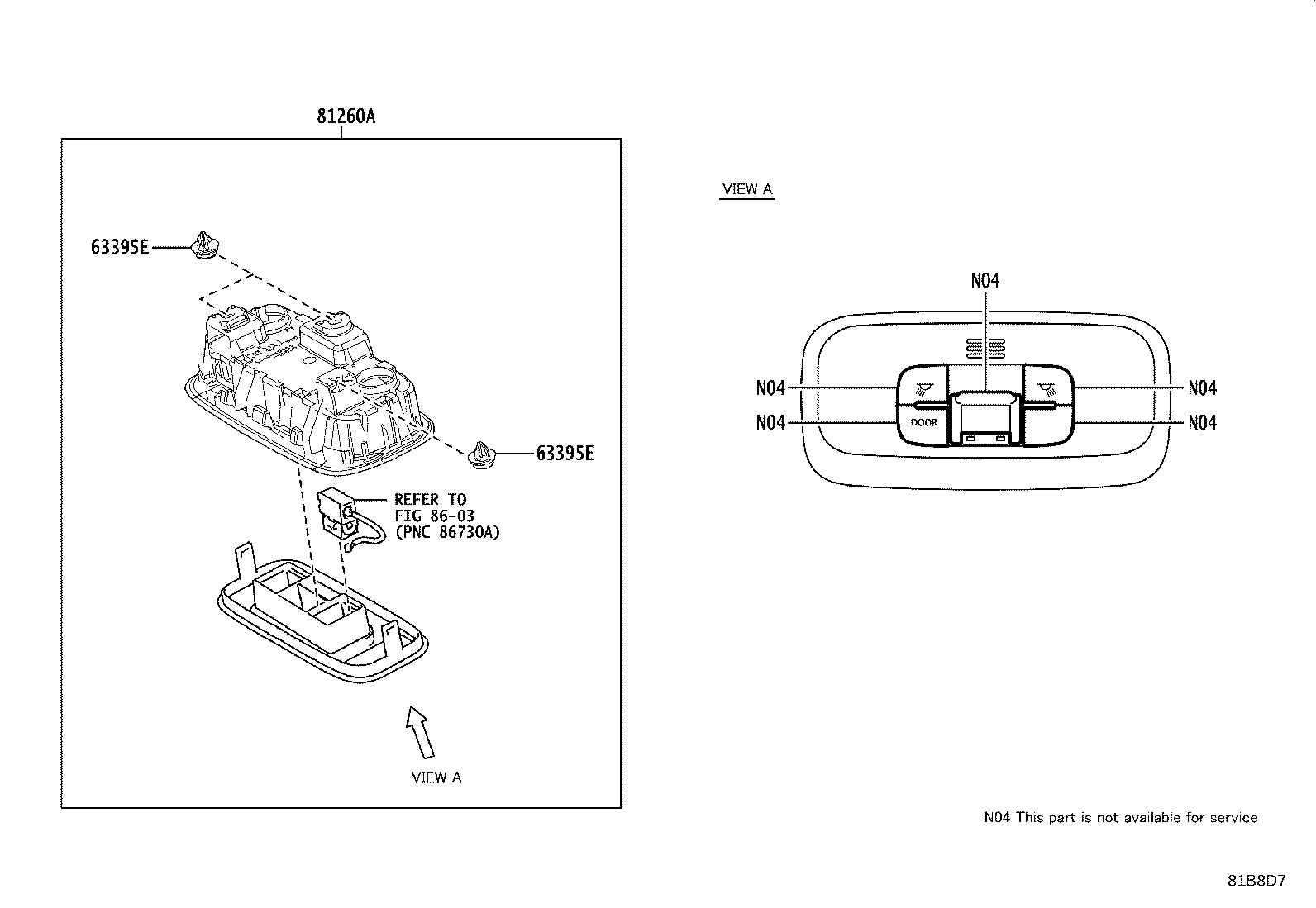

Figure 81A307C 81A307C 2021-07 → — Figure 81B8D7 81B8D7 2021-07 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81240 Lamp Assy, Room, NO.1
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
