Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

105 part groups · 22 illustrations

Illustrations

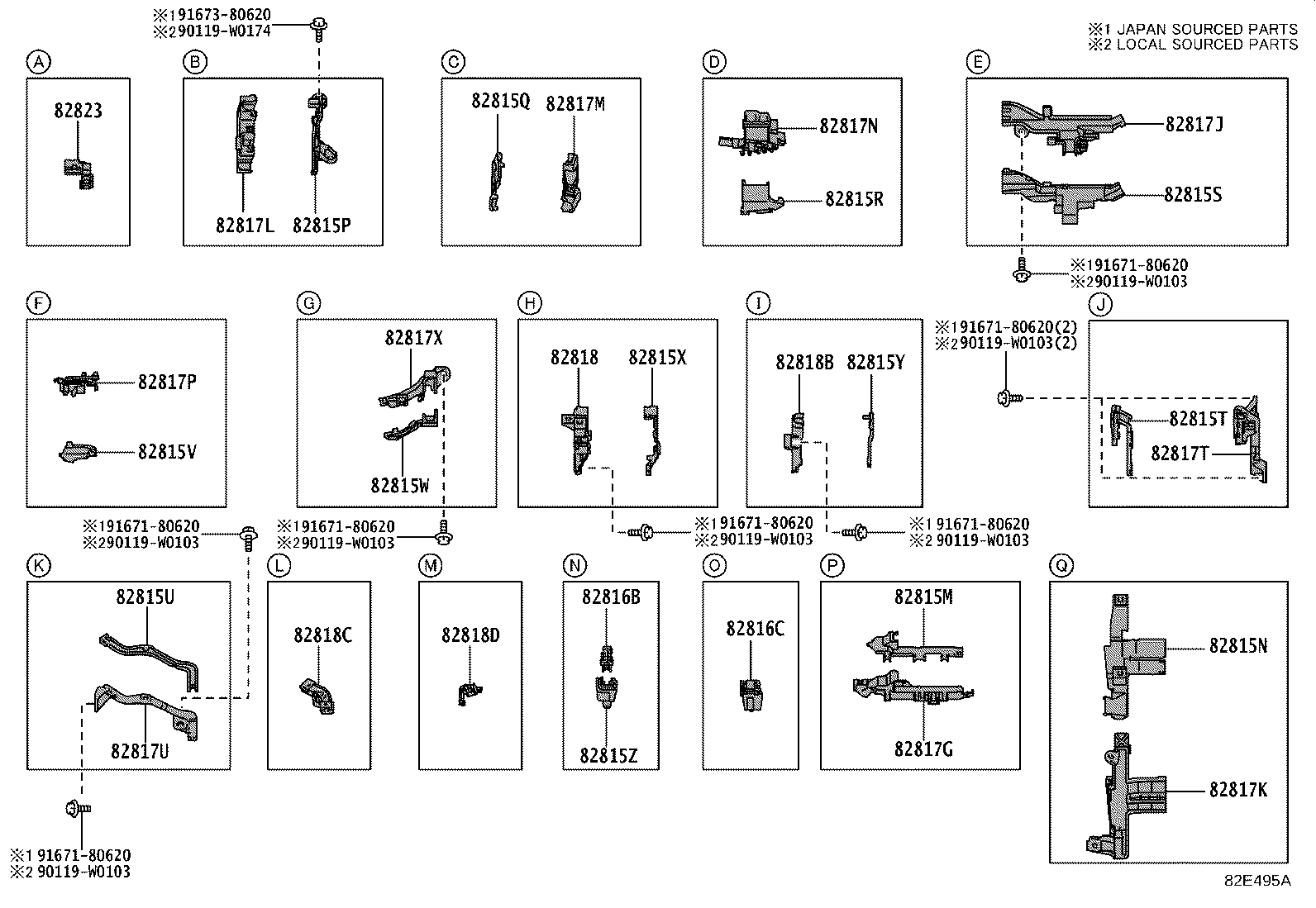

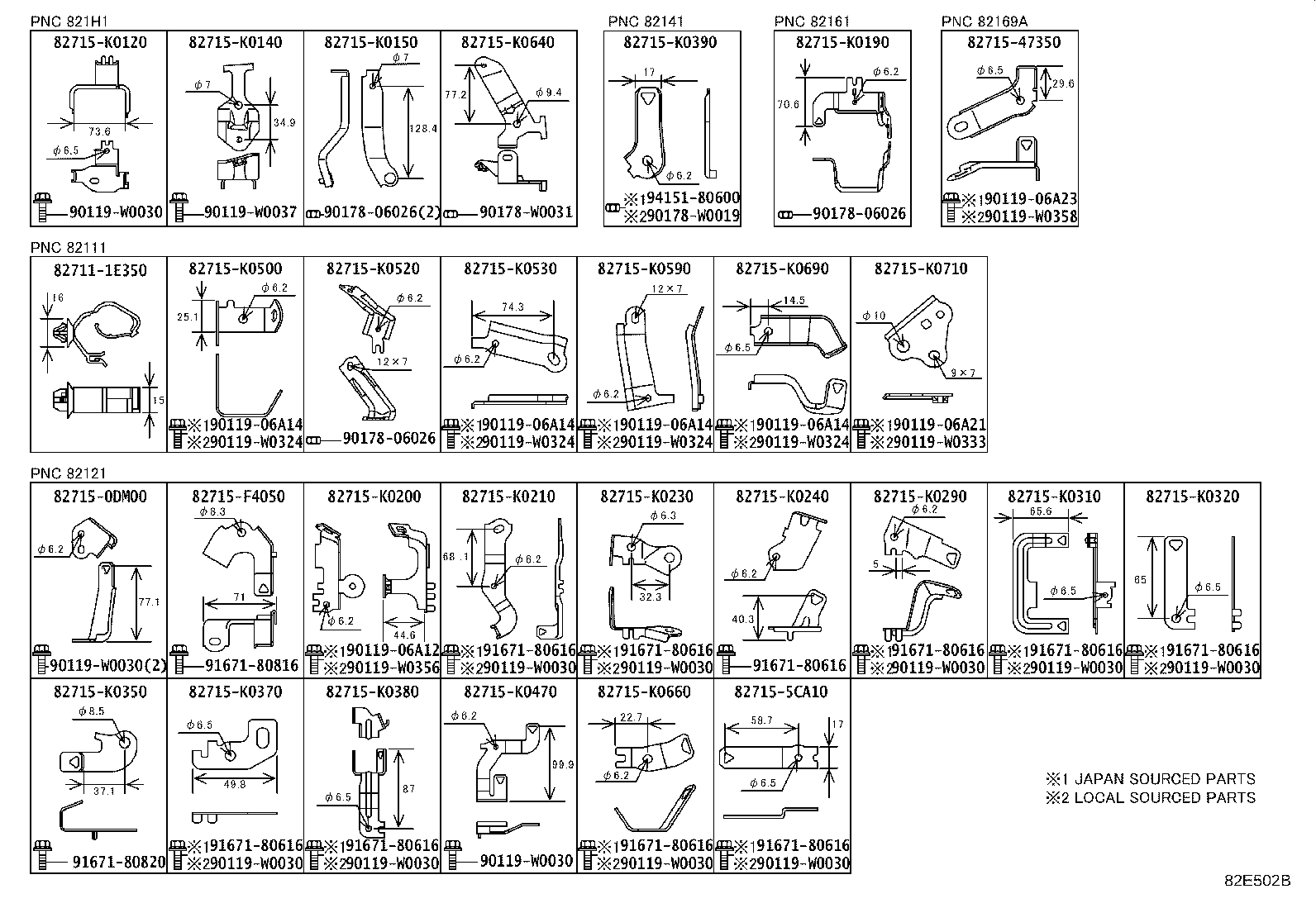

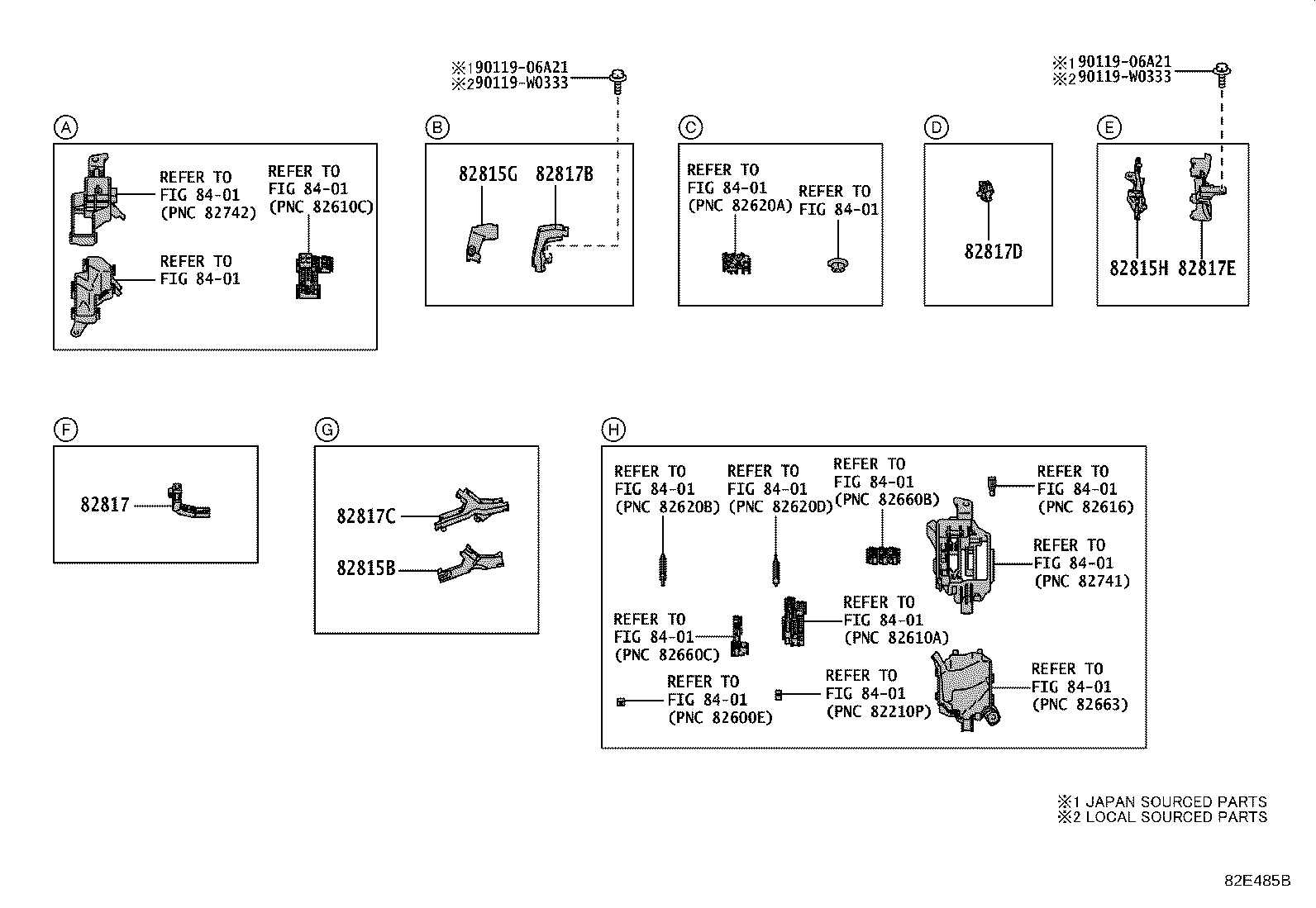

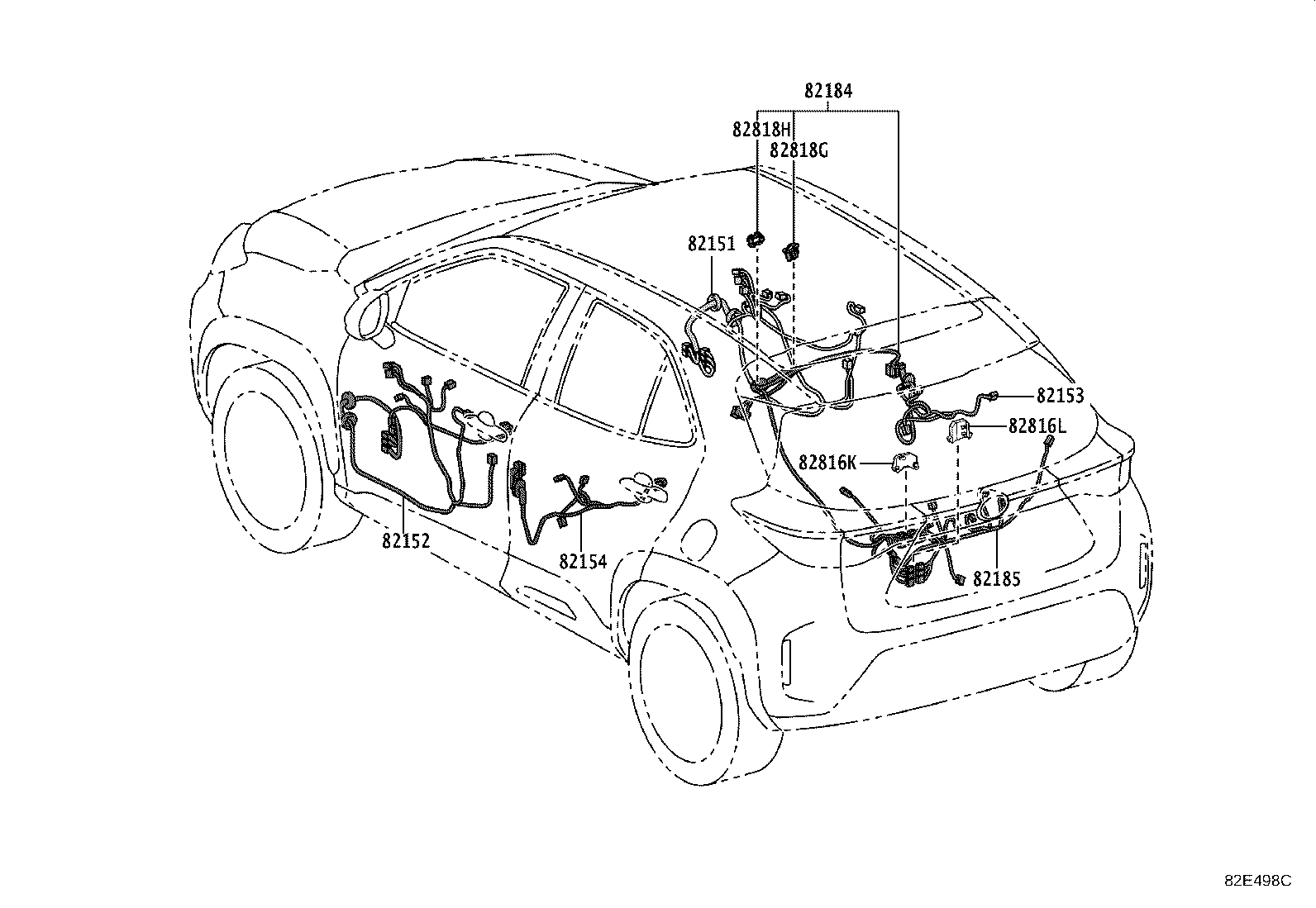

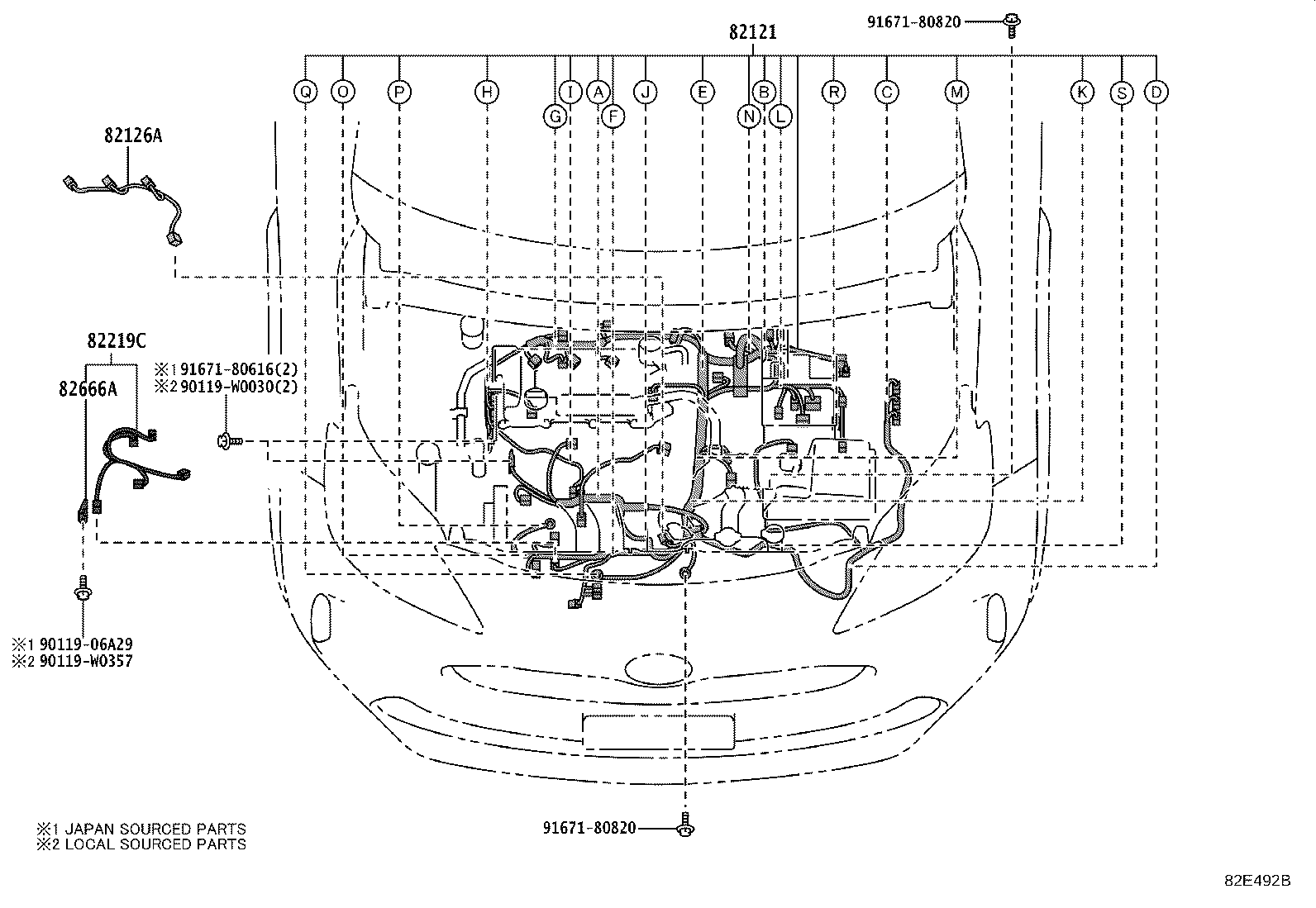

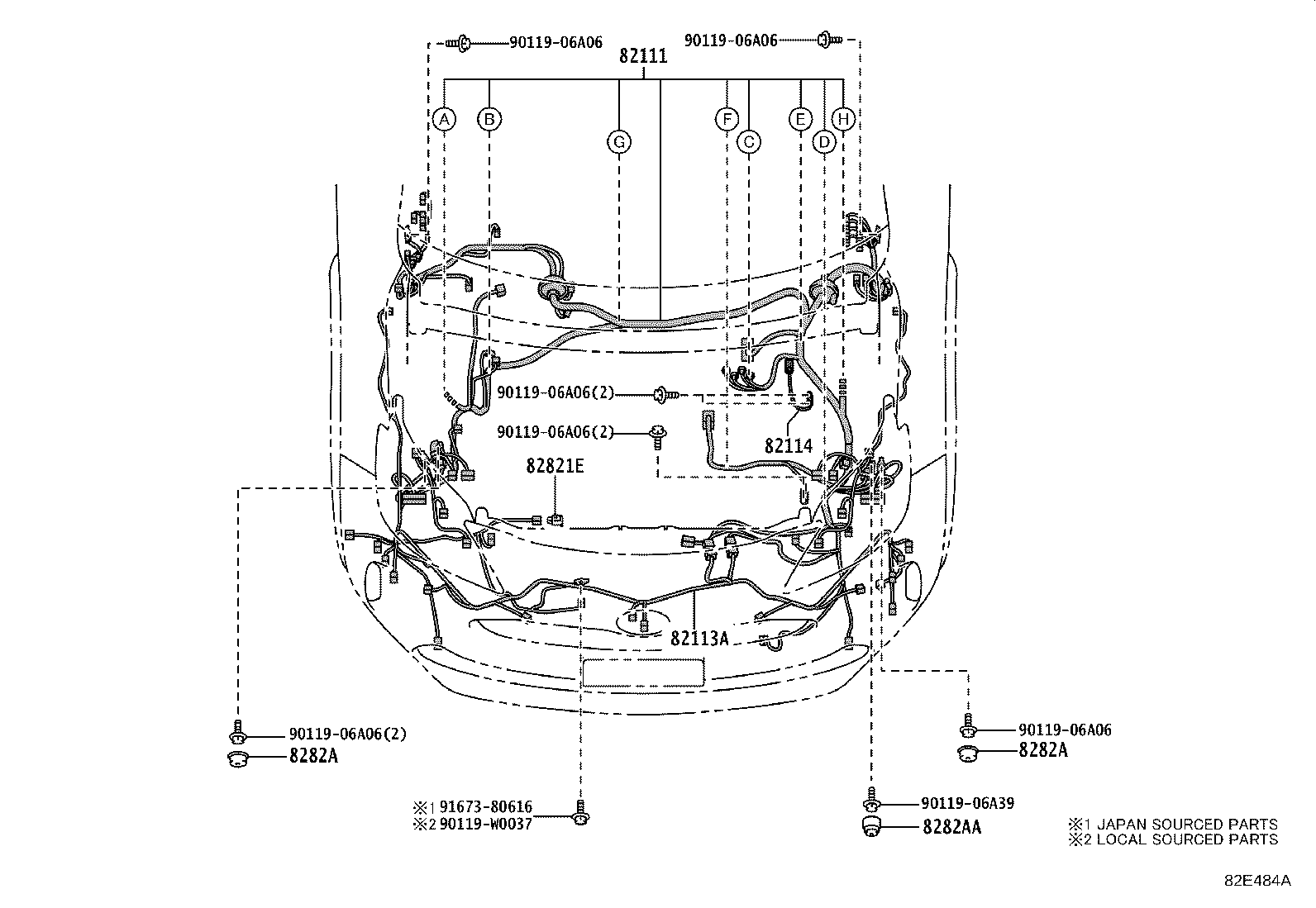

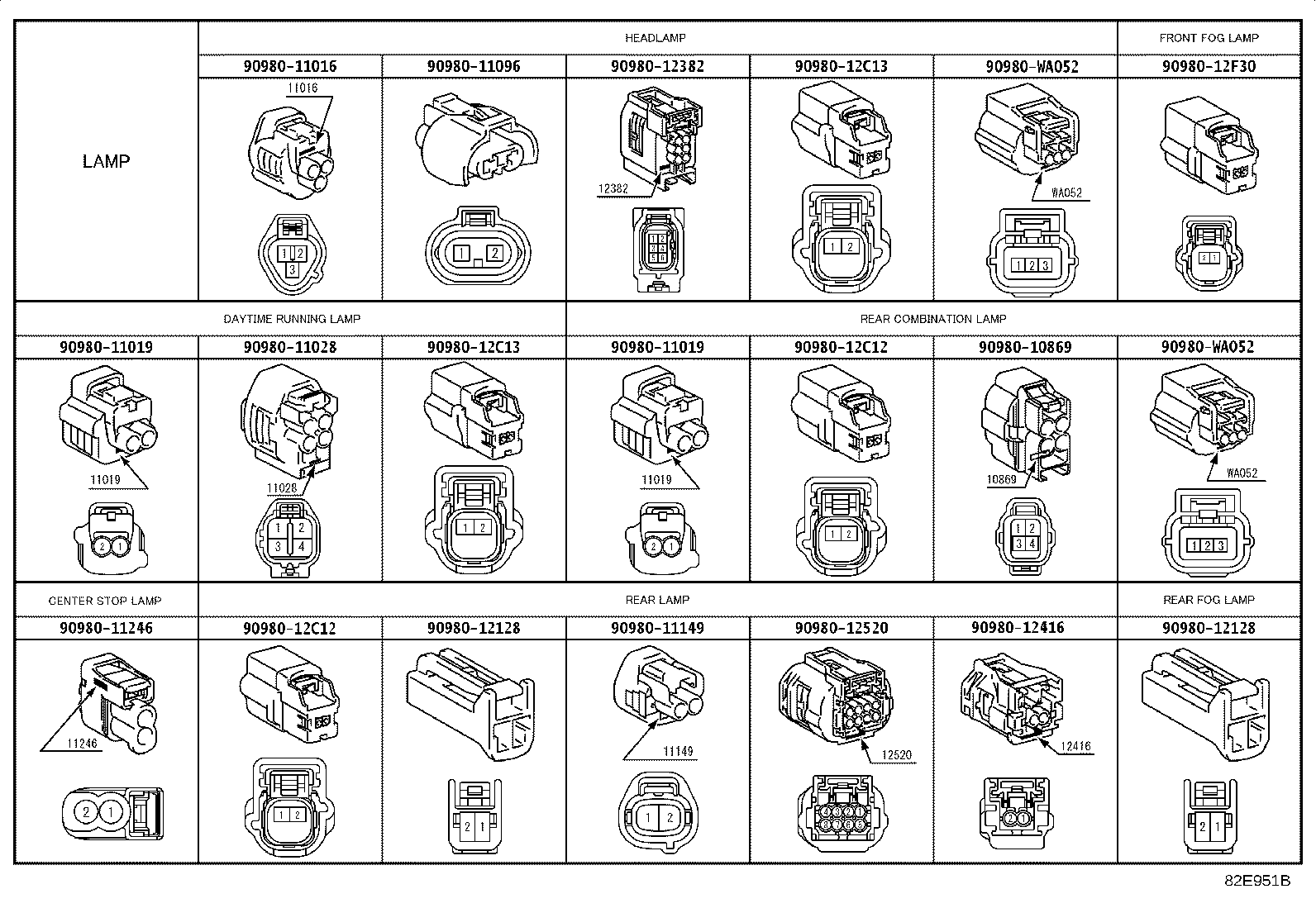

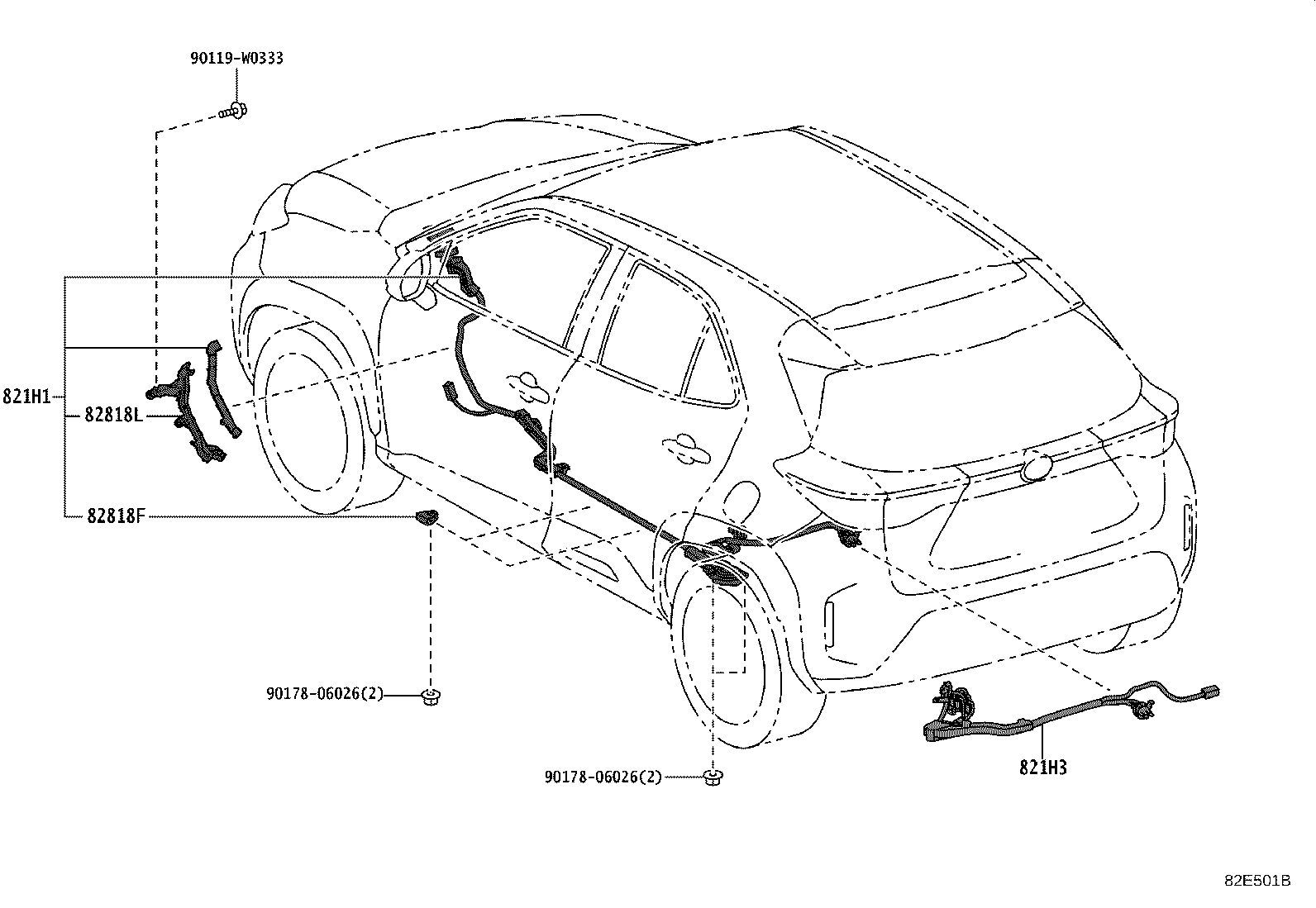

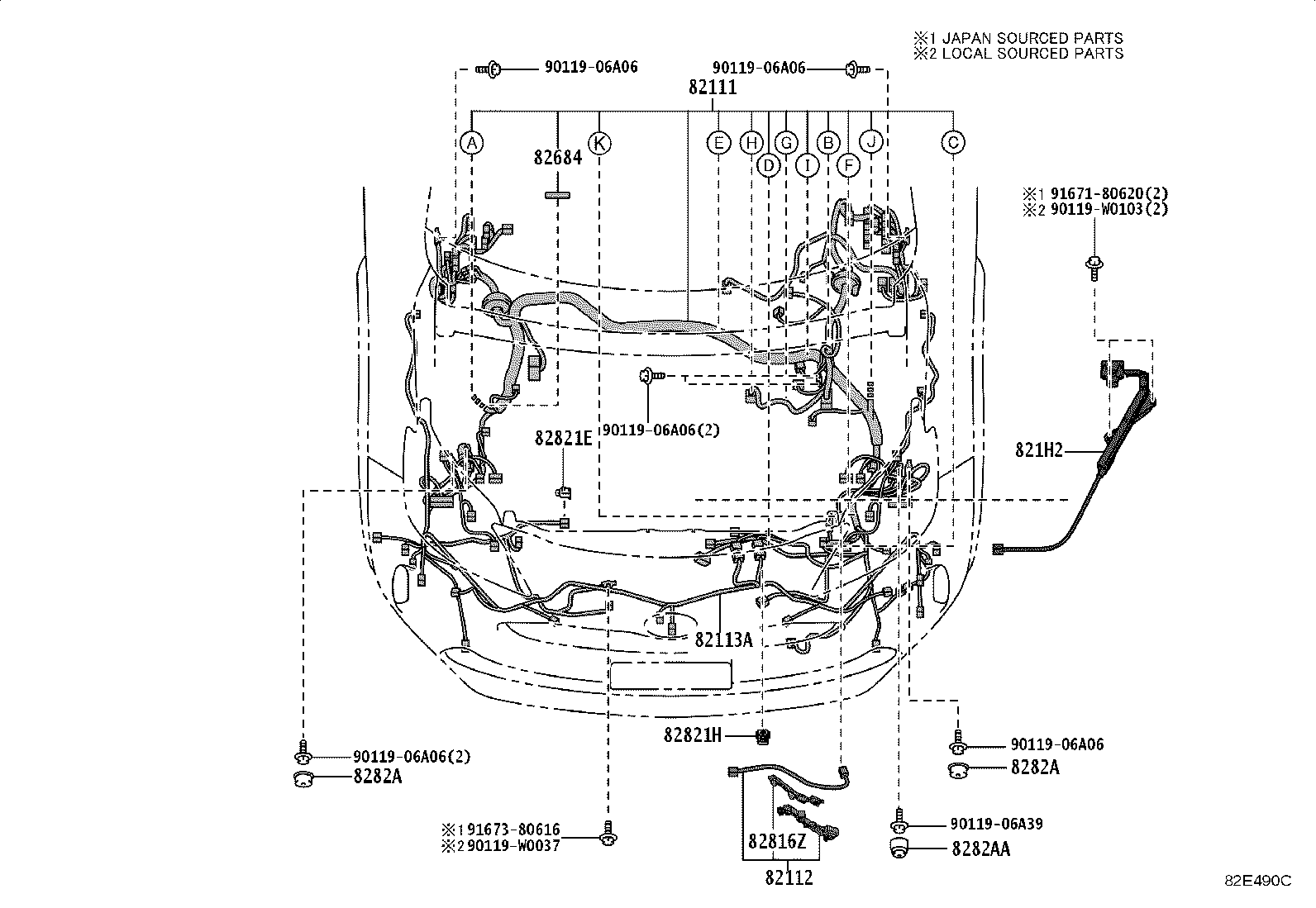

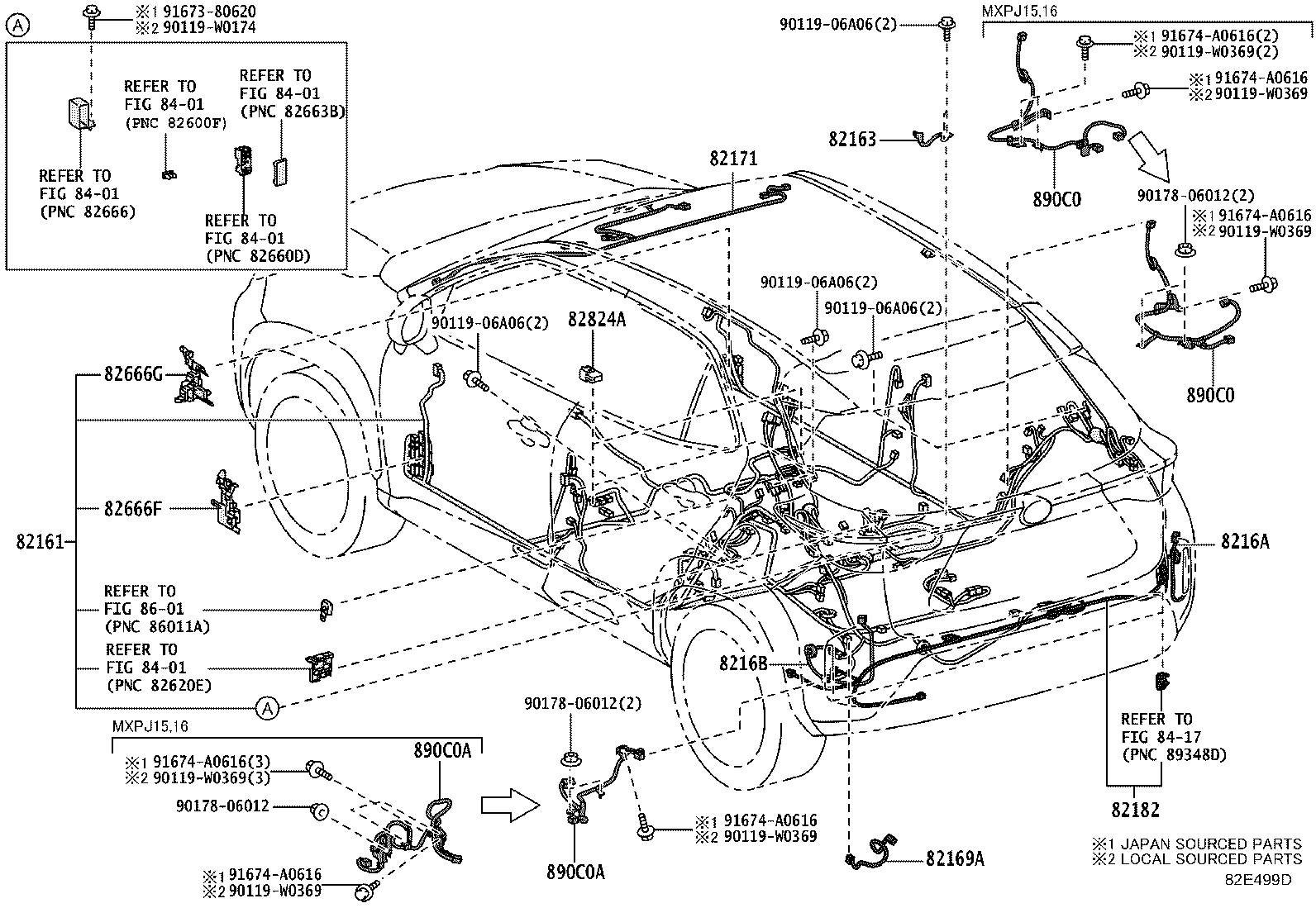

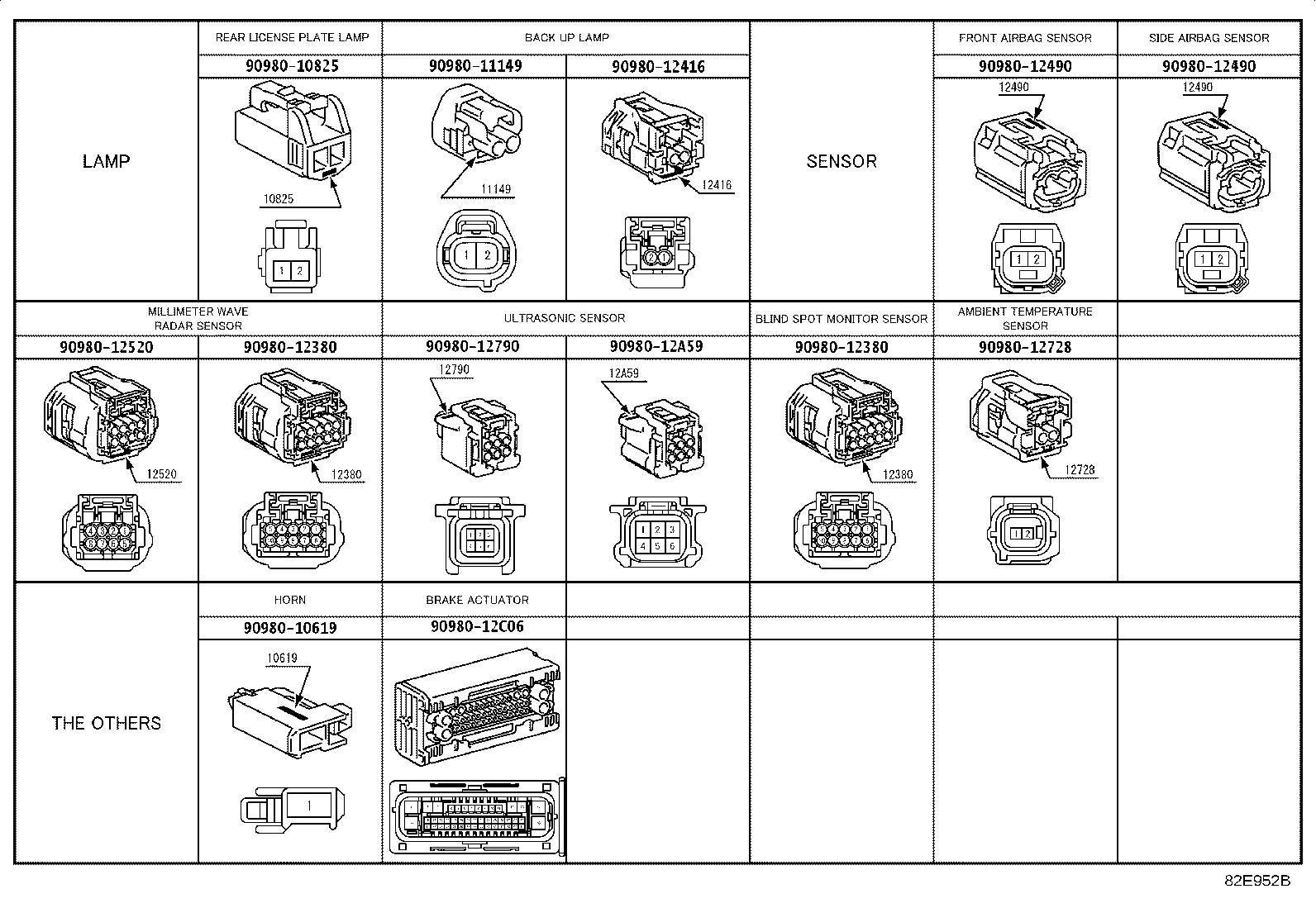

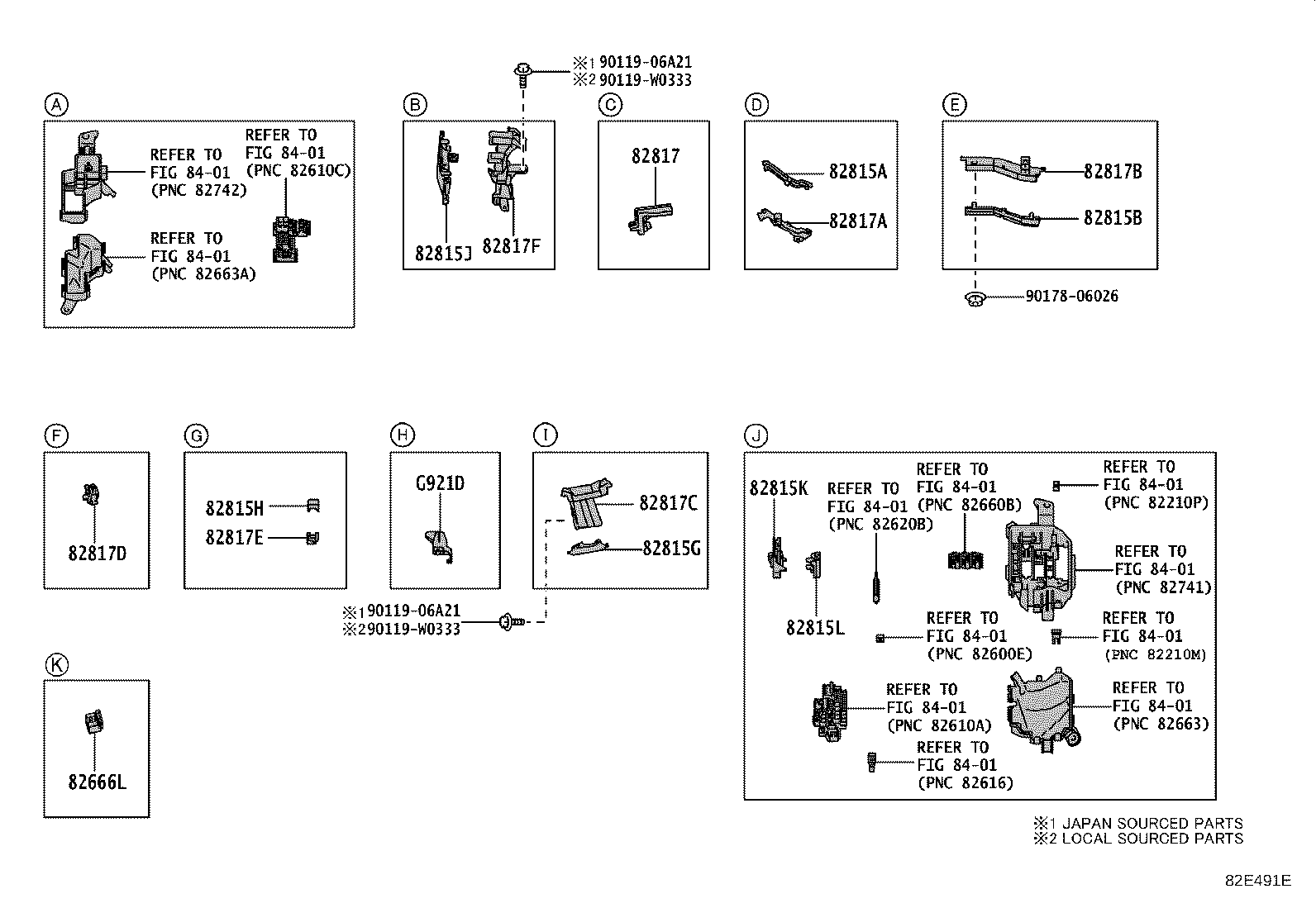

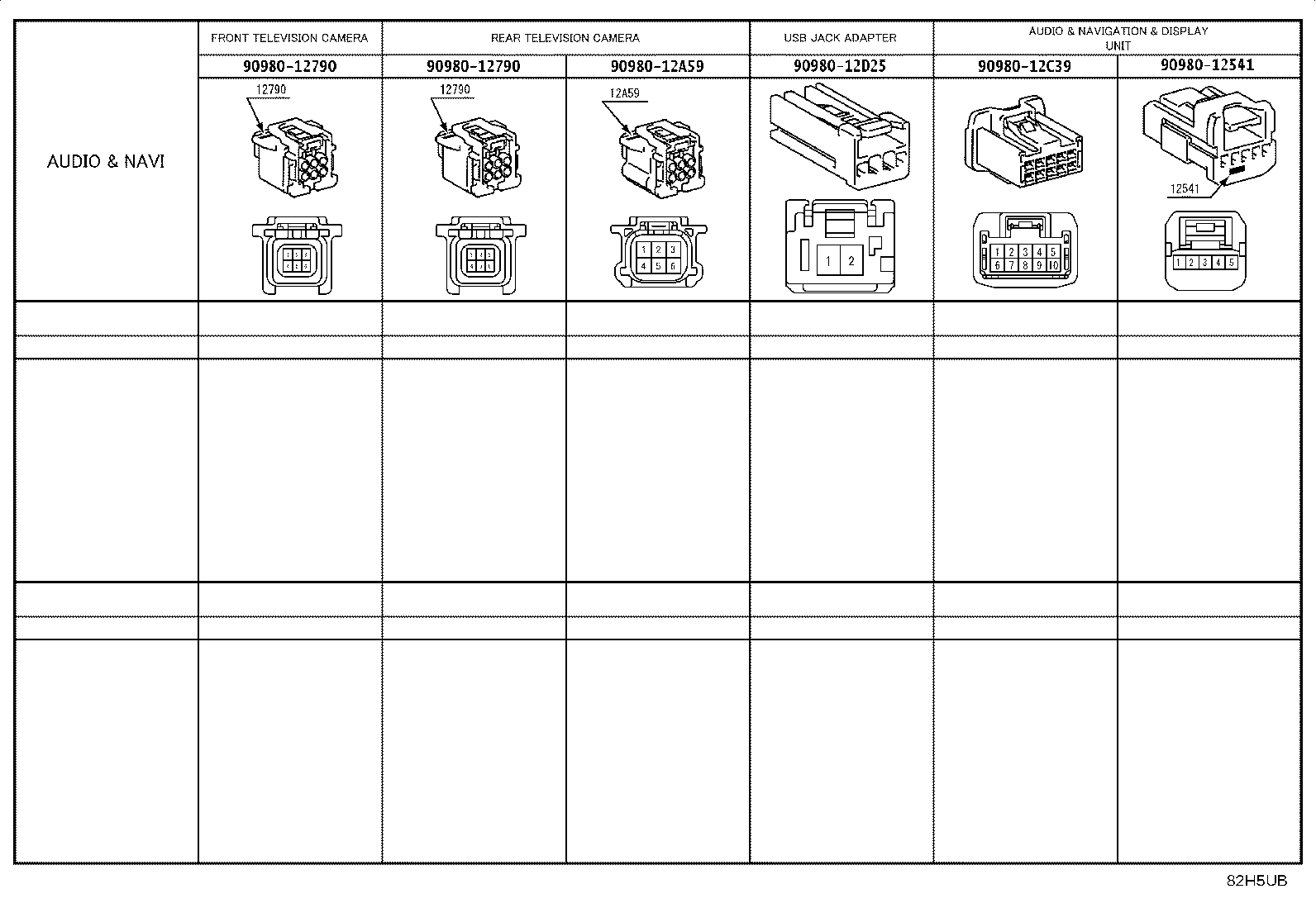

Figure 82E486A 82E486A 2021-07 → — Figure 82E487B 82E487B 2021-07 → — Figure 82E484A 82E484A 2021-07 → — Figure 82E485B 82E485B 2021-07 → — Figure 82E490C 82E490C 2021-07 → — Figure 82E491E 82E491E 2021-07 → — Figure 82E488B 82E488B 2021-07 → — Figure 82E489E 82E489E 2021-07 → — Figure 82E492B 82E492B 2021-07 → — Figure 82E493C 82E493C 2021-07 → — Figure 82E494A 82E494A 2021-07 → — Figure 82E495A 82E495A 2021-07 → — Figure 82E497B 82E497B 2021-07 → — Figure 82E496A 82E496A 2021-07 → — Figure 82E498C 82E498C 2021-07 → — Figure 82E499D 82E499D 2021-07 → — Figure 82E500A 82E500A 2021-07 → — Figure 82E501B 82E501B 2021-07 → — Figure 82E502B 82E502B 2021-07 → — Figure 82E951B 82E951B 2021-07 → — Figure 82E952B 82E952B 2021-07 → — Figure 82H5UB 82H5UB 2021-07 → —

Part groups

PNCDescription

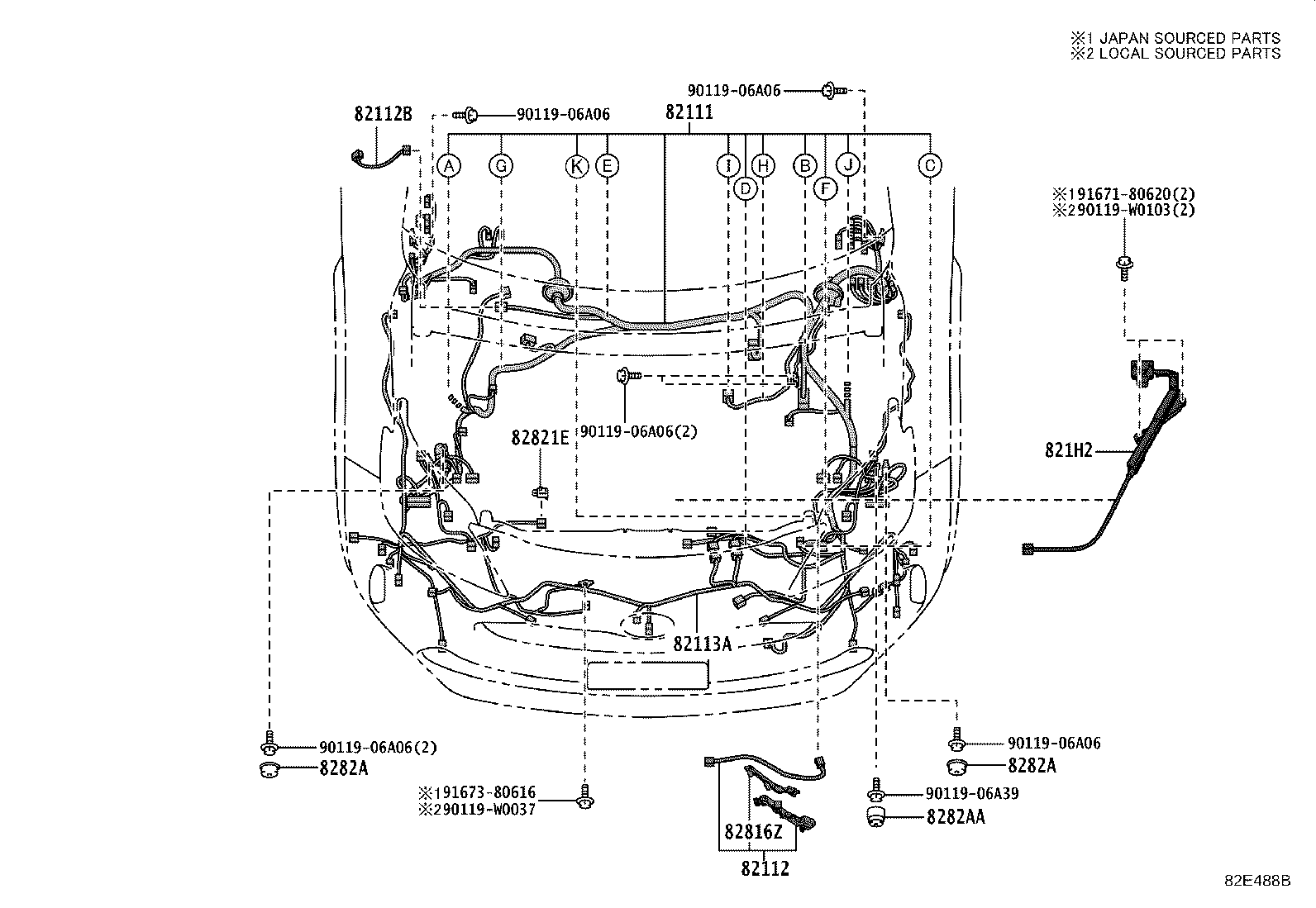

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82112B Wire, Engine Room, NO.2
82113A Wire, Front Compartment, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine

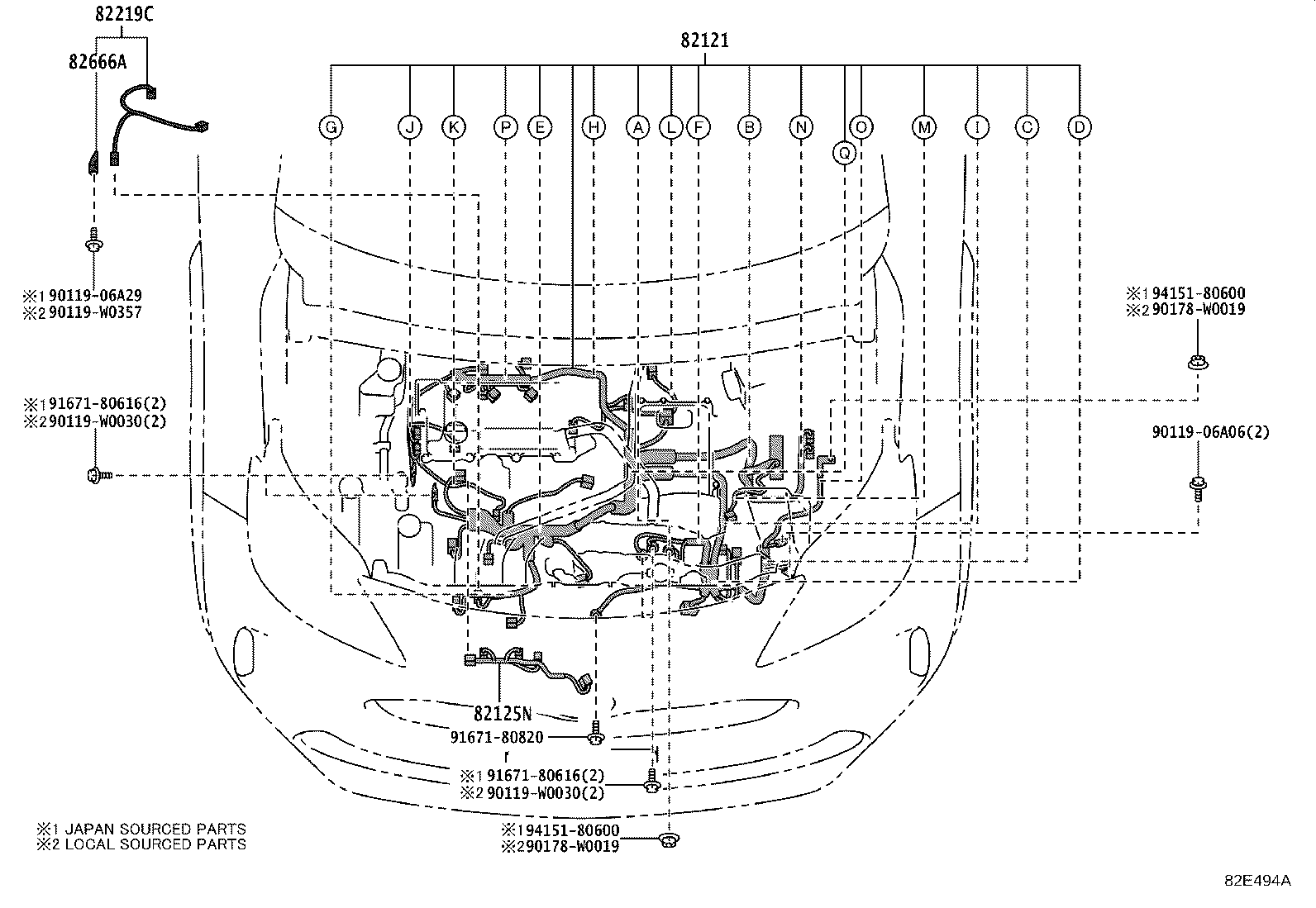

82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6

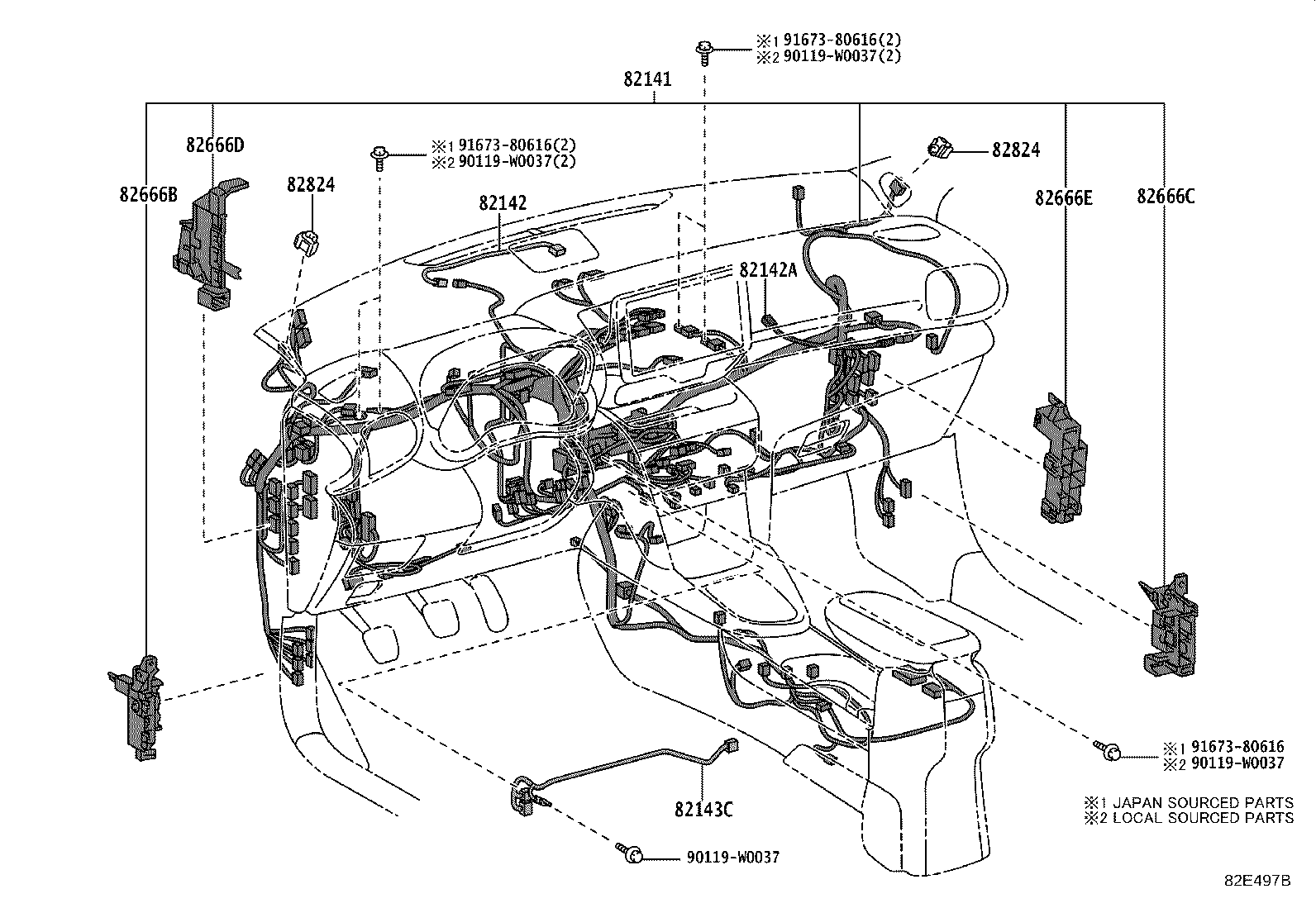

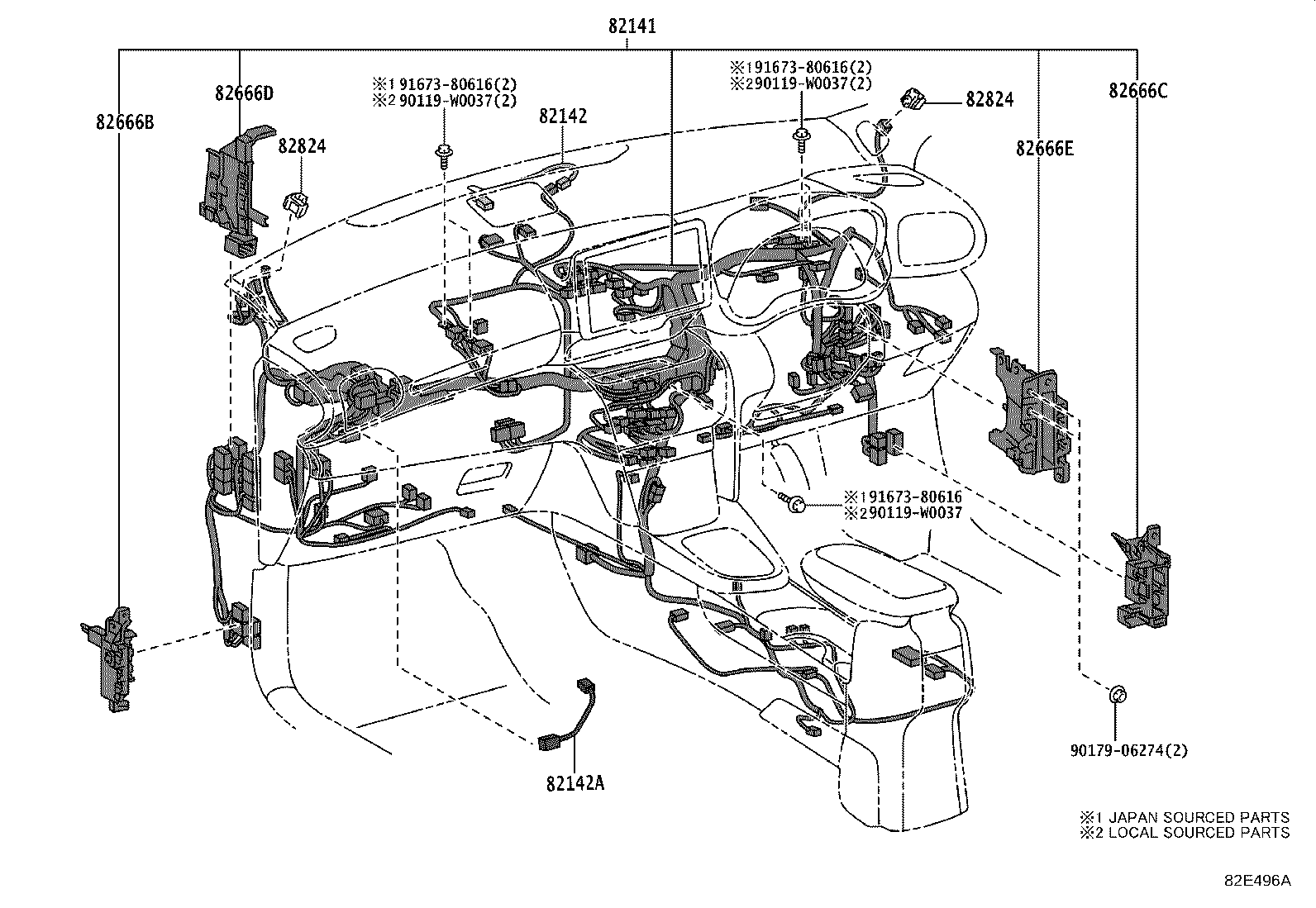

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82169A Wire, Floor, NO.6
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2

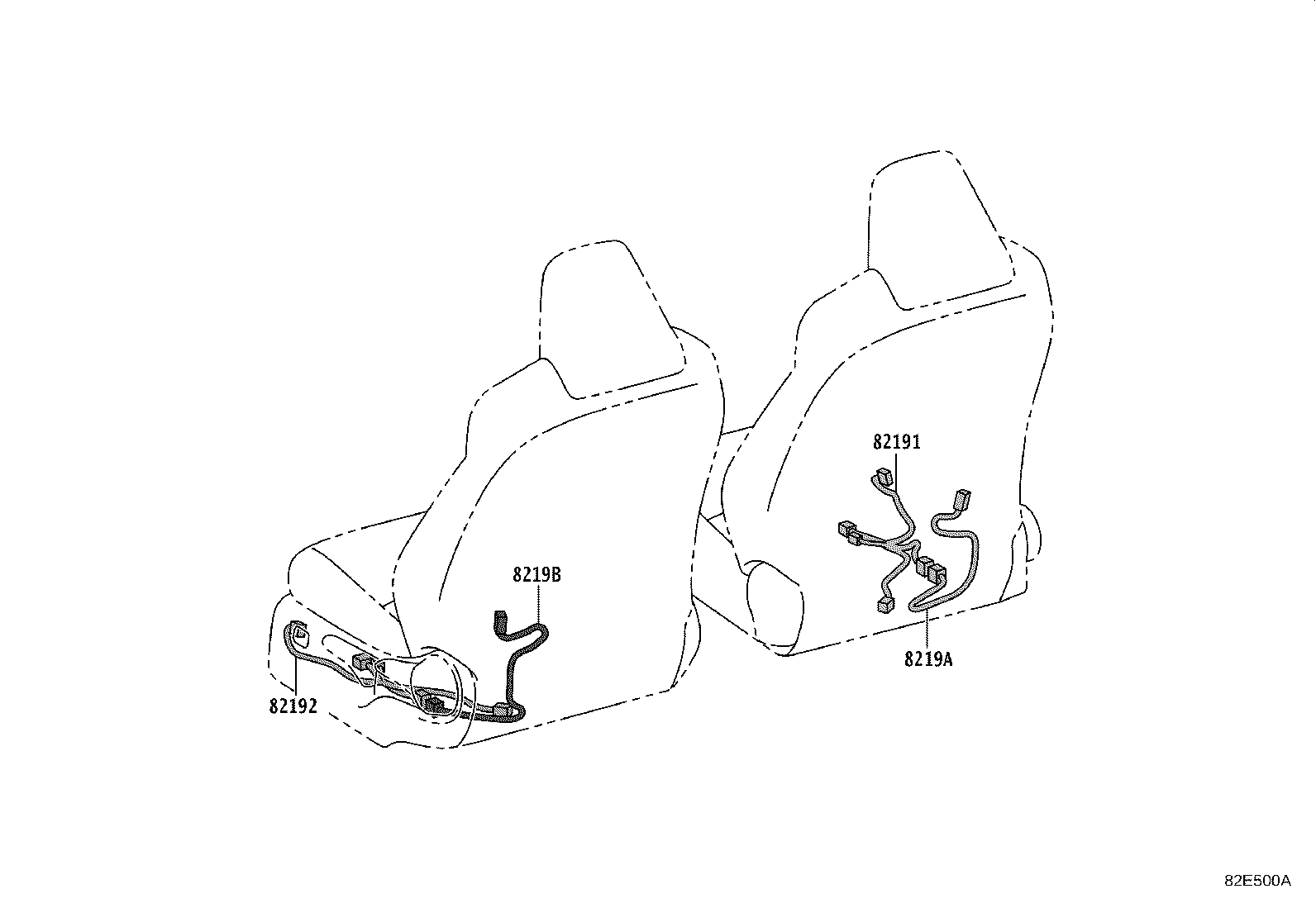

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3 Wire, HV Battery Pack
82219C Wire, Sensor

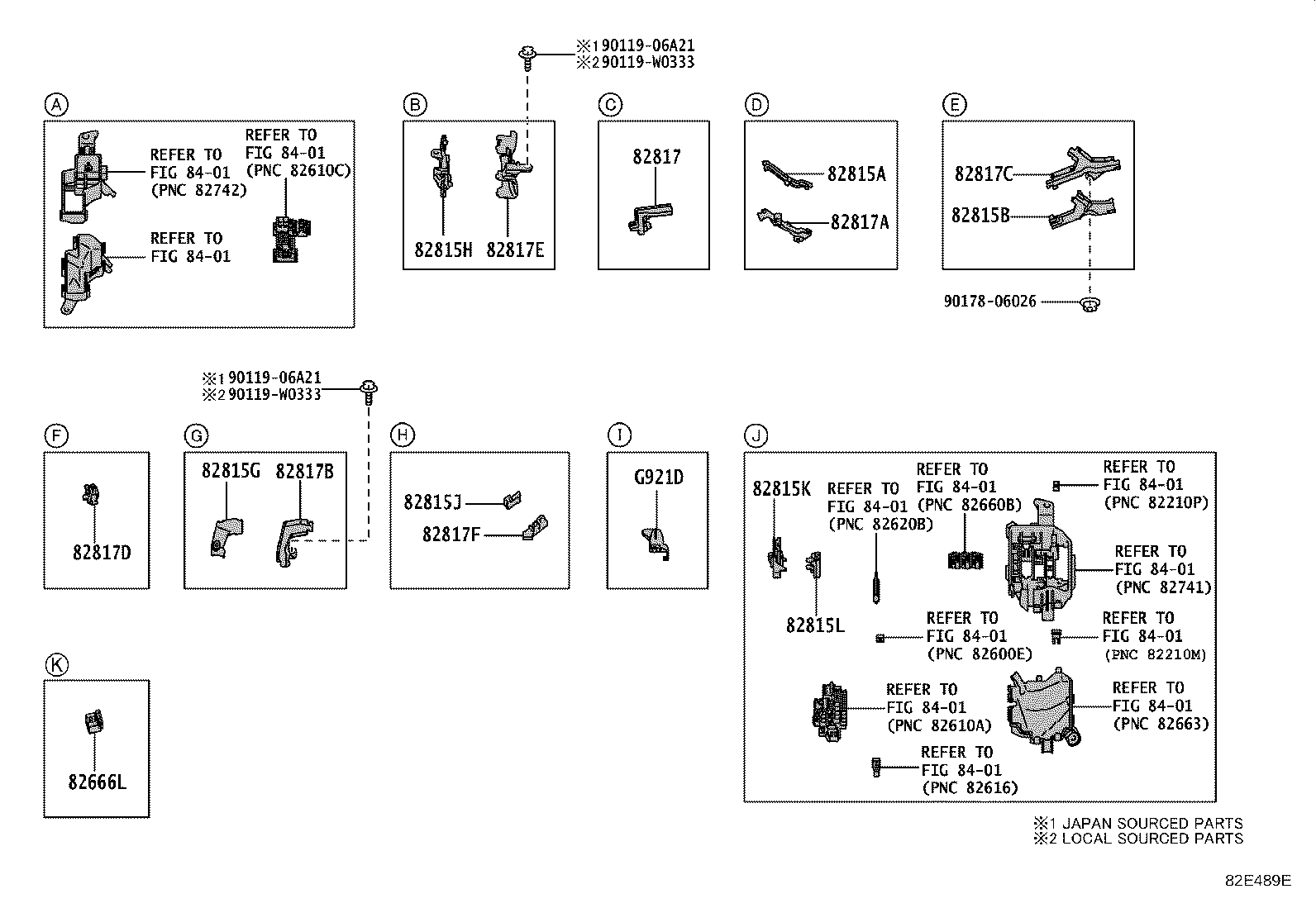

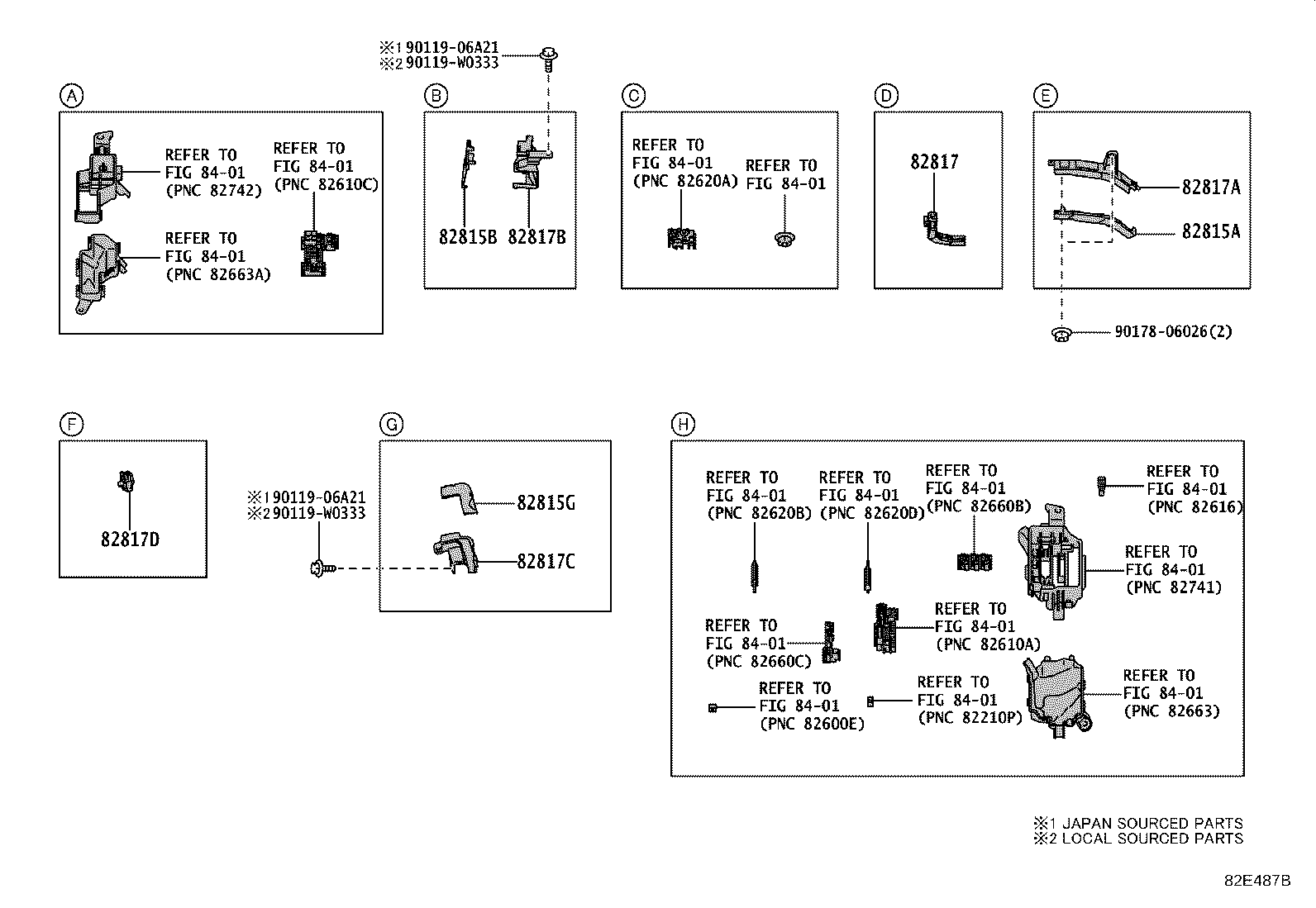

82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82684 Label, Cut High Voltage Electricity

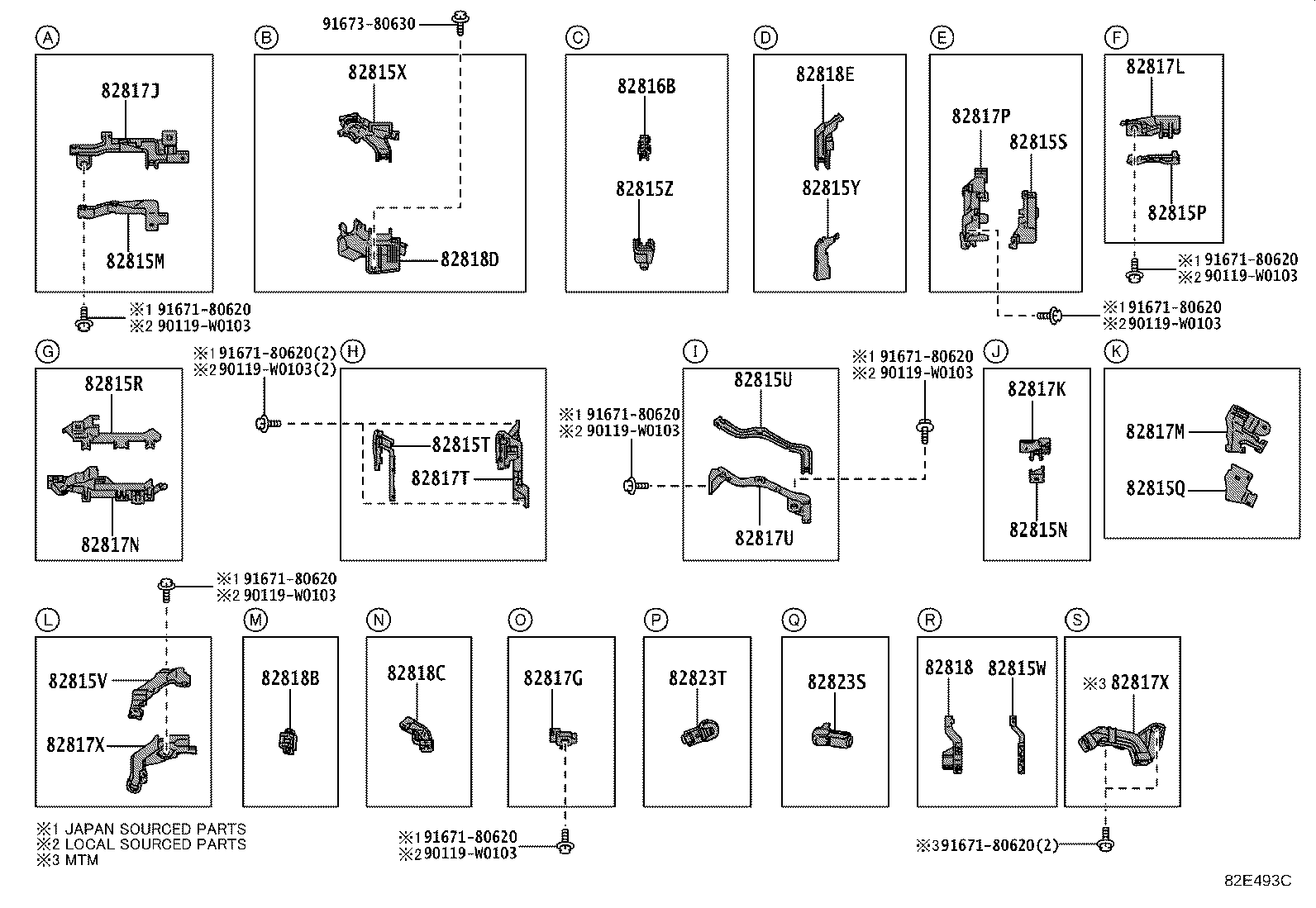

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816Z Cover, Wiring Harness Protector, NO.22
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818L Protector, Wiring Harness, NO.12
82821E Cover, Connector
82821H Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
