Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

7 part groups · 2 illustrations

Illustrations

Figure 832408B

832408B 2021-07 → —

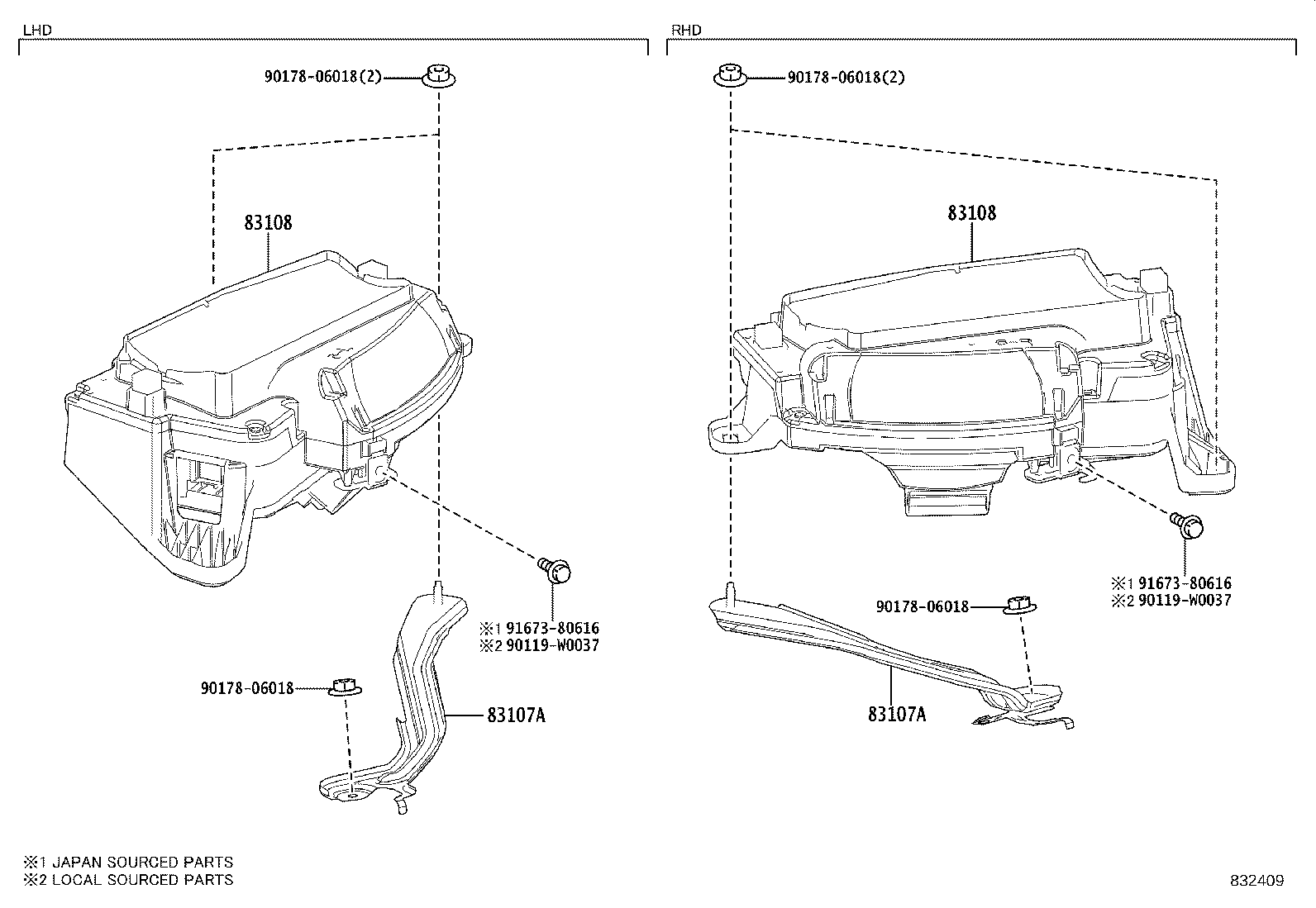

832409 2021-07 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83107A	Bracket Sub-assy, Meter, NO.1
83108	Mirror Sub-assy, Meter
83134B	Cover, Combination Meter, NO.2
83134D	Cover, Combination Meter, NO.3
83138G	Glass, Combination Meter
83821A	Cover, Combination Meter, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
