Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

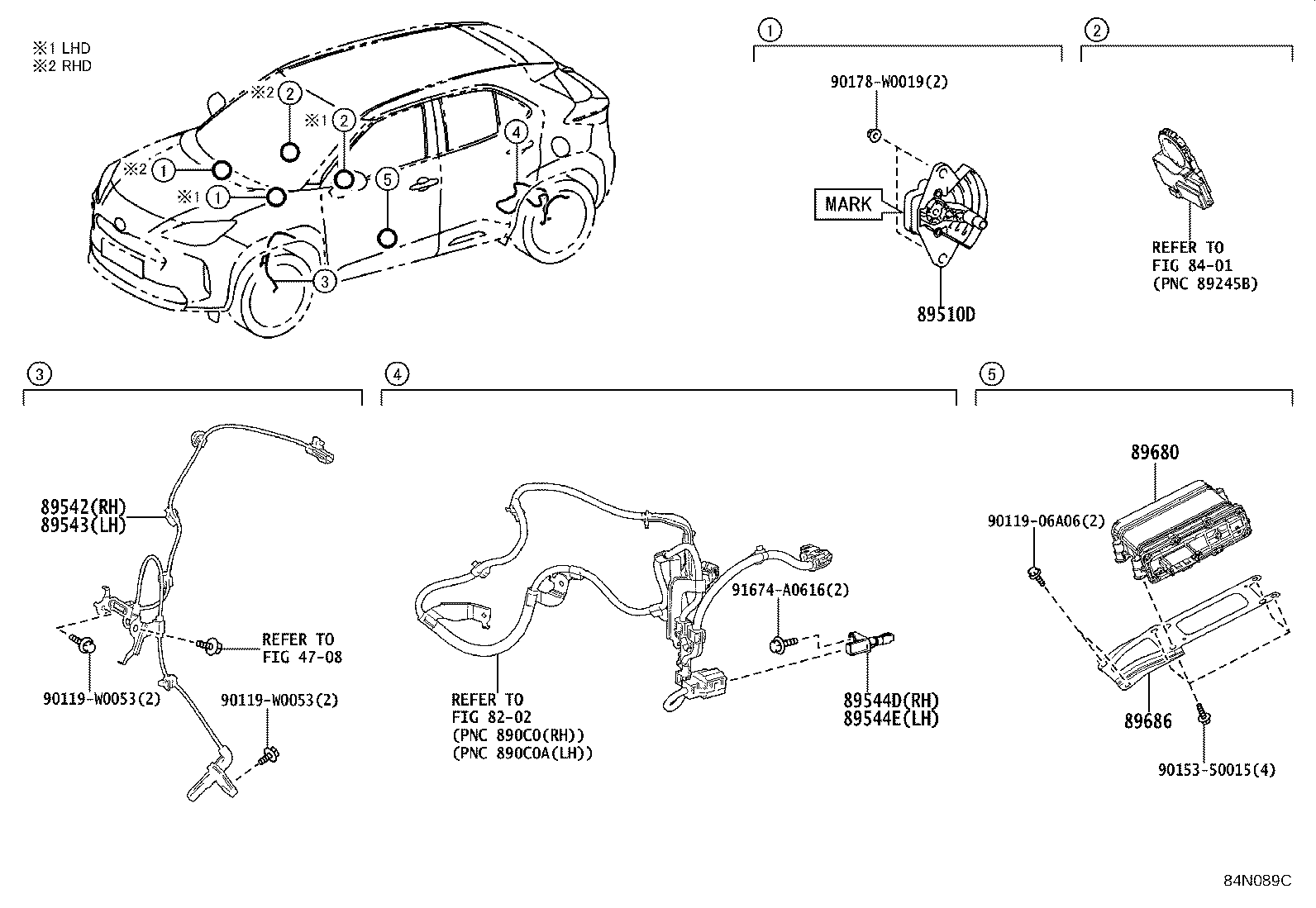

Figure 84N088D 84N088D 2021-07 → — Figure 84N089C 84N089C 2021-07 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544D Sensor, Skid Control, Rear RH
89544E Sensor, Skid Control, Rear LH
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
