Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

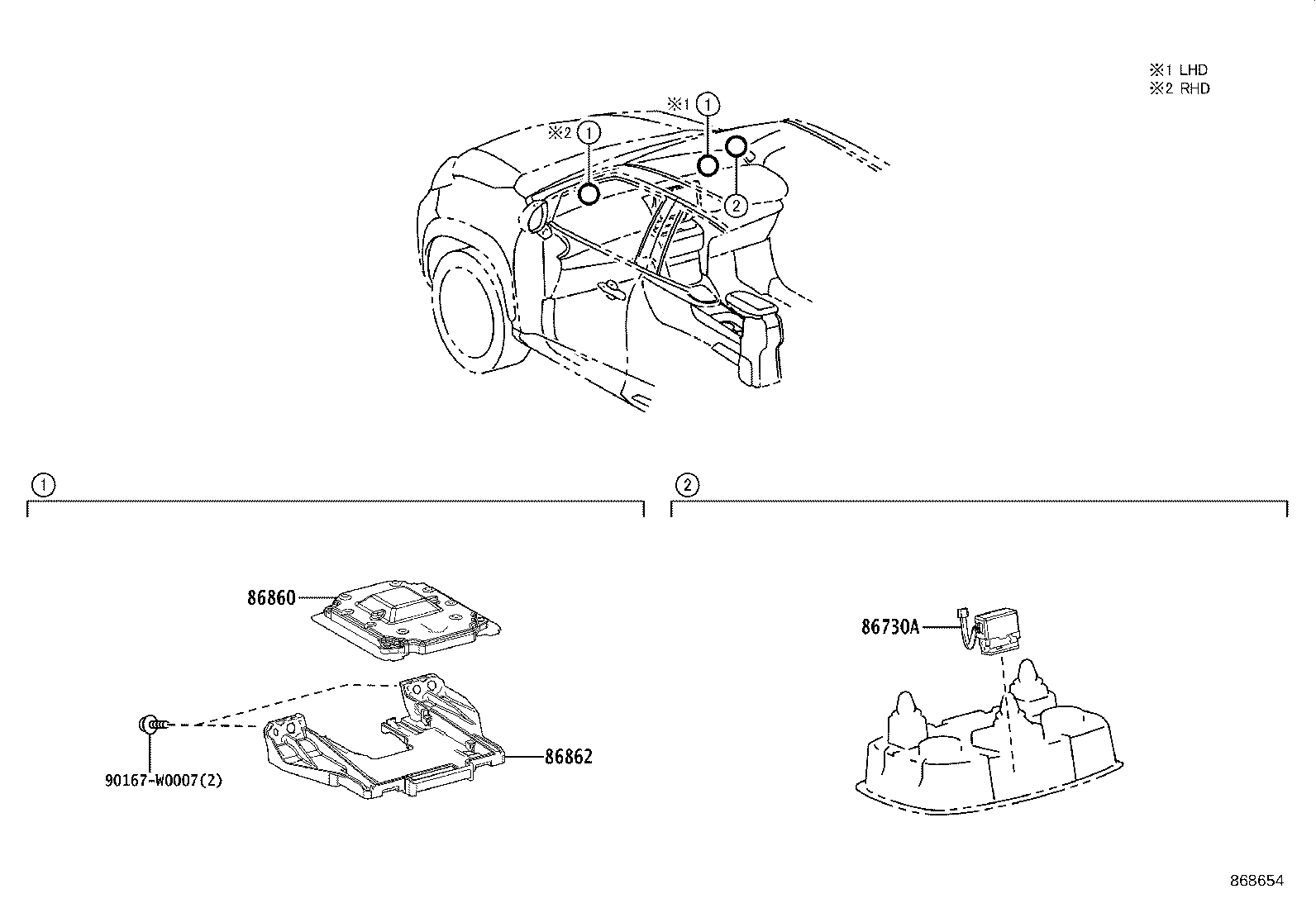

Figure 868653B 868653B 2021-07 → — Figure 868654 868654 2021-07 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86840B Computer Assy, Navigation
86841 Computer, Navigation
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
