Toyota Yaris Cross/Hybrid

2021-07 → present · chassis MXPB10,MXPJ1# · catalogue 542510 · Europe

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

10 part groups · 2 illustrations

Illustrations

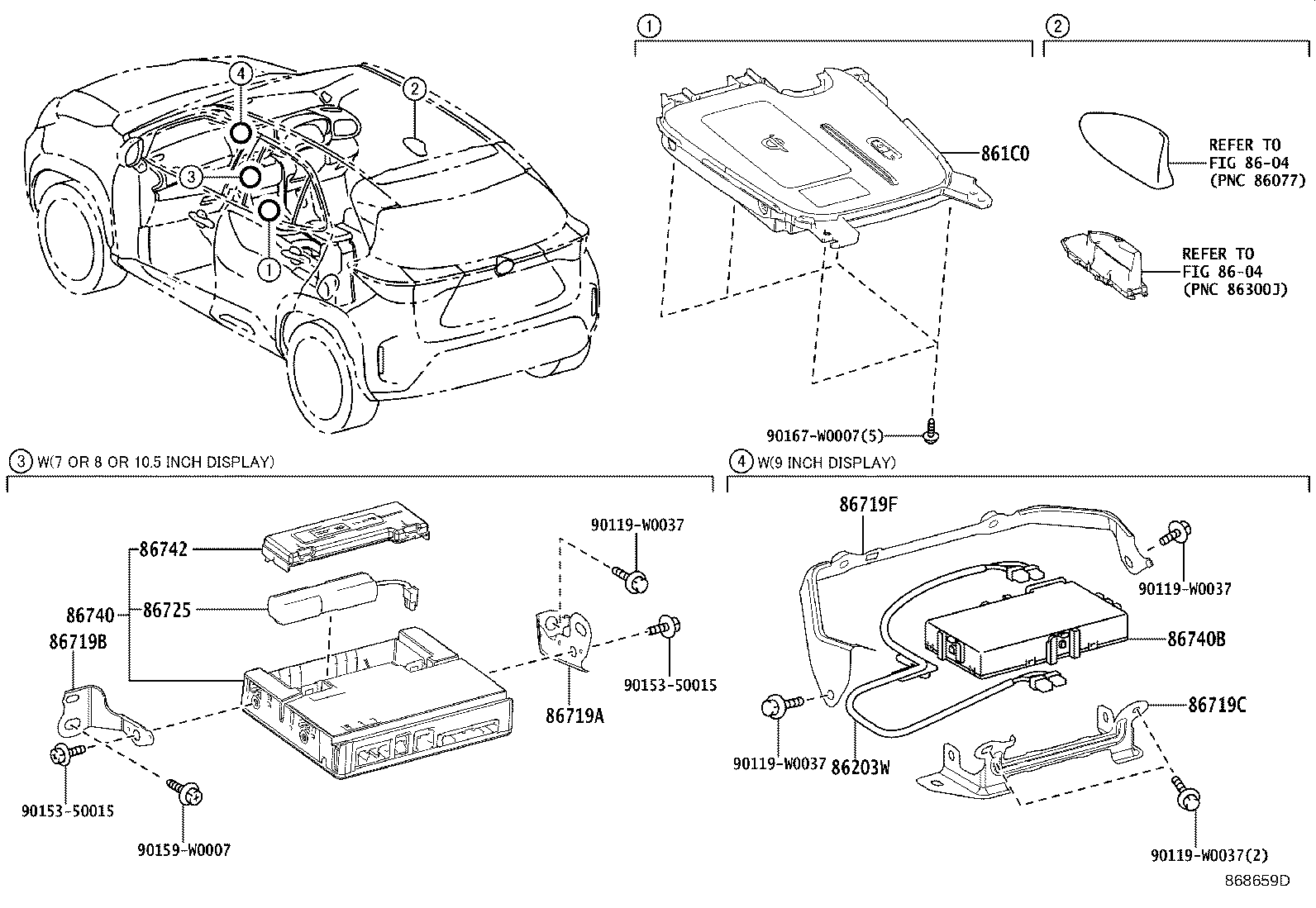

Figure 868658D 868658D 2021-07 → — Figure 868659D 868659D 2021-07 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
86203W Wiring Sub-assy, Radio
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86719F Bracket, Telephone NO.4
86725 Battery, Mobilephone
86740 Transceiver Assy, Telephone
86740B Transceiver Assy, Telephone, NO.2
86742 Cover, Transceiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
