Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 87J729A

87J729A 2021-07 → —

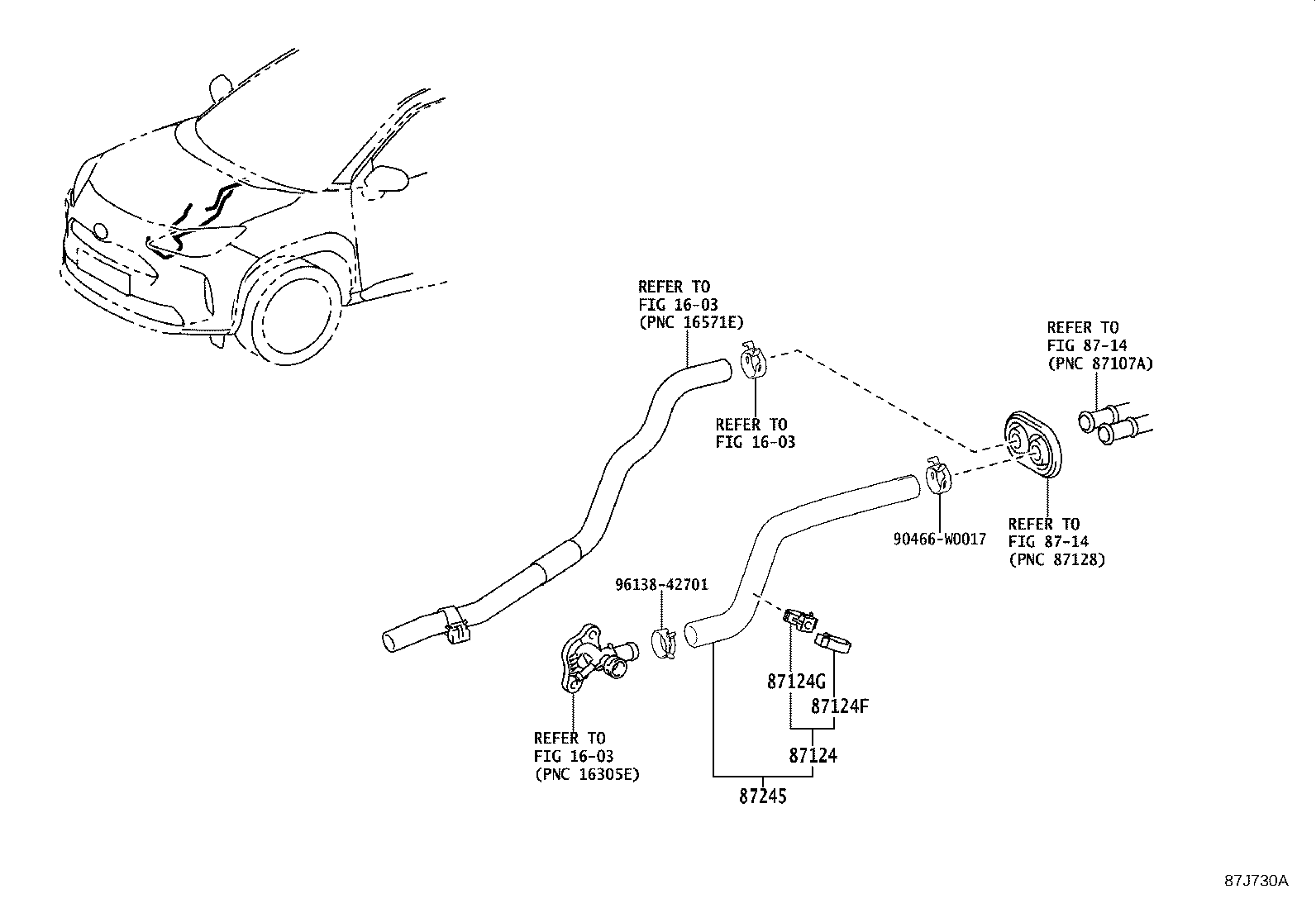

Figure 87J730A

87J730A 2021-07 → —

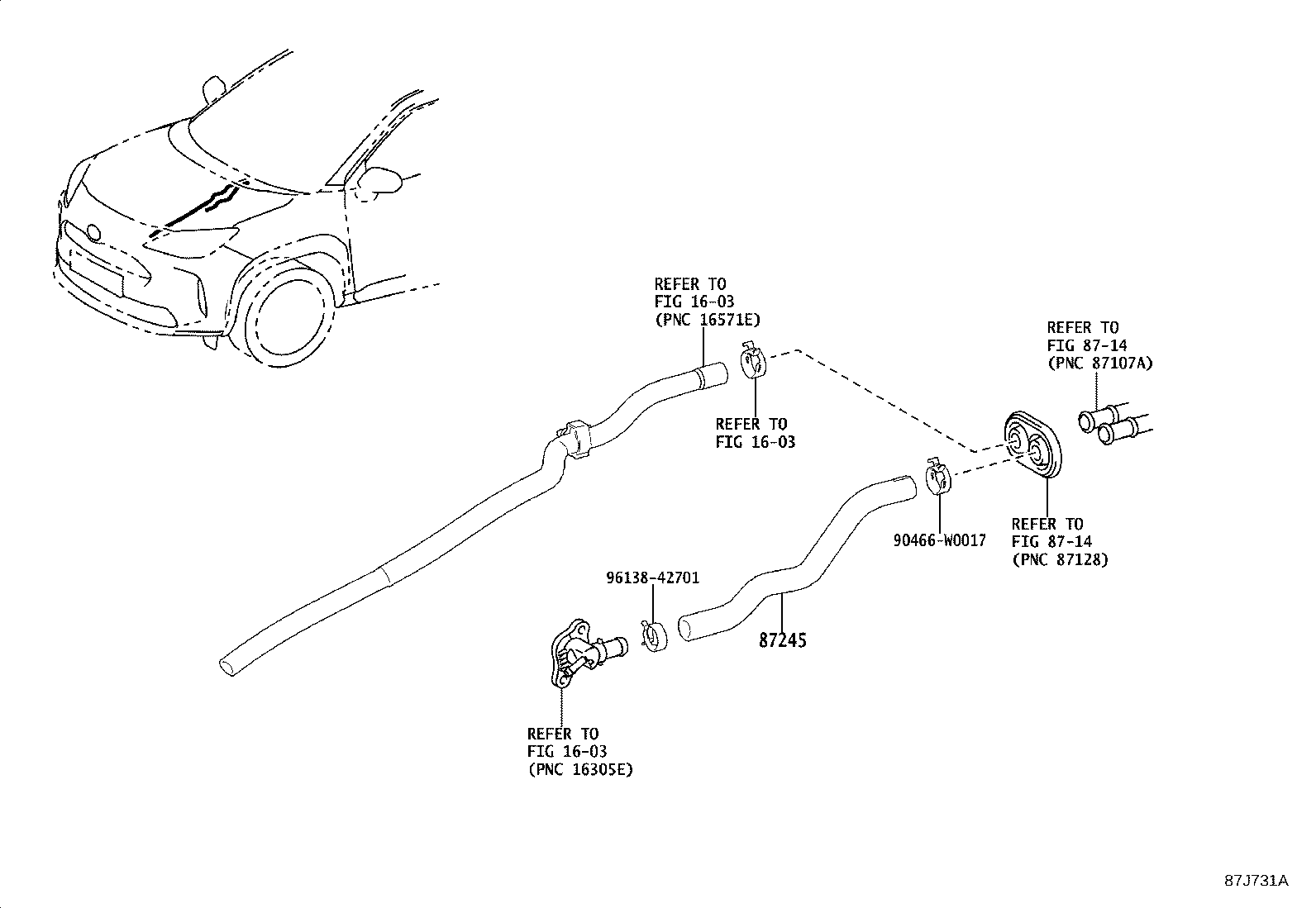

Figure 87J731A

87J731A 2021-07 → —

Part groups

PNC	Description
87124	Clamp, Heater
87124F	Clamp, Heater Hose, NO.1
87124G	Clamp, Heater Hose, NO.2
87245	Hose, Heater Water, Inlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
