Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11
Radiator & Water Outlet

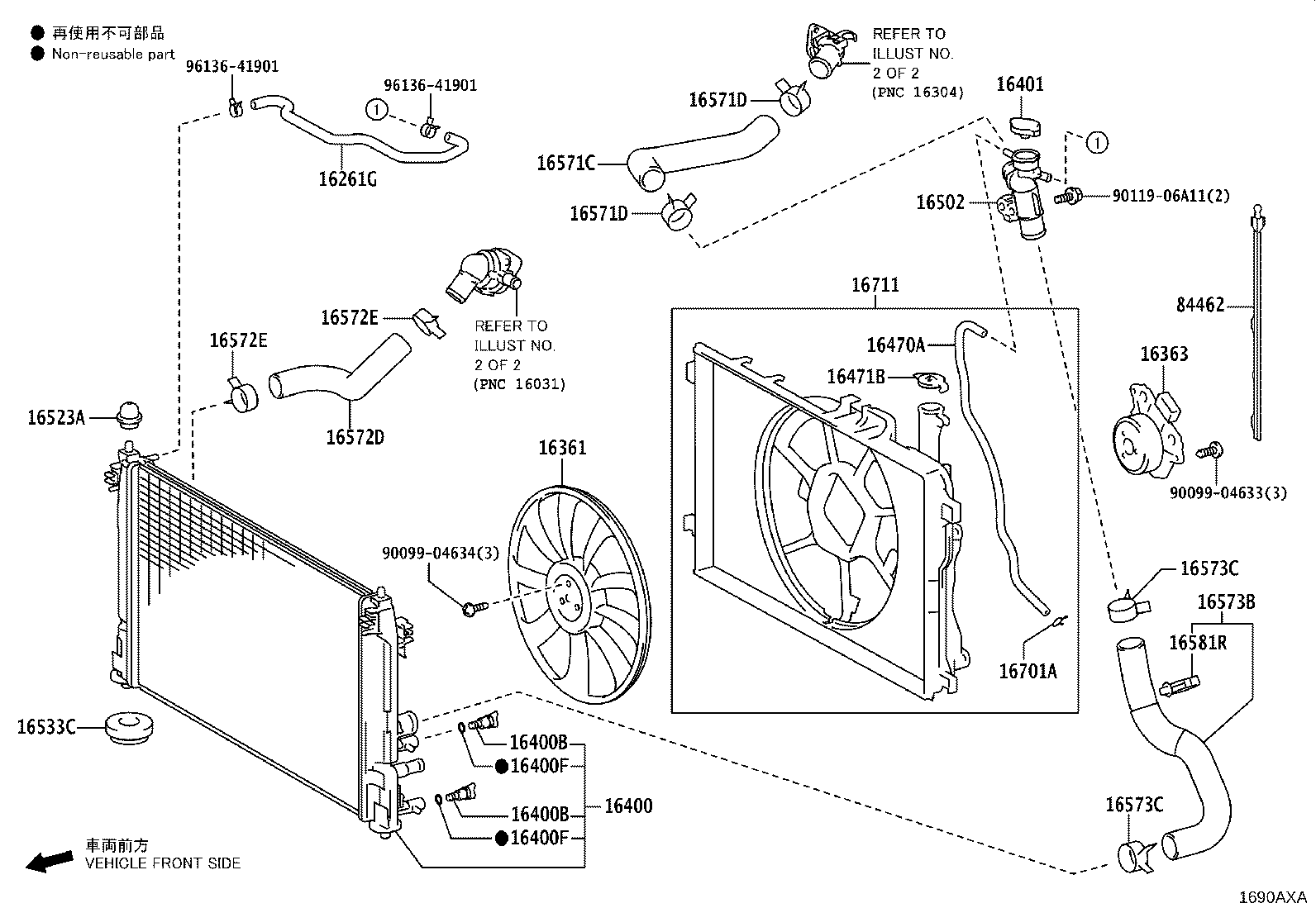

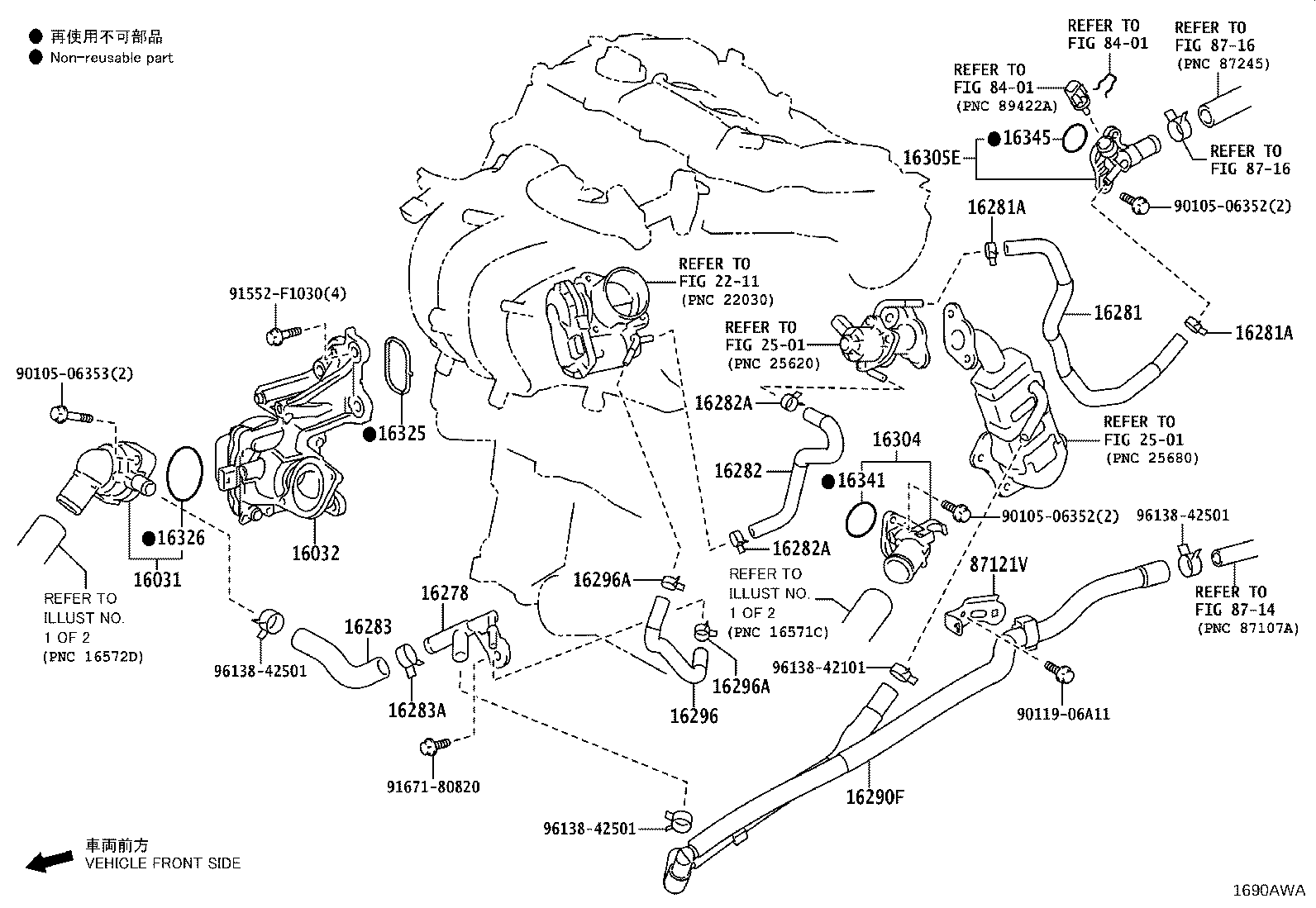

41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16032 | Housing Sub-assy, Water Inlet W/Water Pump |
| 16261G | Hose, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16290F | Hose Assy, Water By-pass, NO.3 |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16304 | Outlet Sub-assy, Water |
| 16305E | Outlet Sub-assy, Water By-pass |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16341 | Gasket, Water Outlet |
| 16345 | Gasket, Water Outlet Pipe |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16471B | Cap, Reserve Tank |
| 16502 | Filler Sub-assy, Water |
| 16523A | Cushion, Radiator Support |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16581R | Clamp, Hose(FOR RADIATOR HOSE NO.3) |
| 16701A | Clip(FOR FAN SHROUD) |
| 16711 | Shroud, Fan |
| 84462 | Float, Level Warning |
| 87121V | Bracket, Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
