Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11

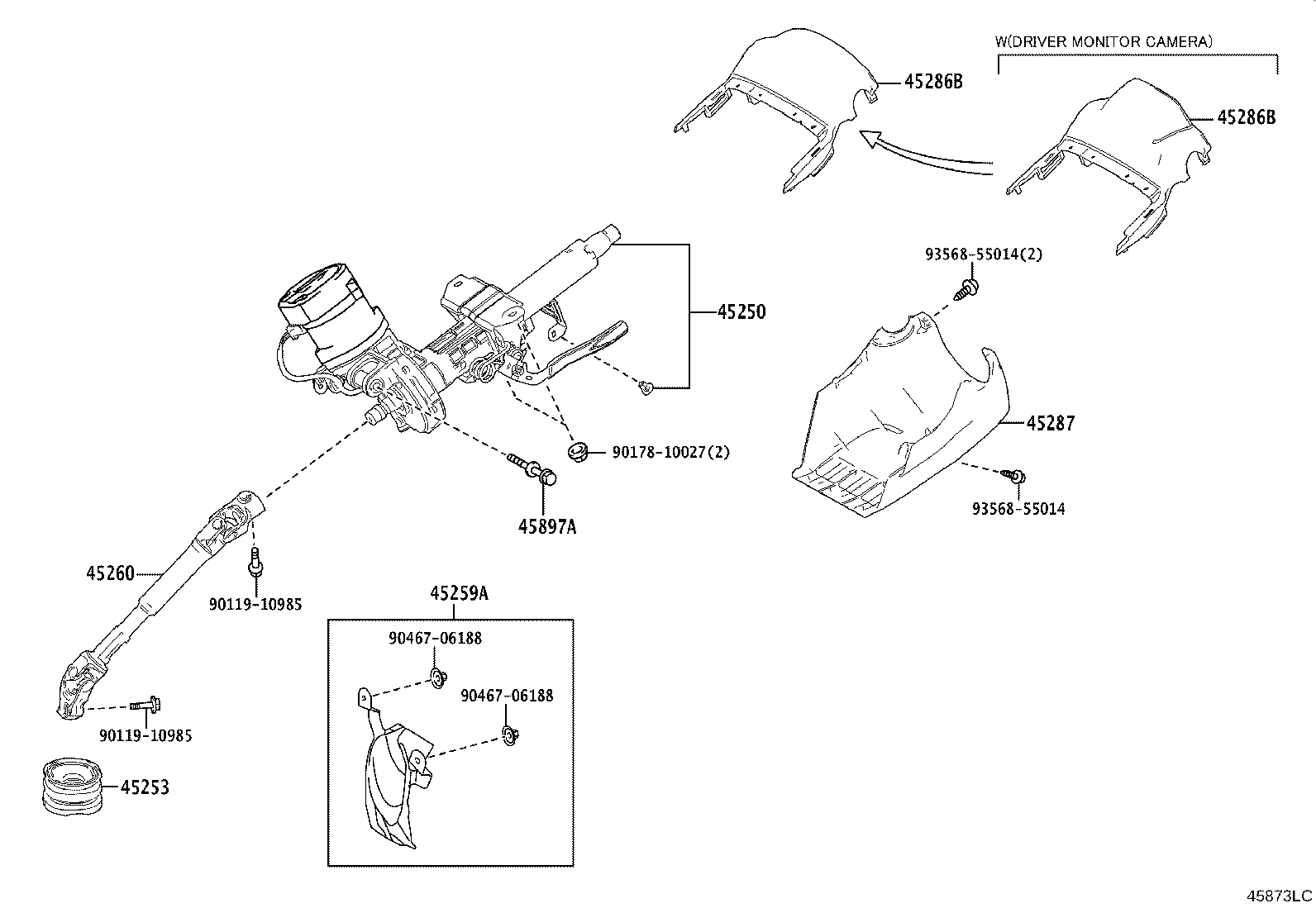

Steering Column & Shaft
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45250 | Column Assy, Steering |
| 45253 | Cover, Steering Column Hole |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45286B | Cover, Steering Column, Upr |
| 45287 | Cover, Steering Column, Lwr |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
| 55175B | Clamp, Steering Column Support, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
