Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

18 part groups · 3 illustrations

Illustrations

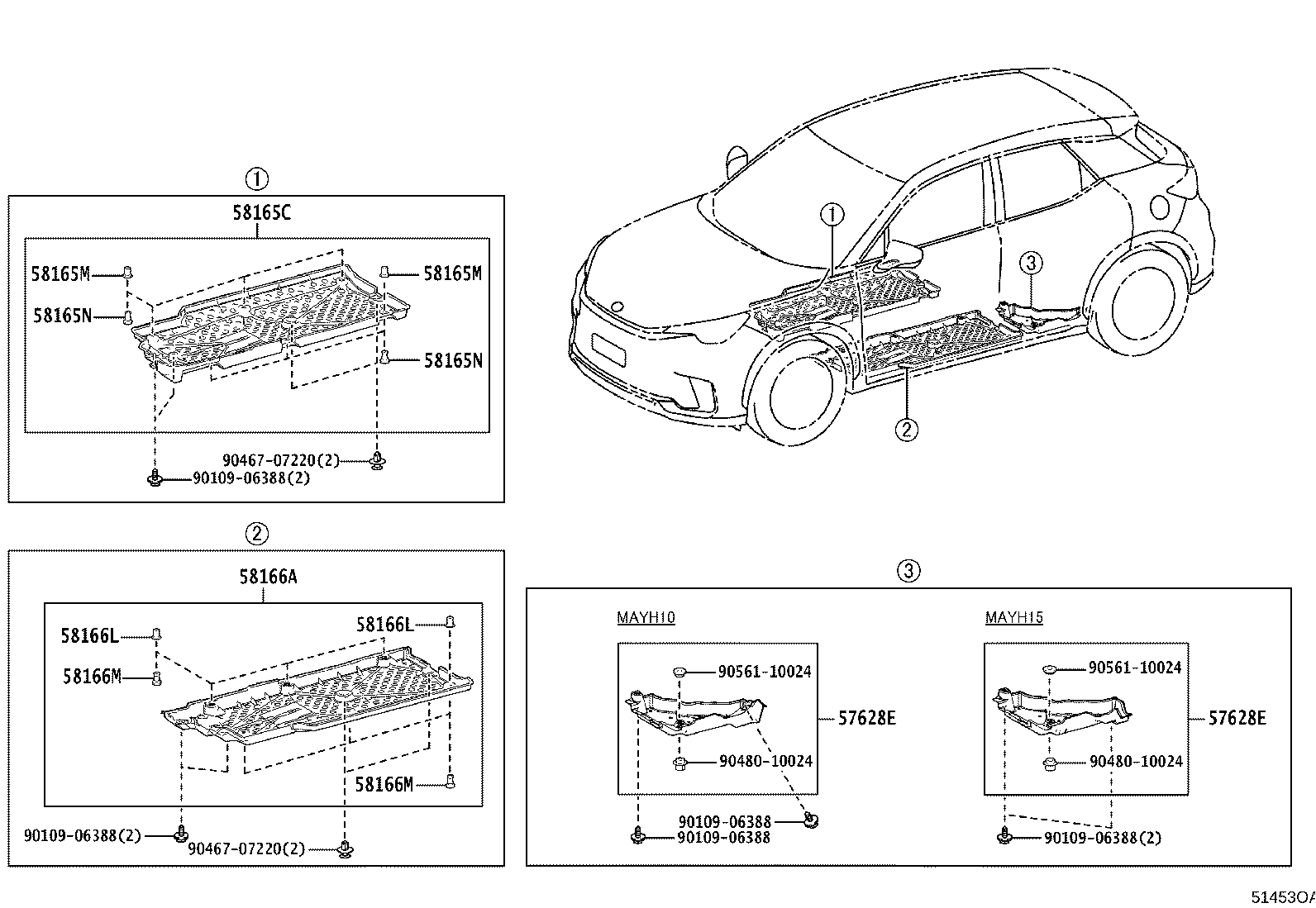

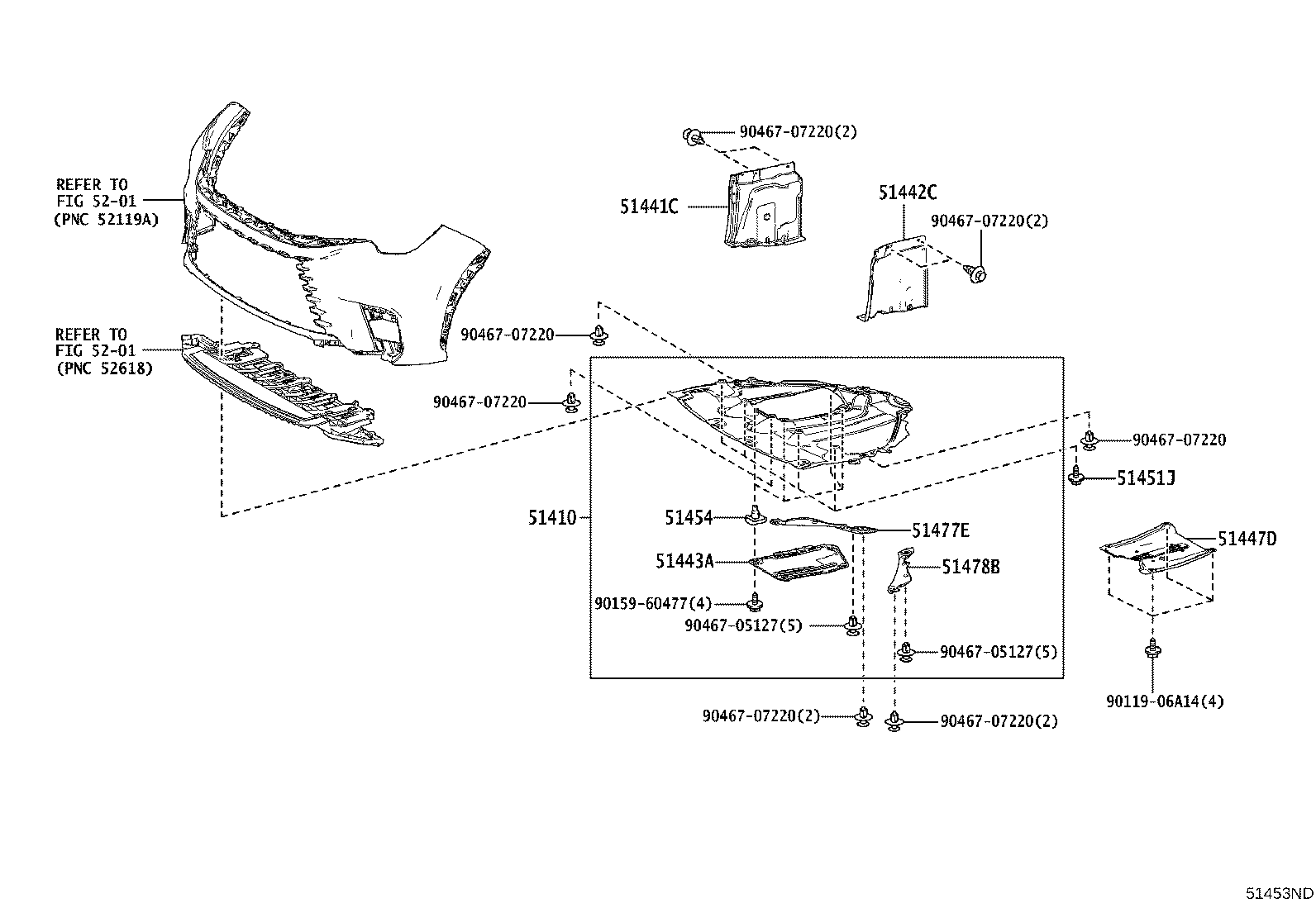

Figure 51453M 51453M 2023-12 → — Figure 51453ND 51453ND 2023-12 → — Figure 51453OA 51453OA 2023-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51410 Cover Assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443A Cover, Engine Under, Rear
51447D Cover, Engine Under, NO.4 Center
51451J Bolt, NO.1
51454 Clip
51477E Plate, Engine Under Cover Side, RH
51478B Plate, Engine Under Cover Side, LH
57628E Cover, Rear Floor Side Member, LH
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
58166L Clip, Front Floor Cover, NO.1
58166M Clip, Front Floor Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
