Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 2 illustrations

Illustrations

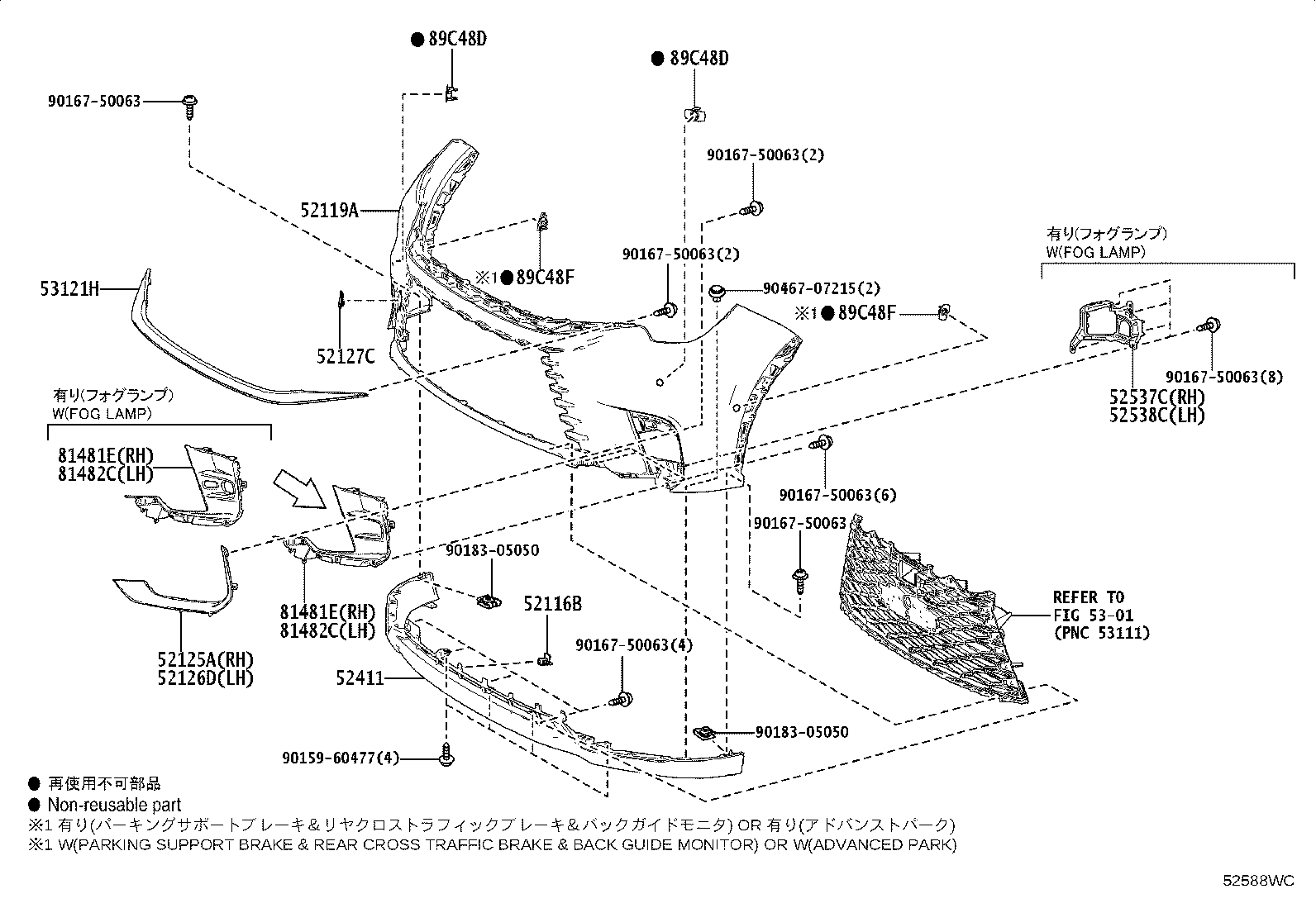

Figure 52588U 52588U 2023-12 → — Figure 52588WC 52588WC 2023-12 → —

Part groups

PNCDescription
52102B Extension Sub-assy, Front Bumper, RH
52103A Extension Sub-assy, Front Bumper, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52119G Clip, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52411 Guard, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537C Retainer, Front Bumper Side, NO.2 RH
52538C Retainer, Front Bumper Side, NO.2 LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53121H Moulding, Radiator Grille, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
