Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

9 part groups · 2 illustrations

Illustrations

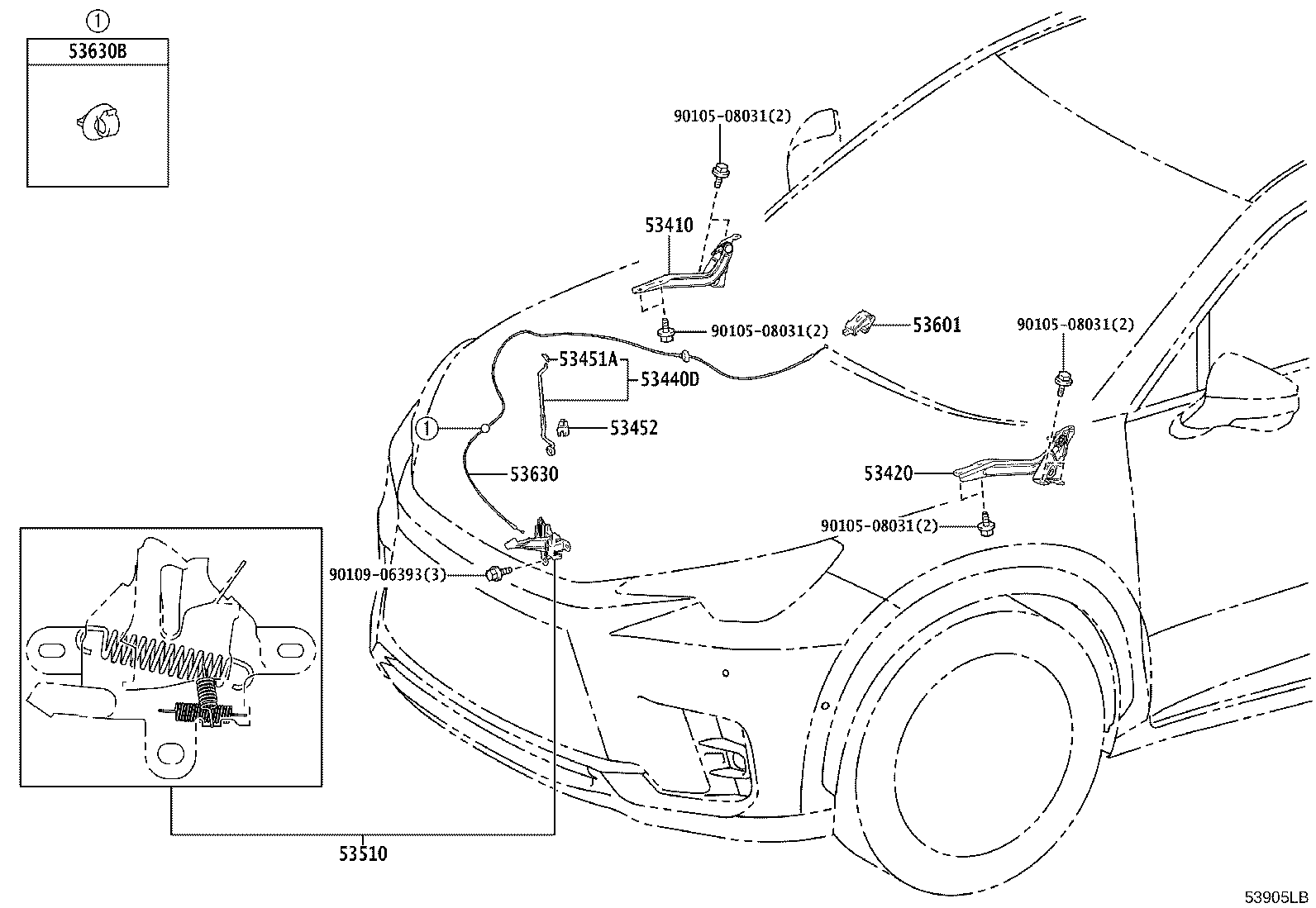

Figure 53905MB 53905MB 2023-12 → — Figure 53905LB 53905LB 2023-12 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
