Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

41 part groups · 10 illustrations

Illustrations

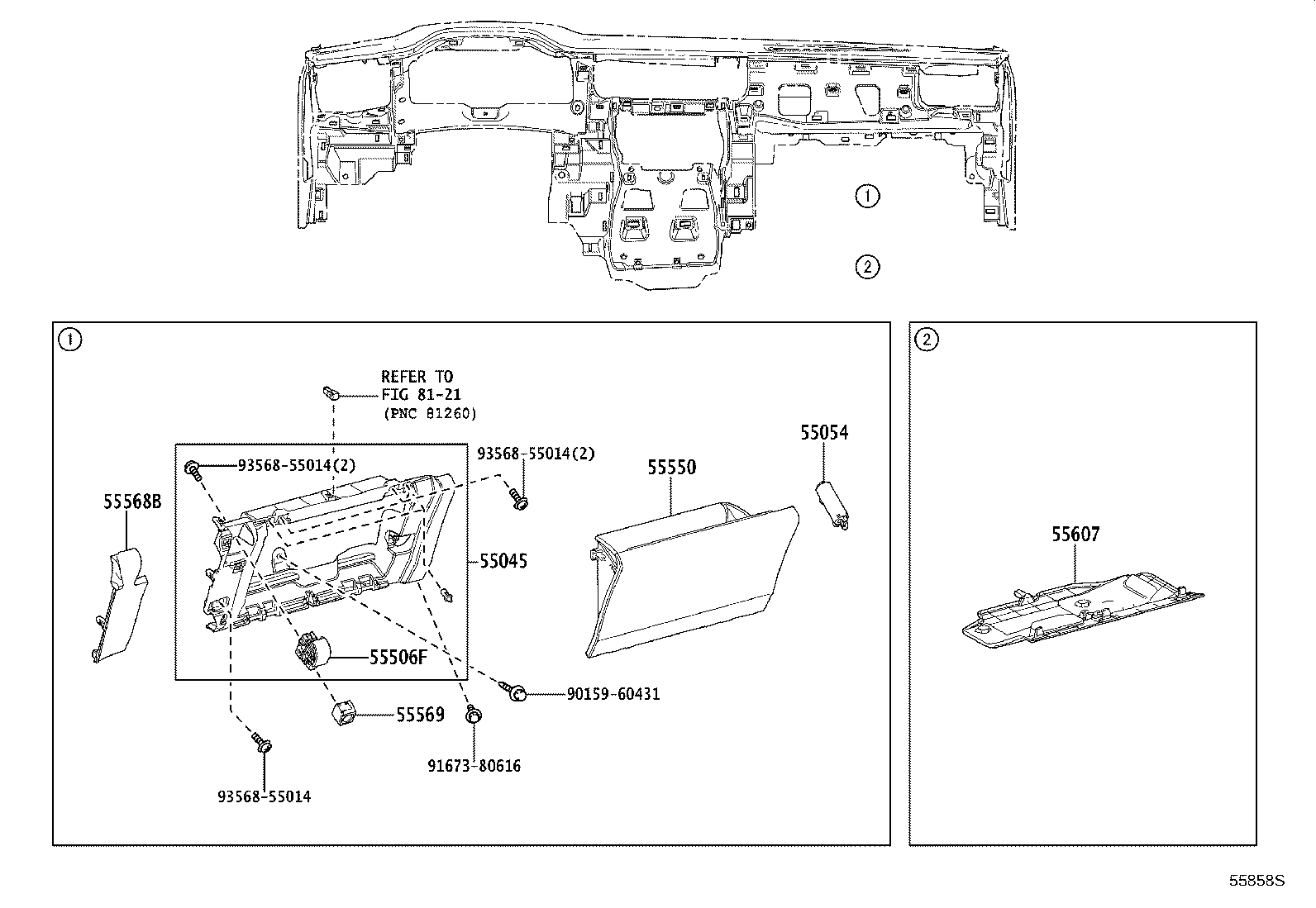

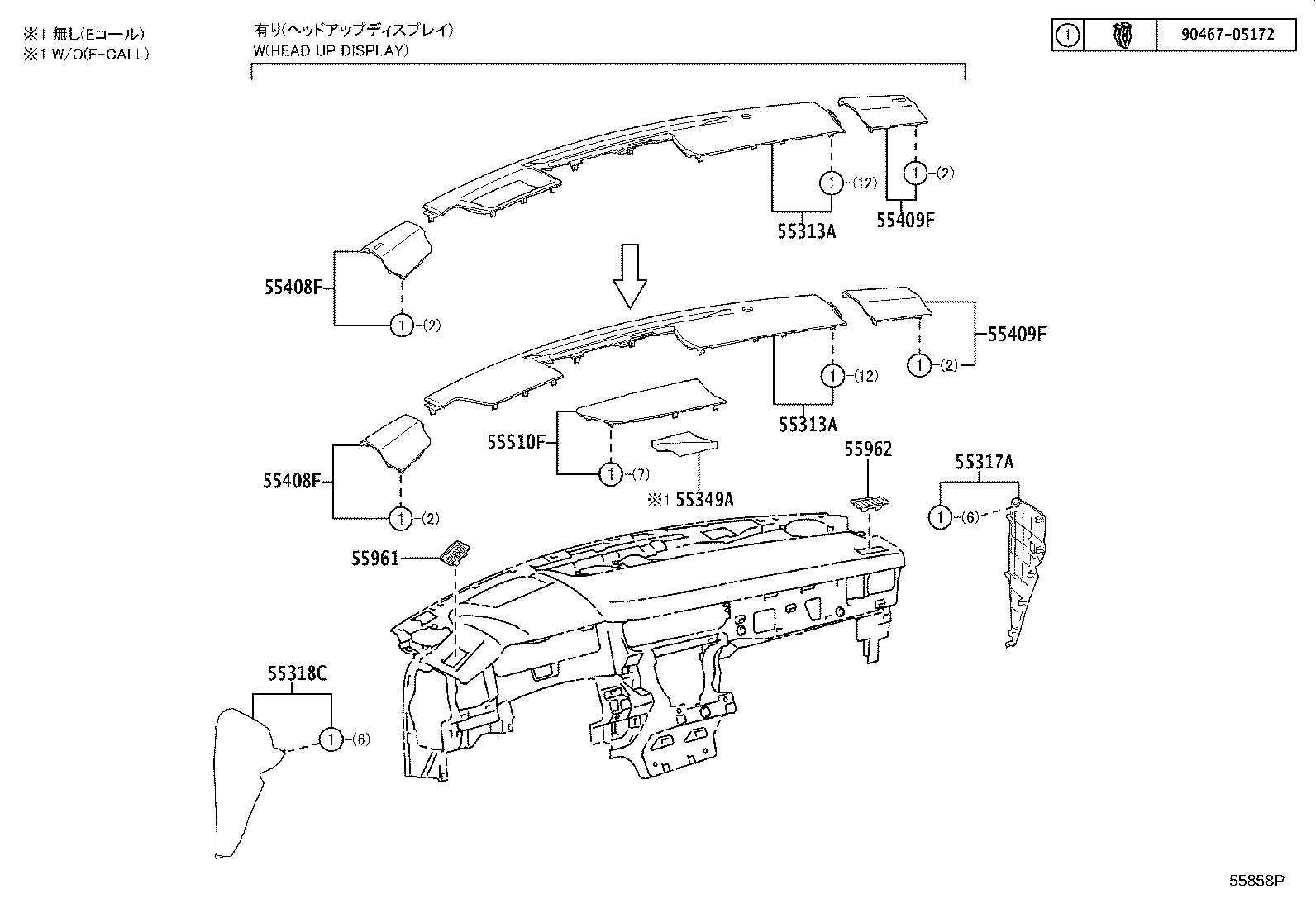

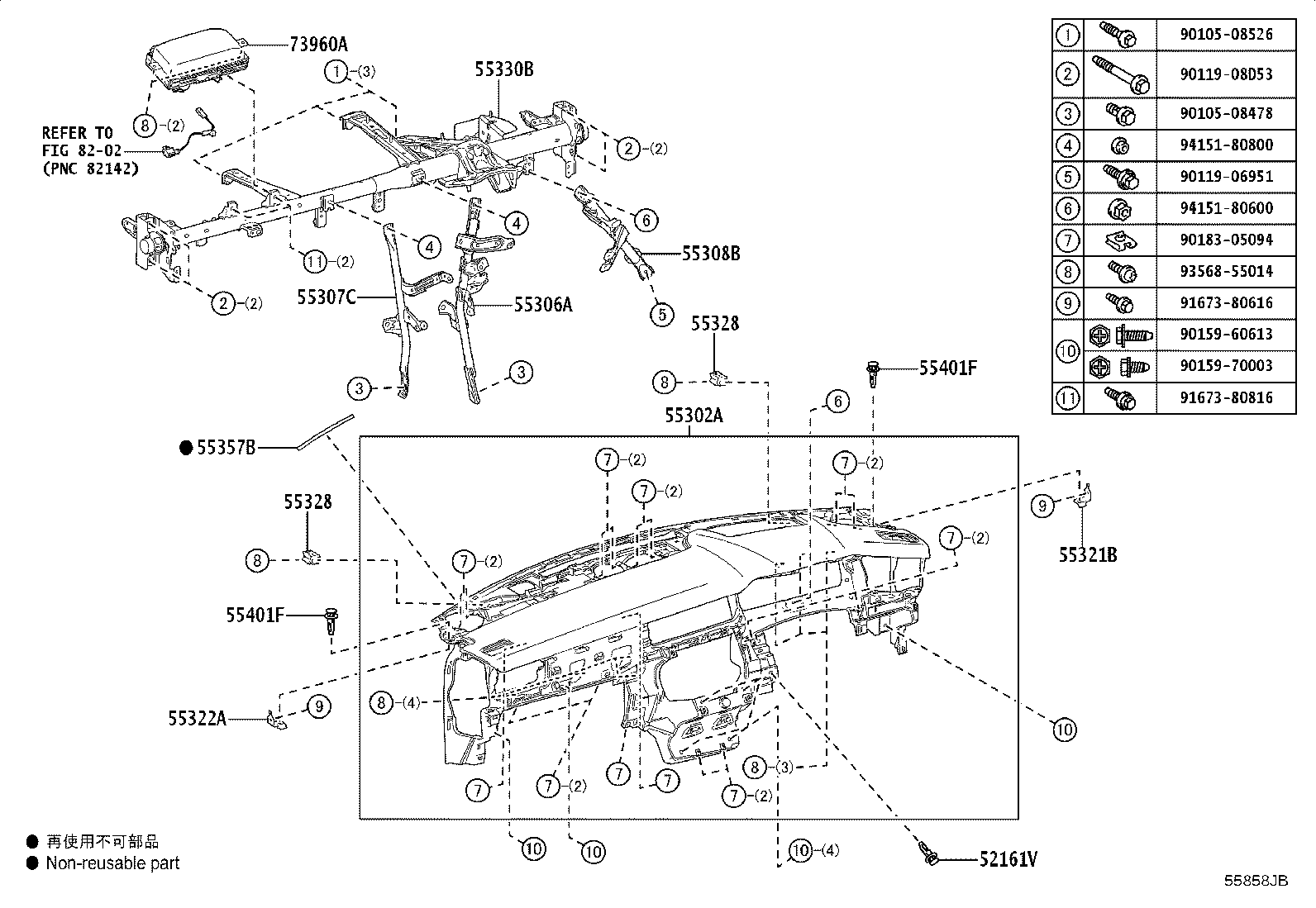

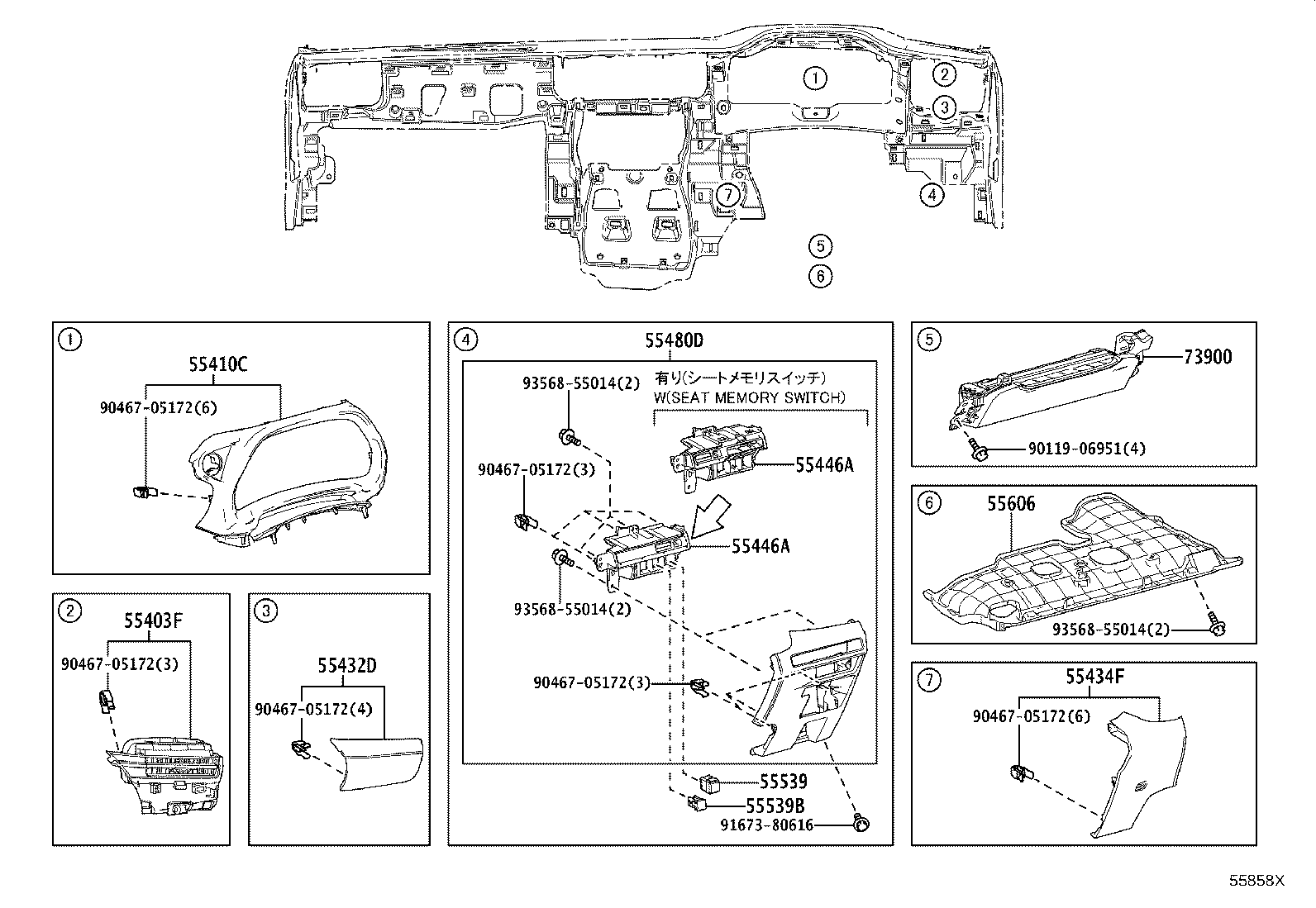

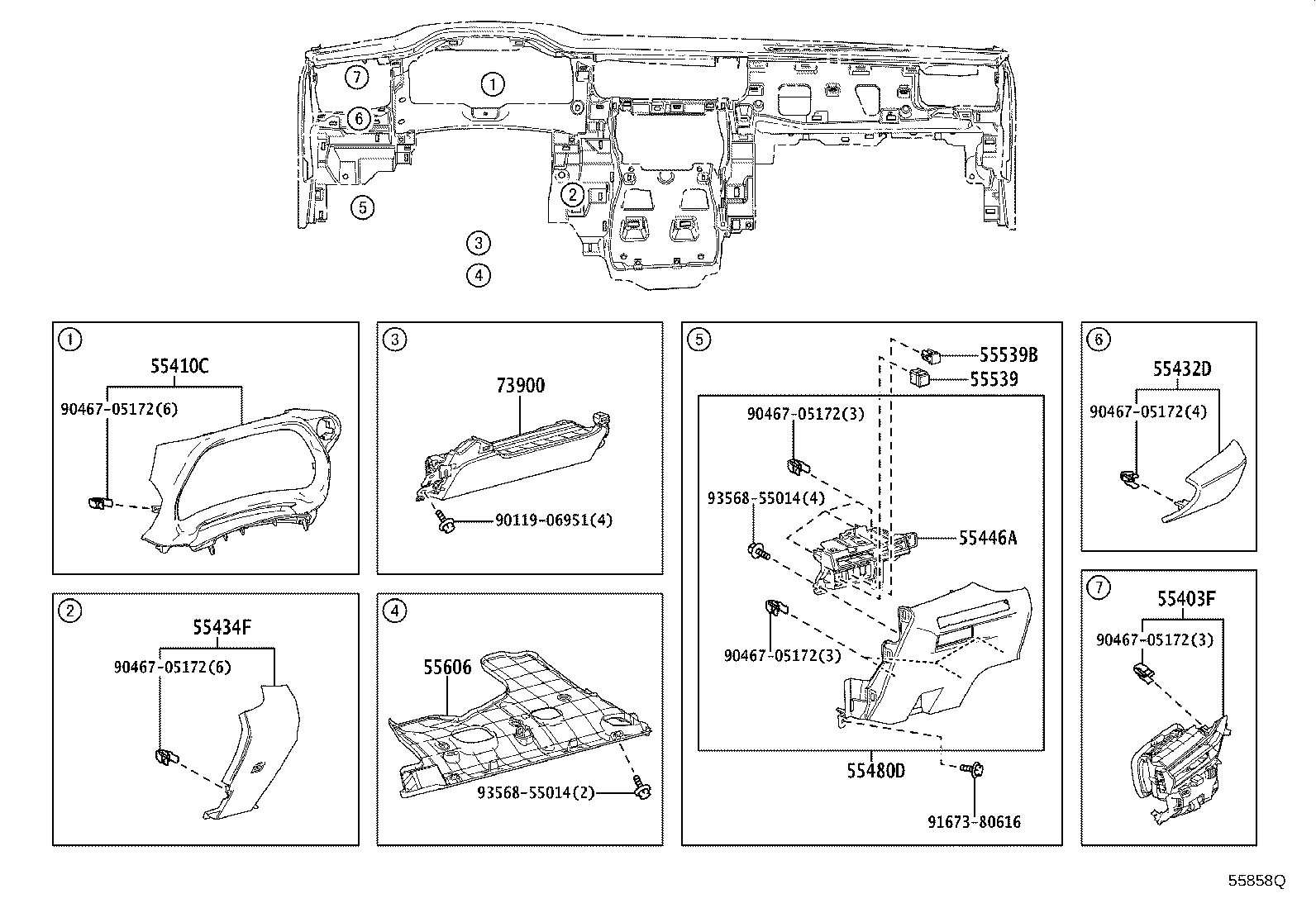

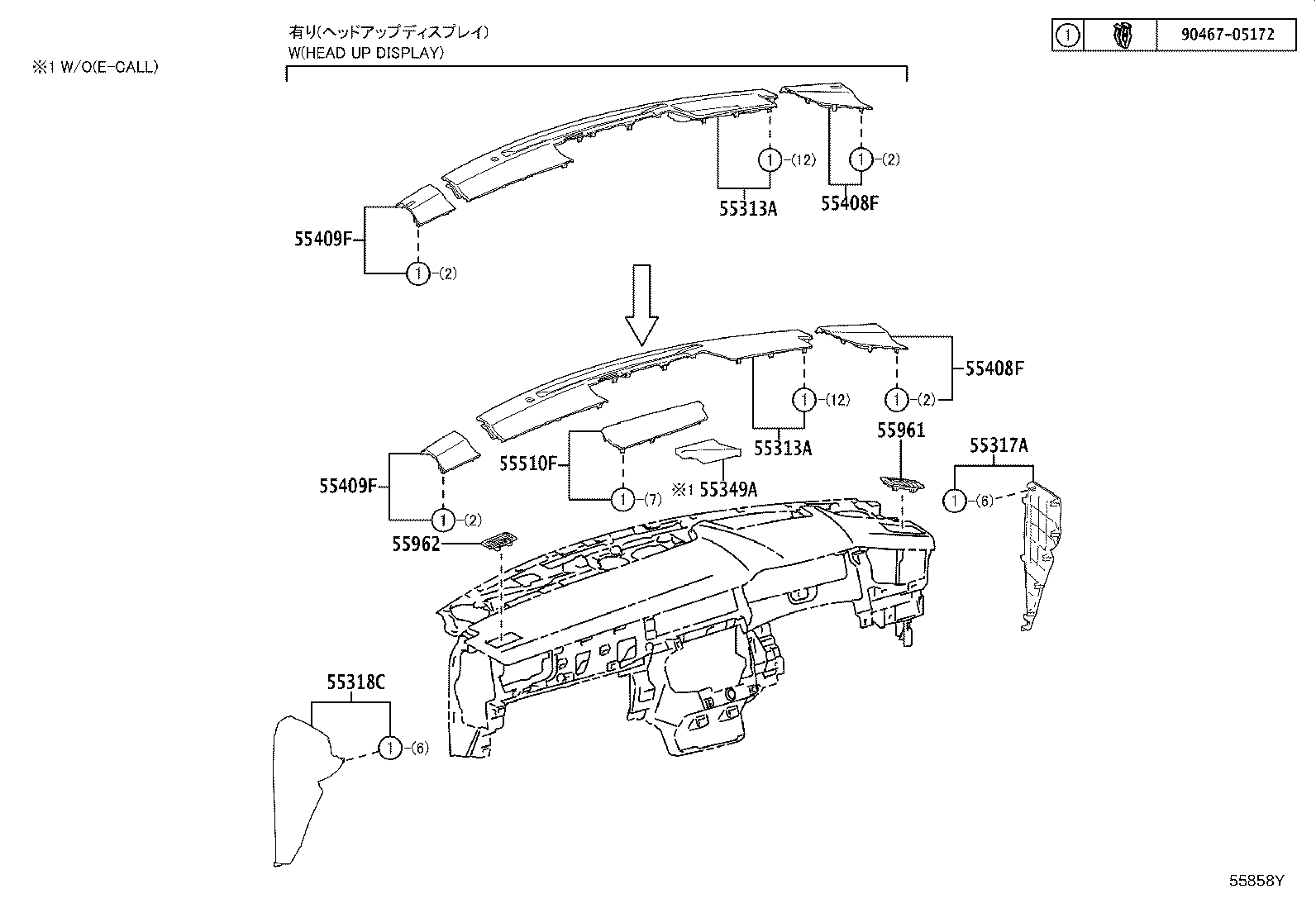

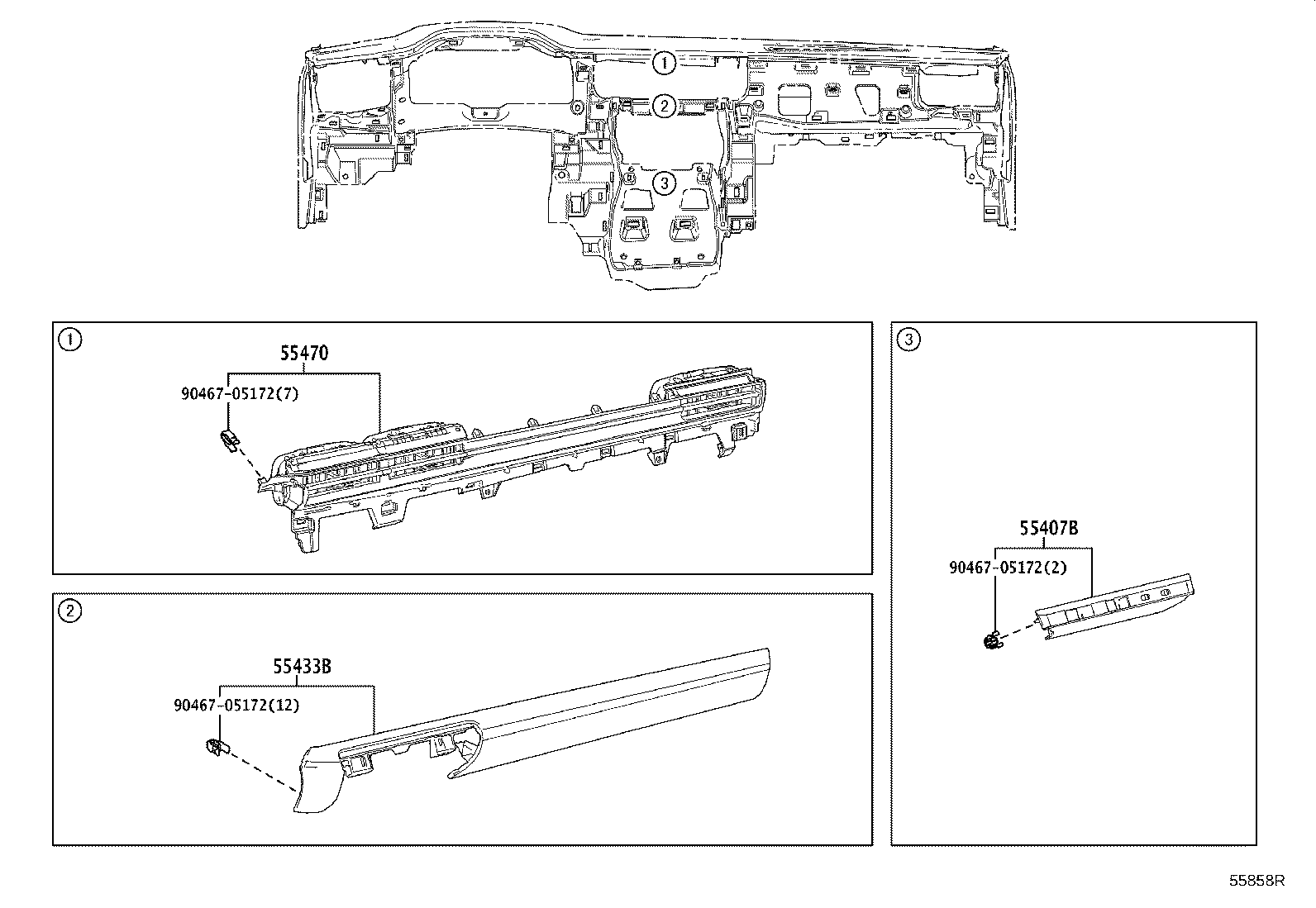

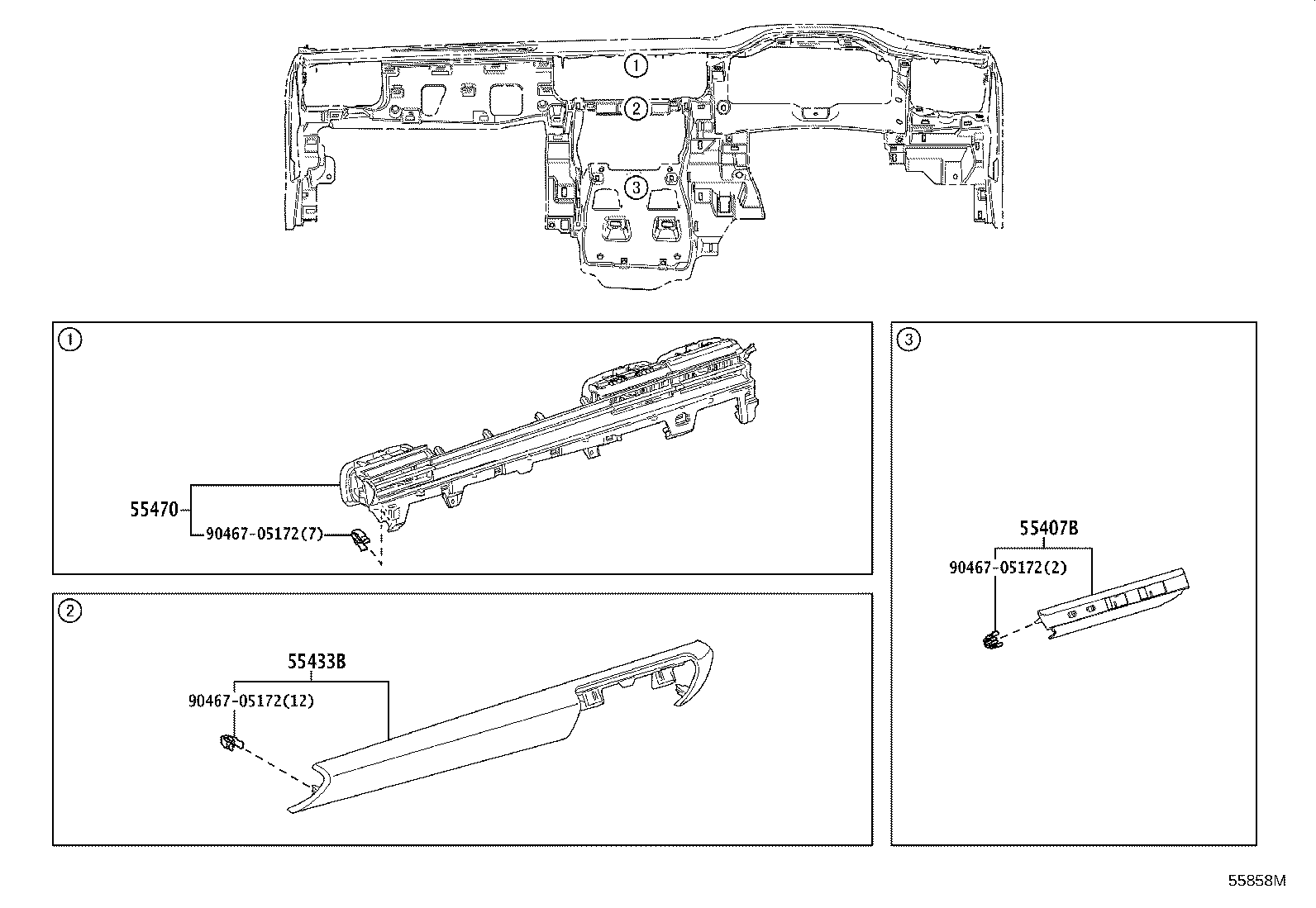

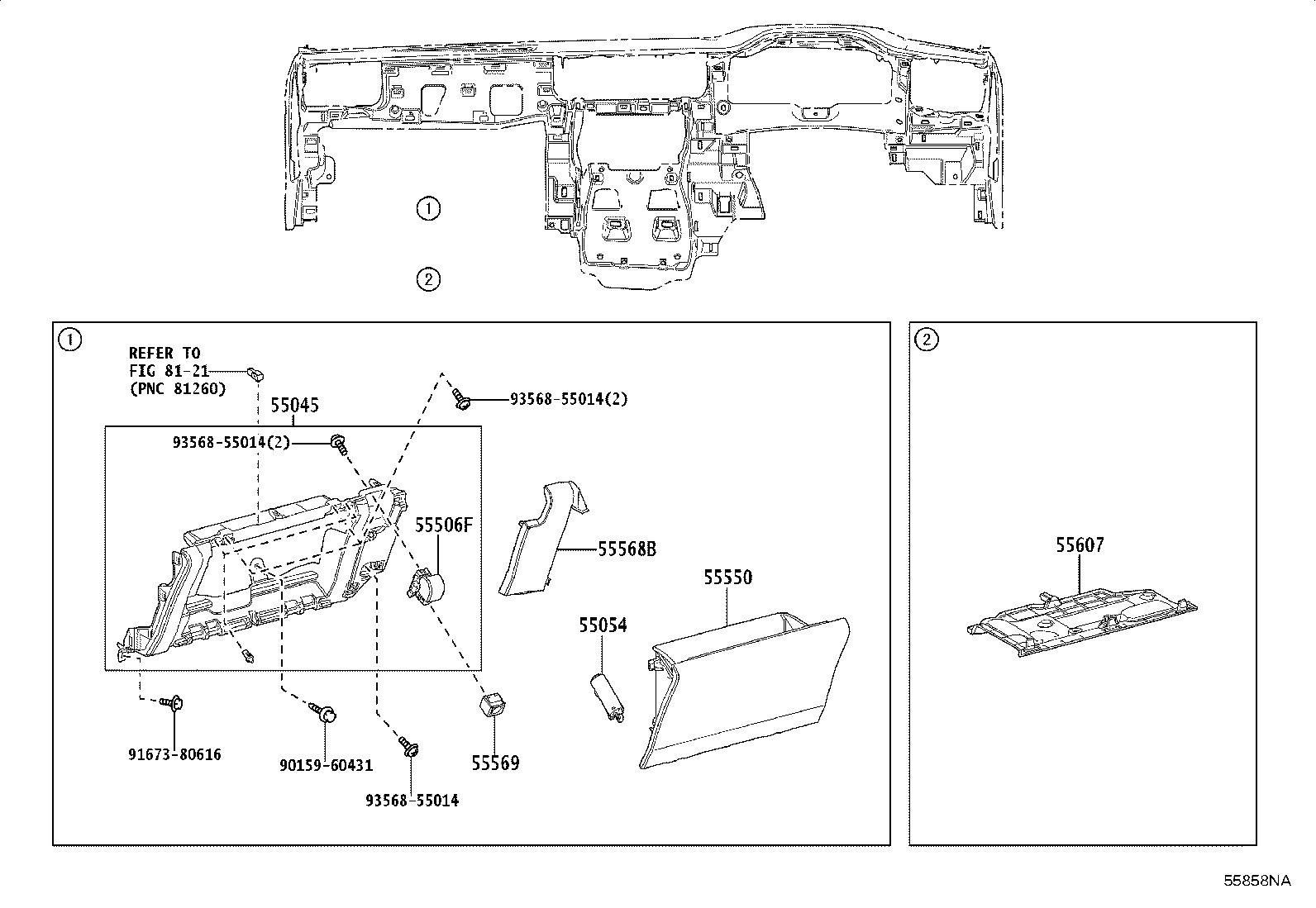

Figure 55858OA 55858OA 2023-12 → — Figure 55858P 55858P 2023-12 → — Figure 55858Q 55858Q 2023-12 → — Figure 55858R 55858R 2023-12 → — Figure 55858S 55858S 2023-12 → — Figure 55858JB 55858JB 2023-12 → — Figure 55858Y 55858Y 2023-12 → — Figure 55858X 55858X 2023-12 → — Figure 55858M 55858M 2023-12 → — Figure 55858NA 55858NA 2023-12 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55313A Panel, Instrument Main
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55321B Bracket, Instrument Panel, NO.1
55322A Bracket, Instrument Panel, NO.2
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55349A Cushion, Instrument Panel
55357B Cushion, Instrument Panel, NO.3
55401F Clip(FOR SAFETY PAD)
55403F Panel Sub-assy, Instrument Panel Finish
55407B Base Sub-assy, Switch Hole
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55434F Panel, Instrument Panel Finish, Lower Center
55446A Base, Switch Hole, NO.1
55470 Garnish Assy, Instrument Cluster Finish Panel
55480D Panel Assy, Instrument Panel Finish, Lwr
55506F Lock Sub-assy, Glove Compartment Door
55510F Cover Assy, Speaker Opening, NO.1
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55550 Door Assy, Glove Compartment
55568B Plate, Glove Compartment Door Finish
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
