Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 2 illustrations

Illustrations

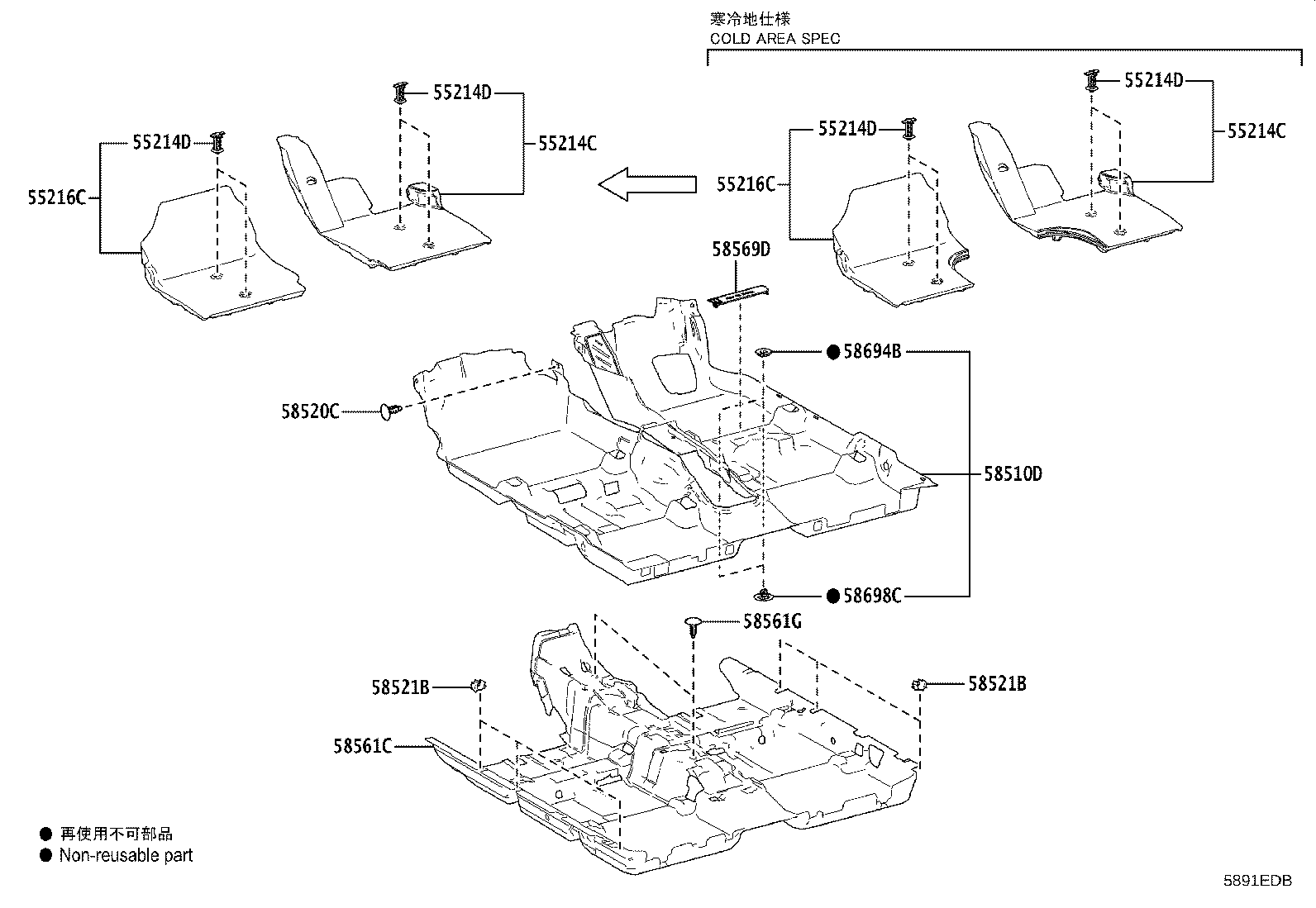

Figure 5891ECB 5891ECB 2023-12 → — Figure 5891EDB 5891EDB 2023-12 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55214D Clip(FOR DASH PANEL INSULATOR PAD)
55216C Pad, Dash Panel Insulator, NO.4
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
