Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 3 illustrations

Illustrations

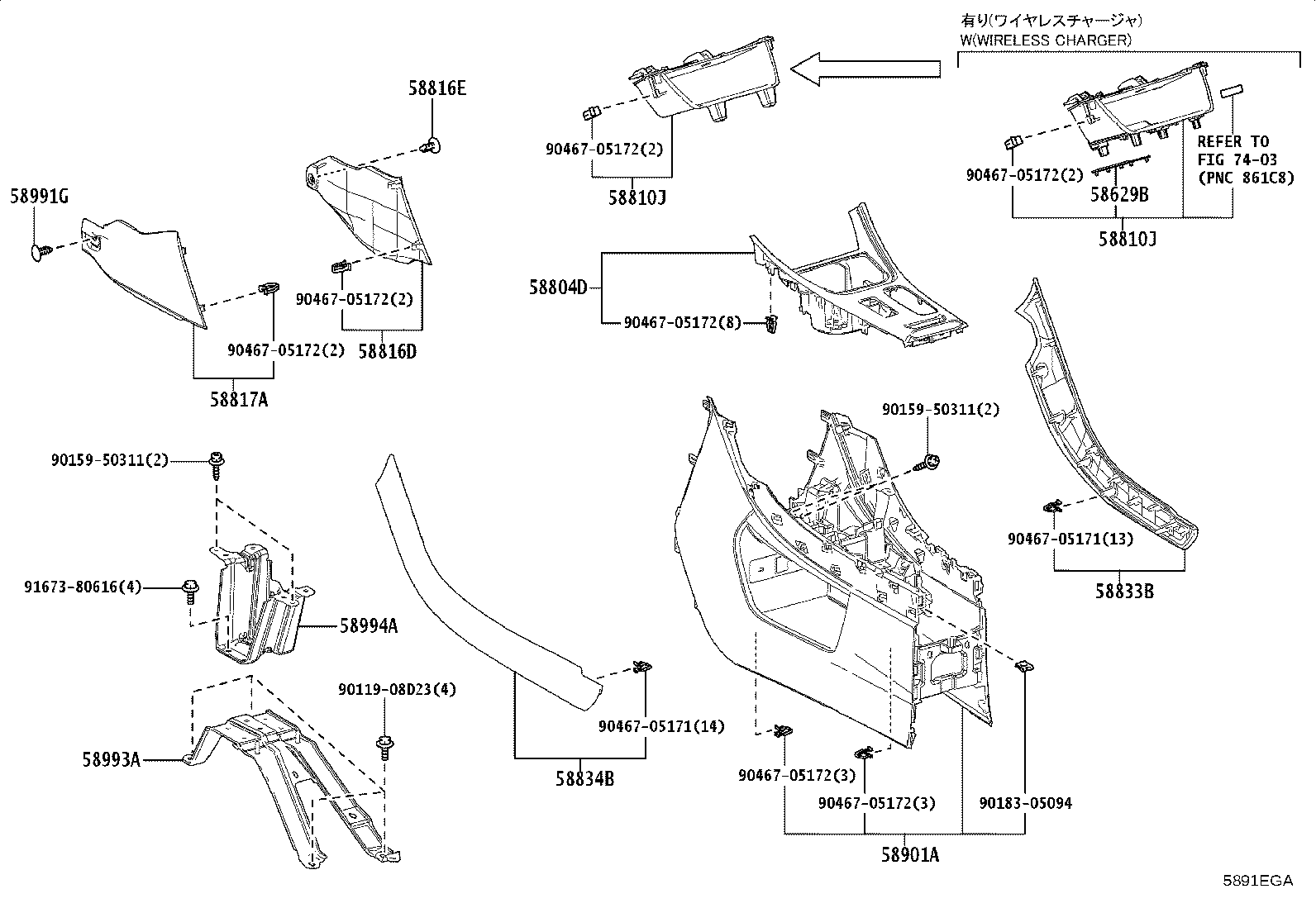

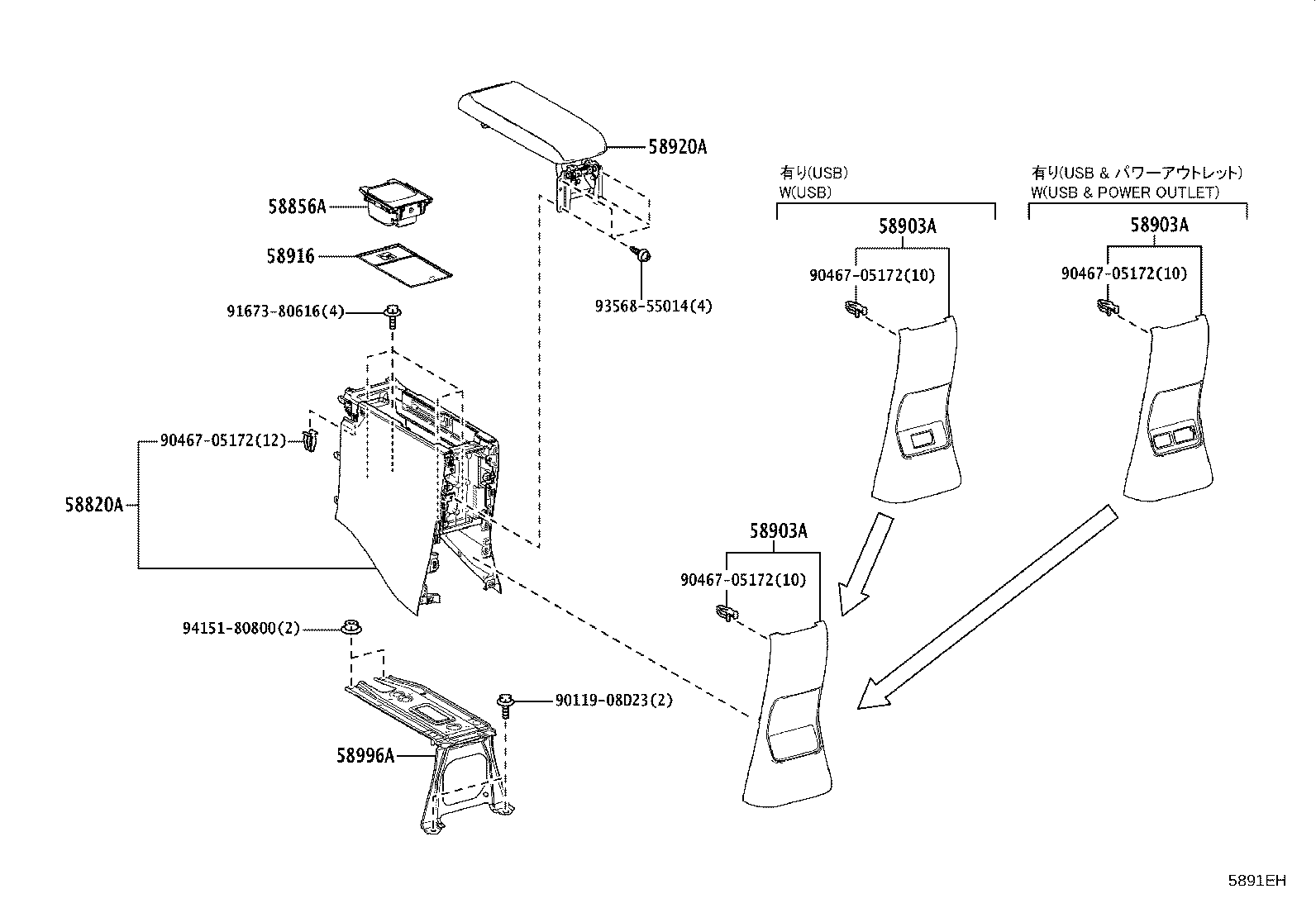

Figure 5891EFA 5891EFA 2023-12 → — Figure 5891EGA 5891EGA 2023-12 → — Figure 5891EH 5891EH 2023-12 → —

Part groups

PNCDescription
58629B Mat, Center Console
58804D Panel Sub-assy, Console, Upper Front
58810J Box Assy, Console
58816D Insert, Console Box, Front NO.1
58816E Clip, Console Box Insert, Front
58817A Insert, Console Box, Front NO.2
58820A Box Assy, Console Compartment
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58856A Holder, Console Box
58901A Box Sub-assy, Console, Rear
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58920A Armrest Assy, Rear Console
58991G Clip
58993A Bracket, Console Box Mounting, Lower
58994A Bracket, Console Box Mounting, NO.4
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
