Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

19 part groups · 2 illustrations

Illustrations

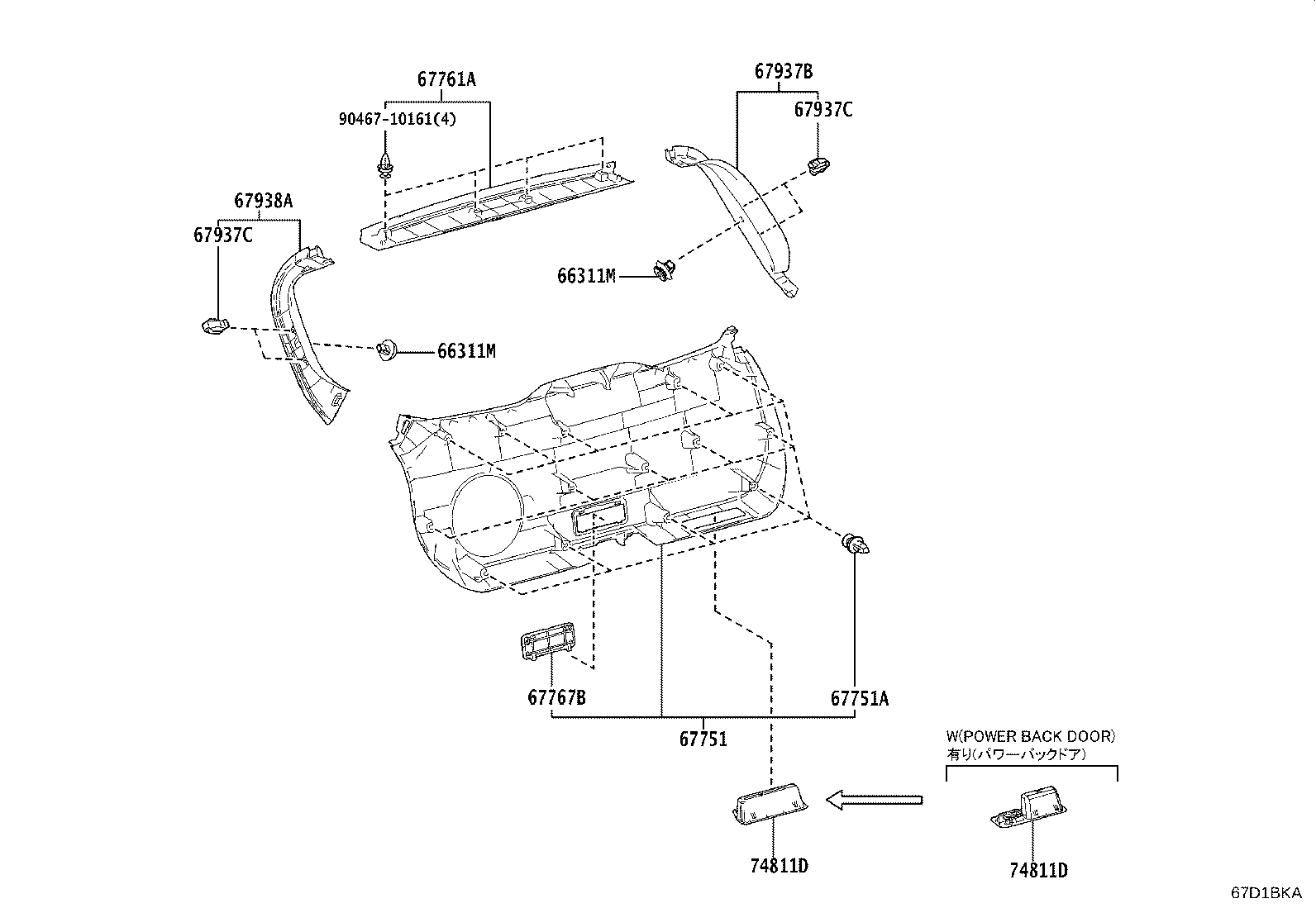

Figure 67D1BJC 67D1BJC 2023-12 → — Figure 67D1BKA 67D1BKA 2023-12 → —

Part groups

PNCDescription
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
66311M Hook, Rope
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67761A Cover, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67767B Cover, Back Door Service Hole, NO.3
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
68294C Dam, Back Door Glass Adhesive, NO.1
69477 Cushion, Back Door Upper Stopper
74811D Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
