Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11

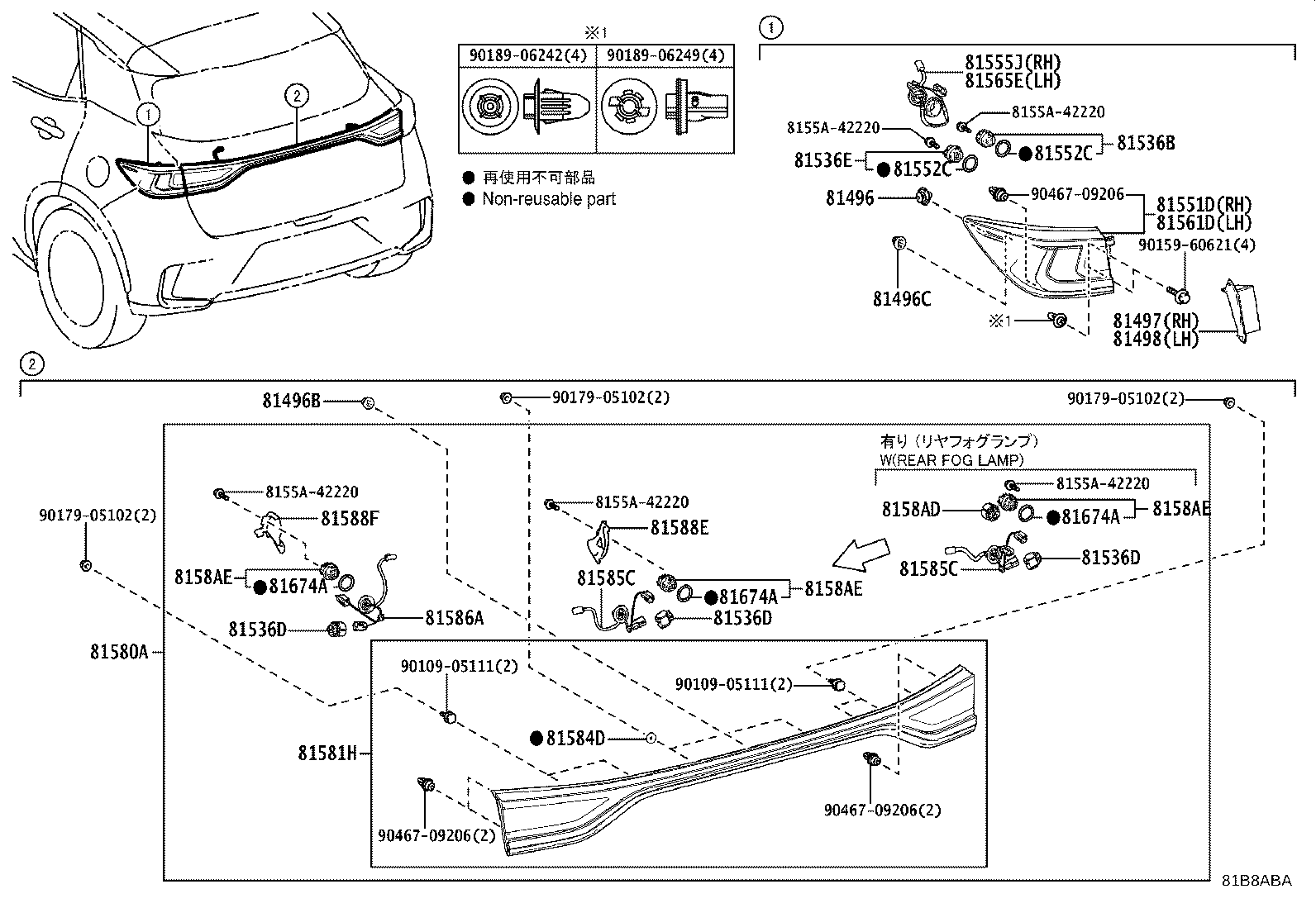

Rear Combination Lamp
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81536B | Led, Rear Turn Signal Lamp |
| 81536D | Led, Taillamp |
| 81536E | Led, Stop Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552C | Gasket, Rear Combination Lamp |
| 81555J | Socket & Wire, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81565E | Socket & Wire, Rear Combination Lamp, LH |
| 81580A | Lamp Assy, Rear |
| 81581H | Lens & Body, Rear Lamp |
| 81584D | Gasket, Rear Lamp |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81586A | Socket & Wire, Rear Lamp, LH |
| 81588E | Bracket, Rear Lamp, RH |
| 81588F | Bracket, Rear Lamp, LH |
| 8158AD | Led, Rear Fog Lamp |
| 8158AE | Led, Back-up Lamp |
| 81674A | Gasket, Back-up Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
