Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11
Switch & Relay & Computer
113 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28371K | Relay, PC |
| 28850C | Sensor Assy, Battery State |

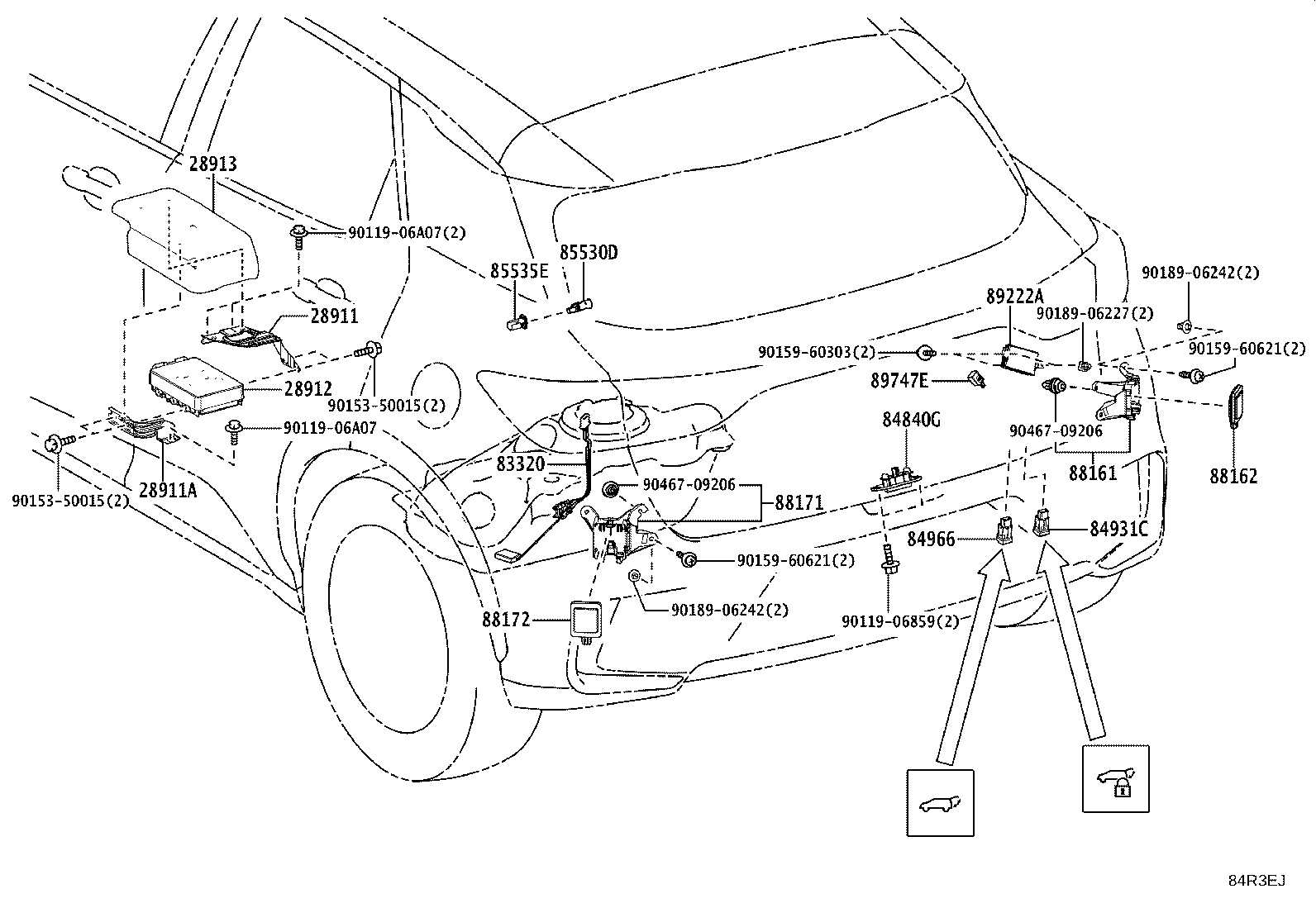

| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28911A | Bracket, Integration Control Supply, NO.2 |
| 28912 | Supply, Integration Control |
| 28913 | Cover, Integration Control |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82210M | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |

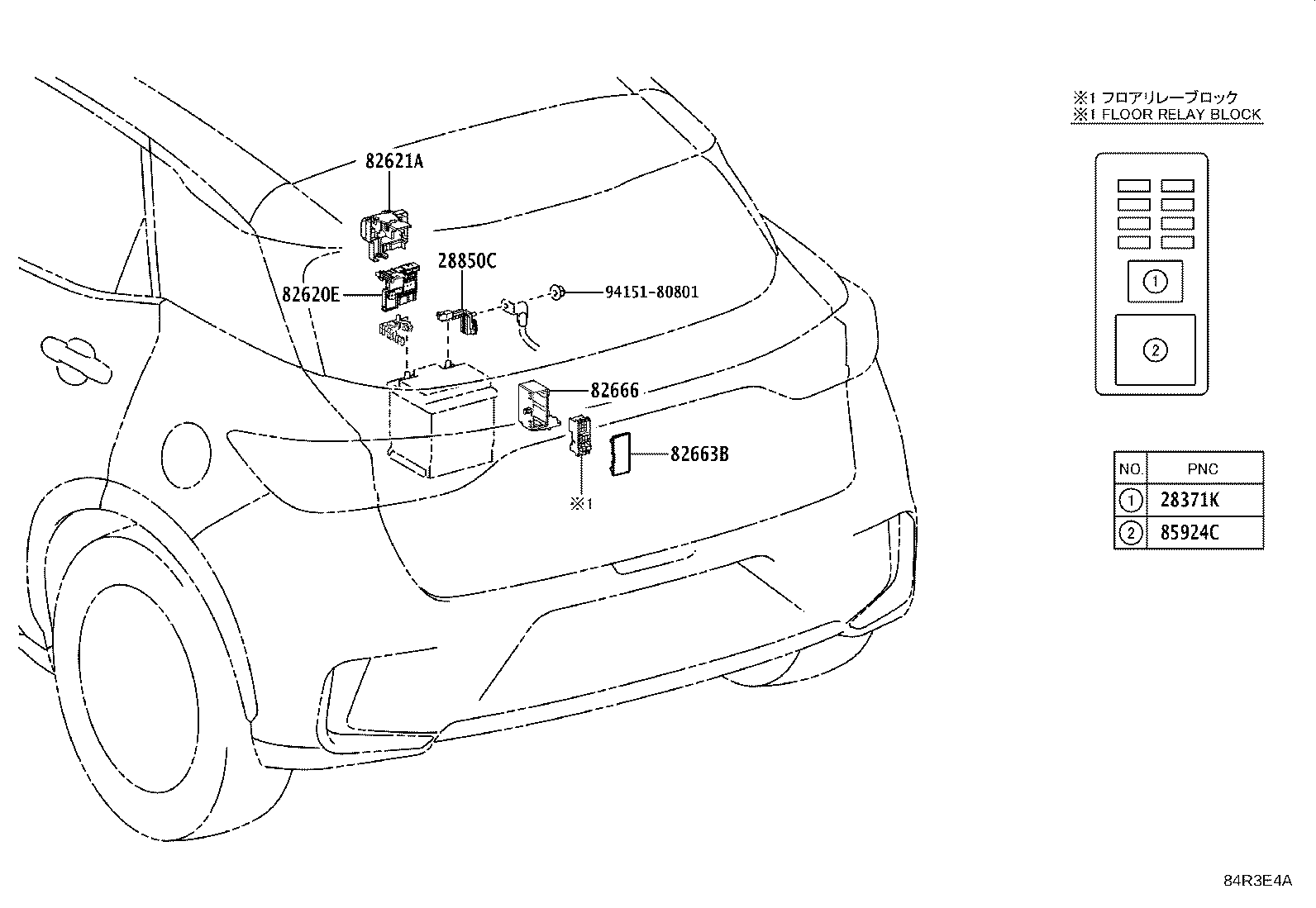

| 82620B | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82644B | Computer, Semiconductor Power Integration, NO.2 |
| 82660B | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715W | Bracket, Wiring Harness Clamp |

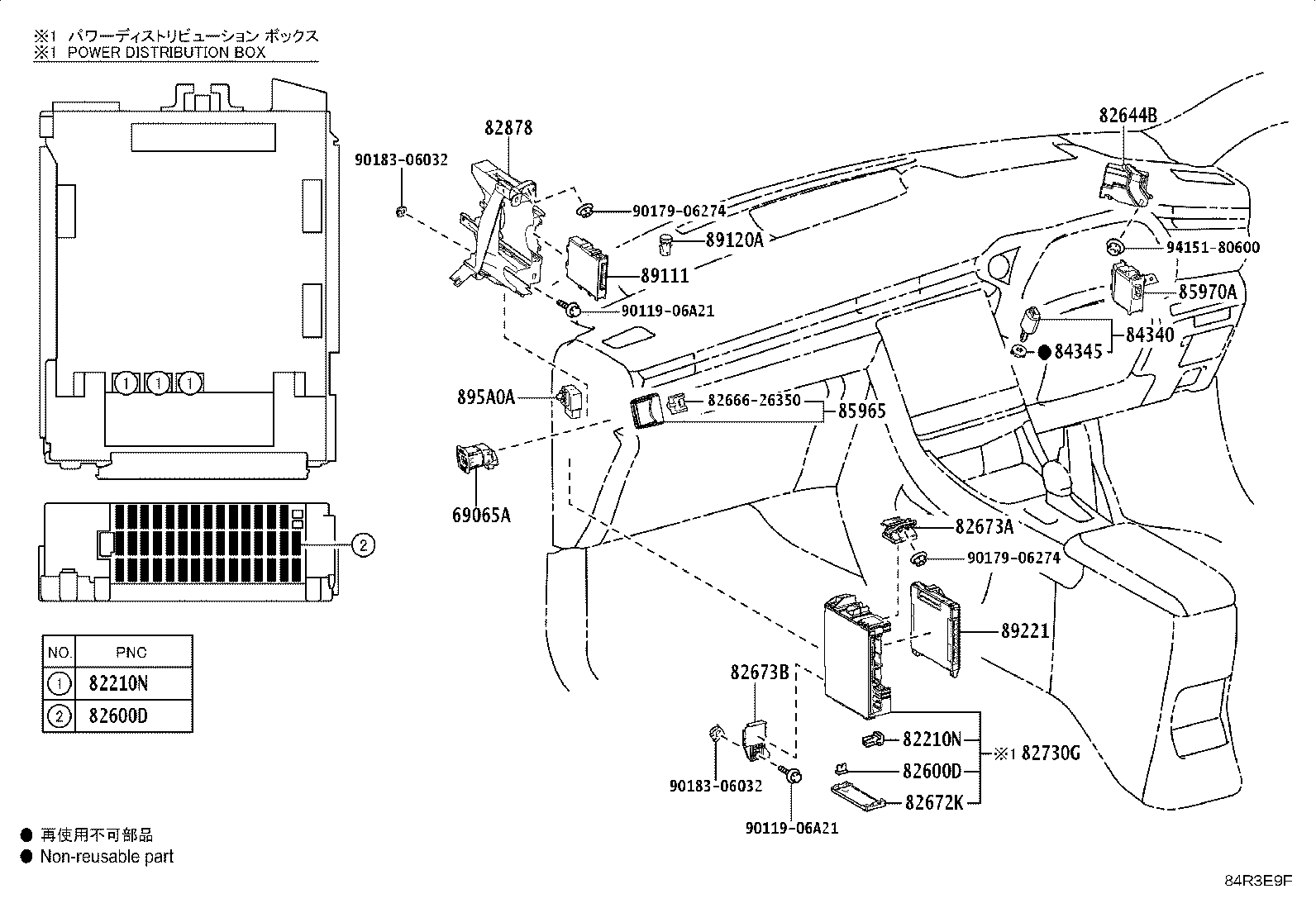

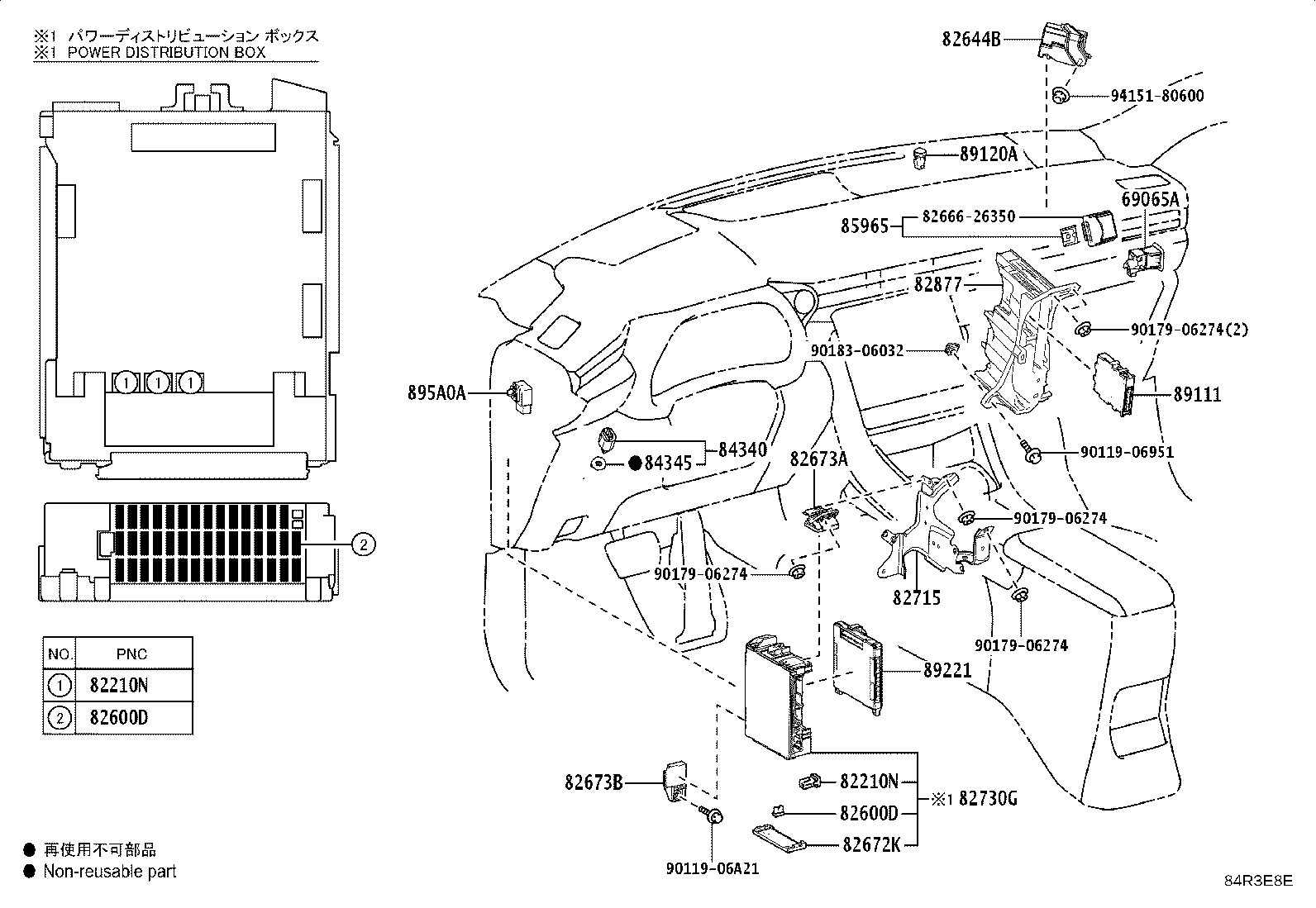

| 82730G | Box Assy, Power Distribution |

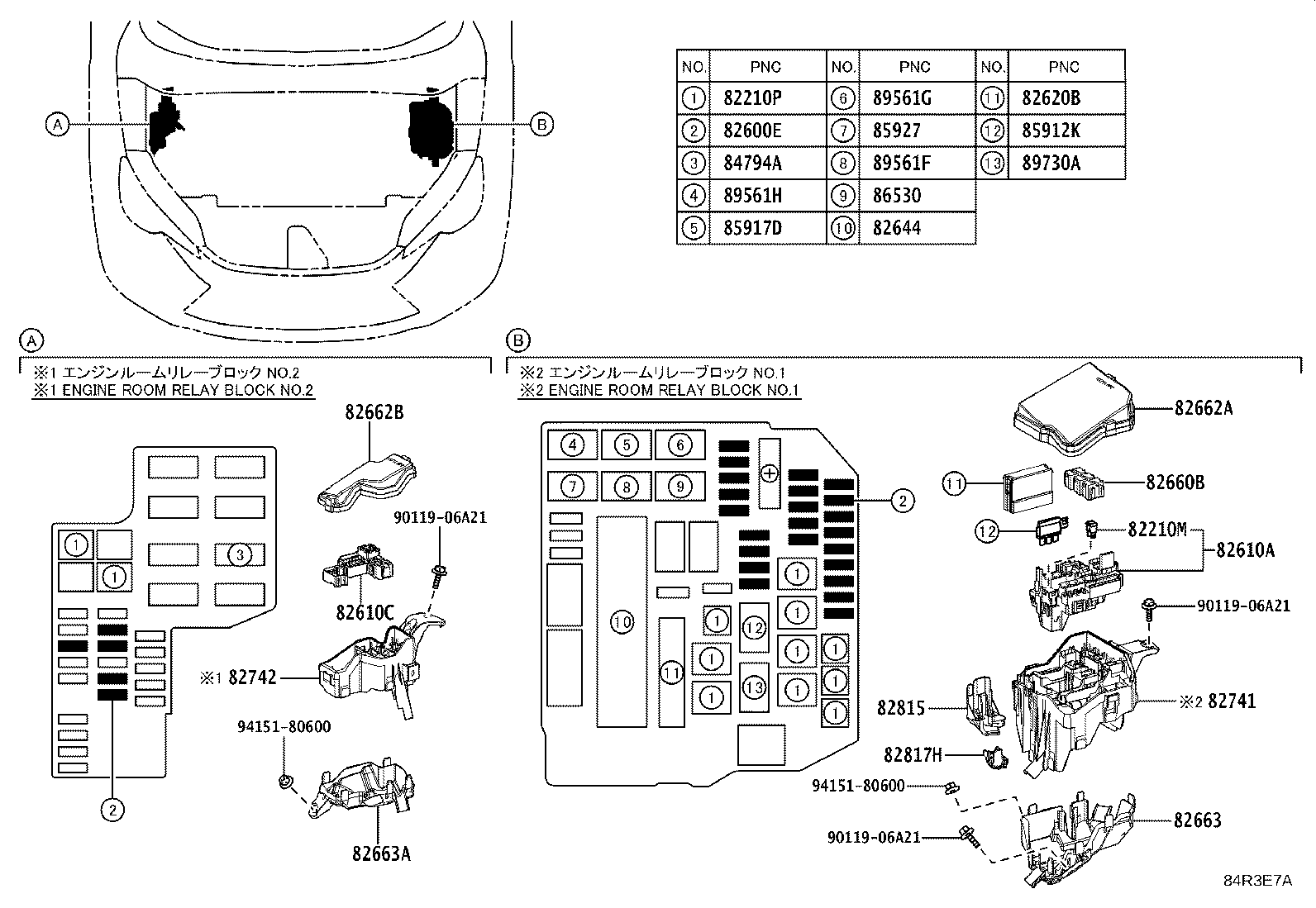

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82815 | Cover, Wiring Harness Protector |
| 82817H | Protector, Wiring Harness |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 84010H | Control & Panel Assy, Integration |
| 84040 | Master Switch Assy,Multiplex Network |
| 84152 | Switch, Headlamp Leveling |

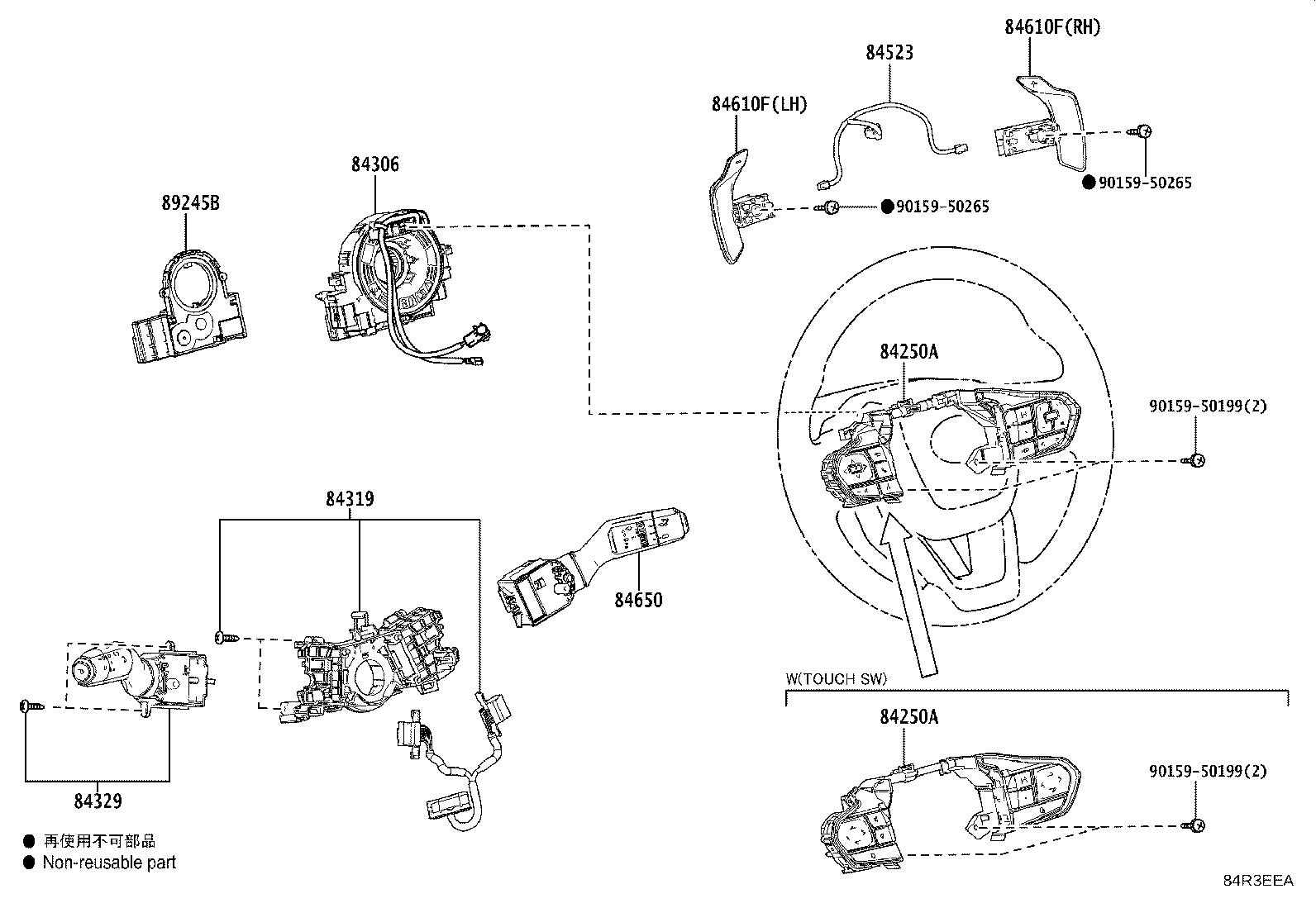

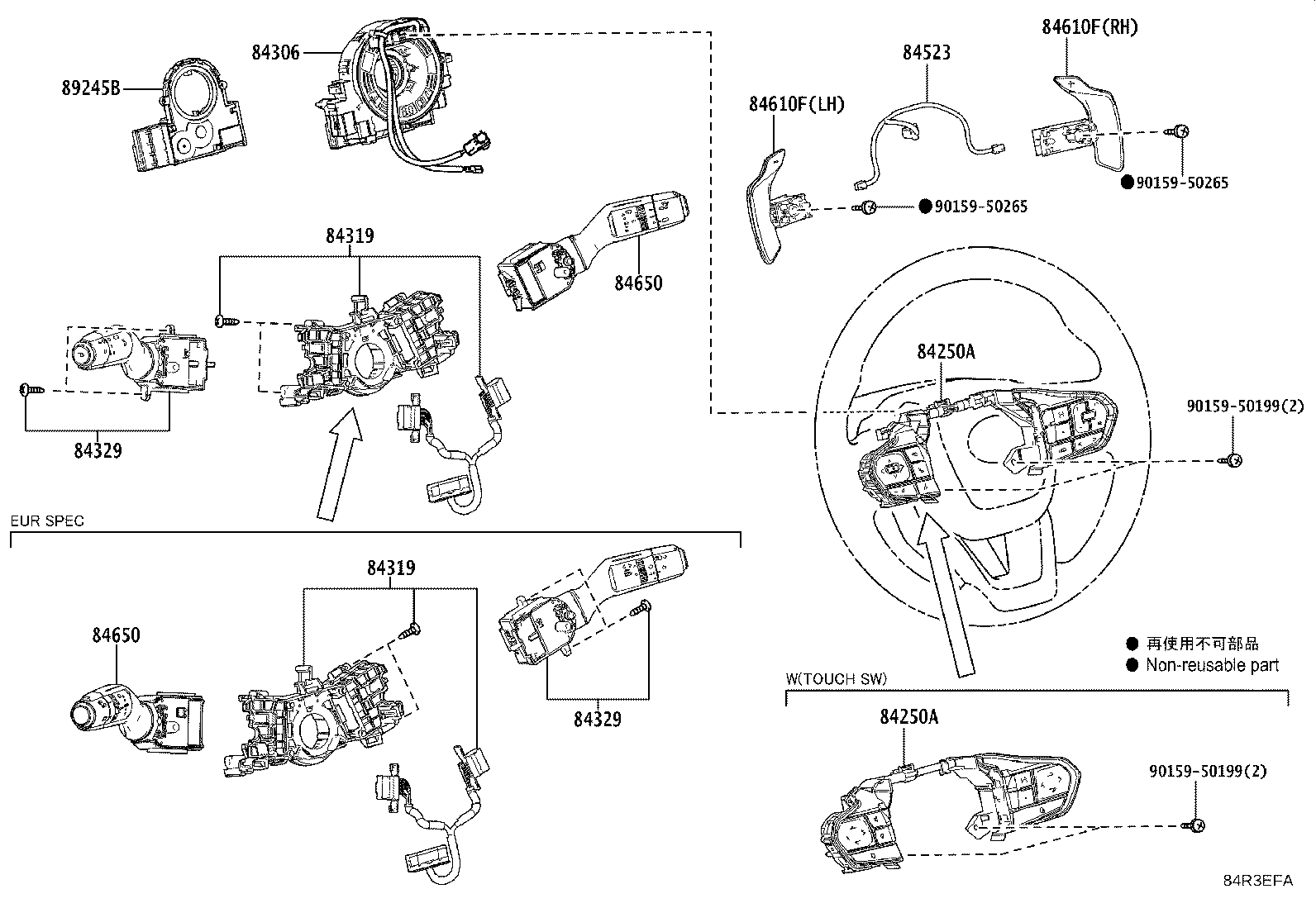

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |

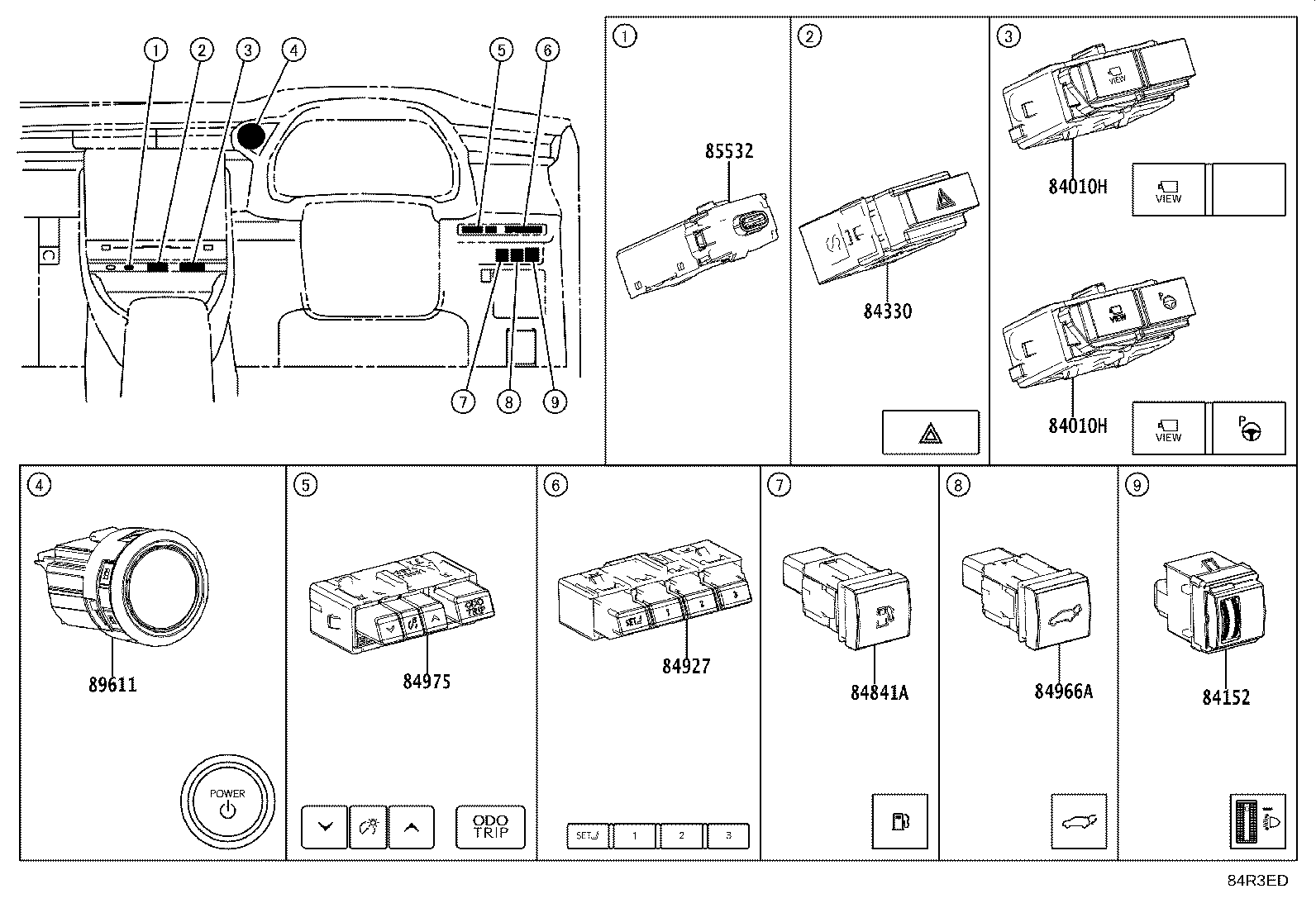

| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |

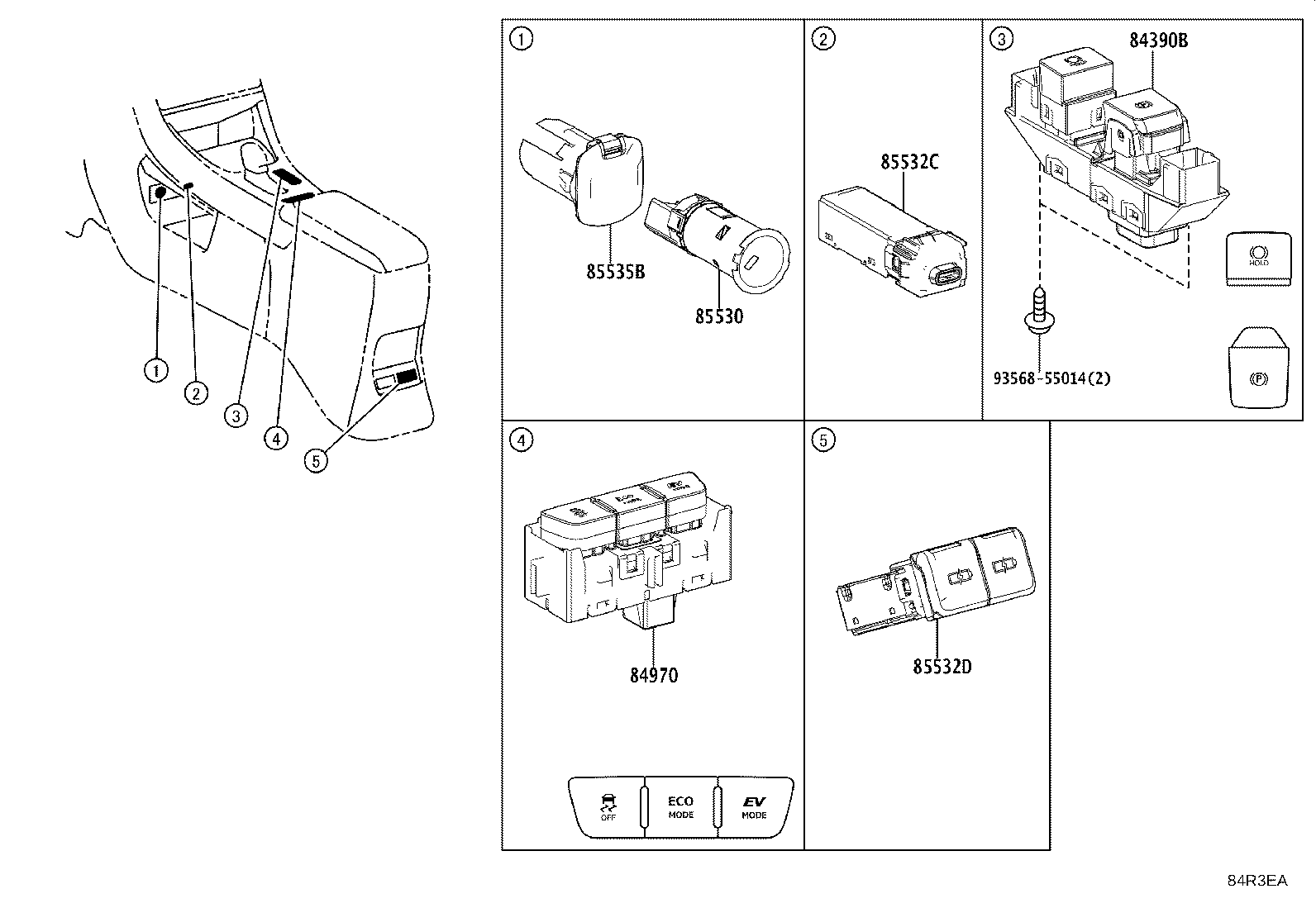

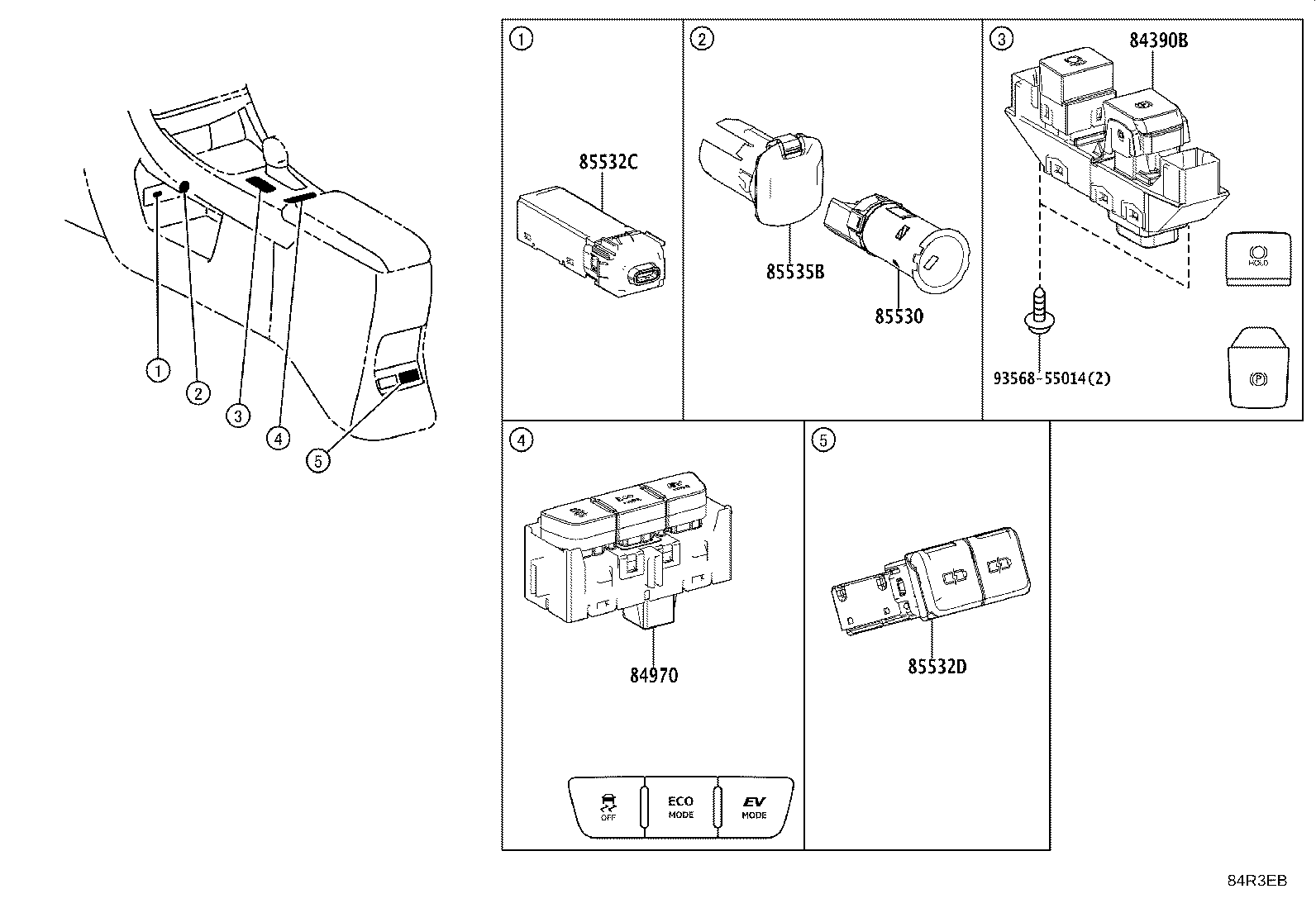

| 84390B | Switch Assy, Electric Parking Brake |
| 84523 | Wire, Switch NO.1 |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84794A | Relay, FR Wiper Deicer |

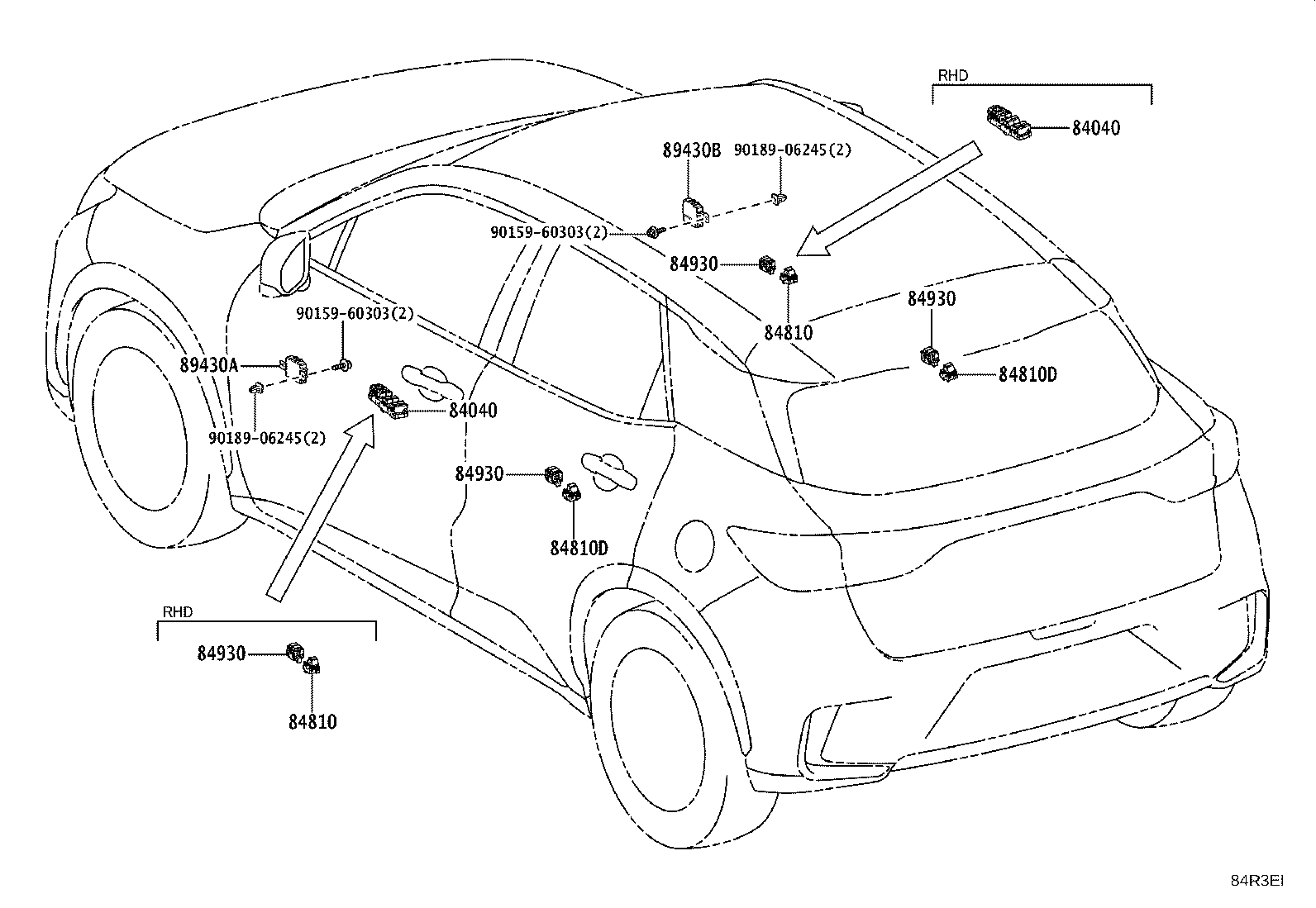

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |

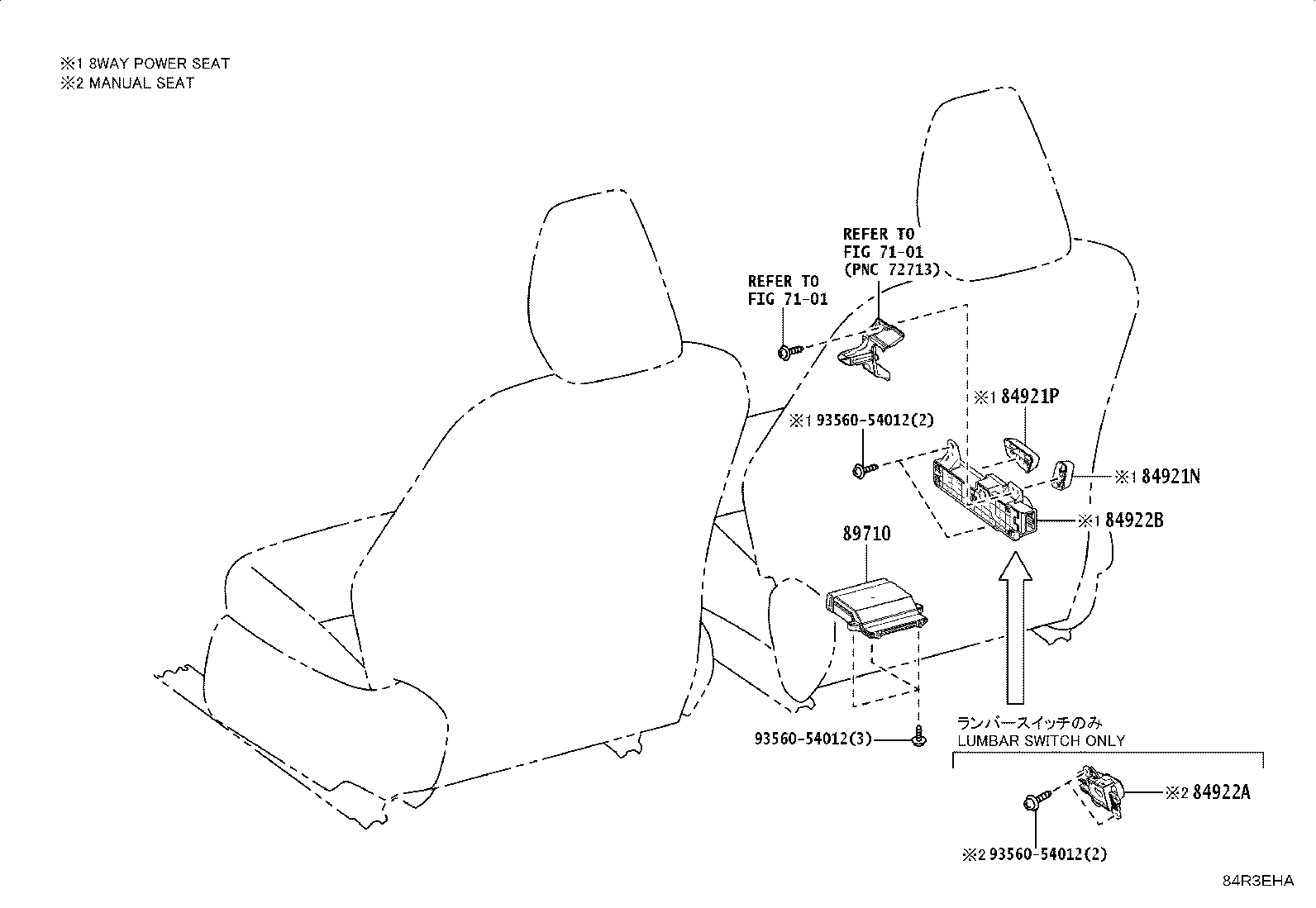

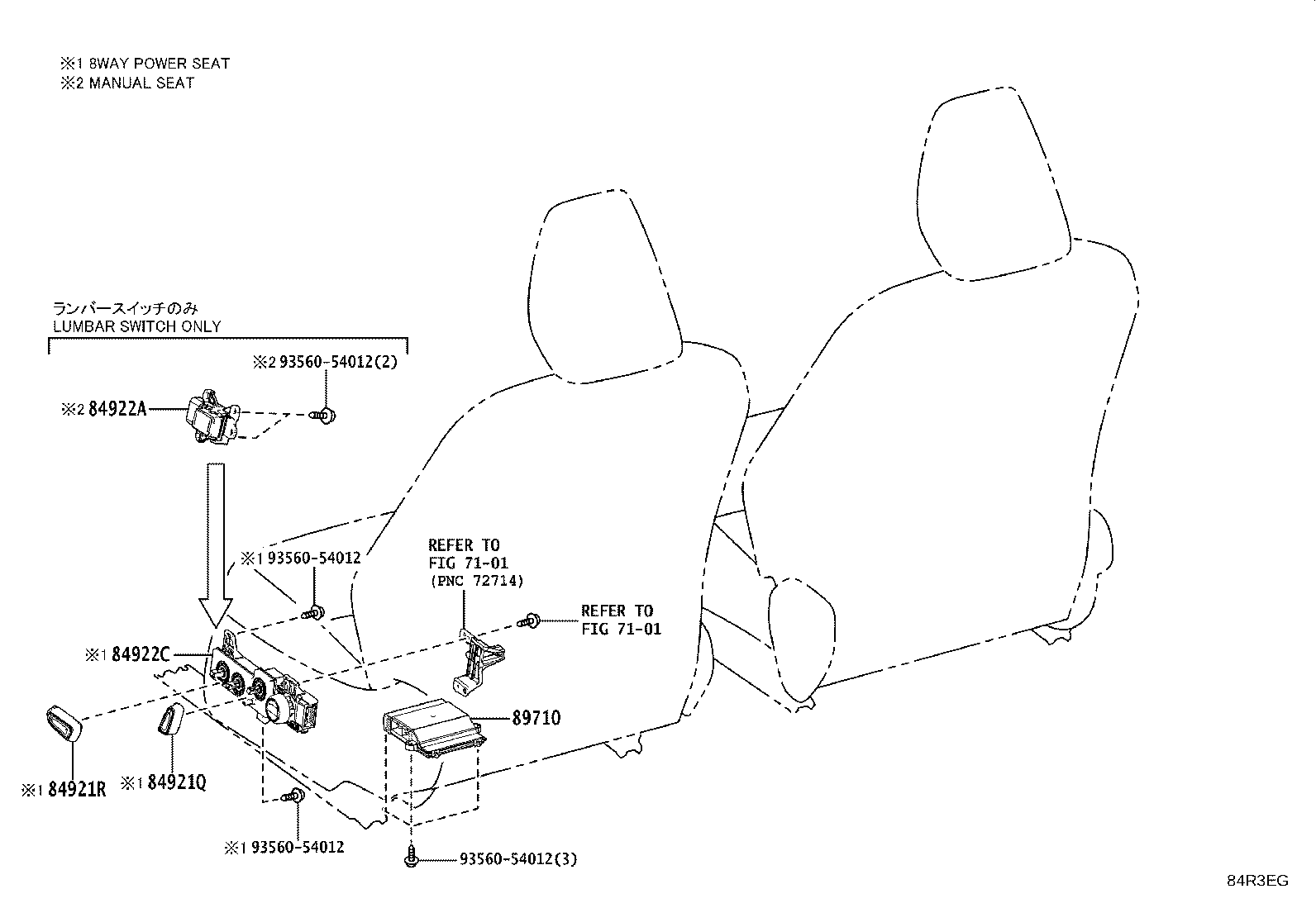

| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |

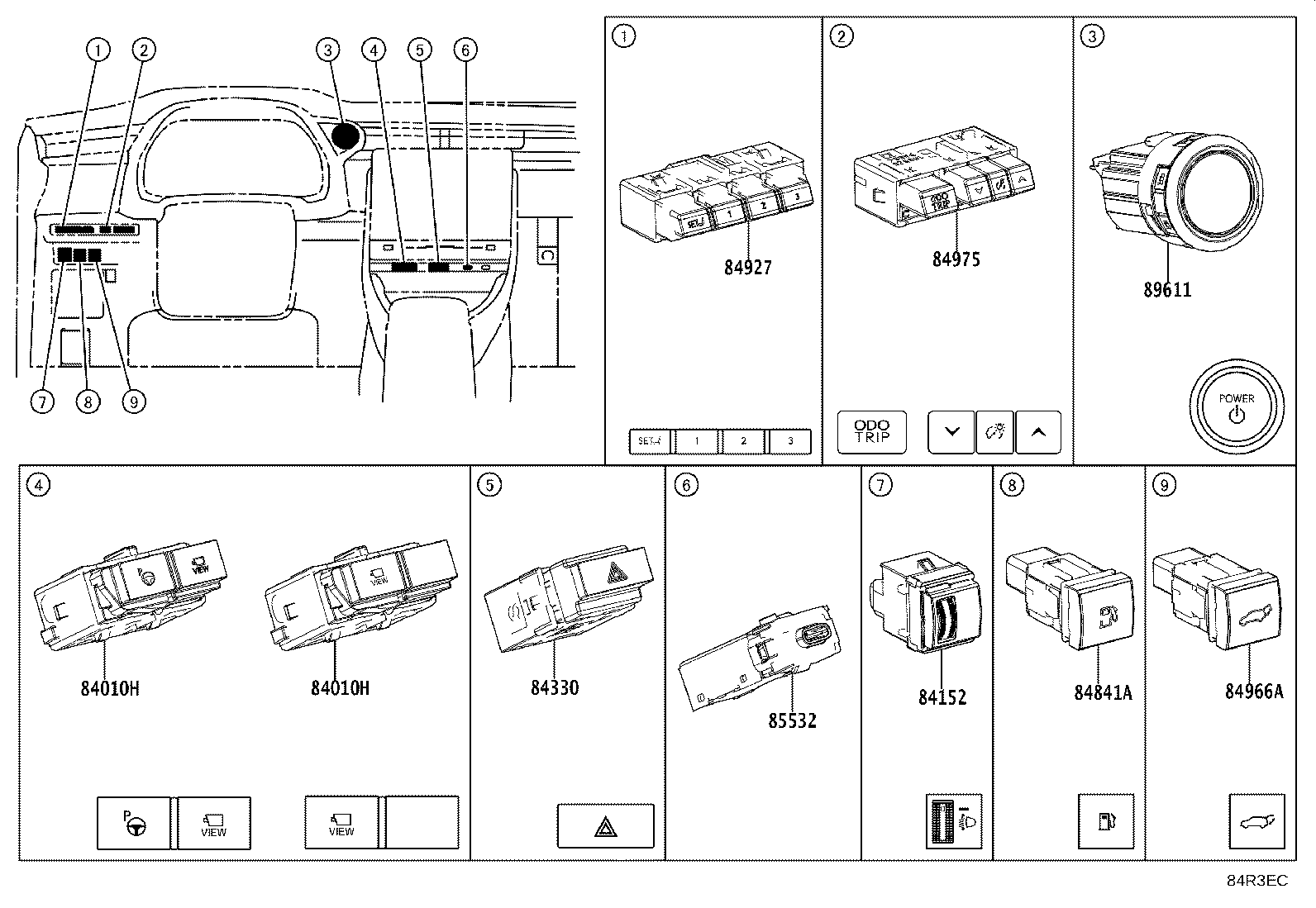

| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 84931C | Switch, Back Door Control |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85532D | Socket, Usb Charger, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85912K | Relay, Vvt |
| 85917D | Relay, Heater(FOR AIR FUEL RATIO SENSOR) |
| 85924C | Relay, Igct |
| 85927 | Relay, Cooling Fan |
| 85965 | Relay, Room Lamp Control |
| 85970A | Relay Assy, Double Lock Door Control |
| 86530 | Relay Assy, Horn |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |

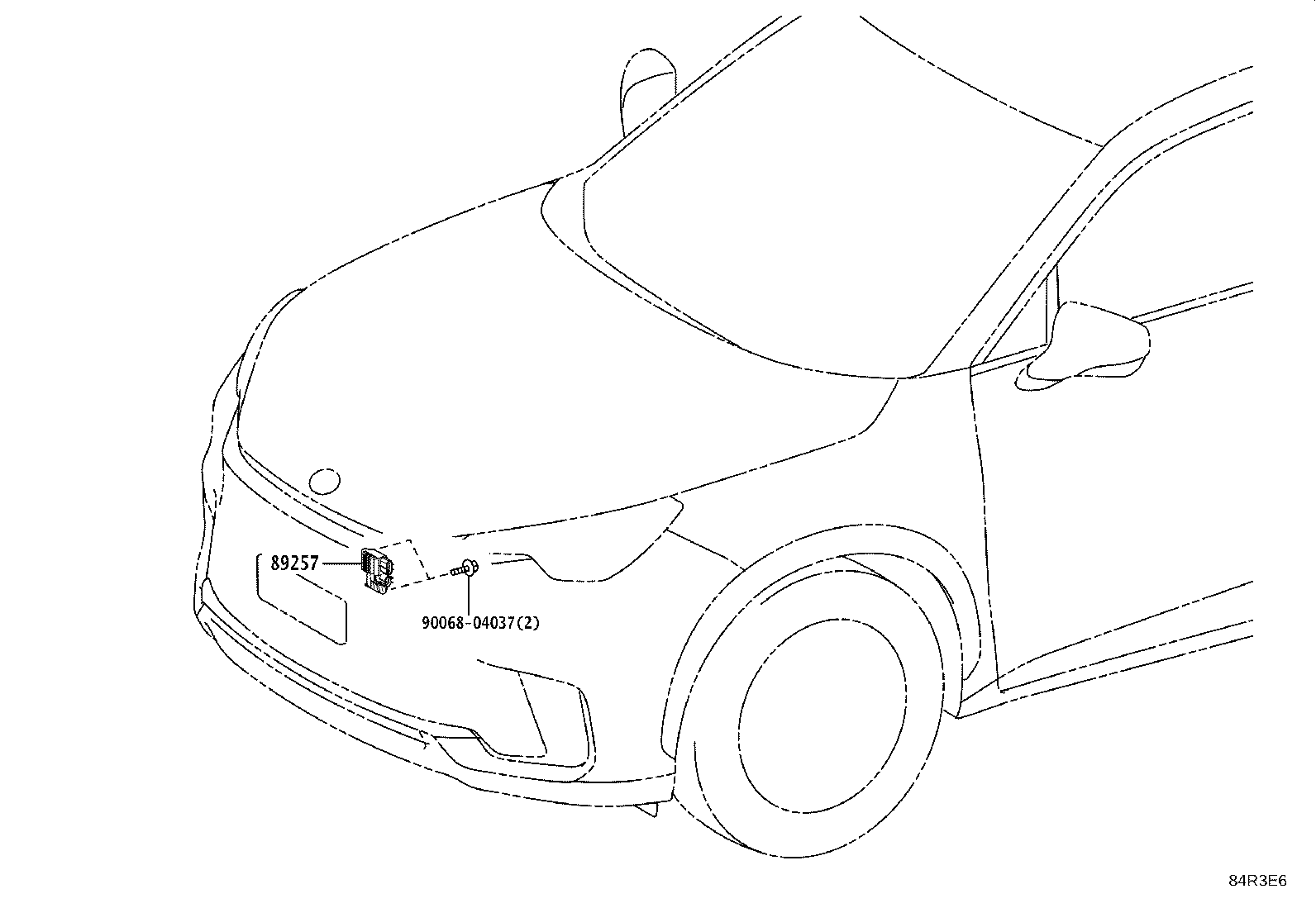

| 89257 | Computer, Cooling Fan |
| 89422A | Sensor, Water Temperature |
| 89430A | Computer Assy, Outer Mirror Control, LH |
| 89430B | Computer Assy, Outer Mirror Control, RH |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 895A0A | Computer Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710 | Computer Assy, Position Control |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
