Hev Inverter

14 part groups · 3 illustrations

Illustrations

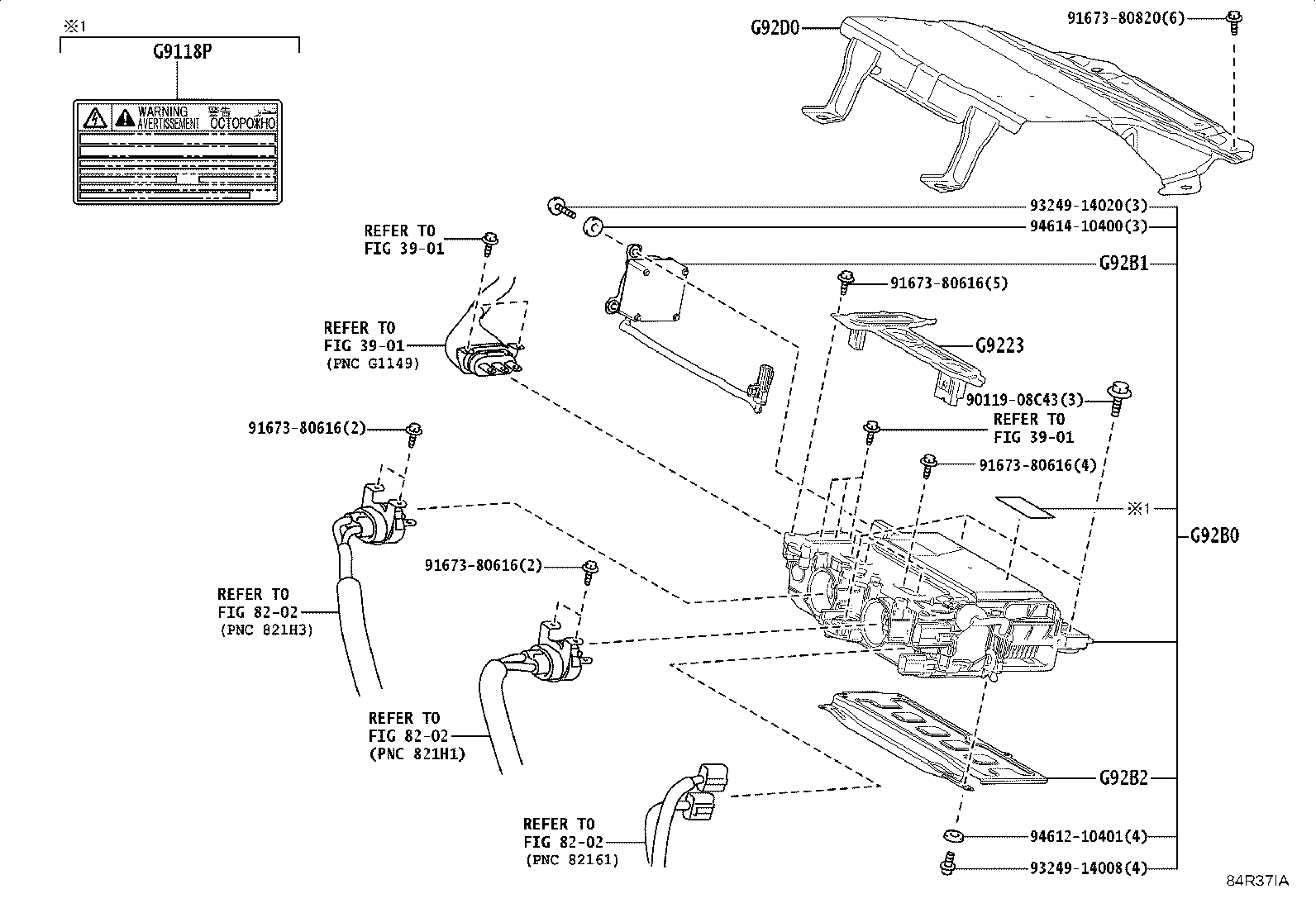

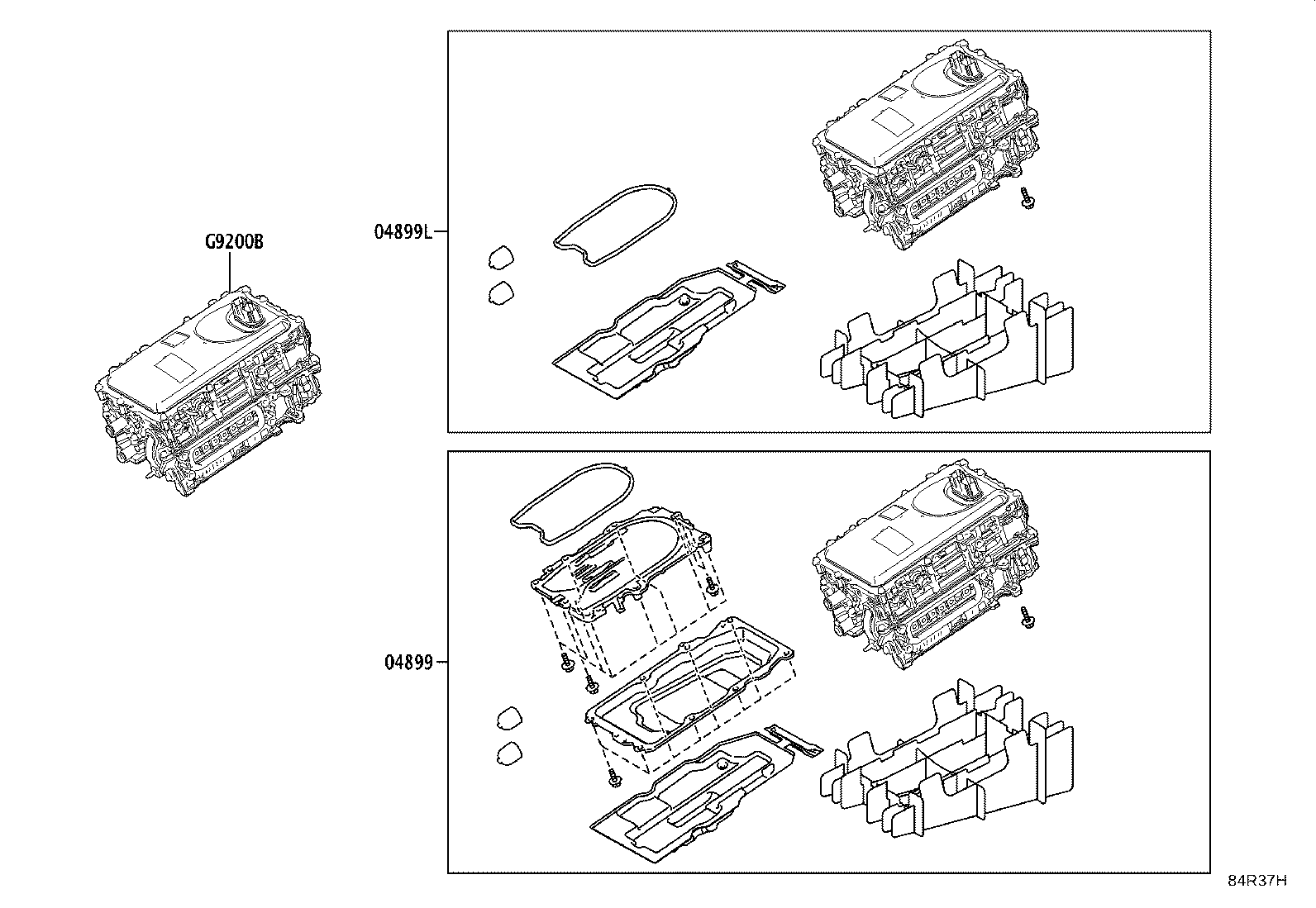

Figure 84R37GC 84R37GC 2023-12 → — Figure 84R37IA 84R37IA 2023-12 → — Figure 84R37H 84R37H 2023-12 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118A Label, HV Motor Control Inverter Caution
G9118P Label, HV Motor Control Inverter Caution, NO.2
G9200B Inverter Assy, HV Motor Control, Front
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G921E Protector, Inverter
G9223 Cover, Inverter Terminal
G92B0 Inverter Assy, Hybrid Motor Control, Rear
G92B1 Fan, HV Inverter Cooling
G92B2 Cover, HV Inverter Cooling
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
