Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11
Rear Washer

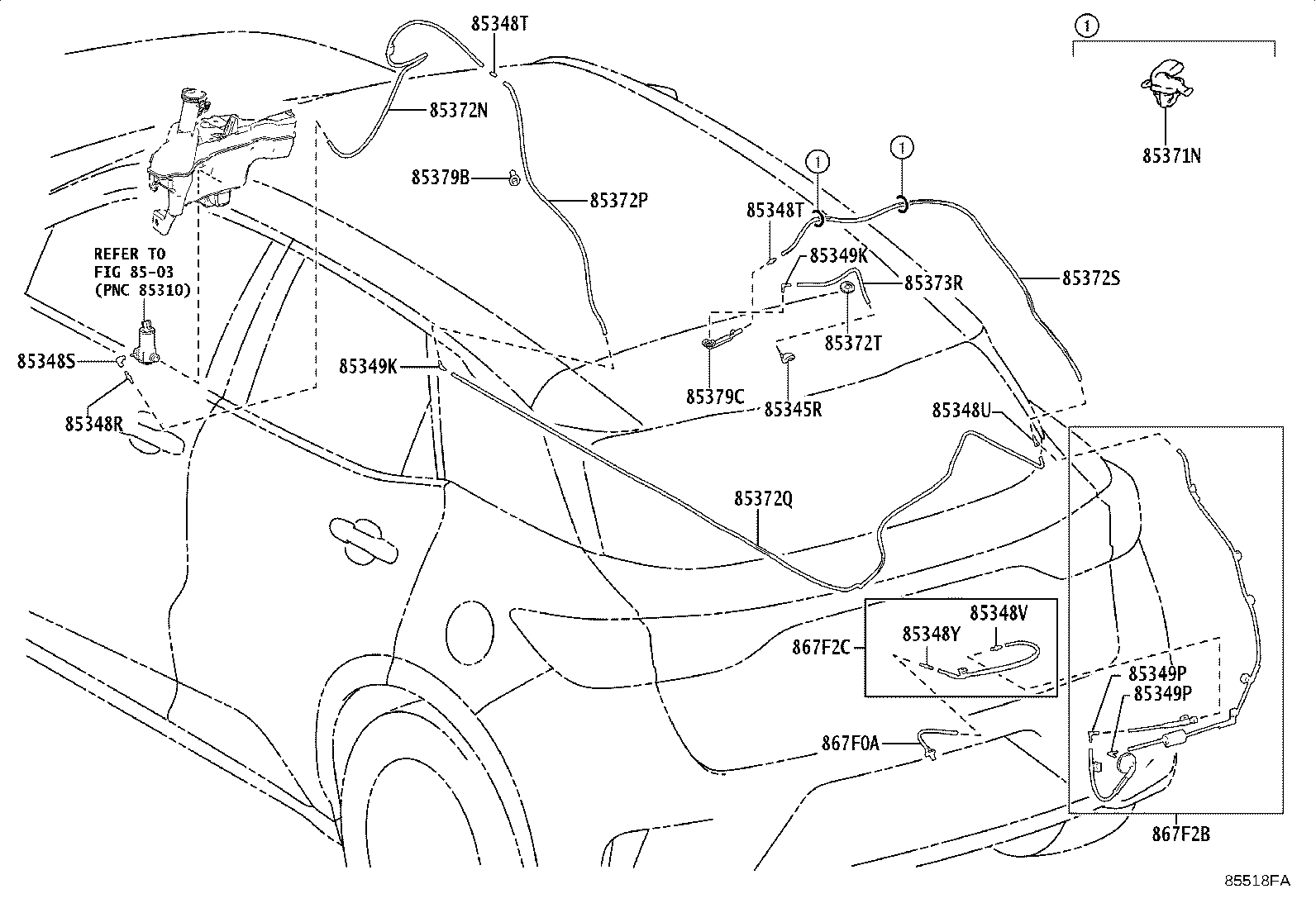

21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85371N | Clamp, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372T | Grommet, Washer |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85379B | Grommet, Washer, A |
| 85379C | Grommet, Rear Washer Hose NO.1 |
| 867F0A | Nozzle Assy, Camera Cleaner, NO.1 |
| 867F2B | Hose, Camera Cleaner, NO.1 |
| 867F2C | Hose, Camera Cleaner, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
